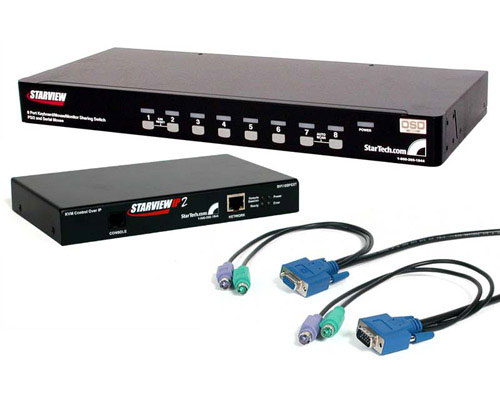

8 Port KVM Switch with Remote IP Access

Main Image

Product Name	8 Port KVM Switch with Remote IP Access
Product Number	SV831DIGB
UPC	065030805087
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1

Product Title (Long)	8 Port KVM Switch with Remote IP Access
Bullet 1	SV831D
Bullet 2	A dependable 3-year warranty provides peace of mind
Bullet 3	Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems
Bullet 4	Designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems
Bullet 5	Compatible with all notebook computers
Marketing Copy
Applications	Remote access to mission-critical corporate datacenter servers Application service providers (ASPs) BIOS level remote access to servers located at co-location facilities and ISPs Remote access for outsourced server/IT hardware management IP enable existing KVM switches Datacenter computer control Manufacturing line computer control PC test/burn-in computer control

General Specifications

SV831D:
: Ports: 8 PC ports (HDDB15 Male, 2x 6 Pin MiniDIN Female), 1 Console port (HDDB15 Female, 2x 6 Pin MiniDIN Female), 1 Feature Expansion port (8 pin MiniDIN Female)
: PC Selection methods: Keyboard hot-key, Front panel button
: Video Bandwidth: 200 MHz
: Maximum resolution: 1920 x 1440 pixels
: Enclosure: Metal, rackmount brackets included
: Dimensions: W17.3 x D7.06 x H1.75" (440 x 179 x 44 mm)
: Power: 9V DC 600mA - Adapter included
: Certifications: FCC Part 15 Class A, CE Mark, VCCI
SV1105IPEXT:
: Login Security: MD5 and DAA encryption protocols
: Web Interface Security: SSL2, SSL3 and TLS1.0 protocols
: Traffic Encryption: 128-bit encrypted using RC-4 based encryption algorithms and 1024-bit keys
: Maximum Supported Resolution: 1280x1024 pixels at 60Hz
: Supported Operating Systems: Windows NT, 95, 98, 2000, ME, XP, MS-DOS, CPM, Linux, FreeBSD, UNIX and more
: Connectors: 1 x RJ45 10/100 Ethernet 1 x RJ11 Serial 2 x HD-DB15 VGA Video (In/Out) 2 x PS/2 Keyboard/Mouse (In/Out) USB (In)
: Dimensions: Length: 4.53" (11.5cm) Width: 7.8" (19.8cm) Height: .98" (2.5cm)
: Safety Approvals: FCC & CE
: Warranty: 2-year
Package Contents:
: SV831D
: SV1105IPEXT
: 2 CABLPS23N1THIN_2
: 2 CABLPS23N1THIN_4
: 3 CABLPS23N1THIN_6
: 3 CABLPS23N1THIN_10

Accessory Products	2630CABINET 2636CABINET 7230CABINET 7236CABINET CAB1019WALL CAB4236BK
Related Products	SV1105IPEXT SV831 SV831D SV831MEDIA SV831SUN
