SV831DUSBA
8-Port USB Console KVM Switch with Audio
Control up to eight USB or PS/2 computers with audio using only one keyboard, mouse and monitor
Main Image
Product Images
Product Images
BOM Image
Product Name 8-Port USB Console KVM Switch with Audio Product Number SV831DUSBA UPC 065030832526 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 8 Port USB VGA KVM Switch with Audio Product Title (Standard) StarTech.com 8 Port Rackmount USB VGA KVM Switch with Audio Product Title (Long) 8 Port Rackmount USB VGA KVM Switch with Audio Title Ingram (Part 1) 8 Port Rackmount USB VGA KVM Swi Title Ingram (Part 2) tch with Audio Website Product Headline Control up to eight USB or PS/2 computers with audio using only one keyboard, mouse and monitor Bullet 1 A dependable 3-year warranty provides peace of mind Bullet 2 Auto-scan function automatically selects computer sequentially Bullet 3 Cascade configuration expands system capability Bullet 4 Hotkey functions allow easy computer access Bullet 5 Identifies and selects computers by the names assigned Marketing Copy Applications - Co-location/ISP computer control
- Datacenter computer control
- Manufacturing line computer control
- PC test/burn-in computer control
- Server farms
- Security and DVR control
Website Search Keyword - 8 Port
- KVM
- Multiplatform
- StarView
- Audio
- USB Console
- Rack mount
Special Notes Package includes eight 6ft. green audio cables and eight 6ft. red microphone cables. Other lengths and options are available on the accessories page. Accessory Products - SVECON15
- SVECON25
- SVECON50
- SVECONUS6
- SVECONUS15
- SVECONUS10
- MU6MF
- SVECON6
- SVECON10
- MU12MF
- SV565UTPU
- SV565UTP
- SVSERIALAD
- SV125
- SVUSBVGA6
- SVUSBVGA10
Related Products - SV1631DUSB
- SV431DUSB
- SV831HD
- SV831DUSB

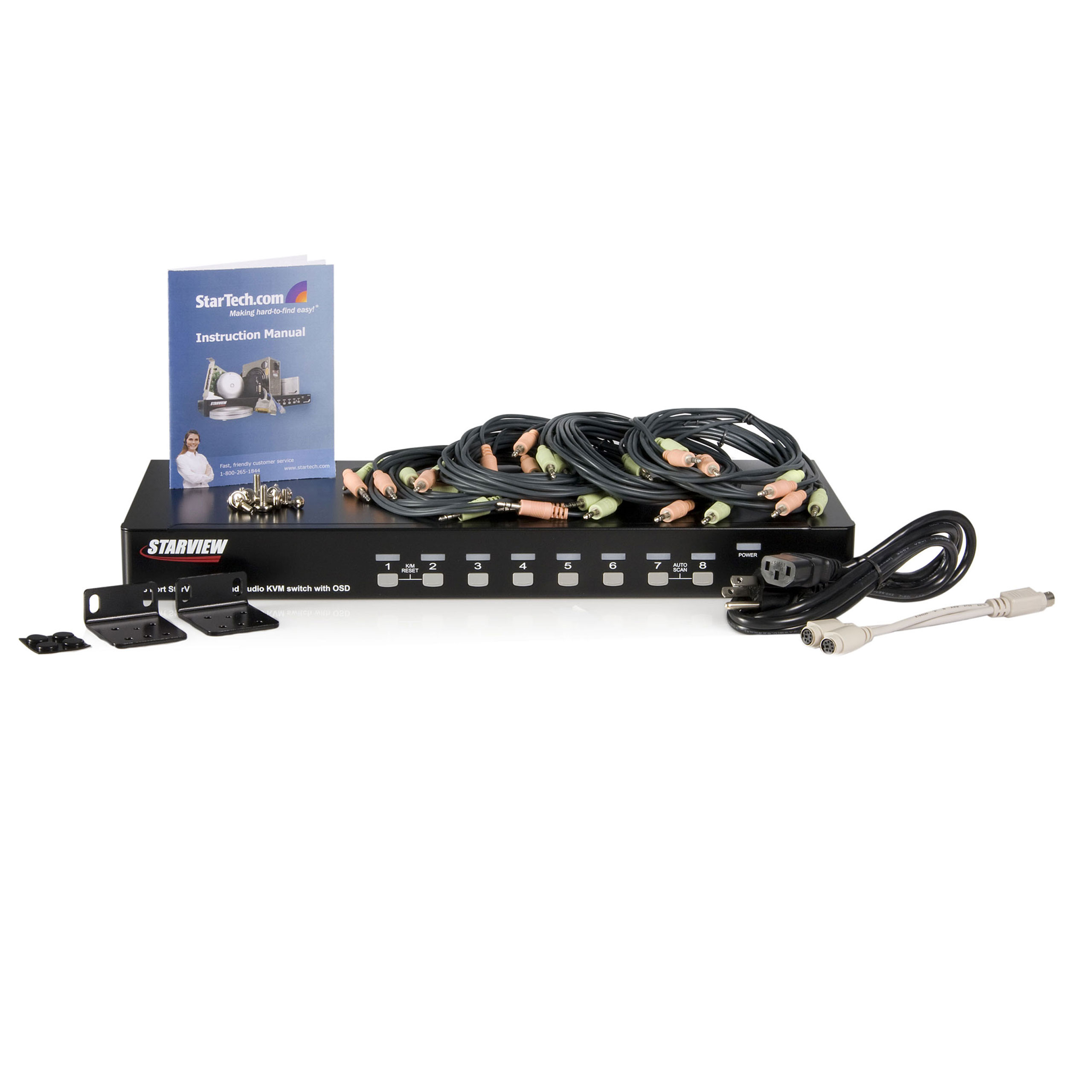

Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Aluminum Operating Temperature 5°C to 40°C (41°F to 104°F) Product Length (mm) 540 Product Width (mm) 180 Product Height (mm) 45 Product Weight (g) 2600 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Hot-Key Selection No KVM IP Control No Maximum Analog Resolutions 1920 x 1440 Maximum Number of Users 1 Audio Yes Cables Included No Cascadable Yes Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 614 Carton Height (mm) 276 Carton Quantity 4 Carton Weight Gross (g) 18560 Included in Package - 2 - Mounting Brackets
- 1 - Power Cord
- 1 - PS/2 keyboard and mouse Y cable
- 1 - StarView 8 Port KVM Switch
- 1 - User Manual
- 8 - 6ft. Green Audio Cables and Red Microphone Cables (16 in Total)
- 4 - Foot Pad

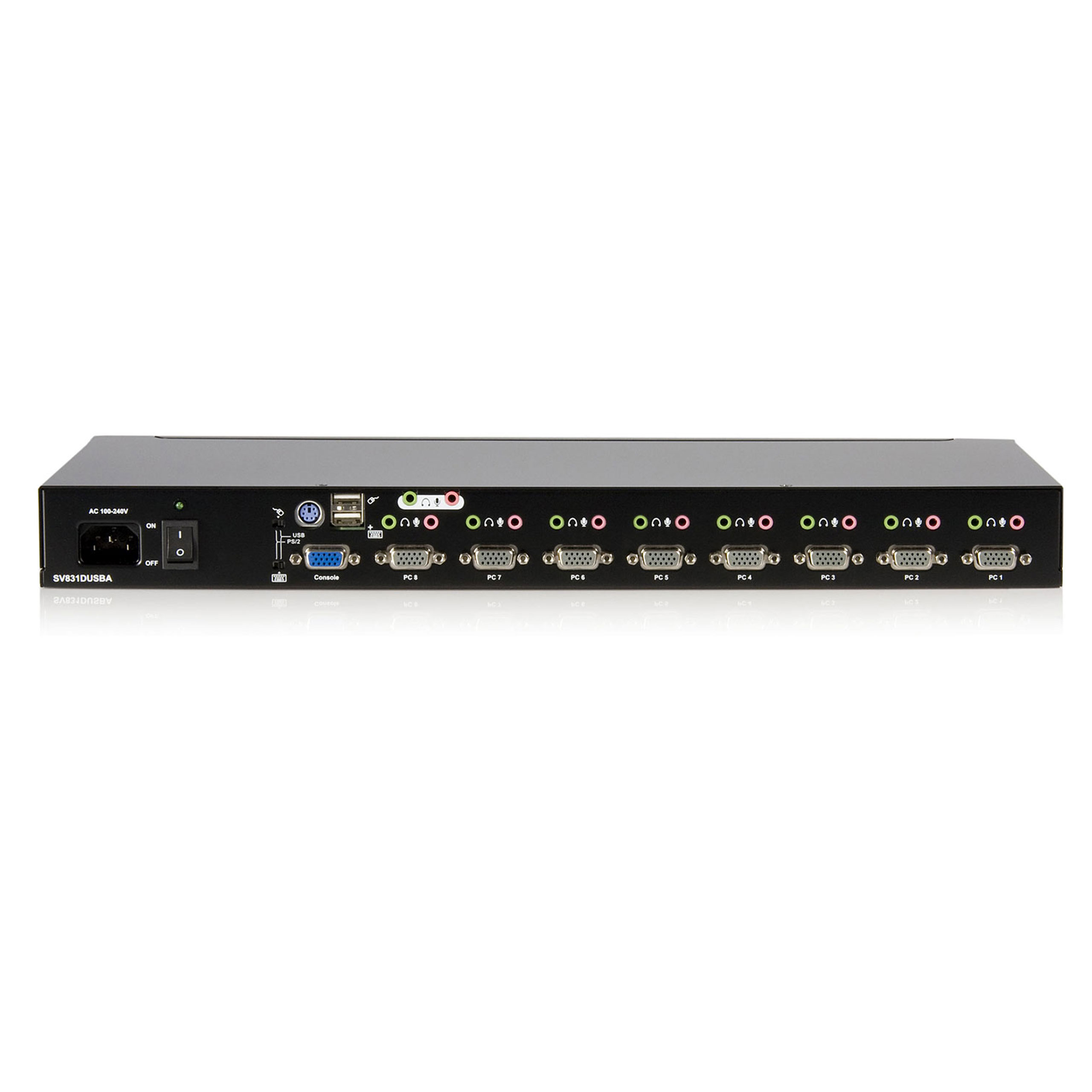

Package Depth (mm) 96 Package Height (mm) 276 Package Width (mm) 603 Package Weight (g) 4340 Packaging Description 8 Port 1U USB VGA KVM Switch w/ Audio Packaging Description India 8 Port 1U USB VGA KVM Switch w/ Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 8 Host Connector 2 3.5mm (3 Conductors, TRS) Host Connector 2 (Quantity) 16 en-US Content Approved Yes Product Manager Daryl Hunt
