SV831DUSBAU
8 Port Rackmount USB VGA KVM Switch w Audio Audio Cables In
Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor
Main Image
Product Images
Product Images
BOM Image
Product Name 8 Port Rackmount USB VGA KVM Switch w Audio Audio Cables In Product Number SV831DUSBAU UPC 065030837248 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Rackmount KVMs Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 VGA Rack-Mount KVMs Family Basic Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 8Pt USB KVM Switch Product Title (Short) 8 Port USB VGA KVM Switch with Audio Product Title (Standard) 8 Port Rackmount USB VGA KVM Switch w/ Audio, TAA Product Title (Long) 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included) - TAA Product Title (AMZ) 8 Port VGA KVM Switch - 1U Rack Mount - USB VGA KVM Switch with Audio - 1920 x 1440 , TAA @60hz - KVM Video Switch (SV831DUSBAU) Title Ingram (Part 1) 8 Port Rackmount USB VGA KVM Swi Title Ingram (Part 2) tch /w Audio Website Product Headline Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor Bullet 1 Auto-scan function automatically selects computer sequentially Bullet 2 Cascade configuration expands system capability Bullet 3 Supports Hotkey and front panel push-button switching Bullet 4 Identify and select computers by names assigned via the OSD menu Bullet 5 USB console interface Bullets (Compact) Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor - USB KVM switch - 8 port KVM switch - VGA KVM switch - Rackmount KVM Bullets (Consolidated) Control up to 8 computers - Rugged/Rack mountable - Supports Hotkey and front panel push button switching - Each PC can be password protected - USB console interface - Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768 - Supported 4:3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768 Marketing Copy Applications - Add single console administration to your Co-location/ISP facility saving you time and money
- Create a scalable, streamlined access solution in your Datacenter or Server Farm
- Perfect for manufacturing line computer control, simplifying access to multiple systems
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
- Access multiple Security and DVR control systems from one place
- Monitor multiple systems simultaneously in Software QA labs
Website Search Keyword - 8 Port
- KVM Audio
- KVM
- Multiplatform
- Rack mount
- StarView
- USB Console
- KVM Switch
- Rackmount Switch
- Rack KVM
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Package includes eight 6ft. green audio cables and eight 6ft. red microphone cables. Other lengths and options are available on the accessories page. Accessory Products - MU12MF
- MU6MF
- SV125
- SV565UTPU
- SVECONUS10
- SVECONUS15
- SVECONUS6
- SVSERIALAD
- SVUSBVGA6
- SVUSBVGA10
- SVA12M5NA
Related Products - SV1631DUSB
- SV431DUSB
- SV831DUSB
- SV831HD
- SV831DUSBA
Power Consumption (In Watts) 48 Power Source AC Adapter Included Color Black Humidity 80% RH Material Steel Operating Temperature 5°C to 40°C (41°F to 104°F) Primary Material Steel Product Length (mm) 180 Product Width (mm) 540 Product Height (mm) 45 Product Weight (g) 2600 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 1920 x 1440@60Hz (1920 x 1200@60Hz - Wide Screen) Maximum Number of Users 1 MTBF (hours) 150000 hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display) Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Cascadable Yes LED Indicators - 1 - Green - Power
- 8 - Green - Online PC
- 8 - Red - Selected PC

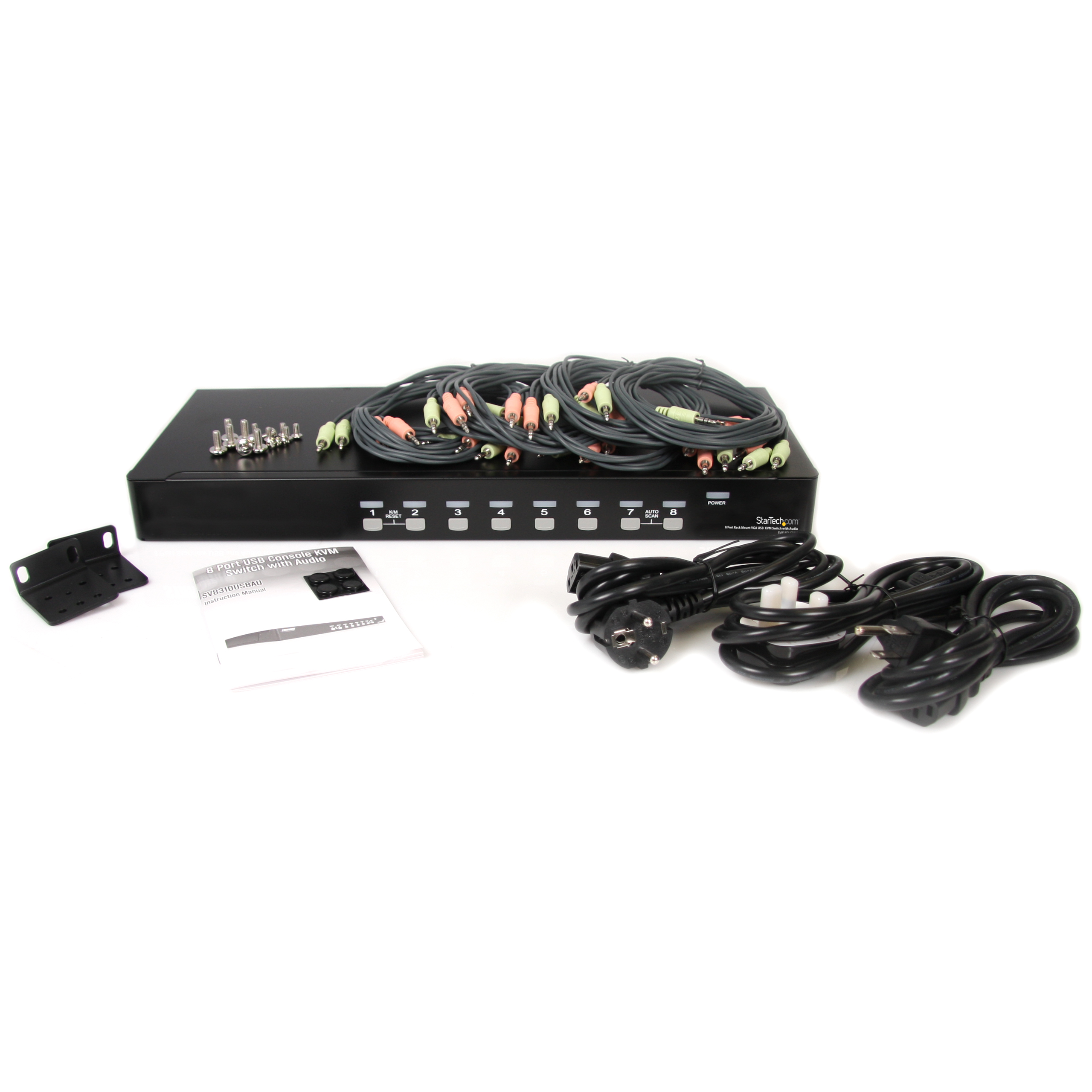

Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB U Height 1U Carton Depth (mm) 292 Carton Height (mm) 409 Carton Quantity 3 Carton Weight Gross (g) 14840 Included in Package - 8 - 6ft. Green Audio Cables and Red Microphone Cables (16 in Total)
- 4 - Foot Pad
- 2 - Mounting Brackets
- 3 - 6 ft. Power Cords (NA, EU, UK)
- 1 - KVM Switch
- 1 - User Manual
Package Depth (mm) 598 Package Height (mm) 123 Package Width (mm) 263 Package Quantity 1 Package Weight (g) 4538 Packaging Description 8 Port VGA USB 1U Rack KVM Switch w/ Audio Packaging Description India 8 Port VGA USB 1U Rack KVM Switch w/ Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 8 Host Connector 2 3.5mm (3 Conductors, TRS) Host Connector 2 (Quantity) 16 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,MX,NL,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
