SV831DUSBGB

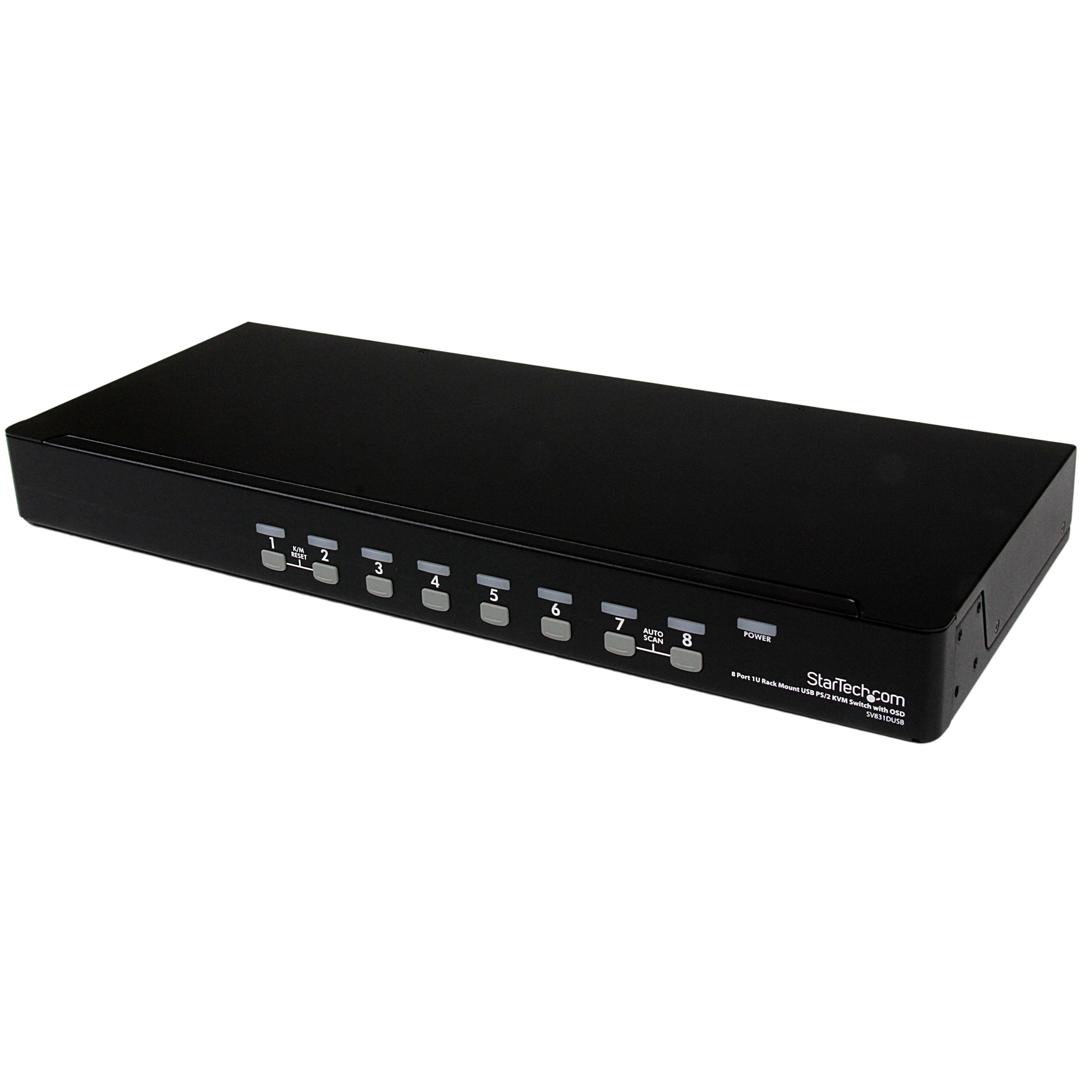

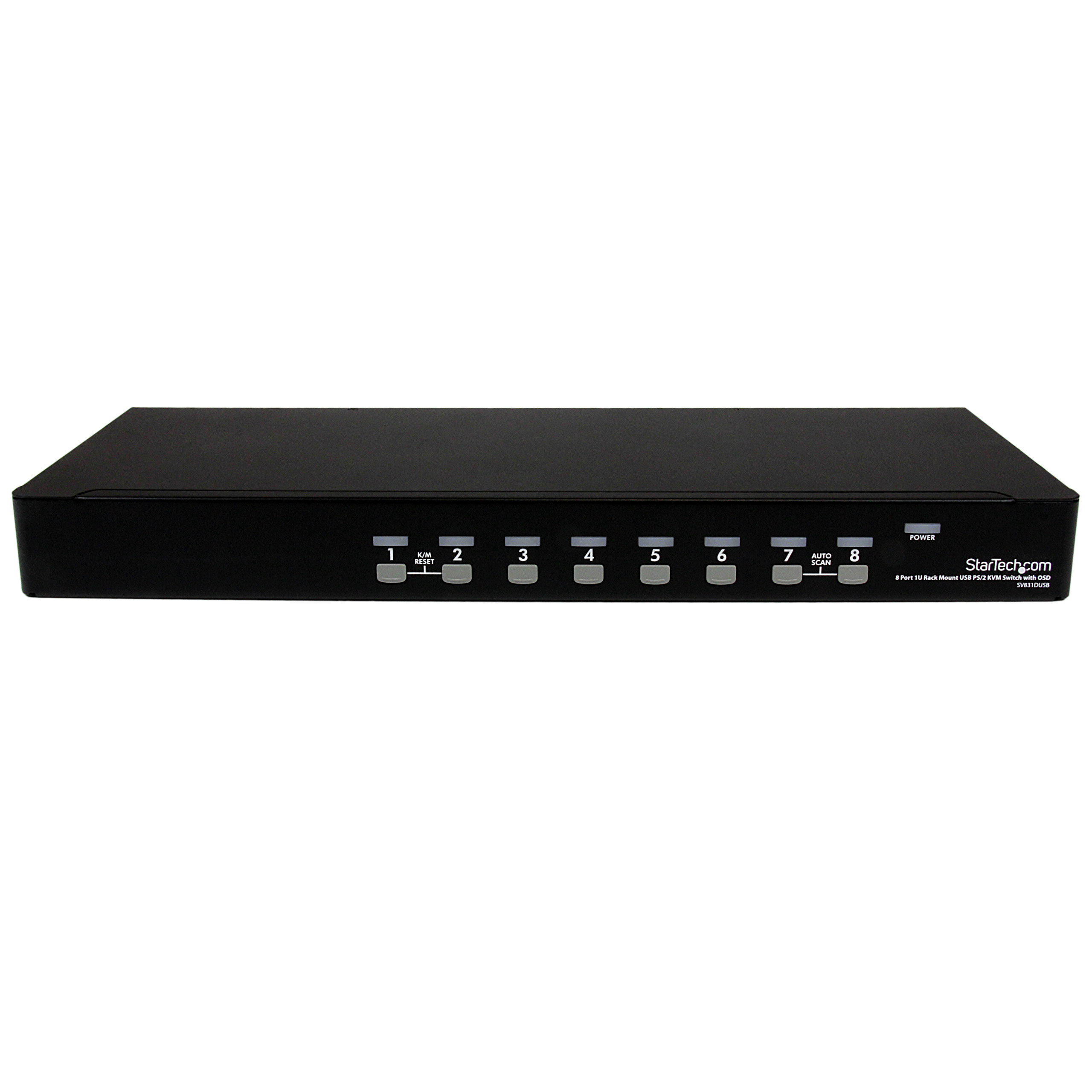

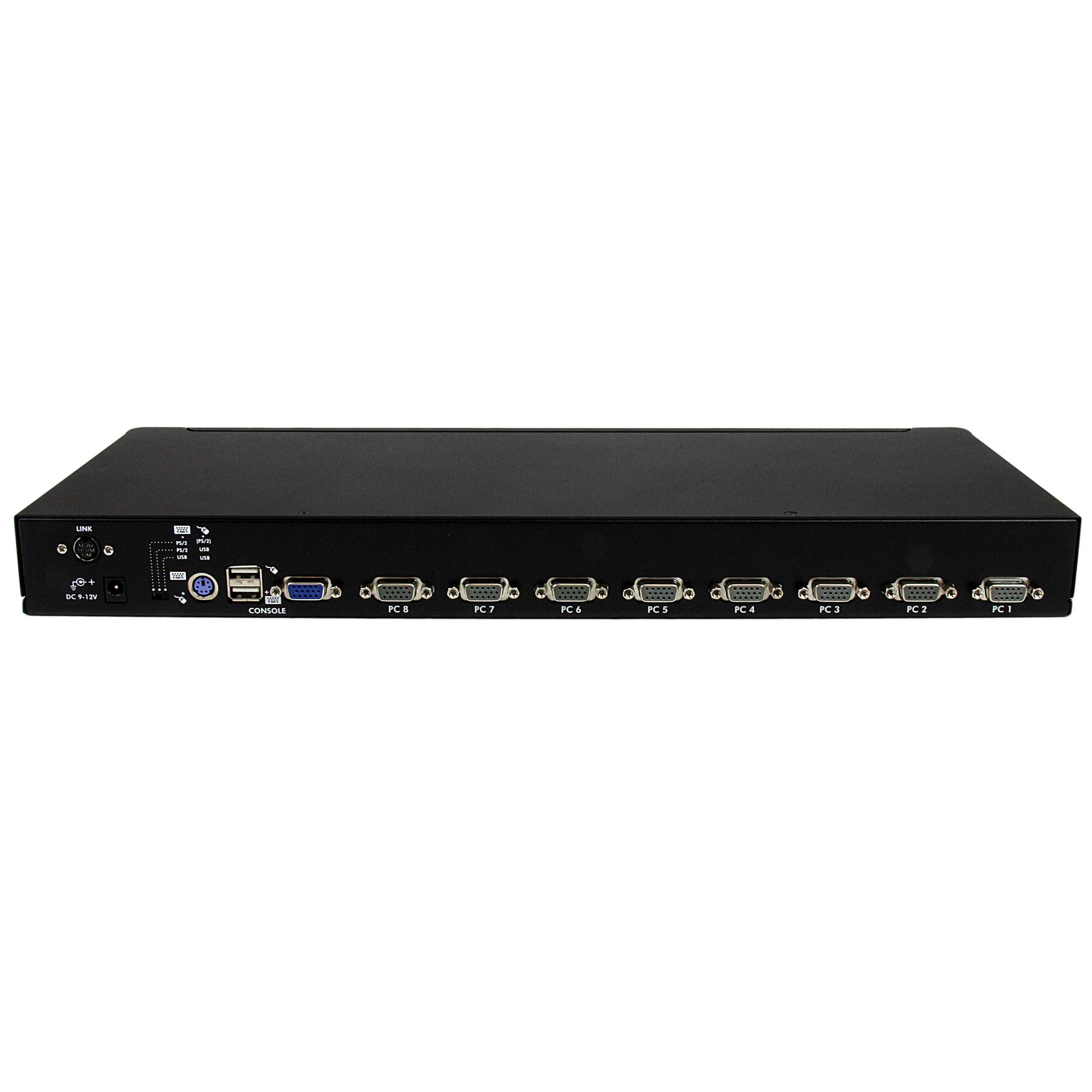

8 Port 1U Rackmount USB PS 2 KVM Switch with OSD
Control up to 8 USB or PS/2-connected computers from one keyboard, mouse and monitor
Main Image
Product Images
Product Images
BOM Image
Product Name 8 Port 1U Rackmount USB PS 2 KVM Switch with OSD Product Number SV831DUSBGB UPC 065030823975 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Rackmount KVMs Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 VGA Rack-Mount KVMs Family Basic Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 8 Port 1U Rackmount USB PS/2 KVM Switch Product Title (Standard) 8 Port 1U Rackmount USB PS/2 KVM Switch with OSD, TAA Product Title (Long) 8 Port 1U Rackmount USB PS/2 KVM Switch with OSD - TAA Title Ingram (Part 1) 8 Port 1U Rackmount USB PS/2 KVM Title Ingram (Part 2) Switch with OSD Website Product Headline Control up to 8 USB or PS/2-connected computers from one keyboard, mouse and monitor Bullet 1 Connect USB and PS/2 based computer systems Bullet 2 OS independent – No software or drivers required Bullet 3 Auto-scan function cycles through computers sequentially Bullet 4 Cascade configuration expands system capability Bullet 5 Front panel push-buttons and Hot-key functions allow for easy switching Marketing Copy Applications - Add single console administration to your Co-location/ISP facility saving you time and money
- Create a scalable, streamlined access solution in your Datacenter or Server Farm
- Perfect for manufacturing line computer control, simplifying access to multiple systems
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
Website Search Keyword - 8 Port
- KVM
- Multiplatform
- StarView
- SV831DUSB
- USB Console
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - SV125
- SV565UTP
- SVECON10
- SVECON6
- SVECONUS10
- SVECONUS6
- SVSERIALAD
- USB2PS2
- SVECONUS15
- SVUSBVGA6
- SVUSBVGA10
- SVA9M2NEUA
Related Products - SV1631DUSB
- SV431DUSB
- SV831HD
- SV831HDGB
- SV831DUTPGB

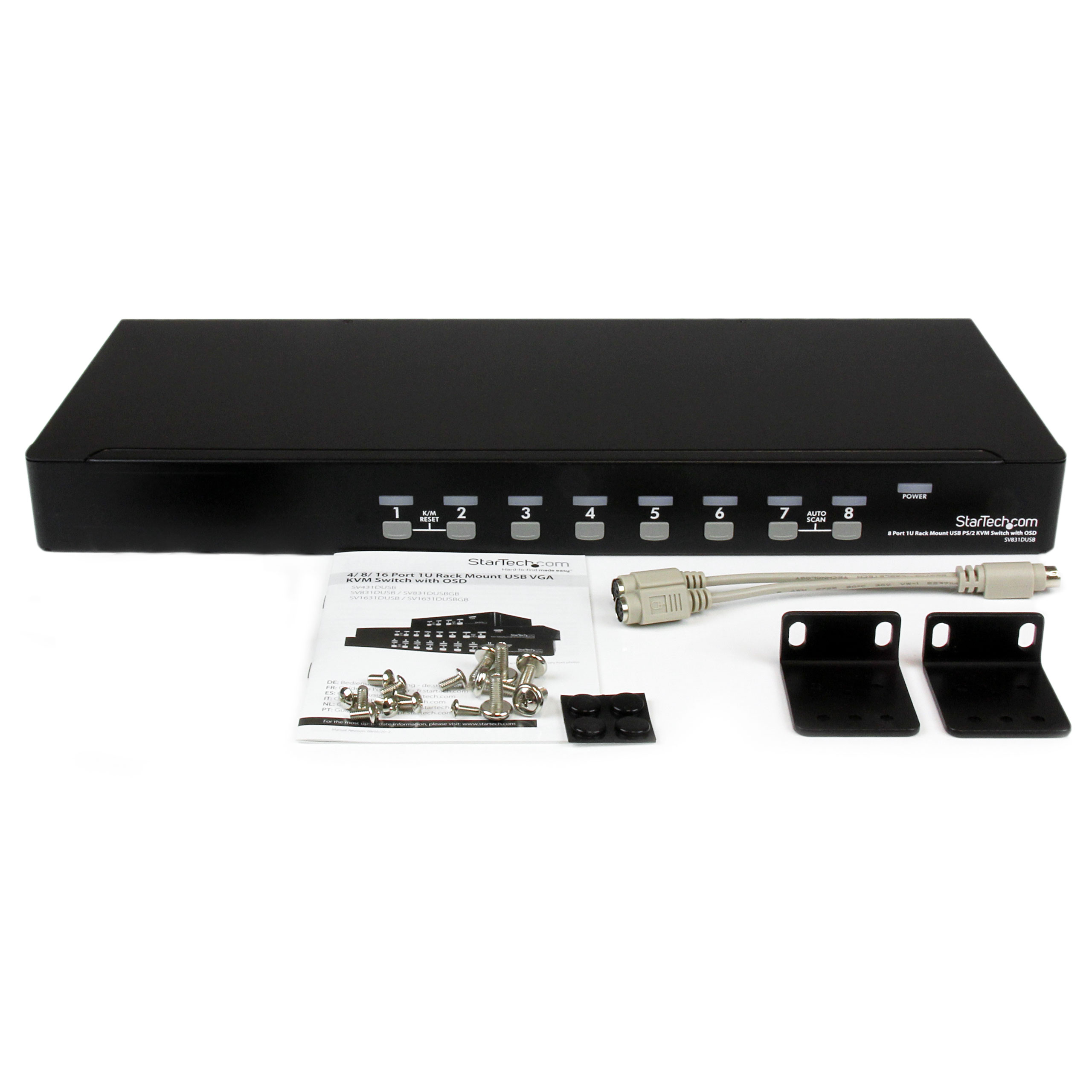

Input Current 0.2 A Input Voltage 100 - 240 AC Output Current 0.6 A Output Voltage (V) 9V DC Power Consumption (In Watts) 5.4 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Operating Temperature 5°C to 40°C (41°F to 104°F) Primary Material Steel Product Length (mm) 438 Product Width (mm) 180 Product Height (mm) 45 Product Weight (g) 2900 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 1920 x 1440 @60hz Maximum Number of Users 1 MTBF (hours) 150000 hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display) Audio No Cables Included No Cascadable Yes Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 650 Carton Height (mm) 290 Carton Quantity 3 Carton Weight Gross (g) 15000 Included in Package - 1 - Mounting Brackets(16/8 port only)
- 1 - UK Power Adapter
- 1 - PS/2 keyboard and mouse Y cable (16/8 port only)
- 1 - StarView 8 Port KVM Switch
- 1 - User Manual
- 1 - EU Power Adapter
- 4 - foot pads
Package Depth (mm) 88 Package Height (mm) 264 Package Width (mm) 595 Package Quantity 1 Package Weight (g) 3450 Packaging Description 8 Port 1U Rack Mount USB PS/2 KVM Switch Packaging Description India 8 Port 1U Rack Mount USB PS/2 KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
