Main Image
SV831DUSBUK
8 port USB KVM Switch with OSD with cables
A complete 8-port USB KVM kit, including all necessary cables and accessories
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 8 port USB KVM Switch with OSD with cables Product Number SV831DUSBUK UPC 065030843331 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Rackmount KVMs Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 VGA Rack-Mount KVMs Family Basic Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 8 Port 1U Rackmount USB KVM Switch Kit Product Title (Standard) 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables, TAA Product Title (Long) 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables - TAA Product Title (AMZ) 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables - Rack mount KVM - VGA KVM Switch - 8 Port KVM Switch , TAA (SV831DUSBUK) Title Ingram (Part 1) 8 Port 1U Rackmount USB KVM Swit Title Ingram (Part 2) ch Kit with OSD and Cables Website Product Headline A complete 8-port USB KVM kit, including all necessary cables and accessories Bullet 1 Auto-scan function automatically switches between connected PCs sequentially Bullet 2 Cascade configuration expands system capability Bullet 3 Hotkey functions allow easy computer access Bullet 4 Identifies and selects computers by the names assigned Bullet 5 OSD security option allows selected KVM ports to be password-protected from unauthorized use Bullets (Compact) A complete 8-port USB KVM kit, including all necessary cables and accessories - USB KVM switch - 8 port KVM switch - VGA KVM switch - Rackmount KVM Bullets (Consolidated) A complete 8-port USB KVM kit, including all necessary cables and accessories - Works with VGA enabled computers - Supports high definition 1080p with resolutions up to 1920x1440 at 60 Hz - USB KVM switch/8 port KVM switch/VGA KVM switch/Rack mount KVM - For simple setup the USB and VGA KVM cables to connect all 8 ports to servers and PCs are included in the box - Rugged rack mountable metal chassis allows for versatility and durability in almost any environment Marketing Copy Applications - Central control for multiple systems in a Datacenter
- Effectively manage your server farm from a single console with cascaded units
- Great for PC test/burn-in computer control, avoiding the cost of buying additional peripherals
- Manufacturing line computer control and management
- Useful in Software QA labs where testing is being done across multiple platforms
Website Search Keyword - 8 port
- Bundle
- Kit
- KVM
- KVM package
- KVM Switch
- Multiplatform
- Rack KVM
- Rackmount switch
- StarView
- SV831DUSB
- USB Console
- with cables
- B022-U08
- B042-008
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - SVUSBVGA6
- SVUSBVGA10
- USB3SEXT1MBK
- SVECONUS10
- SVECONUS15
- SV565UTPU
- SV565UTPUL
- SV565UTPUSA
- SVA12M2NEUA
- SVA12M5NA
Related Products - SV831DUSBU
- SV831DUSB
- SV831DUSBAU
- SV1631DUSBUK
- SV1631DUSBU
- SV1631DUSB
- SV231QDVIUA
- SV431DVIUAQV
- SV831DVIU
- SV1115IPEXT
- SV841HDIE
- SV1653DXI
Input Current 0.6A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 5°C to 40°C (41°F to 104°F) Primary Material Steel Product Length (mm) 438.000 Product Width (mm) 180.000 Product Height (mm) 45.000 Product Weight (g) 2222.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 1920 x 1440@60Hz (1920 x 1200@60Hz - Wide Screen) Maximum Number of Users 1 MTBF (hours) 150000 hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display) Wide Screen Supported Yes Audio No Cables Included Yes CAC Support No Cascadable Yes LED Indicators - 8 - Green - PC Online
- 1 - Green - Power
- 8 - Red - PC Selected

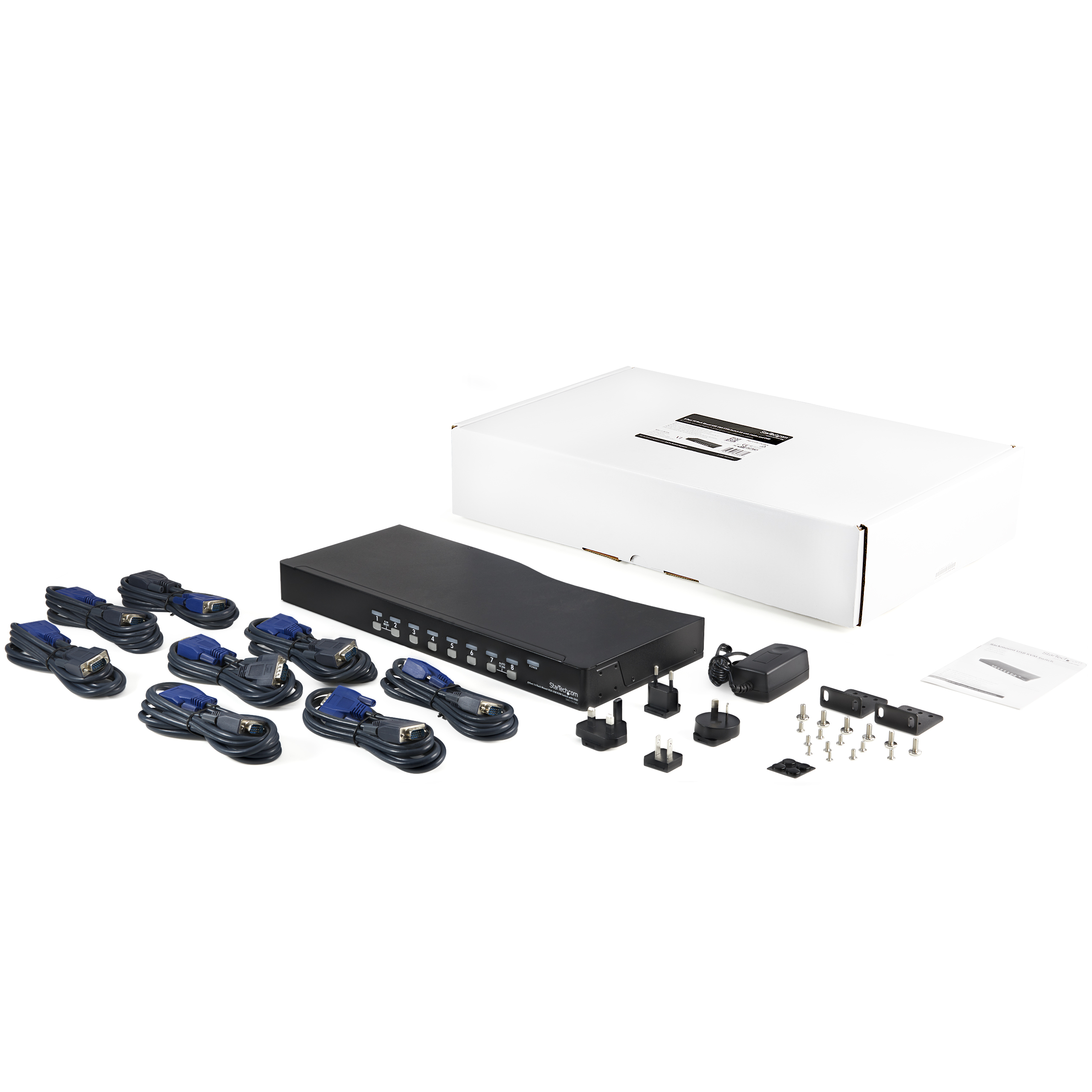

Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB U Height 1U Carton Depth (mm) 614 Carton Height (mm) 413 Carton Quantity 3 Carton Weight Gross (g) 14684 Included in Package - 1 - 8 Port USB KVM Switch
- 2 - Mounting Brackets
- 1 - Universal Power Adapter (NA/EU/UK/AU)
- 8 - 6ft 2-in-1 USB VGA KVM cables
- 1 - User Manual
Package Depth (mm) 594 Package Height (mm) 124 Package Width (mm) 265 Package Quantity 1 Package Weight (g) 4534 Packaging Description 8 Port 1U Rack Mount USB VGA KVM Switch Kit Packaging Description India 8 Port 1U Rack Mount USB VGA KVM Switch Kit Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
