Main Image
SV831DUTP
8-Port Cat 5 UTP KVM Switch
Control up to eight VGA USB or PS/2 computers, connected using Cat 5 UTP cabling
Main Image
Product Images
Product Images
Product Images
Product Name 8-Port Cat 5 UTP KVM Switch Product Number SV831DUTP UPC 065030827638 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 8 Port USB PS/2 Cat5 UTP KVM Switch Product Title (Standard) StarTech.com 8 Port 1U Rackmount USB PS/2 Cat5 UTP KVM Switch - CAT5 UTP KVM switch - KVM switch - PS/2 - CAT5 - 8 ports - 1 local user - 1U - rack-mountable - stackable Product Title (Long) 8 Port 1U Rackmount USB PS/2 Cat5 UTP KVM Switch Title Ingram (Part 1) 8 Port 1U Rackmount USB PS/2 Cat Title Ingram (Part 2) 5 UTP KVM Switch Website Product Headline Control up to eight VGA USB or PS/2 computers, connected using Cat 5 UTP cabling Bullet 1 A dependable 2-year warranty provides peace of mind Bullet 2 Auto-scan function automatically selects computer sequentially Bullet 3 Cascade configuration expands system capability up to 256 computers Bullet 4 Extends the distance between computers and switch - up to 130 feet for resolutions of 1280 x 1024 @ 60Hz, and 100 feet for a resolution of 1600 x 1200 @ 60Hz Bullet 5 Easy to use computer selection via port selection switches, Hotkeys and intuitive On Screen Display (OSD) menus Marketing Copy Applications - Enterprise network management
- Server Farms
- Manufacturing computer management
- PC test/burn-in rooms
Website Search Keyword - 8 Port
- CAT5
- SV831DUTP
- Multiplatform
- KVM
- StarView
- UTP
- Enterprise
System and Cable Requirements - CAT5, CAT5e or CAT6 cable - 1 for each computer connected to the SV831DUTP
- SV5PS2S - Connecting from SV831DUTP to PS/2 computers
- SV5USBS - Connecting from SV831DUTP to USB computers
Accessory Products - SV5USBS
- SV5PS2S
- SV125
- SV565UTP
- SC6MF
- SC10MF
- M45PATCH3BL
- M45PATCH6BL
- M45PATCH10BL
- SV5PS2S4P
- SV5PS2S8P
- SV5USBS4P
- SV5USBS8P
Related Products - SV1631DUTP
- SV1115IPEXT
- SV841HDIE
- RACKCONS1501
- RACKCONS1701
- RACKCONS1901

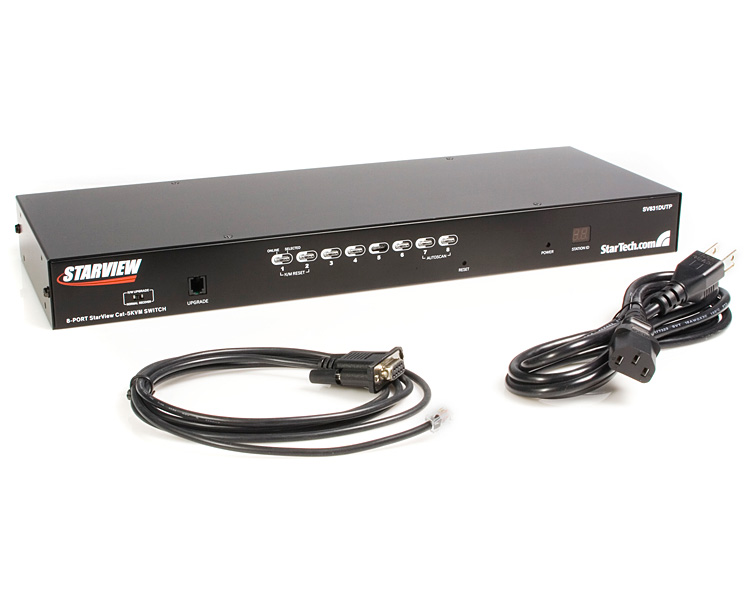

Equivalent Part Number in the UK SV831DUTPGB Output Current 1A Output Voltage (V) 9V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Material Steel Operating Temperature 0C~50C Product Length (mm) 437 Product Width (mm) 160.1 Product Height (mm) 44 Product Weight (g) 2700 Storage Temperature -20C~60C(0-80% Humidity) TAA Compliant No Hot-Key Selection No KVM IP Control No Maximum Analog Resolutions 1600x1200@ 60Hz(100 ft), 1280 x1024@ 60 Hz ( 130 ft) Maximum Cable Length (mm) 39635 Maximum Number of Users 1 Audio No Cables Included No Cascadable Yes Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 570 Carton Height (mm) 260 Carton Quantity 3 Carton Weight Gross (g) 10500 Included in Package - 1 - StarView 8 Port CAT5 KVM Switch
- 1 - Firmware upgrade cable
- 1 - Mounting brackets
- 1 - User manual
- 1 - Power adapter
Package Depth (mm) 123 Package Height (mm) 240 Package Width (mm) 550 Package Weight (g) 3100 Packaging Description 8 Port 1U VGA USB or PS/2 Cat5 UTP KVM Switch Packaging Description India 8 Port 1U VGA USB or PS/2 Cat5 UTP KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-25 Parallel / Serial Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 PS/2 Connector 4 (Quantity) 2 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 8 en-US Content Approved Yes Product Manager Daryl Hunt
