Main Image
SV831DUTPGB

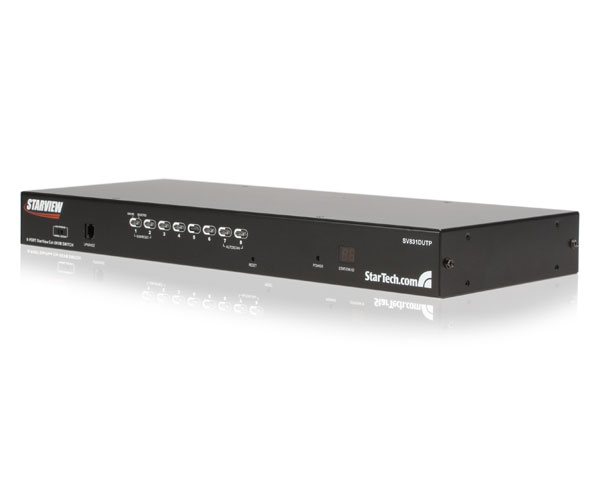

8 Port Cat 5 UTP KVM Switch
8 Port StarView CAT5 UTP KVM UPC:065030831840
Main Image
Product Images
Product Images
Product Images
Product Name 8 Port Cat 5 UTP KVM Switch Product Number SV831DUTPGB UPC 065030831857 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 8 Port Cat5 USB PS/2 KVM Switch Product Title (Standard) StarTech.com 8 Port Cat5 USB PS/2 KVM Switch Product Title (Long) 8 Port Cat5 USB PS/2 KVM Switch Title Ingram (Part 1) 8 Port Cat5 USB PS/2 KVM Switch Website Product Headline 8 Port StarView CAT5 UTP KVM UPC:065030831840 Bullet 1 A dependable 2-year warranty provides peace of mind Bullet 2 Auto-scan function automatically selects computer sequentially Bullet 3 Cascade configuration expands system capability up to 256 computers Bullet 4 Easy to use computer selection via port selection switches, Hotkeys and intuitive On Screen Display (OSD) menus Bullet 5 Extends the distance between computers and switch - up to 130 feet for resolutions of 1280 x 1024 @ 60Hz, and 100 feet for a resolution of 1600 x 1200 @ 60Hz Marketing Copy Applications - Enterprise network management
- Manufacturing computer management
- PC test/burn-in rooms
- Server Farms
Website Search Keyword - 8 Port
- CAT5
- Enterprise
- KVM
- Multiplatform
- StarView
- UTP
System and Cable Requirements - CAT5, CAT5e or CAT6 cable - 1 for each computer connected to the SV831DUTPGB
- SV5PS2S - Connecting from SV831DUTPGB to PS/2 computers
- SV5USBS - Connecting from SV831DUTPGB to USB computers
Accessory Products - M45PATCH10BL
- M45PATCH3BL
- M45PATCH6BL
- SC10MF
- SC6MF
- SV125
- SV565UTP
- SV5PS2S
- SV5PS2S4P
- SV5PS2S8P
- SV5USBS
- SV5USBS4P
- SV5USBS8P
Related Products - RACKCONS1501
- RACKCONS1701
- RACKCONS1901
- SV1115IPEXT
- SV1631DUTP
- SV841HDIE
- SV831HDGB
- SV831DUSBGB
Center Tip Polarity Positive Color Black Material Steel Operating Temperature 0C~50C Product Length (mm) 437 Product Width (mm) 160.1 Product Height (mm) 44 Product Weight (g) 2700 Storage Temperature -20C~60C(0-80% Humidity) TAA Compliant No Hot-Key Selection No KVM IP Control No Maximum Analog Resolutions 1600x1200@ 60Hz(100 ft), 1280 x1024@ 60 Hz ( 130 ft) Maximum Cable Length (mm) 39635 Maximum Number of Users 1 Audio No Cables Included No Cascadable Yes Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 570 Carton Height (mm) 260 Carton Quantity 1 Carton Weight Gross (g) 10530 Included in Package - 1 - Firmware upgrade cable
- 1 - Mounting brackets
- 1 - Power adapter

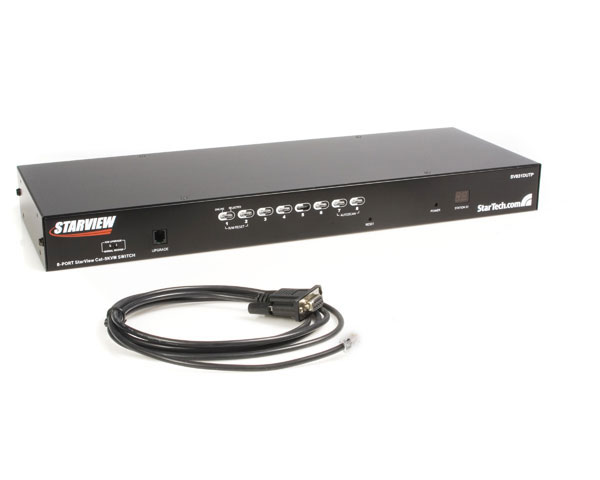

- 1 - StarView 8 Port CAT5 KVM Switch
- 1 - User manual
Package Depth (mm) 120 Package Height (mm) 240 Package Width (mm) 550 Package Weight (g) 3109.9945 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 8 en-US Content Approved Yes Product Manager Daryl Hunt
