SV831DVIU
8 Port DVI USB KVM Switch
Control up to 8 USB computers with DVI or HDMI® video, from one keyboard, mouse and monitor
Main Image
Product Images
Product Images
BOM Image
Product Name 8 Port DVI USB KVM Switch Product Number SV831DVIU UPC 065030842303 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Rackmount KVMs Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 DVI Rack-Mount KVMs Family no family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) . Product Title (Short) 8 Port 1U Rackmount DVI USB KVM Switch Product Title (Medium) . Product Title (Standard) 8 Port 1U Rackmount DVI USB KVM Switch, TAA Product Title (Long) 8 Port 1U Rackmount DVI USB KVM Switch - TAA Product Title (AMZ) 8 Port 1U Rackmount DVI USB KVM Switch - USB DVI KVM Switch - DVI KVM Switch - USB KVM Switch , TAA (SV831DVIU) Title Ingram (Part 1) 8 Port 1U Rackmount DVI USB KVM Title Ingram (Part 2) Switch Website Product Headline Control up to 8 USB computers with DVI or HDMI® video, from one keyboard, mouse and monitor Bullet 1 Auto-scan function cycles through computers sequentially Bullet 2 Connects to USB-based computer systems Bullet 3 Front panel push-buttons and Hot-key functions allow for easy switching Bullet 4 OS independent – No software or drivers required Bullet 5 USB console interfaces for keyboard and mouse Bullets (Compact) Control up to 8 USB computers with DVI or HDMI video, from one keyboard, mouse and monitor - USB KVM switch - DVI KVM Switch - USB DVI KVM Switch Bullets (Consolidated) Control up to 8 USB computers with DVI or HDMI video, from one keyboard, mouse and monitor - Compatible with USB and DVI computers such as desktops and servers - Supports DVI and HDMI resolutions up to 1920x1200 - Supports wireless and combo style mouse and keyboard sets for added flexibility - Rackmountable - USB KVM Switch/DVI KVM Switch/ - Single console administration of your co-location/ISP facility - Simplify access to multiple systems for manufacturing line computer control Marketing Copy Applications - Single console administration of your co-location/ISP facility
- Create a streamlined access solution in your Datacenter or Server Farm
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
- Perfect for manufacturing line computer control, simplifying access to multiple systems
- Ideal for software development and QA test labs with multiple PCs and platforms connected to one console
Website Search Keyword - Eight Port
- DVI KVM
- Multiplatform
- StarView
- USB Console
- Multi-platform
- Sun
- HDMI KVM
- High definition KVM
- HD KVM
- multi port dvi
- multi dvi
- digital kvm
- B043-DUA8-SL
- B024-DUA8-SL
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Supports SUN keyboard emulation Accessory Products - DVIDDMM1
- DVIDDMM3
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- HDDVIMM3
- HDMIDVIMM6
- HDMIDVIMM610PK
- HDMIDVIMM15
- USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15
Related Products - SV831DUSBUK
- SV831DUSBU
- SV831DUSB
- SV831DUSBAU
- SV1631DUSBUK
- SV1631DUSBU
- SV1631DUSB
- SV231QDVIUA
- SV431DVIUAQV
- SV1115IPEXT
- SV841HDIE
- SV1653DXI
Input Current 1.8A Input Voltage 100 - 240 AC Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 48 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80%RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 180 Product Width (mm) 438 Product Height (mm) 44 Product Weight (g) 2485 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support Yes - Single Link Hot-Key Selection Yes KVM IP Control No Maximum Cable Length (mm) 4572 Maximum Digital Resolutions 1920 x 1200 Maximum Number of Users 1 MTBF (hours) 134000 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio No Cables Included No CAC Support No Cascadable No Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type DVI Rack-Mountable Yes Supported Platforms USB U Height 1U Carton Depth (mm) 288 Carton Height (mm) 408 Carton Quantity 4 Carton Weight Gross (g) 16104 Included in Package - 3 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand

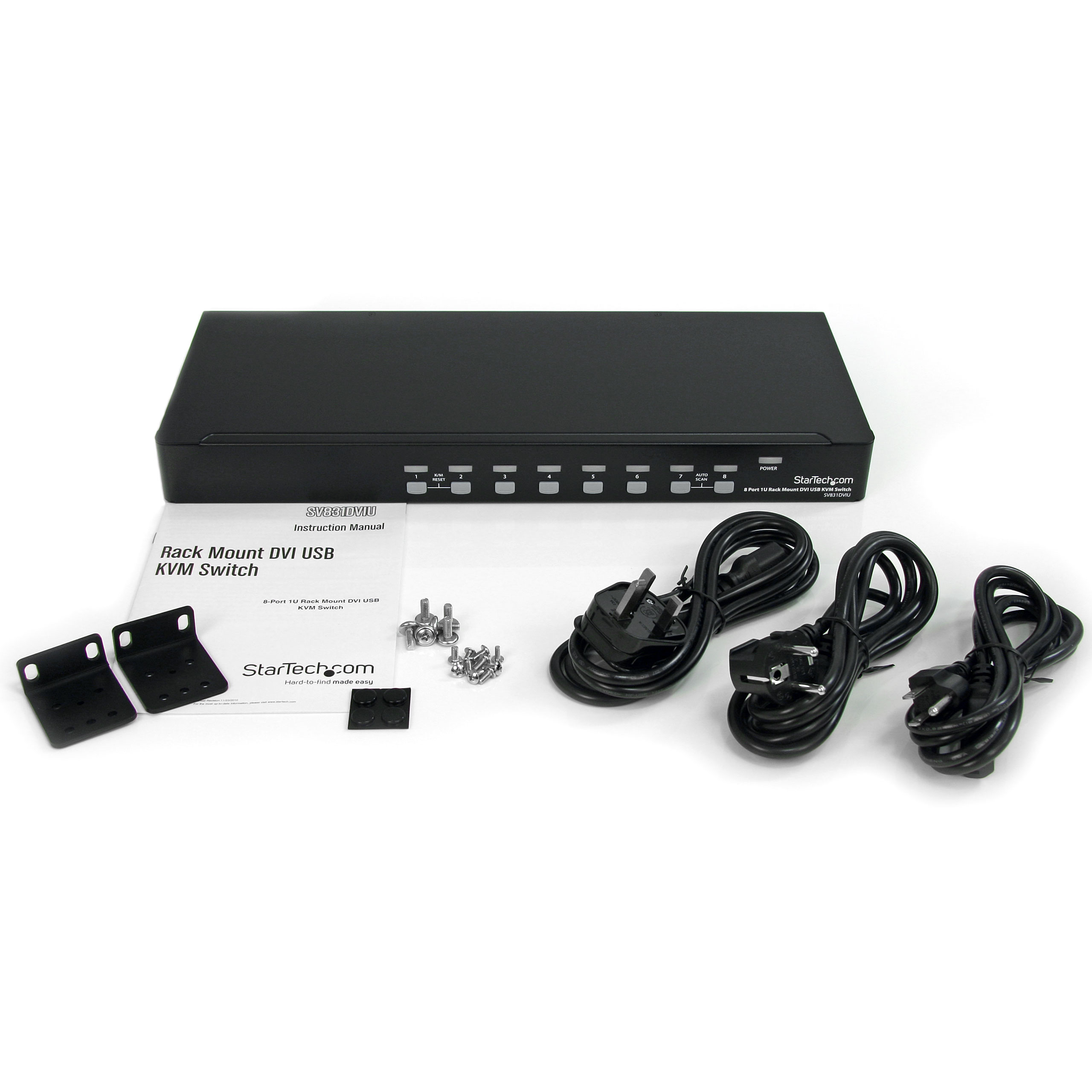

- 1 - 8 Port DVI USB KVM Switch
- 1 - User Manual
- 1 - Set Rack-mount brackets
Package Depth (mm) 595 Package Height (mm) 90 Package Width (mm) 265 Package Quantity 1 Package Weight (g) 3740 Packaging Description 8 Port 1U Rack Mount DVI USB KVM Switch Packaging Description India 8 Port 1U Rack Mount DVI USB KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 8 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,HK,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
