Main Image
SV831EU
Main Image

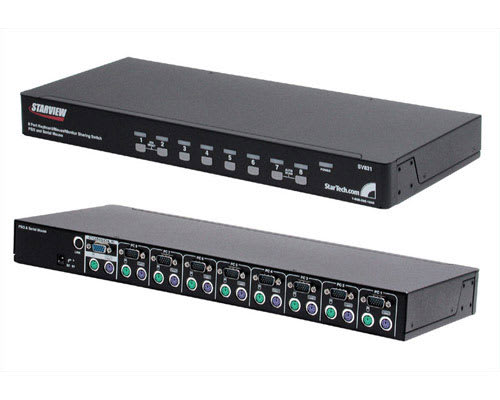

Product Name 8 Port 1U Star View KVM Switch Product Number SV831EU UPC 065030817097 Warranty 3 Years Taxonomy Product > Legacy Discontinued Product Title (Long) 8 Port 1U Star View KVM Switch Bullet 1 A dependable 3-year warranty provides peace of mind. Bullet 2 Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems. Bullet 3 Designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems. Bullet 4 Compatible with all notebook computers. Bullet 5 Compatible with Compaq Alpha systems. Marketing Copy A rock-solid, reliable KVM switch for corporate and industrial environments. StarTech.com’s SV831EU is the reliable solution for server room and industrial computer environments. The SV831EU is a reliable computer management tool that allows you to control multiple computers from one source, minimizing downtime by making connected computers and input devices available as soon as they are attached. An all-metal, 1U chassis provides SV831EU with a rugged and durable body that adds to the unit’s reliability and dependability. This reliability is continued in the 30 series of StarView KVM switches with a dependable 3-year limited warranty. Up to 8 additional SV831 StarView switches can be daisy-chained for expansion as needs grow to control a maximum of 64 PCs. The SV831EU is designed to work with Dell, Compaq, IBM and HP servers, all PC notebook computers, and Compaq Alpha systems, ensuring a smooth and reliable operating experience. Connected systems are quickly switched between using fast-switch buttons. Its low cost, super small size, and high 1920x1440 resolution display capability make this switch perfect for any application where reliability, compatibility, and faultless operation are important. Applications - Datacenter computer control
- Manufacturing computer control
- PC test/burn-in computer control
- Expandable design allows feature modules to be connected, adding new functions to the switch. ie. audio capabilites, dual monitor support, etc.
Accessory Products - GC56MF
- PS23N1THIN10
- PS23N1THIN15
- PS23N1THIN2
- PS23N1THIN25
- SVPS23N1_6
- SVPS23N1_10
- SVPS23N1_15
- SV565UTPEU
TAA Compliant No General Specifications - Ports: 8 PC ports (HDDB15 Male, 2x 6 Pin MiniDIN Female), 1 Console port (HDDB15 Female, 2x 6 Pin MiniDIN Female), 1 Feature Expansion port (8 pin MiniDIN Female)
- PC Selection methods: Keyboard hot-key, Front panel button
- Video Bandwidth: 200 MHz
- Maximum resolution: 1920 x 1440
- Enclosure: Metal, rackmount brackets included
- Dimensions: W17.3 x D7.06 x H1.75" (440 x 179 x 44 mm)
- Weight: 5.26 lb (2385 g)
- Power: 9V DC 600mA - Adapter
- Certifications: FCC Part 15 Class A, CE Mark, VCCI
Connector 1 S-Video (Y/C) Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 18 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 VGA Connector 4 (Quantity) 8 en-US Content Approved Yes
