SV831GB
Main Image

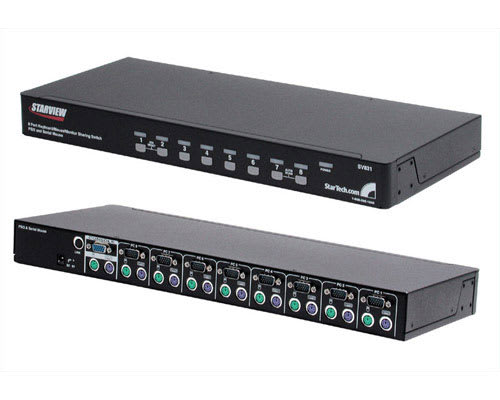

Product Name 8 Port 1U Star View KVM Switch Product Number SV831GB UPC 065030800464 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 8 Port 1U Rackmount PS/2 KVM Switch Product Title (Standard) StarTech.com KVM switch - PS/2 - 8 ports - 1 local user - Rackmount Product Title (Long) 8 Port 1U Rackmount PS/2 KVM Switch Title Ingram (Part 1) 8 Port 1U Rackmount PS/2 KVM Swi Title Ingram (Part 2) tch Bullet 1 A dependable 3-year warranty provides peace of mind. Bullet 2 Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems. Bullet 3 Designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems. Bullet 4 Compatible with all notebook computers. Bullet 5 Compatible with Compaq Alpha systems. Marketing Copy Applications - Datacenter computer control
- Manufacturing computer control
- PC test/burn-in computer control
- Expandable design allows feature modules to be connected, adding new functions to the switch. ie. audio capabilites, dual monitor support, etc.
Accessory Products - GC56MF
- PS23N1THIN10
- PS23N1THIN15
- PS23N1THIN2
- PS23N1THIN25
- PS23N1THIN4
- PS23N1THIN6
- SV1105IPEXT
- SV125
- SV560UTP
- SVPOWER
- SVPS23N1_10
- SVPS23N1_15
- SVPS23N1_25
- SVPS23N1_35
- SVPS23N1_50
- SVPS23N1_6
- SVSERIALAD
- SV431
- USB2PS2
Related Products - SV431
- SV431D
- SV831D
- SV831MEDIA
- SV832DS
Input Current 0.2A Input Voltage 110V-240V AC Output Current 0.6A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Material Steel Product Width (mm) 179 Product Weight (g) 2385 TAA Compliant No General Specifications - Ports: 8 PC ports (HDDB15 Male, 2x 6 Pin MiniDIN Female), 1 Console port (HDDB15 Female, 2x 6 Pin MiniDIN Female), 1 Feature Expansion port (8 pin MiniDIN Female)
- PC Selection methods: Keyboard hot-key, Front panel button
- Video Bandwidth: 200 MHz
- Maximum resolution: 1920 x 1440 pixels
- Enclosure: Metal, rackmount brackets included
- Dimensions: W17.3 x D7.06 x H1.75" (440 x 179 x 44 mm)
- Weight: 5.26 lb (2385 g)
- Power: 9V DC 600mA - Adapter included
- Certifications: FCC Part 15 Class A, CE Mark, VCCI
Maximum Analog Resolutions 1920 x 1440 Maximum Number of Users 1 U Height 1U Carton Depth (mm) 650 Carton Height (mm) 290 Carton Quantity 3 Carton Weight Gross (g) 13170 Package Depth (mm) 90 Package Height (mm) 264 Package Width (mm) 590 Package Weight (g) 3990 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 S-Video (Y/C) Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 18 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 VGA Connector 4 (Quantity) 8 en-US Content Approved Yes Product Manager Daryl Hunt
