Main Image
SV831SUNGB
Main Image

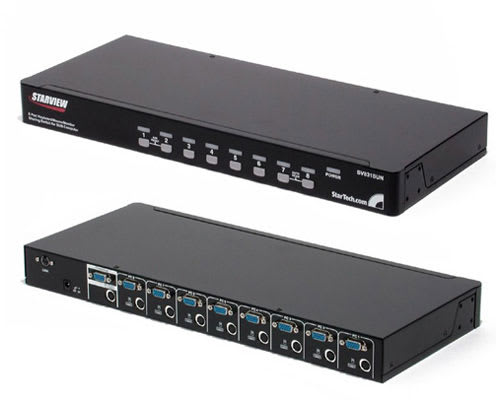

Product Name 8 Port SUN KVM/CPU Switch Product Number SV831SUNGB UPC 065030800242 Warranty 3 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Product Title (Long) 8 Port SUN KVM/CPU Switch Bullet 1 A dependable 3-year warranty provides peace of mind. Bullet 2 Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems. Bullet 3 "Keep-alive" feature draws power from machine keyboard ports if power is lost. Switch will continue to operate during power outage even it it loses power, retaining full control. Bullet 4 Rugged, all-metal 1U chassis for use in harsh environments and space-saving cabinets. Bullet 5 Compatible with all types and models of Sun servers and workstations. Marketing Copy StarTech.com’s SV831SUNGB is the reliable solution for server room and industrial computer environments. The SV831SUNGB is a reliable computer management tool that allows you to control multiple computers from one source, minimizing downtime by making connected computers and input devices available as soon as they are attached. An all-metal, 1U chassis provides SV831SUNGB with a rugged and durable body that adds to the unit’s reliability and dependability. This reliability is continued in the 30 series of StarView KVM switches with a dependable 3-year limited warranty. The SV831SUN, 8 Port StarView KVM switch, represents another addition of reliable KVM switches from StarTech.com. It allows one user to control up to 64 SUN server or workstation computers with one keyboard, mouse and monitor. The SV831SUN is designed to work with SUN computer systems, ensuring a smooth and reliable operating experience. Connected systems are quickly switched between using fast-switch buttons. Its low cost, super small size, and high 1920x1440 resolution display capability make this switch perfect for any application where reliability, compatibility, and faultless operation are important. Applications Each SUN computer is connected to the StarView by only two cables, one for the keyboard/mouse and the other for the VGA monitor. Accessory Products SUNKXT100MM Power Consumption (In Watts) 0.5W Color Black Material Steel Product Length (mm) 436 Product Width (mm) 180 Product Weight (g) 4800 TAA Compliant No General Specifications - Console Ports: x 1
- SUN Computer Ports: x 8
- Keyboard/Mouse Support: SUN type 4,5,6
- VGA Bandwidth and Resolution: 180 MHZ, 1920x1440
- VGA Connectors to SUN: HDB15 x 8
- Keyboard/Mouse Connectors to SUN: Mini DIN8 x 8
- Console Connector for VGA: HDB15 x 1
- Console Connector for Keyboard/Mouse: Mini DIN8 x 1
- Scan Interval: 3, 8, 15, 30 seconds
- Power Supply: DC 9V 500mA (Included)
- Dimensions: 1.7 x 17.1 x 7.0 (44 x 436 x 180mm)
- Weight: 10.6 lbs(4.8 kgs)
- Mounting Bracket: Rackmount bracket included
Maximum Analog Resolutions 1920 x 1440 Maximum Number of Users 1 U Height 1U Connector 1 S-Video (Y/C) Connector 1 (Quantity) 10 Connector 2 VGA Connector 2 (Quantity) 9 en-US Content Approved Yes
