SV832DSGB
Main Image

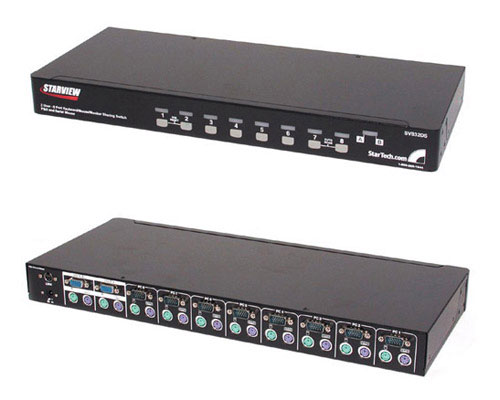

Product Name 2 Console Shared Access 8 Port Starview KVM Switch with OSD Product Number SV832DSGB UPC 065030800310 Warranty 3 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Product Title (Long) 2 Console Shared Access 8 Port Starview KVM Switch with OSD Bullet 1 2 user consoles provides 2 points of access to the computers connected to the KVM switch. KVM control is shared between the consoles on a first come-first served basis. Only user 1 console can be active at a time. Bullet 2 On-Screen PC selection menu for fast and easy computer access Bullet 3 Compact 1U rack height takes up very little cabinet or rack space Bullet 4 Completely hot-pluggable feature allows you to add or remove keyboards, mice, monitors and even cascaded switches without powering down the switch or an attached computer Bullet 5 A front panel pushbutton and status lights for each port make PC selection and switch status monitoring fast and easy Marketing Copy Applications - Datacenter computer control
- Cabinets with Rack-Mount Servers
- Manufacturing computer control
- PC test/burn-in computer control
- Expandable design allows feature modules to be connected, adding new functions to the switch. ie. audio capabilites, dual monitor support, etc.
Accessory Products - GC56MF
- SVSERIALAD
- SVPS23N1_10
- SVPS23N1_25
- SVPS23N1_50
- USB2PS2
- SVPOWER
- SVPS23N1_6
- SVPS23N1_15
- SVPS23N1_35
- SV560UTP
- PS23N1THIN2
- PS23N1THIN6
- PS23N1THIN15
- SV125
- SV110
- PS23N1THIN4
- PS23N1THIN10
- PS23N1THIN25
Related Products - SV831MEDIA
- SV831D
- SV1632DS
- SV831
Power Consumption (In Watts) 0.6W Power Source AC Adapter Included Color Black Material Steel Product Length (mm) 436 TAA Compliant No Maximum Analog Resolutions 1920 x 1440 Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display) U Height 1U Connector 1 S-Video (Y/C) Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 20 Connector 3 VGA Connector 3 (Quantity) 2 Connector 4 VGA Connector 4 (Quantity) 8 en-US Content Approved Yes
