SV841DUSBI

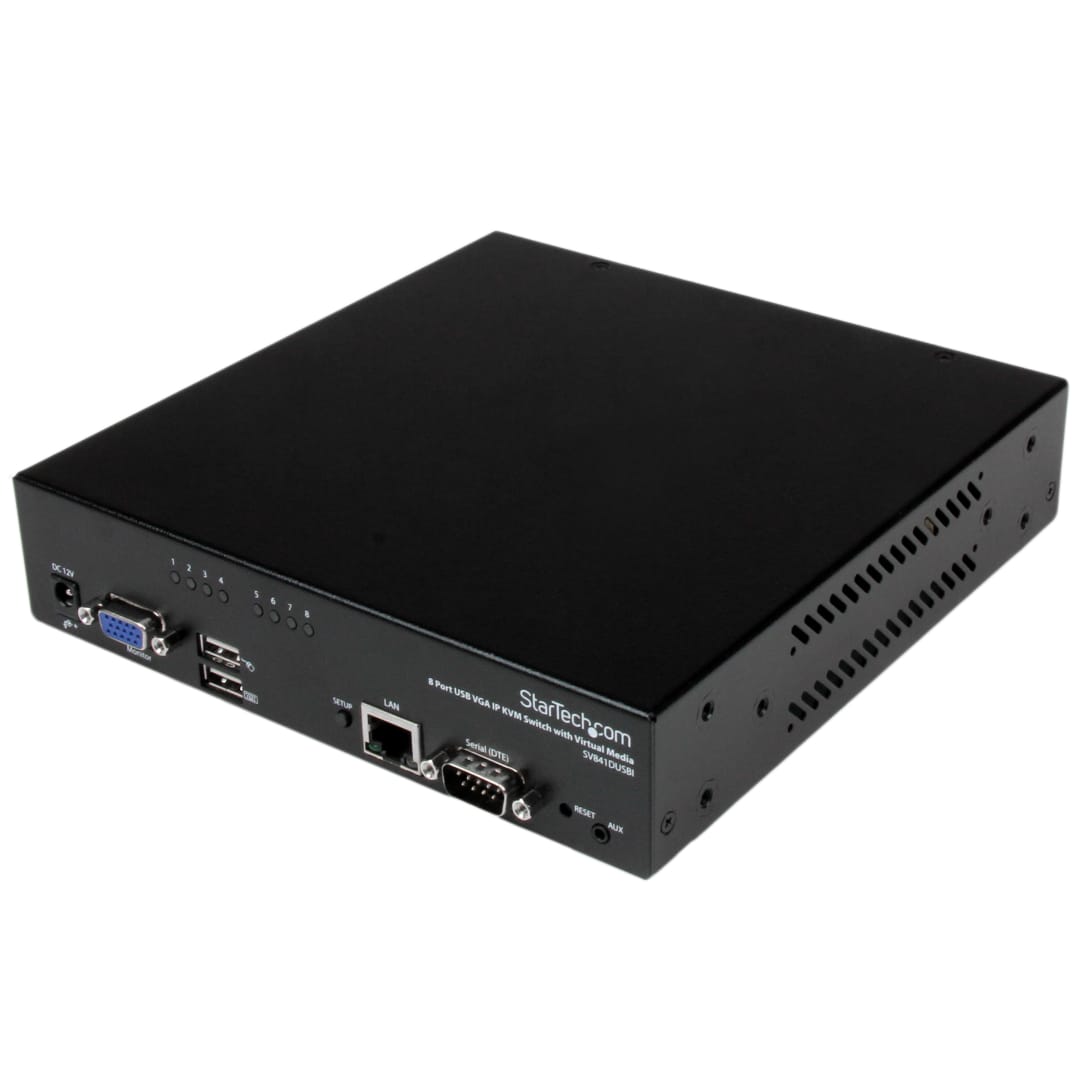

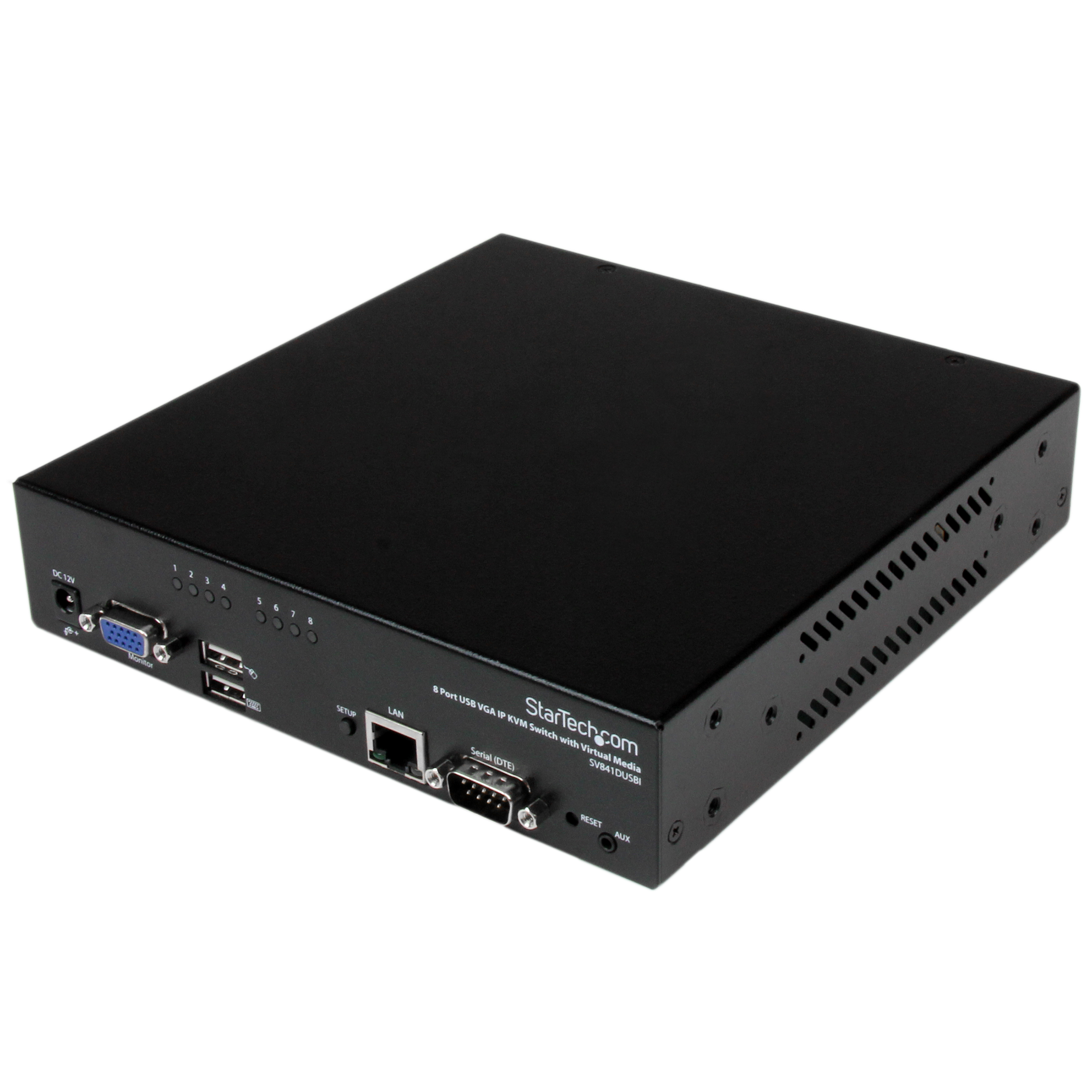

8 Port IP KVM Switch with Virtual Media
Control up to 8 USB VGA computers remotely over an IP network or the Internet
Main Image
Product Images
Product Images
BOM Image
Product Name 8 Port IP KVM Switch with Virtual Media Product Number SV841DUSBI UPC 065030845762 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Multiport IP KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 8 Port USB VGA KVM Switch Virtual Media Product Title (Standard) 8 Port USB VGA IP KVM Switch with Virtual Media Product Title (Long) 8 Port USB VGA IP KVM Switch with Virtual Media Product Title (AMZ) 8 Port USB VGA IP KVM Switch with Virtual Media (SV841DUSBI) Title Ingram (Part 1) 8 Port USB VGA IP KVM Switch wit Title Ingram (Part 2) h Virtual Media Website Product Headline Control up to 8 USB VGA computers remotely over an IP network or the Internet Bullet 1 Remote, BIOS level access to all connected systems Bullet 2 Works with PC, Mac®, Linux® and Sun® Computer Systems Bullet 3 Supports DHCP or manual IP configuration Bullet 4 User ID and SSL password secure web console Bullet 5 Supports 32 user accounts with SSL encrypted session and web communication data Marketing Copy Applications - BIOS level remote access to servers at co-location facilities and ISPs
- Create a scalable, streamlined access solution in your Datacenter or Server Farm
- Enables access to existing KVM switches via TCP/IP for single console remote administration
- Perfect for manufacturing line computer control, simplifying access to multiple systems
- Great for remote access to test PCs/burn-in computers saving the desk space required for multiple monitors, keyboards and mice
- Remote access for outsourced server / IT hardware management
- Remote access to mission-critical corporate datacenter servers, increasing uptime
Website Search Keyword - 8 Port
- IP
- KVM
- multiplatform
- USB
- File Transfer
- Virtual Media
- remote control
- remote install
- kvm over ip
- 8 port kvm
Special Notes Accessory Products - RPORT
- SVUSBVGA6
- SVUSBVGA10
- PCM815SHNA
- 841RACKBRKT
Related Products - SV1641HDIE
- SV841HDIE
- SV441HDIE
- SV1115IPEXT
- SV441DUSBI
- SV1107IPEXT
- SV1653DXI
- SV1654DX4I
- SV3253DXI
- SV3254DX4I
Input Current 1.8A Input Voltage 110V-240V AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 200 Product Width (mm) 187 Product Height (mm) 44 Product Weight (g) 1300 Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant No DVI Support No General Specifications - TLS version supported: 1.0
- Note: The SSL certificate provided is for testing and initialization purposes only and provides minimum strength security. We strongly recommend users upgrade the included certificate with individual SSL Certificate.

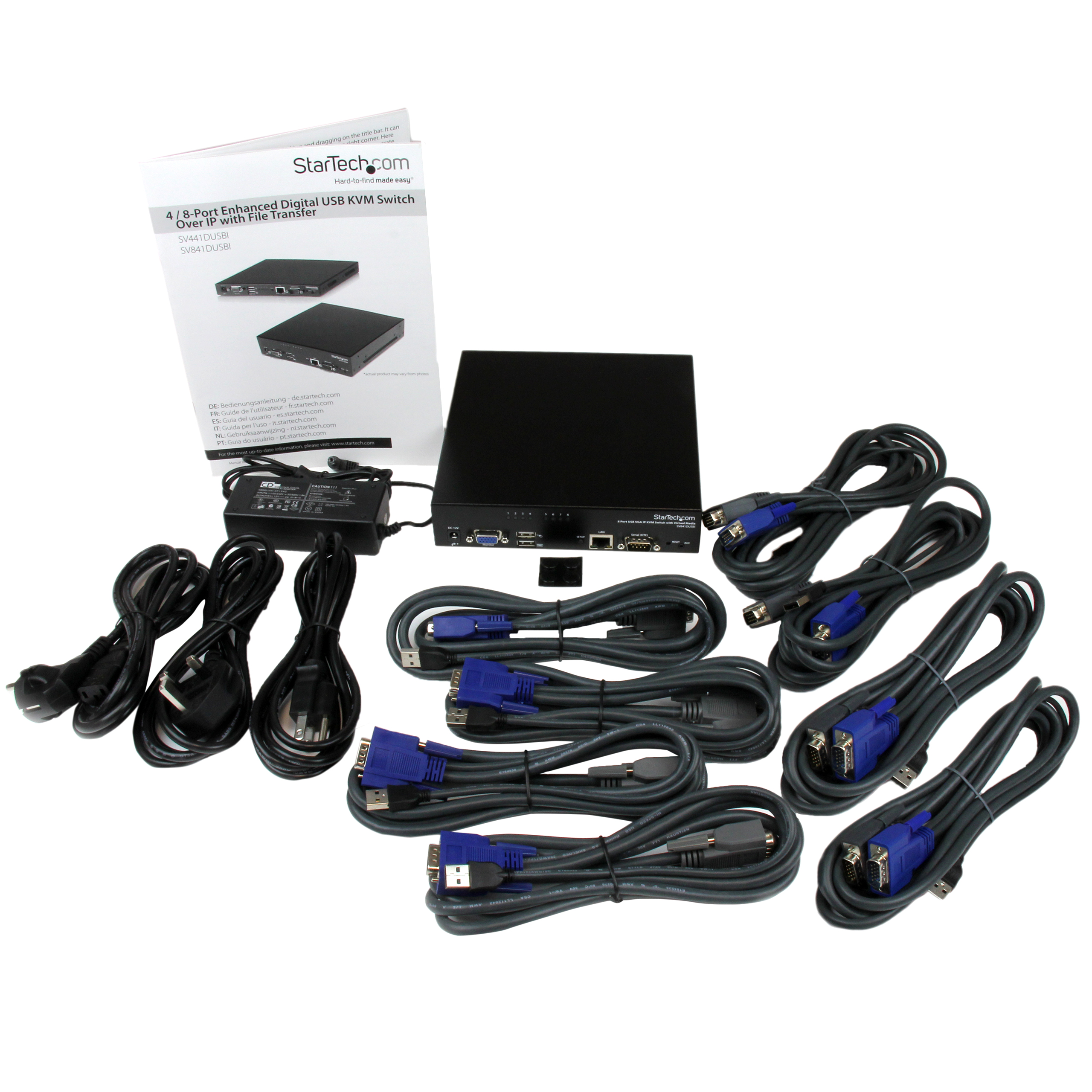

Hot-Key Selection Yes KVM IP Control Yes Maximum Analog Resolutions 1920 x 1440 pixels local console Maximum Digital Resolutions 1600 x 1200 @ 85Hz Maximum Number of Users 1 active user plus up to 4 viewing On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Supported Protocols SSH, SNMP, HTTP/HTTPS, VNC, VNCS, DHCP, RADIUS, SYSLOG, DNS Audio No Cables Included Yes Cascadable No Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Optional Supported Platforms USB Carton Depth (mm) 410 Carton Height (mm) 280 Carton Quantity 3 Carton Weight Gross (g) 19600 Included in Package - 3 - Universal Power Adapter (NA/UK/EU)
- 1 - 8 Port IP KVM Switch
- 4 - 6ft (1.8m) KVM Cables
- 1 - Instruction Manual
- 4 - 10ft (3m) KVM Cables
Package Depth (mm) 265 Package Height (mm) 90 Package Width (mm) 590 Package Quantity 1 Package Weight (g) 4600 Packaging Description 8 Port USB VGA IP KVM Switch Virtual Media Packaging Description India 8 Port USB VGA IP KVM Switch Virtual Media Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
