SV841HDI
Main Image

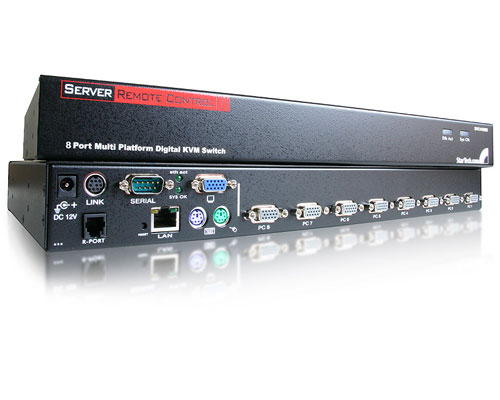

Product Name 8 Port Multi Platform Digital KVM Switch Product Number SV841HDI UPC 065030804264 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) 8 Port USB + PS/2 Digital KVM Switch with OSD Bullet 1 Supports PCs with USB or PS/2 keyboard and mouse connectors Bullet 2 Universal KVM switch controls up to 8 computers directly and up to 64 computers by cascading 8 additional KVM switches Bullet 3 Compact 1U rack height takes up very little cabinet or rack space Bullet 4 Hot-pluggable feature allow computers to be added or removed without shutting down Bullet 5 Works with PC, Mac, Linux, and Sun Systems Marketing Copy Applications - Datacenter computer control
- Manufacturing line computer control
- PC test/burn-in computer control
- Co-location/ISP computer control
- Server farms
- BIOS level remote access to servers at co-location facilities and ISPs
- Enables access to existing KVM switches via TCP/IP
- Remote access for outsourced server / IT hardware management
- Remote access to mission-critical corporate datacenter servers
Accessory Products - RPORT
- PCM815SHNA
Replacement Product SV841HDIE Input Current 0.6A Input Voltage 110V-240V AC Output Current 1.5A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Product Length (mm) 219 Product Width (mm) 406 Product Height (mm) 44.5 TAA Compliant No DVI Support No General Specifications KVM IP Control Yes Maximum Analog Resolutions 1920 x 1440 pixels local console Maximum Digital Resolutions 1600 x 1200 @ 85Hz Maximum Number of Users 1 active user plus up to 3 viewing Audio No Cascadable Yes Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 650 Carton Height (mm) 290 Carton Quantity 3 Carton Weight Gross (g) 14460 Package Depth (mm) 120 Package Height (mm) 360 Package Width (mm) 510 Package Weight (g) 4420 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 8 Connector 2 S-Video (Y/C) Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Daryl Hunt
