SV841HDIE
8-Port Enhanced KVM Switch over IP
Remotely manage and control up to 8 PCs, servers or KVMs at the BIOS level
Main Image
Product Images
Product Images
BOM Image
Product Name 8-Port Enhanced KVM Switch over IP Product Number SV841HDIE UPC 065030823197 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Multiport IP KVMs Family KVM-over-IP KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 8 Port USB PS/2 Digital IP KVM Switch Product Title (Standard) 8 Port Rackmount USB PS/2 Digital IP KVM Switch Product Title (Long) 8 Port Rackmount USB PS/2 Digital IP KVM Switch - TAA Product Title (AMZ) 8-Port IP KVM Switch - Rackmount USB PS/2 Digital IP KVM Switch - 1U (SV841HDIE) Title Ingram (Part 1) 8 Port Rackmount USB PS/2 Digita Title Ingram (Part 2) l IP KVM Switch Website Product Headline Remotely manage and control up to 8 PCs, servers or KVMs at the BIOS level Bullet 1 Supports PCs with USB or PS/2 keyboard and mouse connectors Bullet 2 Supports 16 bit video Bullet 3 Hardware Reset and Network Configuration button Bullet 4 Controls up to 8 computers directly and up to 64 computers by cascading 8 additional KVM switches Bullet 5 Compact 1U rack height takes up very little cabinet or rack space Bullets (Compact) Remotely manage and control up to 8 PCs, servers or KVMs at the BIOS level - IP KVM switch - KVM over IP - 8 port KVM switch - Remote KVM - IP KVM Bullets (Consolidated) Remotely manage and control up to 8 PCs - servers or KVMs at the BIOS level - IP KVM Switch - KVM over IP - 8 Port KVM Switch - Remote KVM - IP KVM Marketing Copy Applications - Create a scalable, streamlined access solution in your Datacenter or Server Farm
- Perfect for manufacturing line computer control, simplifying access to multiple systems
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice and allows remote access
- BIOS level remote access to servers at co-location facilities and ISPs
- Remote access to mission-critical corporate datacenter servers, increasing uptime
- Enables access to existing KVM switches via TCP/IP for single console remote administration
- Remote access for outsourced server / IT hardware management
Website Search Keyword - 8 Port
- KVM
- IP
- multiplatform
- SV841HDIE
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Accessory Products - SVECON10
- SVECON15
- SVECON2
- SVECON25
- SVECON4
- SVECON50
- SVECON6
- SVECONUS10
- SVECONUS15
- SVECONUS6
- RPORT
- PCM815SHNA
- SVUSBVGA6
- SVUSBVGA10
- SVA12M2NEUA
- SVA12M5NA
Related Products - SV1641HDIE
- SV441HDIE
Equivalent Part Number in the EU SV841HDIEGB Equivalent Part Number in the UK SV841HDIEGB Input Current 0.6A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity Relative Humidity 95% Material Steel Operating Temperature 0 to +50°C Primary Material Steel Product Length (mm) 404.000 Product Width (mm) 43.200 Product Height (mm) 224.500 Product Weight (g) 3950.000 Storage Temperature -20 to +60°C TAA Compliant Yes DVI Support No General Specifications - Note: The SSL certificate provided is for testing and initialization purposes only and provides minimum strength security. We strongly recommend users upgrade the included certificate with individual SSL Certificate.</i>
- TLS version supported: 1.0

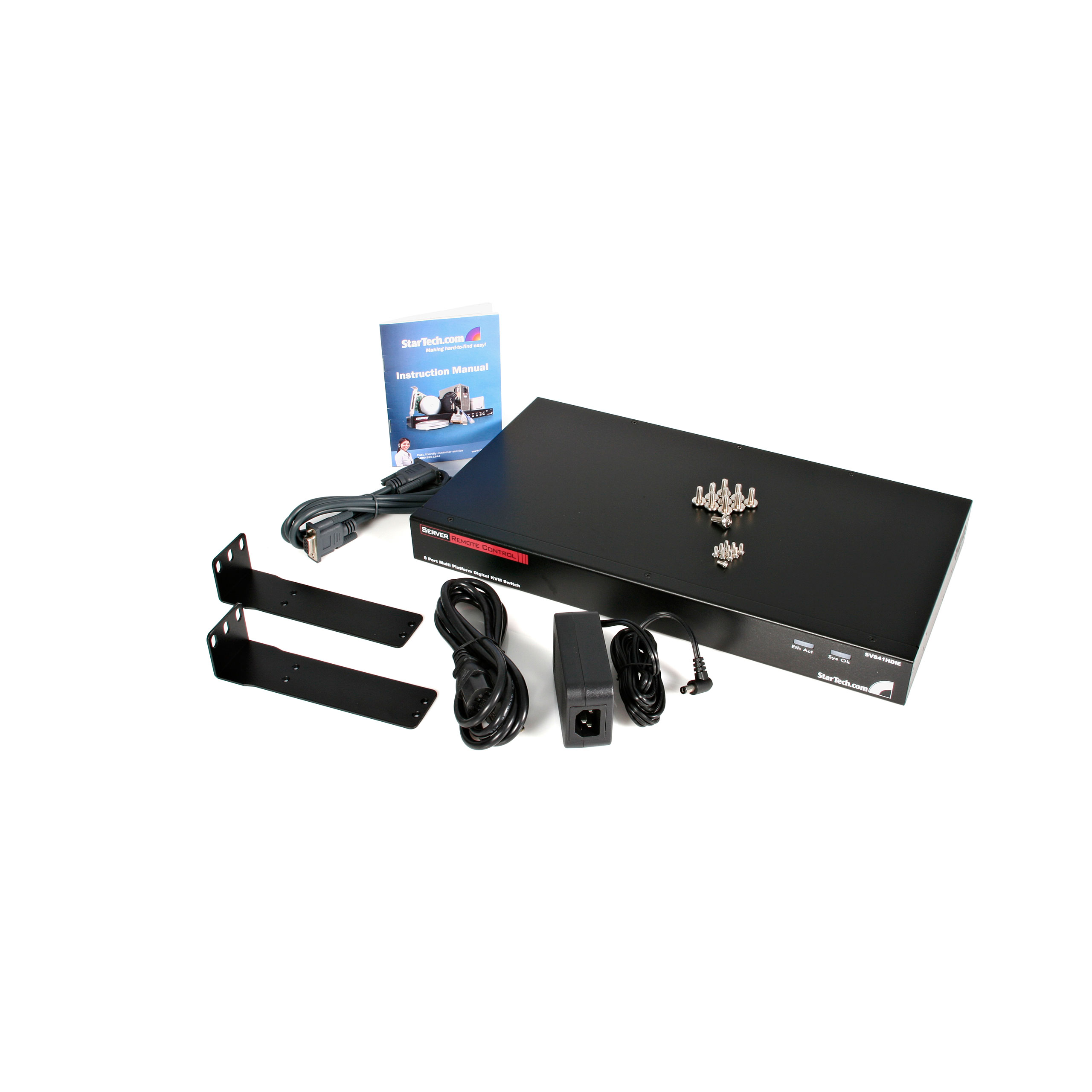

Hot-Key Selection Yes KVM IP Control Yes Maximum Analog Resolutions 1920 x 1440 pixels local console Maximum Digital Resolutions 1600 x 1200 @ 85Hz Maximum Number of Users 1 active user, up to 3 viewing MTBF (hours) 876,000 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Audio No Cables Included No Cascadable Yes Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 383 Carton Height (mm) 410 Carton Quantity 3 Carton Weight Gross (g) 15816 Included in Package - 1 - 8-port rackmount IP KVM switch
- 1 - universal power adapter (NA/EU/UK/AU)
- 1 - RS-232 cable
- 1 - mounting brackets
- 1 - screw kit
- 1 - instruction manual
Package Depth (mm) 362 Package Height (mm) 118 Package Width (mm) 511 Package Quantity 1 Package Weight (g) 4774 Packaging Description 8 Port Rackmount USB PS/2 IP KVM Switch Packaging Description India 8 Port Rackmount USB PS/2 IP KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,HK,JP,NZ,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
