SV841HDIEGB
8 port Enhanced KVM Switch over IP
Control up to 8 USB or PS/2 computers remotely over an IP network or the internet
Main Image
Product Images
Product Images
Product Images
Product Name 8 port Enhanced KVM Switch over IP Product Number SV841HDIEGB UPC 065030823234 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Multiport IP KVMs Family KVM-over-IP KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 8 Port USB PS/2 Digital IP KVM Switch Product Title (Standard) 8 Port Rackmount USB PS/2 Digital IP KVM Switch Product Title (Long) 8 Port Rackmount USB PS/2 Digital IP KVM Switch Product Title (AMZ) 8 Port Rackmount USB PS/2 Digital IP KVM Switch (SV841HDIEGB) Title Ingram (Part 1) 8 Port Rackmount USB PS/2 Digita Title Ingram (Part 2) l IP KVM Switch Website Product Headline Control up to 8 USB or PS/2 computers remotely over an IP network or the internet Bullet 1 Supports 32 user accounts with SSL encrypted session and web communication data Bullet 2 Auto Scan Mode lets you switch between computers for easy monitoring Bullet 3 Compact 1U rack height takes up very little cabinet or rack space Bullet 4 Each computer can be named via the OSD menu Bullet 5 Flash upgradeable Marketing Copy Applications - Create a scalable, streamlined access solution in your Datacenter or Server Farm
- Enables access to existing KVM switches via TCP/IP for single console remote administration
- BIOS level remote access to servers at co-location facilities and ISPs
- Perfect for manufacturing line computer control, simplifying access to multiple systems
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice and allows remote access
- Remote access for outsourced server / IT hardware management
- Remote access to mission-critical corporate datacenter servers, increasing uptime
Website Search Keyword - 8 Port
- IP
- KVM
- multiplatform
- SV841HDIE
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Accessory Products - RPORT
- SVUSBVGA6
- SVUSBVGA10
- SVA12M2NEUA
- SVA12M5NA
Related Products - SV441HDIEGB
- SV1641HDIEGB
Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Center Tip Polarity Positive Color Black Material Steel Primary Material Steel Product Length (mm) 0.000 Product Width (mm) 404.000 Product Depth (mm) 224.5 Product Height (mm) 43.200 Product Weight (g) 3950.000 TAA Compliant Yes DVI Support No Hot-Key Selection Yes KVM IP Control Yes Maximum Analog Resolutions 1920x1440 local console Maximum Digital Resolutions 1600x1200 @ 85Hz Maximum Number of Users 1 active user, up to 3 viewing MTBF (hours) 876,000 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Audio No Cables Included No Cascadable Yes Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 650 Carton Height (mm) 290 Carton Quantity 3 Carton Weight Gross (g) 13860 Included in Package - 1 - Mounting Brackets

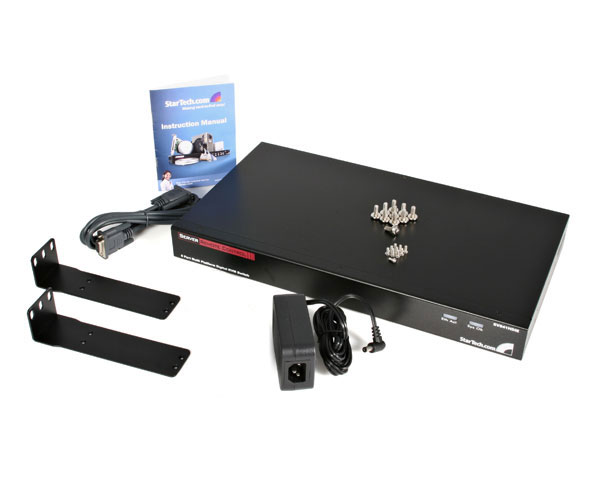

- 1 - Package of screws
- 1 - Power Adapter
- 1 - Power Cord
- 1 - RS-232 Cable
- 1 - SV841HDIE
Package Depth (mm) 118 Package Height (mm) 360 Package Width (mm) 505 Package Quantity 1 Package Weight (g) 4220 Packaging Description 8 Port VGA USB PS/2 Digital IP KVM Switch Packaging Description India 8 Port VGA USB PS/2 Digital IP KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 PS/2 Connector 3 (Quantity) 2 Connector 4 DB-9 Serial Connector 4 (Quantity) 1 Host Connector 1 VGA Host Connector 1 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
