SVID2USB2

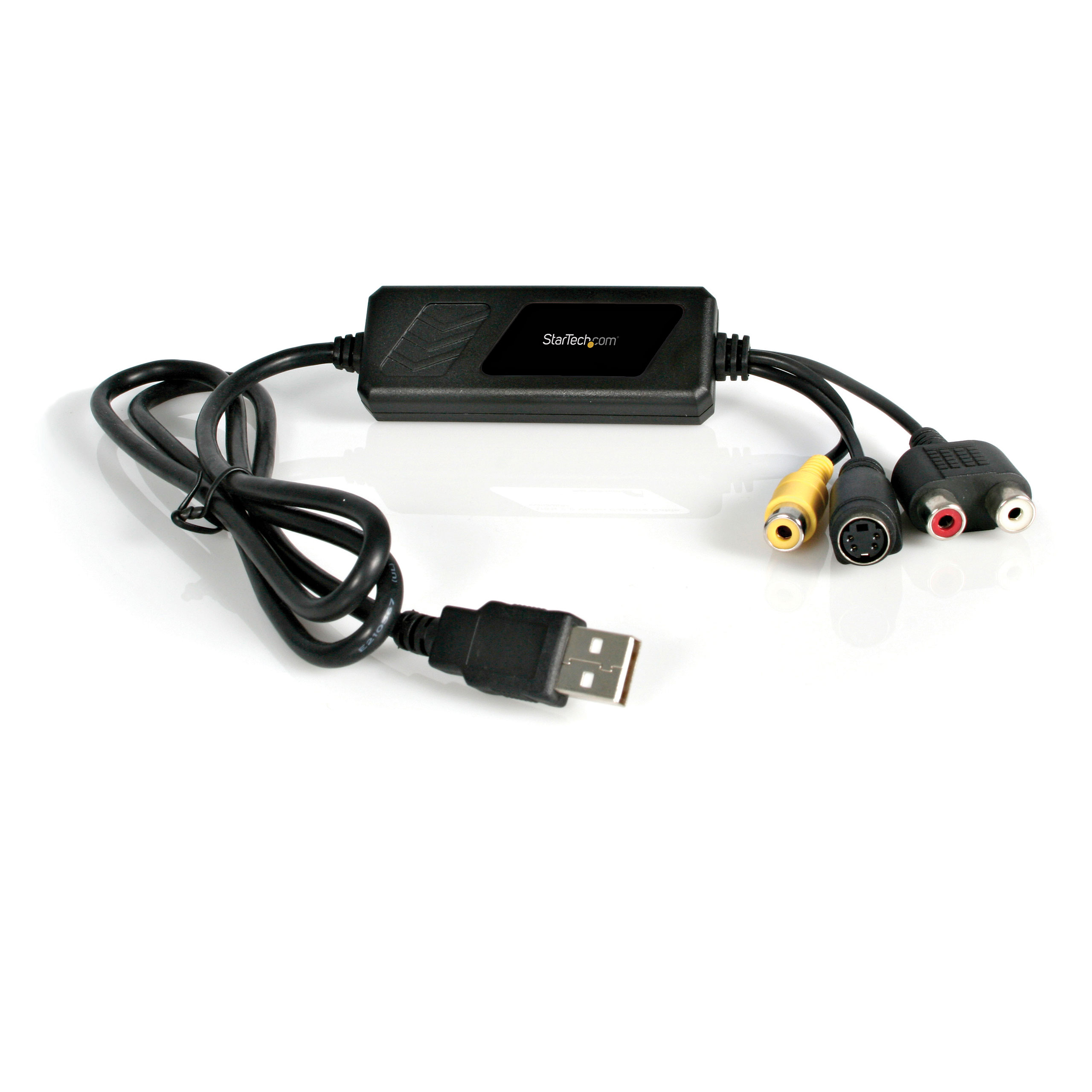

USB 2.0 Video Capture Cable
Capture DVDs or VHS to your PC
Main Image
Product Images
Product Images
BOM Image
Product Name USB 2.0 Video Capture Cable Product Number SVID2USB2 UPC 065030822787 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Video Capture Devices Category Level 3 USB-A Capture Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) USB S-Video Video Capture Cable Product Title (Standard) S-Video and Composite to USB Video Capture Device Cable with Audio Product Title (Long) USB S-Video and Composite Video Capture Device Cable with Audio Product Title (AMZ) USB S-Video and Composite Video Capture Device Cable with Audio (SVID2USB2) Title Ingram (Part 1) S-Video and Composite to USB Vid Title Ingram (Part 2) eo Capture Device Cable with Audio Website Product Headline Capture DVDs or VHS to your PC Bullet 1 Small and lightweight for portability or on the go applications Bullet 2 USB 2.0 transfer rates for high quality video capturing Bullet 3 Choose from MPEG 1 / MPEG 2 / MPEG 4 video encoding Bullet 4 Up to 30 fps motion capture capability at maximum resolution of 720x480(NTSC) / 720x576(PAL) Bullet 5 Snapshot function allows you to capture still images Bullets (Consolidated) Capture DVDs or VHS to your PC - Compatible with S-video and composite enabled video source devices such as DVD players and legacy computer video cards and USB desktop and laptop computers - USB video capture/VHS to PC/Video back up/composite capture/s-video capture - Supports NTSC, PAL and SECAM input formats as well as the selection of MPEG, WMV or AVI output file types offering flexibility - Small, lightweight, USB powered device provides a sleek and portable video capture solution Marketing Copy Applications - Connect your VCR, camcorder, or any other analog video source to your desktop or notebook PC and capture your audio/video in MPEG 1/2/4 format
- Convert VHS home movies to digital format
- Import recorded videos into your computer system for editing and make your own compilation
Website Search Keyword - Video Capture
- USB
- S-Video
- Audio
- Breakout Cable
- Capture Cable
Special Notes - USB audio input is only supported with Windows XP and later. Previous operating systems will require audio input through a line in jack built-in to your sound card
- The SVID2USB2 can record up to a maximum 120min of video at a time
Accessory Products - ZENAUDLR1
- ZENAUDLR2
- ZENSVID1
- ZENSVID2
- ZENCOMP1
- ZENCOMP2
Related Products USB2TVTUNER Replacement Product SVID2USB23 Cable Length (mm) 864 Color Black Product Length (mm) 1067 Product Width (mm) 30 Product Height (mm) 12 Product Weight (g) 76 TAA Compliant No Maximum Analog Resolutions 720x480(NTSC) / 720x576(PAL) Maximum Data Transfer Rate 480Mbps OS Compatibility - Windows XP
- Windows 2000
- Windows Vista
- Windows 7
- Windows 8

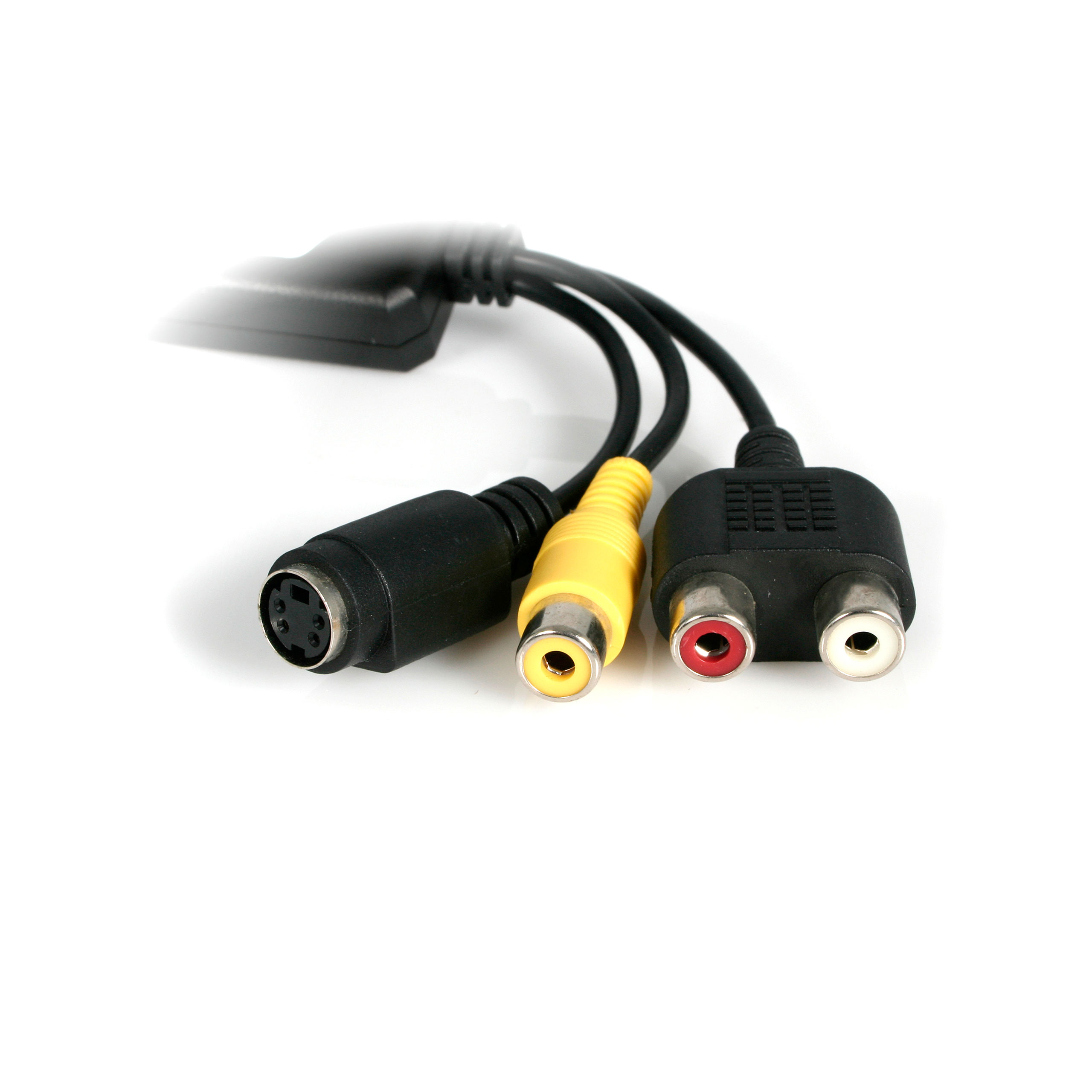

Audio Yes AV Input - Composite
- S-Video
- Audio RCA
AV Output USB Converter Type Format Converter Industry Standards - Video Input: NTSC, PAL, SECAM
- Video Encoding: MPEG 1, MPEG 2, MPEG 4
- DirectShow Compatible

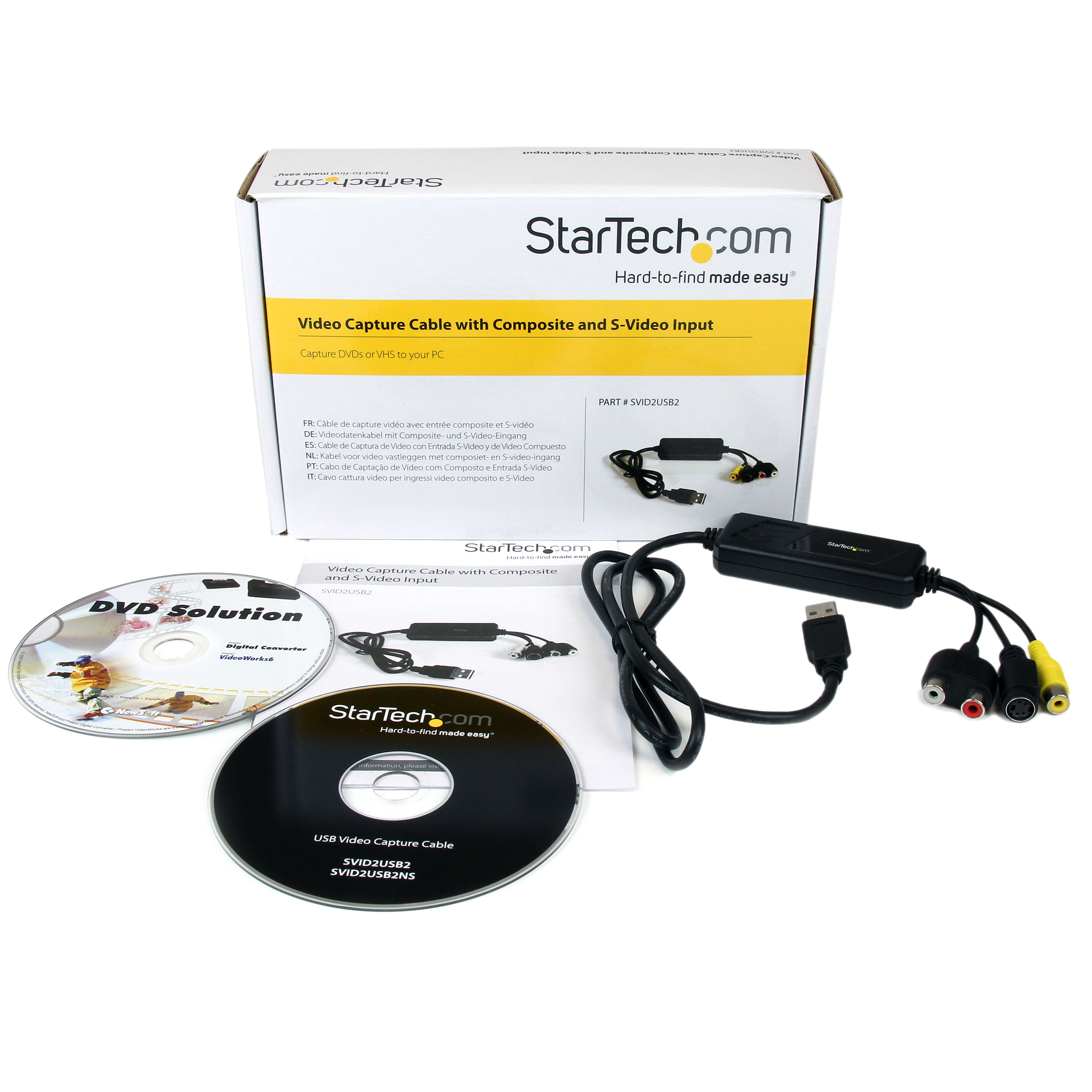

Carton Depth (mm) 655 Carton Height (mm) 325 Carton Quantity 20 Carton Weight Gross (g) 10200 Included in Package - 1 - USB Video Capture Cable
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - Software CD
Package Depth (mm) 62 Package Height (mm) 198 Package Width (mm) 298 Package Quantity 1 Package Weight (g) 450 Packaging Description Video Capture Cable with Composite and S-Video Input Packaging Description India Video Capture Cable with Composite and S-Video Input Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 S-Video (Y/C) Connector 2 (Quantity) 1 Connector 3 RCA (Composite Video) Connector 3 (Quantity) 1 Connector 4 RCA (Stereo Audio) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
