SVID2USB23

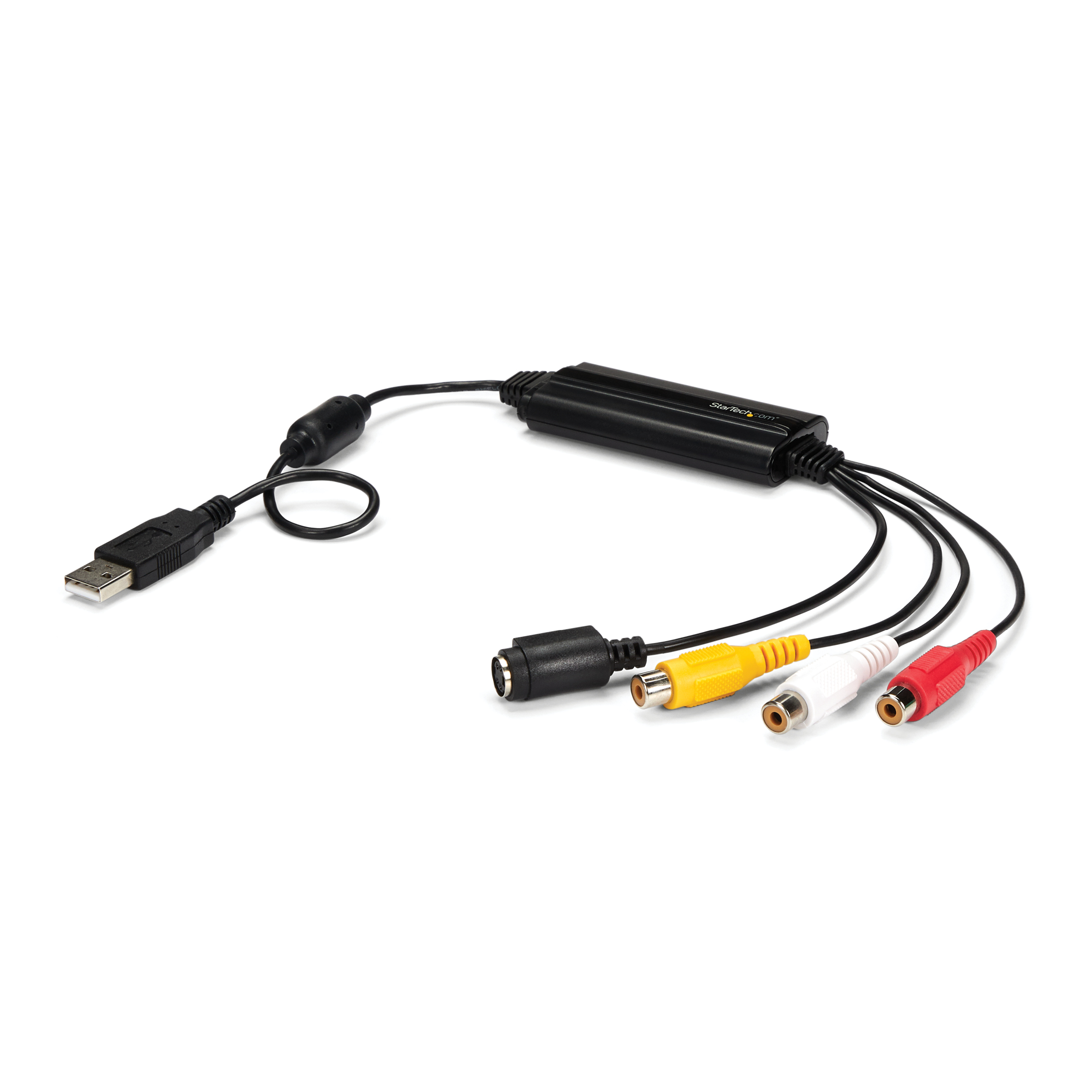

USB Video Capture Cable - S-Video & Composite
Capture and convert an S-Video or Composite video on your PC or Mac®, as digital media
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name USB Video Capture Cable - S-Video & Composite Product Number SVID2USB23 UPC 065030842099 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Video Capture Devices Category Level 3 USB-A Capture Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Ultra-Short) USB Capture Cable Product Title (Short) Video to USB Video Capture - TWAIN & Mac Product Title (Medium) x Product Title (Standard) S-Video / Composite to USB Video Capture Cable w/ TWAIN and Mac® Support Product Title (Long) S-Video / Composite to USB Video Capture Cable w/ TWAIN and Mac Support Product Title (AMZ) Composite to USB Video Capture - S Video Converter / Analog to Digital Video Adapter with TWAIN and Mac Support (SVID2USB23) Title Ingram (Part 1) USB Video Capture Cable - SVideo Title Ingram (Part 2) & Composite w/ TWAIN & Mac Website Product Headline Capture and convert an S-Video or Composite video on your PC or Mac®, as digital media Bullet 1 Choose from MPEG-1, MPEG-2, or MPEG-4 video encoding Bullet 2 Features TWAIN support for use with various software titles Bullet 3 Plug and Play device installation, requires no power adapter Bullet 4 Small and lightweight design offers convenient portability for on-the-go applications Bullet 5 Snapshot function allows you to capture still images from video Bullets (Consolidated) Capture and convert an S-Video or Composite video on your PC or Mac as digital media - USB Video Capture - TV Capture - Video Capture Device - Analog Video Capture - Video Input Adapter - S-Video Composite to USB Video Capture - TWAIN and Mac Support Marketing Copy Marketing Copy (No HTML) Applications - Convert VHS home movies to digital format - Connect your VCR, camcorder, or any other analog video source to your Mac or PC and capture your audio/video in MPEG 1/2/4 format
- Import recorded videos onto your Mac® or Windows® computer for editing, and make your own compilation
Website Search Keyword - analog video to digital video
- Capture Videos
- Composite to USB
- S-Video
- S-video to USB
- Ulead
- USB
- USB A/V capture cable
- USB to Composite
- USB to Composite Adatper
- USB to Composite Converter
- USB to S-video
- USB to S-Video Adapter
- USB to S-Video Converter
- USB Video Capture Cable
- USB Video Capture Card
- USB Video Transfer Cable
- VCR to Computer
- VCR to PC
- VHS Software
- Video Capture
- VideoStudio
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes - The MPEG 4 video file format is supported on the included SVID2USB23 Capture software for Mac and other third party DirectShow™ capture software such as OBS
- movavi® video software does not support the MPEG4 video file format
Accessory Products - AUDIORCA6
- AUDIORCA10
- COMPHQ10
- COMPHQ6
- SVIDHQ6
- SVIDHQ3
- SVIDHQ12
Related Products - SVID2USB2
- SVID2USB2NS
Cable Length (mm) 527 Color Black Humidity 5~85% RH Non-condensing Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 80.000 Product Width (mm) 34.000 Product Height (mm) 14.000 Product Weight (g) 66.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Maximum Analog Resolutions 720x480(NTSC) / 720x576(PAL) Maximum Data Transfer Rate 480Mbps OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS High Sierra (10.13)
- macOS Sierra (10.12)
- macOS Mojave (10.14)
- Windows 11
Audio Yes AV Input - Audio RCA
- Composite
- S-Video
AV Output USB Chipset ID eMPIA - EM2861 Converter Type Format Converter Industry Standards - NTSC, PAL, SECAM
- Video Encoding: MPEG 1, MPEG 2, and MPEG 4
- DirectShow Compatible

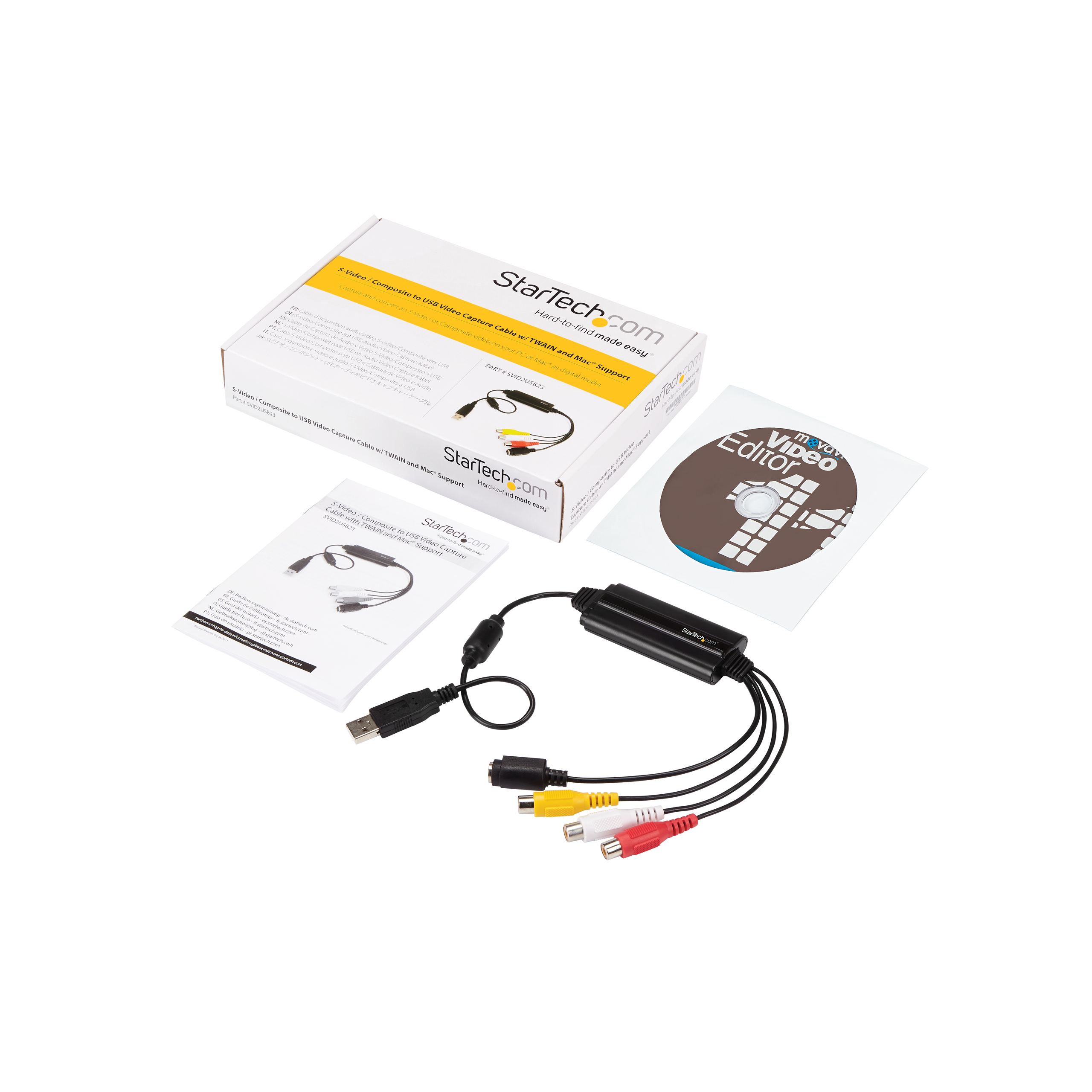

Carton Depth (mm) 420 Carton Height (mm) 309 Carton Quantity 40 Carton Weight Gross (g) 7876 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - USB Video Capture Cable
- 1 - Software CD
Package Depth (mm) 208 Package Height (mm) 41 Package Width (mm) 146 Package Quantity 1 Package Weight (g) 177 Packaging Description S-Video/Composite to USB Audio Video Capture Cable Packaging Description India S-Video/Composite to USB Audio Video Capture Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 S-Video (Y/C) Connector 2 (Quantity) 1 Connector 3 RCA (Composite Video) Connector 3 (Quantity) 1 Connector 4 RCA (Stereo Audio) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,EU,HK,JP,NZ,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle None
