SVLPID

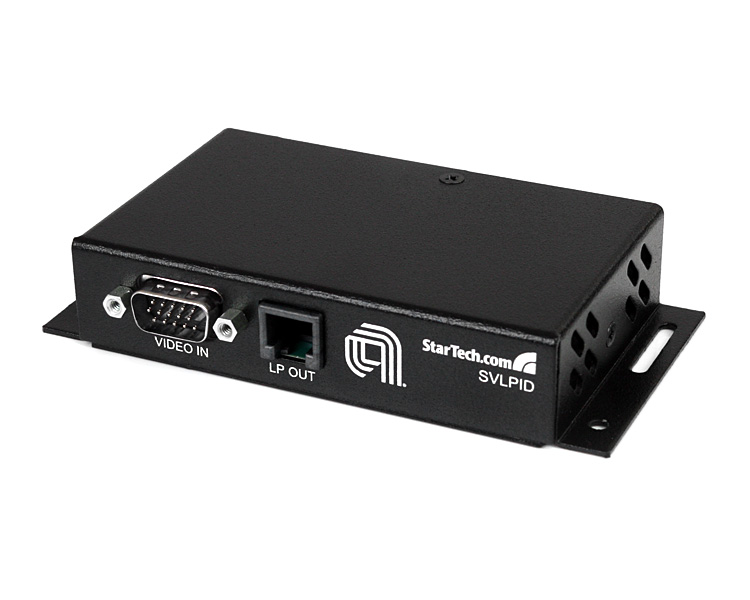

Light pen interface device for SV1115IPEXT IP KVM
Enable light pen functionality over IP
Main Image
Product Images

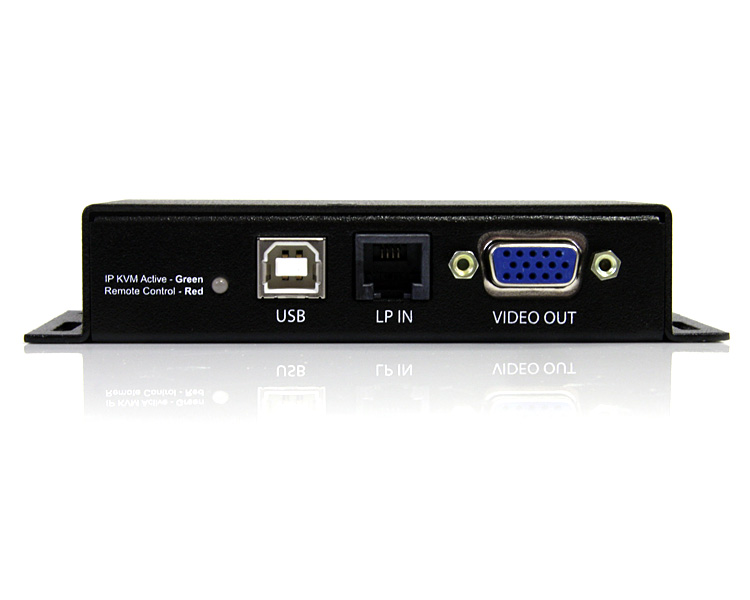

Product Name Light pen interface device for SV1115IPEXT IP KVM Product Number SVLPID UPC 065030841610 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Canada Country of Origin North America Canada Country of Origin History (1) Canada Country of Origin Revision (1) XXXXXX019X Product Title (Standard) Light pen interface device Product Title (Long) Light pen interface device for SV1115IPEXT IP KVM Website Product Headline Enable light pen functionality over IP Bullet 1 Multiple LED colours for different statuses: Green = IP KVM Active Red = Remote Control Active Bullet 2 Powered via 5 VDC USB B cable Marketing Copy The SVLPID Light pen interface device for SV1115IPEXT IP KVM provides the opportunity to remotely control legacy systems designed with only a local light pen interface in mind. A remote user can login to the SV1115IPEXT and view the screen of the attached PC; when control is taken, mouse movements and clicks are interpreted and relayed to the light pen interface at the local station, simulating having a user onsite controlling the machine with the attached light pen. The SVLPID device is powered by the USB cable attached to the SV1115IPEXT IP KVM, so no external power adapter is required. Applications Convert legacy light pen systems into IP controllable systems when used with the SV1115IPEXT IP KVM. Accessory Products SV1115IPEXT Input Current 100mA Input Voltage 5 DC Power Source USB-Powered Color Black Material Aluminum Product Length (mm) 130 Product Width (mm) 60 Product Height (mm) 20 Product Weight (g) 117 TAA Compliant No LED Indicators Carton Depth (mm) 460 Carton Height (mm) 400 Carton Quantity 36 Carton Weight Gross (g) 21078 Included in Package - 1 - USB-A to USB-B cable (3ft)
- 2 - VGA-Male to Female cables (3ft each)
- 2 - RJ11 4 pin straight through cable for light pen (3ft)
- 1 - Installation instruction leaflet
- 1 - Light Pen Interface Device (SVLPID)
Package Depth (mm) 165 Package Height (mm) 50 Package Width (mm) 300 Package Quantity 1 Package Weight (g) 544 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 USB-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 RJ-11 Connector 4 (Quantity) 2 en-US Content Approved Yes Product Manager Daryl Hunt
