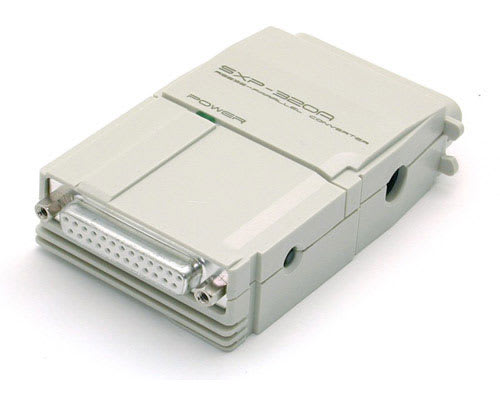

Bidirectional Serial to Parallel Interface Converter

Main Image

Product Name	Bidirectional Serial to Parallel Interface Converter
Product Number	SXP320
UPC	065030775472
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1

Manual https://images.salsify.com/image/upload/s--S0jYR5gU--/024411bc5591f85ae0647cf8dfcbcbd730e87636.pdf

Product Title (Long)	Bidirectional Serial to Parallel Interface Converter
Bullet 1	Supports Xon/Xoff or Hardware handshake
Bullet 2	Lightweight and compact size
Bullet 3	Can convert Parallel to Serial or Serial to Parallel
Bullet 4	Microcontroller based design provides maximum speed regardless of handshake type

General Specifications	Serial Connector: DB25 Female Parallel Connector: Centronics 36 Male Serial Speed: 1200 to 15200 bps (1200, 2400, 9600, 14400, 19200, 38400, 57600, 115200) Serial Parity: Odd, Even, or None Character length: 7 bit or 8 bit Stop Bit: 1 or 2 bits Serial Mode: DCE only Dimensions (mm): 101 x 62 x 26
Maximum Data Transfer Rate	115200

Color	Beige
TAA Compliant	No

Connector 1	Centronics (36-Pin)
Connector 1 (Quantity)	1
