TB2DOCK4K2DP
Thunderbolt 2 Dock for Laptops - Dual-Monitor DP
Transform your MacBook or laptop into a dual-monitor workstation, or connect a single 4K Ultra HD display
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Thunderbolt 2 Dock for Laptops - Dual-Monitor DP Product Number TB2DOCK4K2DP UPC 065030860000 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 3 Docks Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX031X Product Title (Ultra-Short) Thunderbolt 2 Dock Product Title (Short) Dock - Thunderbolt 2, Dual Monitor DP Product Title (Medium) Thunderbolt 2 Dual-Monitor Docking Station for Laptops - 2x DisplayPort Product Title (Standard) StarTech.com Thunderbolt 2 Docking Station - Compatible with Windows / macOS - Dual Monitors – 2X DisplayPort - TB2DOCK4K2DP Product Title (Long) Thunderbolt 2 Dual-Monitor Docking Station for Laptops - 2x DisplayPort - Includes TB Cable Product Title (AMZ) Thunderbolt 2 Dock - 4K - Laptop Docking Station - Thunderbolt to Dual DP/ USB 3.0 / Gigabit Ethernet / eSATA (TB2DOCK4K2DP) Title Ingram (Part 1) Thunderbolt 2 Dock for Laptops Title Ingram (Part 2) - Dual-Monitor w/ 2x DisplayPort Website Product Headline Transform your MacBook or laptop into a dual-monitor workstation, or connect a single 4K Ultra HD display Bullet 1 Get your work done faster, with dual-video support through two DisplayPort connections — 2560 x 1600p max resolution on each display Bullet 2 Connect a single 4K (3840 x 2160p) monitor, or a DisplayPort and a Thunderbolt display with 4K resolution on the DisplayPort monitor Bullet 3 20Gbps throughput lets you connect up to 12 peripherals, including 5.1 digital optical audio and eSATA devices Bullet 4 Charge mobile devices faster, even without a laptop connection, with a side-panel USB 3.0 fast-charge and sync port Bullet 5 Four USB 3.0 ports, including one always-on fast-charge port (USB Battery Charging Specification 1.2 compliant) and three standard ports Bullets (Compact) Transform your MacBook or laptop into a dual-video workstation or connect a single 4K display - Thunderbolt 2 Dual-Monitor Docking Station for Laptops - 2x DisplayPort - Includes TB Cable - SPDIF / eSATA - MacBook Pro MacBook Air Thunderbolt 2 Dock Bullets (Consolidated) Universal laptop dock compatible with all Thunderbolt 2 equipped MacBook Pro and PC laptops - Multitask with this dual monitor Thunderbolt dock with content in 4K Ultra HD on one display - Enjoy high-end audio with the 5.1 SPDIF optical audio output and line input on the laptop docking station - Charge tablets and smartphones with always-on Fast-Charge USB 3.0 Type-A port - Thunderbolt 2 dock provides fast laptop-to-dock connection with 20Gbps throughput Marketing Copy Marketing Copy (No HTML) Applications - Integrate your laptop into high-end audio environments such as audio engineering studios and sound booths, with 5.1 SPDIF digital optical audio output and line input

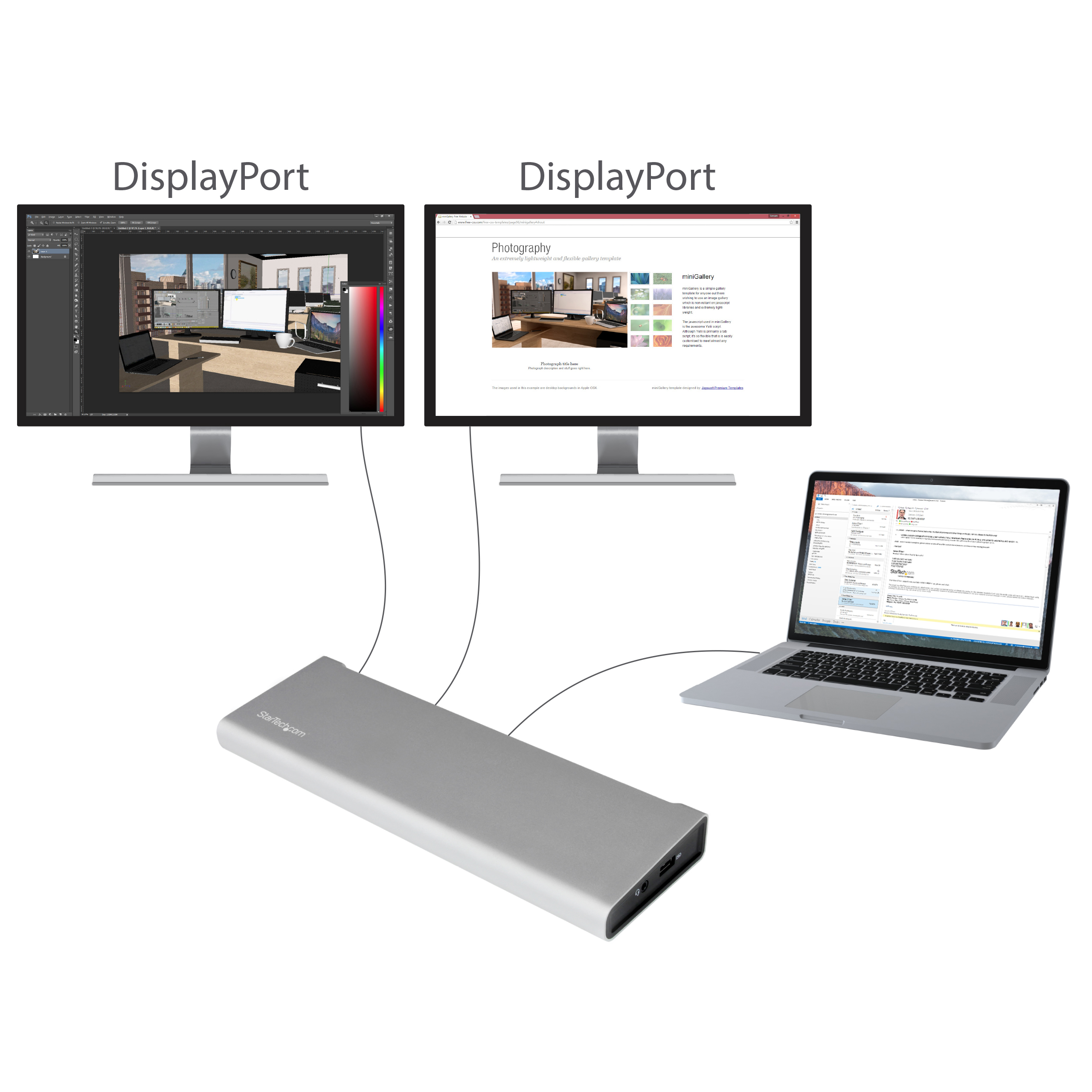

- Expand the display capabilities of your laptop or MacBook across two DisplayPort monitors, for greater productivity
- Recommended for producers, graphic and web designers, engineers, architects, and more
- Ideal for creative professionals working with uncompressed, high-bandwidth and graphically intensive images, video, and CAD drawings
- Accessorize your Thunderbolt 2 enabled MacBook Pro, MacBook Air, laptop, or Ultrabook™
Website Search Keyword - tb2dock
- tbdock
- Thunderbolt 2 docking station
- thunderbolt laptop docking station
- thunderbolt laptop dock
- thunderbolt dock
- thunderbolt 2 dock
- thunderbolt 2 laptop dock
- thunderbolt 2 laptop docking station
- dual video thunderbolt
- macbook dock
- macbook pro dock
- macbook air dock
- laptop docking station
- laptop dock
- dual monitor dock
- ultrabook dock
- ultrabook docking station
- MACPRODOCK
- MACAIRDOCK
- macbook pro docking station
- macbook docking station
- macbook air docking station
- tb dock
- thunderbolt express docking station
- notebook docking station
- notebook dock
- thunderbolt docking station
- 4k dock
- 4k docking station
- tb2 dock
- thunderbolt 4k dock
- thunderbolt 4k docking station
- thunderbolt 2 4k docking station
- 4k laptop dock
- thunderbolt 2 4k laptop dock
- thunderbolt hd dock
- HD docking station
- 4k laptop docking station
- 4K2K
- 4K x 2K
- port replicator
- laptop accessory
- SPDIF docking station
- macbook accessory
- apple docking station
- thunderbolt display
- macbook pro retina
- high-definition dock
- high-definition docking station
- express dock hd
- apple dock
- thunderbolt 2
- digital audio
- thinkpad docking station
- laptop port replicator
- dual video docking station
- 4k ultra hd docking station
- 4k ultra hd laptop docking station
- thunderbolt dual video dock
- thunderbolt dual video docking station
- thunderbolt dual video laptop docking station
- thunderbolt dual video laptop dock
- HP Zbook 15
- Lenovo ThinkPad W540
- Asus G75VX
- Acer Aspire S5
- Belkin F4U055ww
- macbook dual video
- macbook dual monitor
- macbook dual display
- thunderbolt dual monitor dock
- thunderbolt 2 dual monitor dock
- thunderbolt to two monitors
- thunderbolt to two displays
- thunderbolt port replicator
- thunderbolt 2 port replicator
- thunder bolt
- dual monitor docking station
- dual monitor laptop docking station
- dual monitor laptop dock
- Thunderbolt dual monitor dock
- Thunderbolt dual monitor laptop dock
- Thunderbolt dual monitor docking station
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU

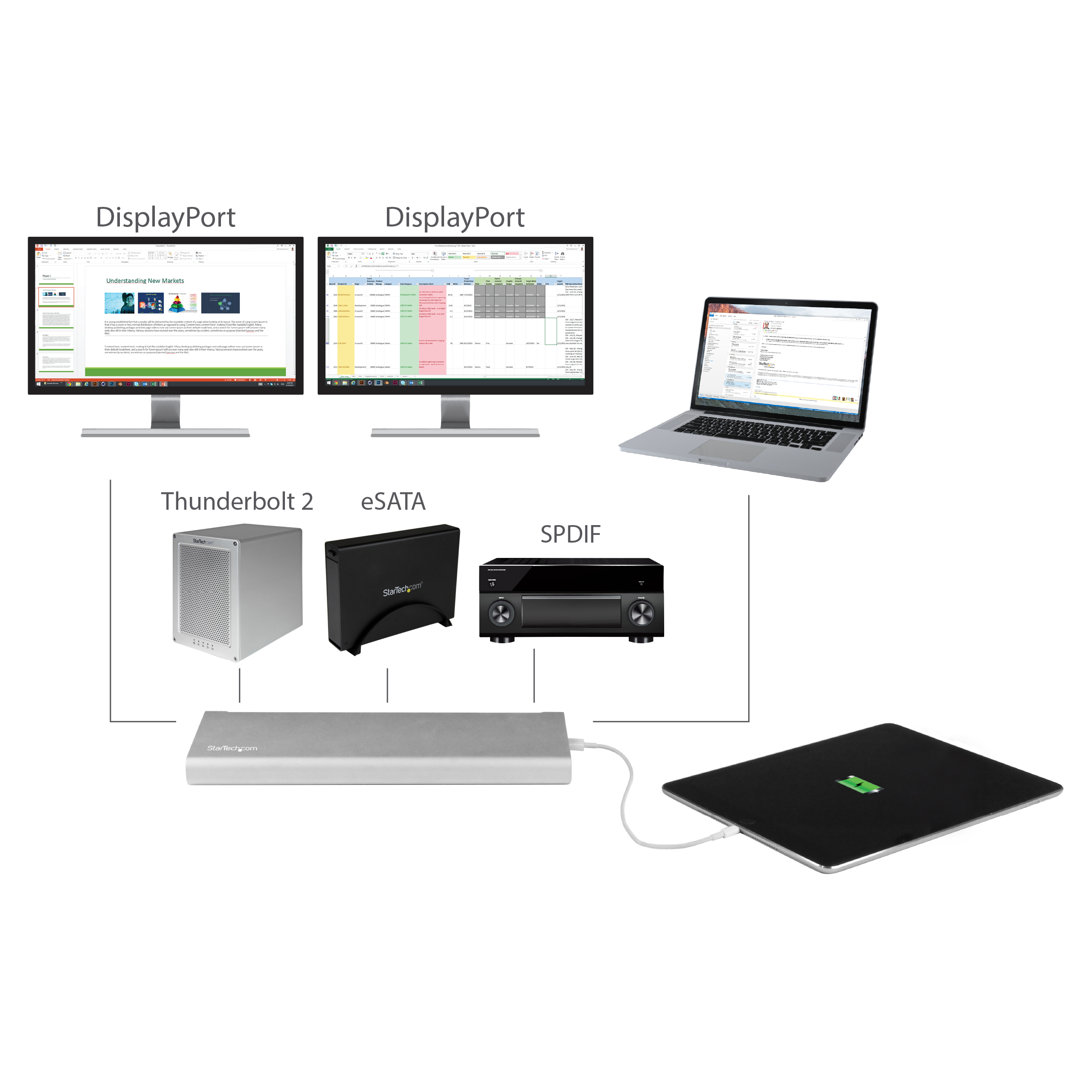

Special Notes - Dual-display configuration is available when connected to two DisplayPort monitors, or a DisplayPort and a Thunderbolt monitor. Your laptop hardware must support dual-external displays through its Thunderbolt 2 port

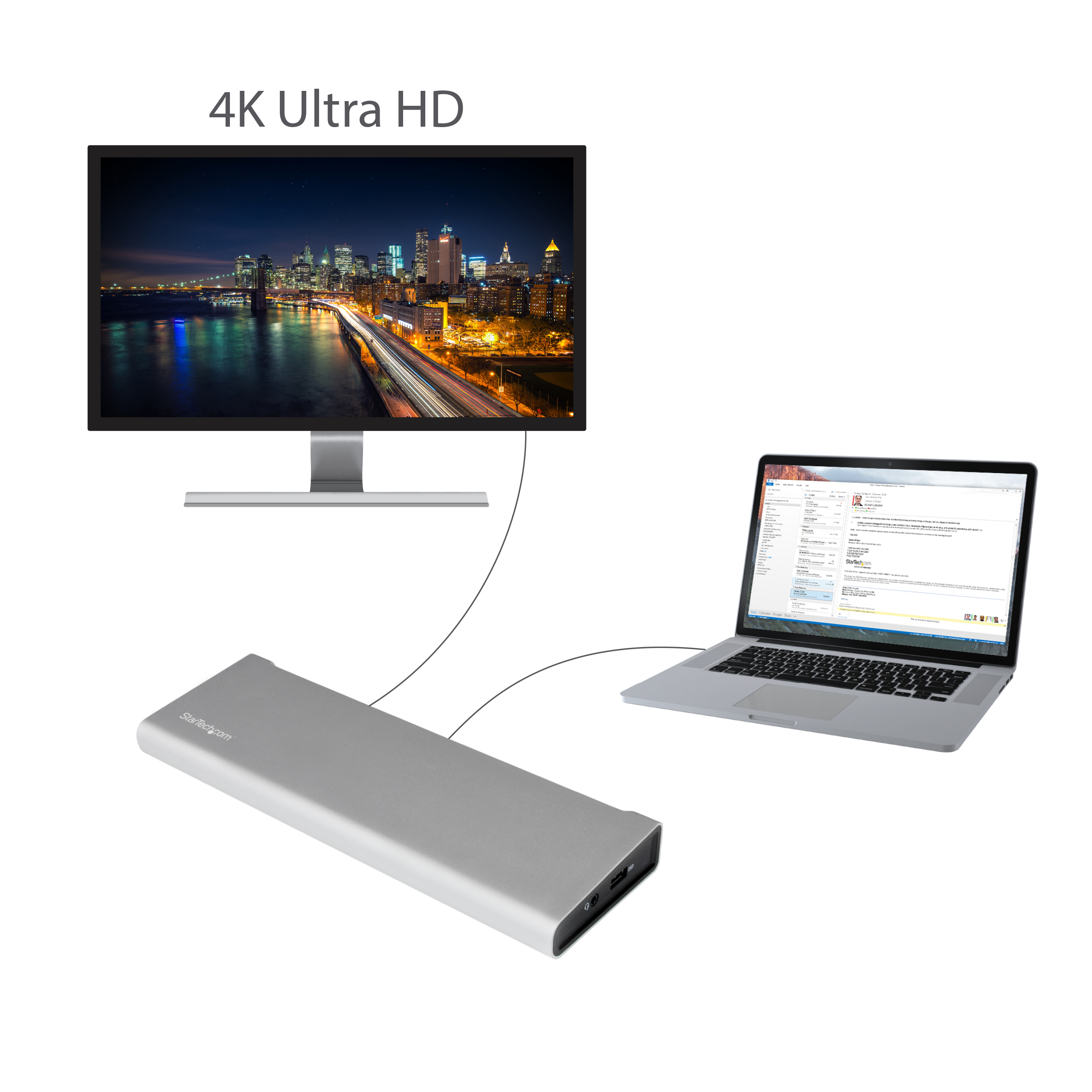

- A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K)
- If connected to a Thunderbolt 1 host port, performance may be limited
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
System and Cable Requirements Thunderbolt 2 enabled computer with a Thunderbolt 2 port Accessory Products - TBOLTMM3MW
- TBOLTMM3M
- S354SMTB2R
- S252SMTB3
- MDP2DPMM6
- MDISPLPORT6
- MDP2DPMM3MW
- USB3SAB6BK
- N6PATCH10WH
- ESATA3
- S3520WU33ER
- S251SMU33EP
- S352BU33HR
- DISPLPORT6L
- DISPLPORT10L
- TBT3TBTADAP
- DP2HD4KADAP
Related Products - TB2DOCK4KDHC
- USB3DDOCKFT
- USB3DOCKH2DP
- USB3SDOCKDD
- USB3SMDOCK4K
- USB3DOCKHDPC
- USB3VDOCK4DP
Input Current 2 A Input Voltage 100 - 240 AC Output Current 6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 72 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Silver Humidity 5~90% RH (Non-condensing) Material Aluminum and Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 270.000 Product Width (mm) 87.000 Product Height (mm) 27.000 Product Weight (g) 541.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions OS Compatibility - Windows 8
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- Windows 11
UASP Support Yes USB Type and Rate Thunderbolt 2 (20Gbps) Wake-On-LAN (WOL) Yes Bus Type Thunderbolt 2 Chipset ID Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Link (Green)
- 1 - Activity (Yellow)

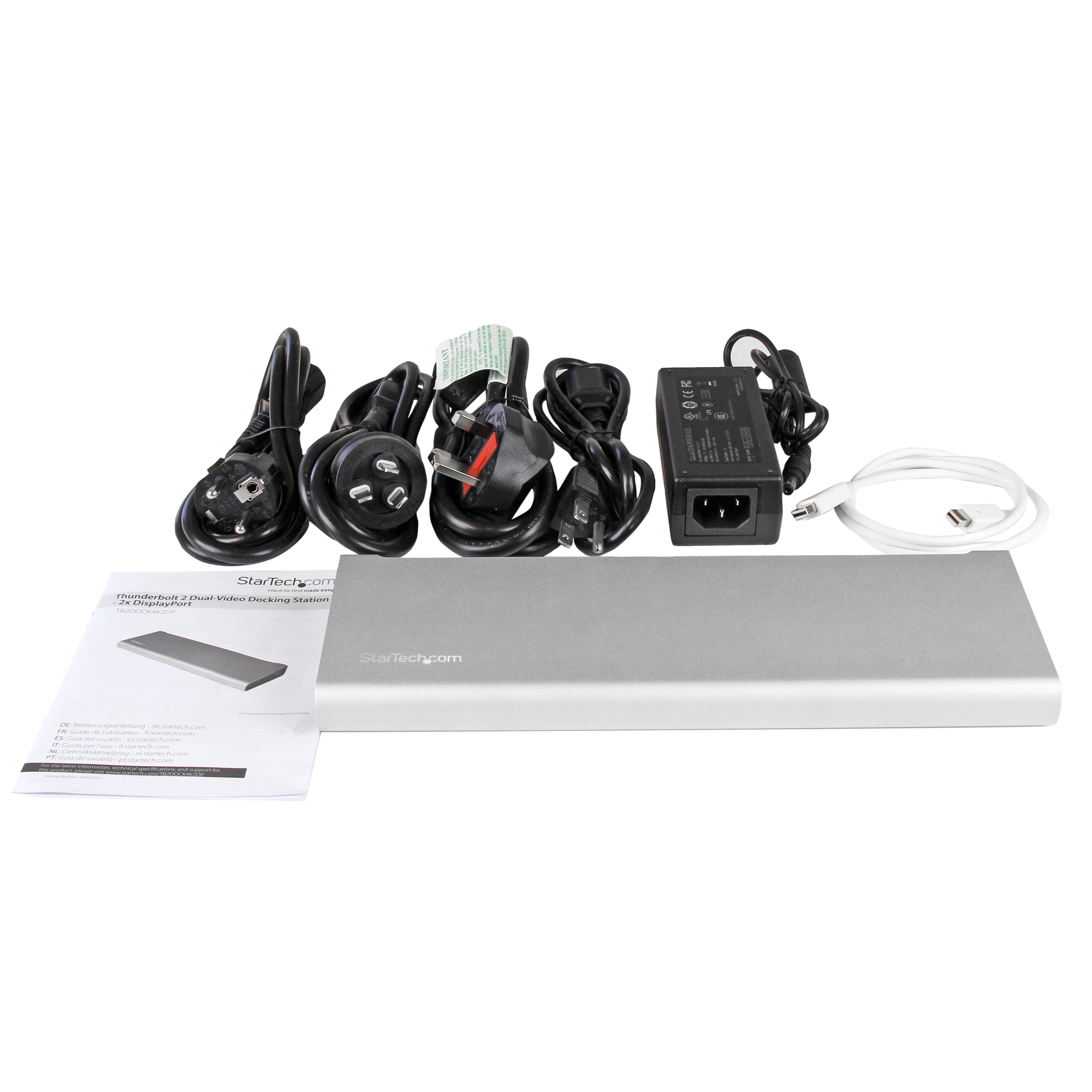

Carton Depth (mm) 313 Carton Height (mm) 310 Carton Quantity 6 Carton Weight Gross (g) 11370 Included in Package - 1 - Thunderbolt 2 dual-video docking station
- 1 - 3.3 ft [1016 mm] Thunderbolt cable
- 1 - universal power adapter
- 4 - power cords (NA/JP, EU, UK, ANZ)
- 1 - instruction manual

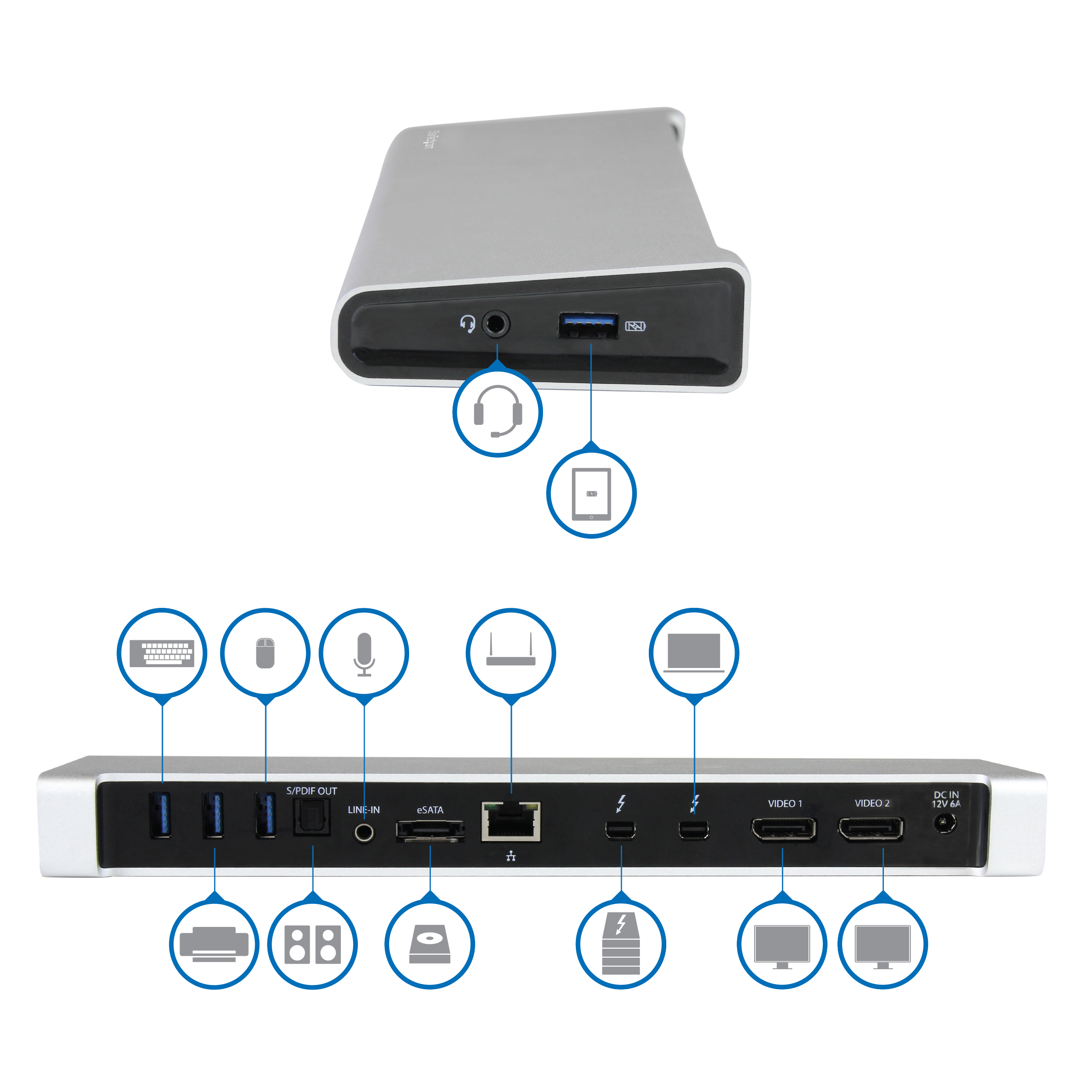

Package Depth (mm) 145 Package Height (mm) 97 Package Width (mm) 351 Package Quantity 1 Package Weight (g) 1800 Packaging Description Thunderbolt 2 Dual-Video Docking Station - 2x DP Packaging Description India Thunderbolt 2 Dual-Video Docking Station - 2x DP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 20Gbps) Connector 1 (Quantity) 2 Connector 2 DisplayPort Connector 2 (Quantity) 2 Connector 3 USB-A (7.5W Power Only) Connector 3 (Quantity) 1 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 3 Connector 5 eSATA (7-Pin) Connector 5 (Quantity) 1 Connector 6 TOSLINK (Optical S/PDIF) Connector 6 (Quantity) 1 Connector 7 3.5mm (4 Conductors, TRRS) Connector 7 (Quantity) 1 Connector 8 3.5mm (3 Conductors, TRS) Connector 8 (Quantity) 1 Connector 9 RJ-45 Connector 9 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Buying Center - End User Compute Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Production Release 2015-11-30 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
