Main Image
TB310G
Thunderbolt 3 to 10GBase-T Network Adapter
Add high-speed wired 10G Ethernet network connectivity to your Thunderbolt 3 enabled desktop or laptop computer
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name Thunderbolt 3 to 10GBase-T Network Adapter Product Number TB310G UPC 065030877954 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 Thunderbolt Network Adapters Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) TB3 Ethernet Adapter Product Title (Short) Ethernet Adapter - Thunderbolt 3 to 10G Product Title (Medium) Thunderbolt 3 to 10GBase-T Ethernet Adapter - Multi Gigabit Network Adapter Product Title (Standard) Thunderbolt 3 to 10GBase-T Ethernet Adapter - Multi Gigabit Network Adapter - USB Type C Connector Product Title (Long) Thunderbolt™ 3 to 10GBase-T Ethernet Adapter Product Title (AMZ) Thunderbolt 3 to 10GBase-T Ethernet Adapter - Multi Gigabit Network Adapter - USB Type C Connector (TB310G) Title Ingram (Part 1) Thunderbolt 3 to 10GBase-T Title Ingram (Part 2) Ethernet Adapter - Multi Gigabit Website Product Headline Add high-speed wired 10G Ethernet network connectivity to your Thunderbolt 3 enabled desktop or laptop computer Bullet 1 Supports auto-negotiation for 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s and 100Mb/s Base-T speeds Bullet 2 Provides an RJ45 10Gbps Ethernet connection Bullet 3 Reversible USB Type C™ connector with a Thunderbolt 3™ interface Bullet 4 Achieves 10Gbps connection over 100m with CAT6a cable Bullet 5 Fanless design with aluminum chassis Bullets (Compact) Add high-speed wired 10G Ethernet network connectivity to your Thunderbolt 3 enabled computer. This Thunderbolt 3 network adapter supports 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s and 100Mb/s through an RJ45 Ethernet connection. Bullets (Consolidated) Thunderbolt 3 10GbE network adapter - Connects to a wired Ethernet network - Auto-negotiation support for 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s and 100Mb/s - Provides an RJ45 10Gbps 10GBase-T Ethernet connection - USB-C connector with a Thunderbolt 3 interface - Works on Thunderbolt 3 enabled devices - Dongle free and fanless (0dB) with 9K jumbo frame support - Uses Tehuti TN4010 controller - IEEE 802.3an, 802.3bz (NBase-T) compliant Marketing Copy Marketing Copy (No HTML) Applications - Home offices or remote work stations
- Modern open office setups
- For Thunderbolt 3 enabled computers
Website Search Keyword - thunderbolt 3 to 10gb ethernet adapter
- thunderbolt 3 to 10gbase t
- thunderbolt 3 to 10gbe adapter
- thunderbolt 3 to ethernet adapter
- Thunderbolt 3 Network Adapter
- thunderbolt 3 nic
- thunderbolt 3 to 10 gigabit ethernet
- thunderbolt 3 to 10g ethernet
- thunderbolt 3 to 10gb ethernet
- 10gbe nic
- ethernet adapter
- network adapter
- thunderbolt 3 10 gigabit ethernet
- thunderbolt 3 10gbe
- thunderbolt 3 ethernet adapter
- thunderbolt 3 to ethernet
- thunderbolt 3 to 10gbe
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes Due to technical limitations of the IC solution, max bandwidth is limited to about 7.5 Gbps System and Cable Requirements Requires a Thunderbolt 3 port with 15W of power Accessory Products - C6ASPAT3BL
- C6ASPAT6BK
- C6ASPAT12GR
- C6ASPAT30AQ
Related Products - BNDTB310GNDP
- ST10GSPEXNB
Input Voltage 5V DC Output Voltage (V) 5 DC Cable Length (mm) 300 Color Black Humidity 20%RH ~ 80%RH Material Aluminum Network Adapter Form Factor Separate Cable Operating Temperature 5°C ~ 35°C Primary Material Aluminum Product Length (mm) 102.000 Product Width (mm) 75.000 Product Height (mm) 29.000 Product Weight (g) 322.000 Storage Temperature -20°C ~ 50°C TAA Compliant Yes Auto MDIX Yes Auto-Negotiation Yes Compatible Networks 10 Gbps/5G/2.5G/1G/100 Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. OS Compatibility - Windows 7
- Windows 8
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- Windows Server 2008 R2
- Windows Server 2016
- macOS Mojave (10.14)
- Windows 11
Promiscuous Mode Yes PXE No Bus Type Thunderbolt 3 Chipset ID Industry Standards LED Indicators - 1 - Solid White - Thunderbolt 3 is connected to host laptop
- 1 - Solid Green - RJ45 link speed of 1G, 2.5G, or 5G
- 1 - Solid Orange - RJ45 link speed of 10G

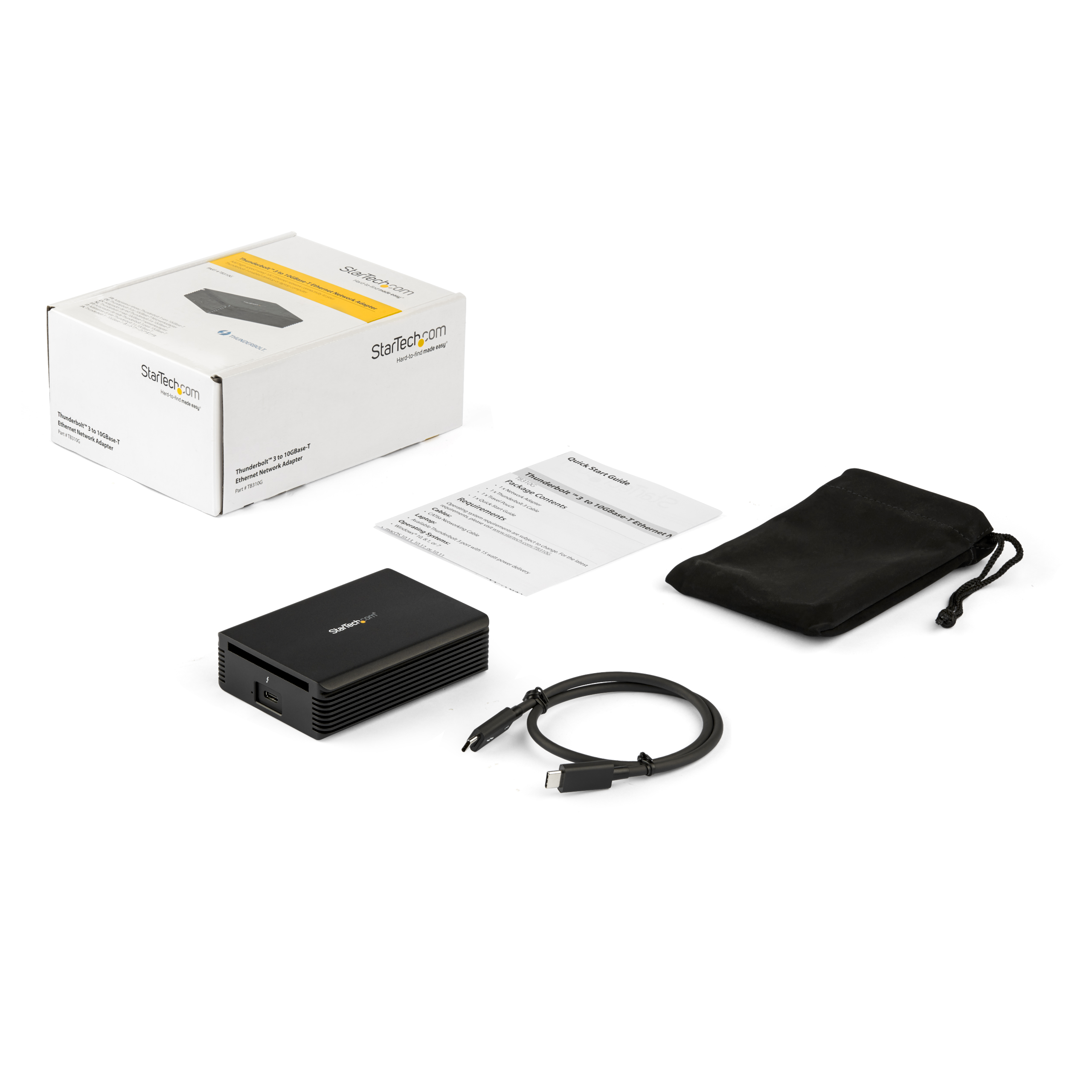

Network Adapter Host Thunderbolt 3 - USB-C Carton Depth (mm) 362 Carton Height (mm) 314 Carton Quantity 20 Carton Weight Gross (g) 10420 Included in Package - 1 - Network Adapter
- 1 - Thunderbolt 3 Cable
- 1 - Quick-Start Guide
- 1 - Travel Pouch
Package Depth (mm) 138 Package Height (mm) 76 Package Width (mm) 176 Package Quantity 1 Package Weight (g) 478 Packaging Description Thunderbolt 3 to 10GBase-T Network Adapter Packaging Description India Thunderbolt 3 to 10GBase-T Network Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 40Gbps) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-04-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2018-05-31 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology Thunderbolt 3 Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-02-23 Target Production Release 2018-04-20 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
