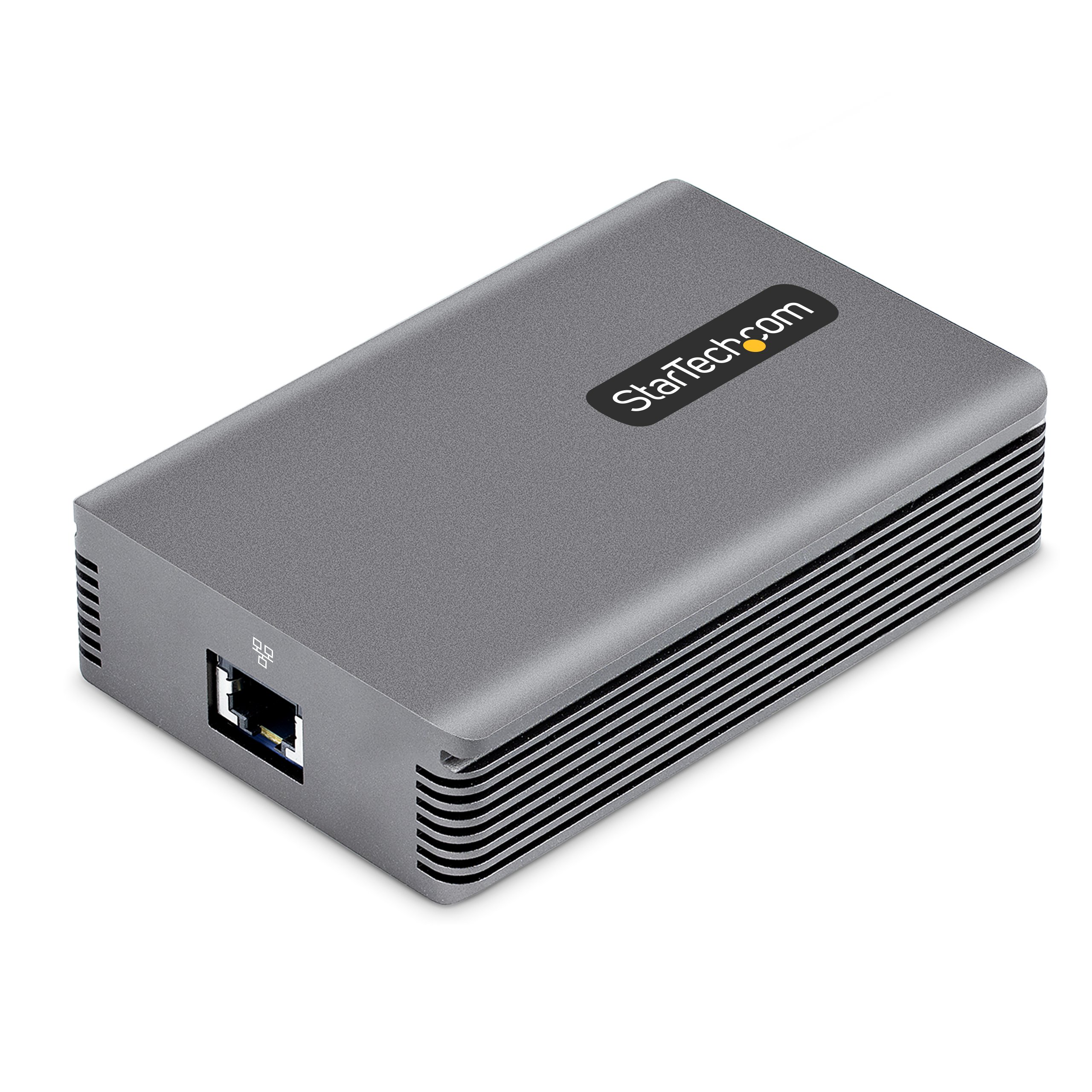

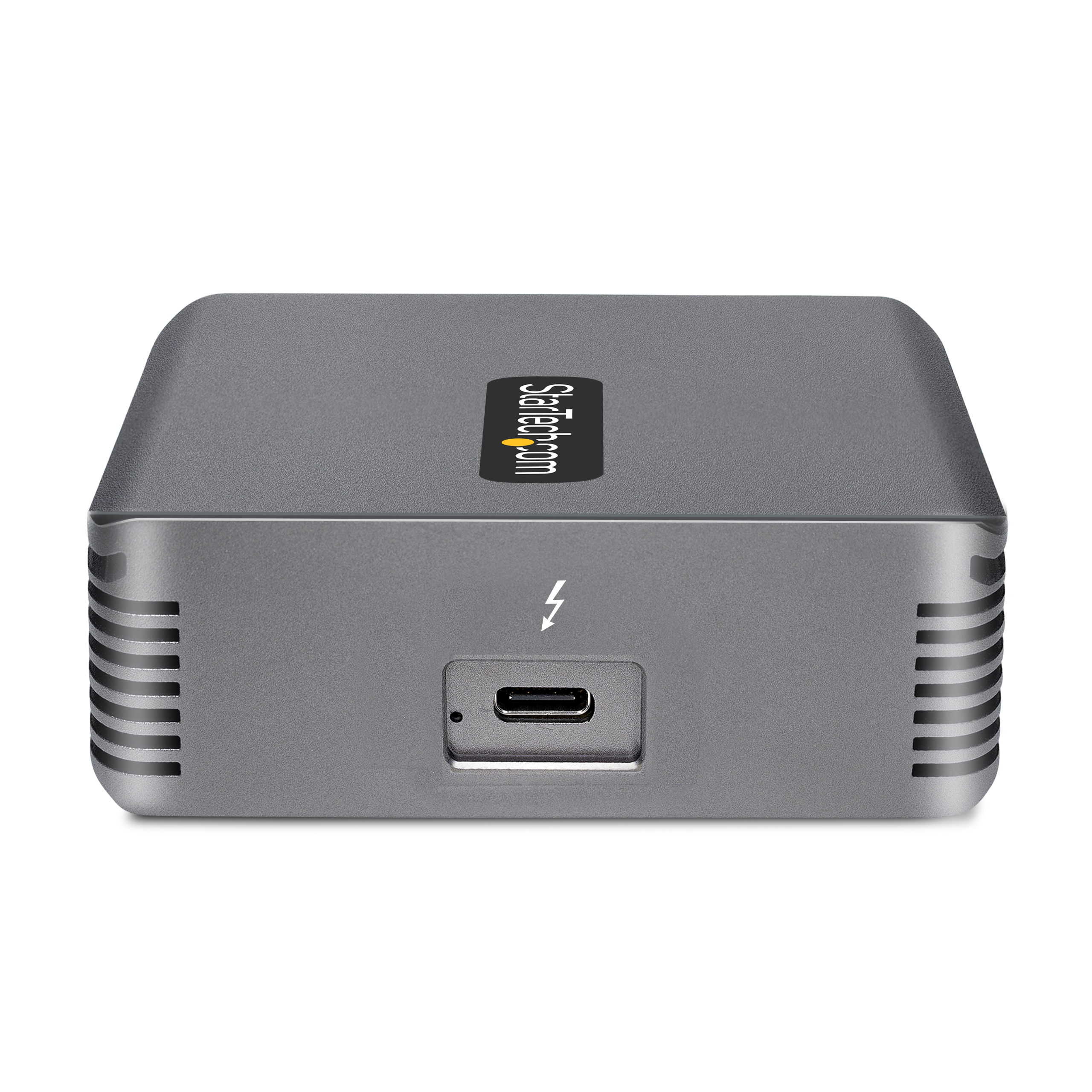

TB310G2
Thunderbolt 3 to 10GBase-T Network Adapter - Aquantia
Marvell AQC107S provides up to 10GbE speeds with plug-and-play support in Windows/macOS
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Thunderbolt 3 to 10GBase-T Network Adapter - Aquantia Product Number TB310G2 UPC 065030897723 Lifecycle status End of Life Warranty 2 Years Weighted Opportunity 80197 Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 Thunderbolt Network Adapters Family Pro Connect Thunderbolt Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) TB3 to RJ45 Adapter Product Title (Short) Thunderbolt 3 to Ethernet Adapter, 10G Product Title (Medium) Thunderbolt 3 to Ethernet Adapter, 10GbE, MultiGigabit TB3/TB4 Network Adapter Product Title (Standard) Thunderbolt 3 to Ethernet Adapter, 10GbE, Multi-Gigabit Thunderbolt 3 to RJ45 Network Adapter, TB3/TB4 10GbE NIC, TAA Product Title (Long) Thunderbolt 3 to Ethernet Adapter, 10GbE - Multi-Gigabit, Thunderbolt 3 to RJ45 Network Adapter - 10GBASE-T/5-2.5GBASE-T NIC - 10G Network Adapter w/ TB3-Certified Cable, Win/Mac - TAA Product Title (AMZ) Thunderbolt 3 to Ethernet Adapter, 10GbE, Multi-Gigabit, Thunderbolt 3 to RJ45 Network Adapter, 10GBASE-T/5-2.5GBASE-T NIC, 10G Network Adapter Includes TB3 Cable, Win/Mac , TAA Title Ingram (Part 1) Thunderbolt 3 to RJ45 10G NIC - Title Ingram (Part 2) Thunderbolt 3 to Ethernet Adapter Website Product Headline Marvell AQC107S provides up to 10GbE speeds with plug-and-play support in Windows/macOS Bullet 1 THUNDERBOLT 3 TO ETHERNET ADAPTER: Thunderbolt Ethernet Adapter adds one multi-Gigabit RJ45 port to a Thunderbolt 3/4 enabled computer enabling connection to 1G, 2.5G, 5G, and 10G networks Bullet 2 FULL 10G PERFORMANCE: Leverage the high-speed capabilities of Thunderbolt 3 to attain speeds of up to 10GbE, using this Thunderbolt to Ethernet NIC Adapter; Marvell AQC107S chipset facilitates plug and play (PnP) support on Windows and macOS Bullet 3 USER FRIENDLY: Included detachable 27.5in (70cm) Thunderbolt 3 cable ensures reliable network performance; Simplify deployment, installation, and maintenance with features such as Wake-on-LAN, Status LEDs, Autonegotiation, and NBASE-T support Bullet 4 PORTABLE AND DURABLE: Bus-powered Thunderbolt 3 (TB3) 10G Network Adapter features a compact and portable form factor; Durable all-aluminum chassis acts as a heatsink, for silent passive cooling Bullet 5 CONNECTIVITY TOOLS: Optimize the performance and security of this Thunderbolt to Gigabit Ethernet Adapter, using the included MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities (available for download) Bullets (Compact) Thunderbolt 3 to Ethernet Adapter; Supports multi-gigabit 1/2.5/5/10G network speeds; RJ45 10GbE NIC with Marvell AQC107S; Includes certified 27.5in TB3 cable; Thunderbolt to Ethernet Adapter supports Wake-on-LAN/ NIC status LEDs/NBASE-T/Win/macOS Bullets (Consolidated) Thunderbolt 3 to Ethernet Adapter adds a 1/2.5/5/10G multi-Gigabit RJ45 port to a Thunderbolt 3/4 laptop - Compatible w/Thunderbolt 3/4; Provides 10GbE performance; Marvell AQC107S chipset - Thunderbolt to Ethernet Adapter features portable design/aluminum construction; 27.5in TB3 cable - Supports Wake-on-LAN/NIC status LEDs/NBASE-T/Win/macOS - Thunderbolt to Gigabit Ethernet Adapter is compatible w/Connectivity Tools utilities provide MAC Address Passthrough/improved security/Wi-Fi Auto-Switch Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 10G network adapter
- tb3 10gbe
- tb3 to ethernet
- thunderbolt 3 network adapter
- thunderbolt 3 nic
- thunderbolt 3 to ethernet adapter
- Thunderbolt 3 to RJ45
- thunderbolt adapter ethernet
- Thunderbolt to Ethernet Adapter
- thunderbolt to gigabit ethernet adapter
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements Requires a Thunderbolt 3 or 4 port on the host computer Accessory Products - C6ASPAT15BL
- C6ASPAT7BK
- C6ASPAT2BL
- C6ASPAT10BK
- C6ASPAT20BL
- C6ASPAT5GR
- 6ASPAT5MBL
- 6ASPAT2MBK
- 6ASPAT50CMBL
- 6ASPAT3MBK
- 6ASPAT7MBL
- 6ASPAT150CMGR
Related Products TB310G Power Source Bus Powered Cable Length (mm) 700 Color Space Gray Humidity 20% ~ 80% RH Material Aluminum Network Adapter Form Factor Separate Cable Operating Temperature 10°C to 55°C (50°F to 131°F) Primary Material Aluminum Product Length (mm) 75.000 Product Width (mm) 108.500 Product Height (mm) 29.100 Product Weight (g) 520.000 Storage Temperature 10°C to 55°C (50°F to 131°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10 Gbps/5G/2.5G/1G/100 Mbps Full Duplex Support Yes Jumbo Frame Support 16K max. Maximum Cable Length (mm) 100 OS Compatibility - Windows 10
- Windows 11
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Promiscuous Mode Yes PXE No Wake-On-LAN (WOL) Yes Bus Type Thunderbolt 3 Chipset ID Ethernet Port Yes Industry Standards - IEEE 802.3an (10GBASE-T)
- 802.3bz (5GBASE-T)
- 802.3bz (2.5GBASE-T)
- IEEE 802.3ab (1000BASE-T)
- IEEE 802.3u (100BASE-T)

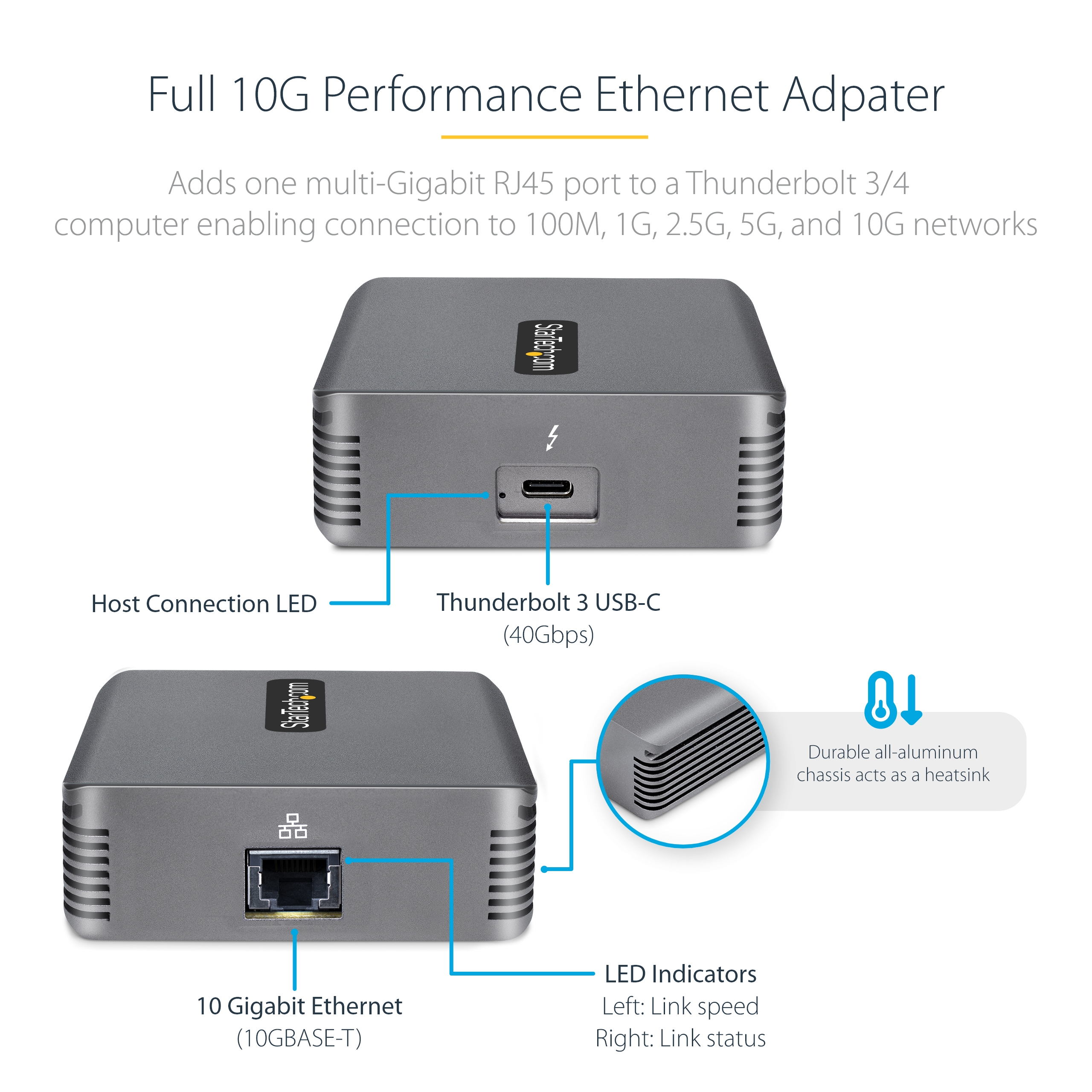

IO Card Port Style External Hub LED Indicators - 1 - 10 Gbps Link: Green Solid
- 1 - 5G/2.5G/1G/100Mbps Link: Orange Solid
- 1 - Activity: Green Blinking

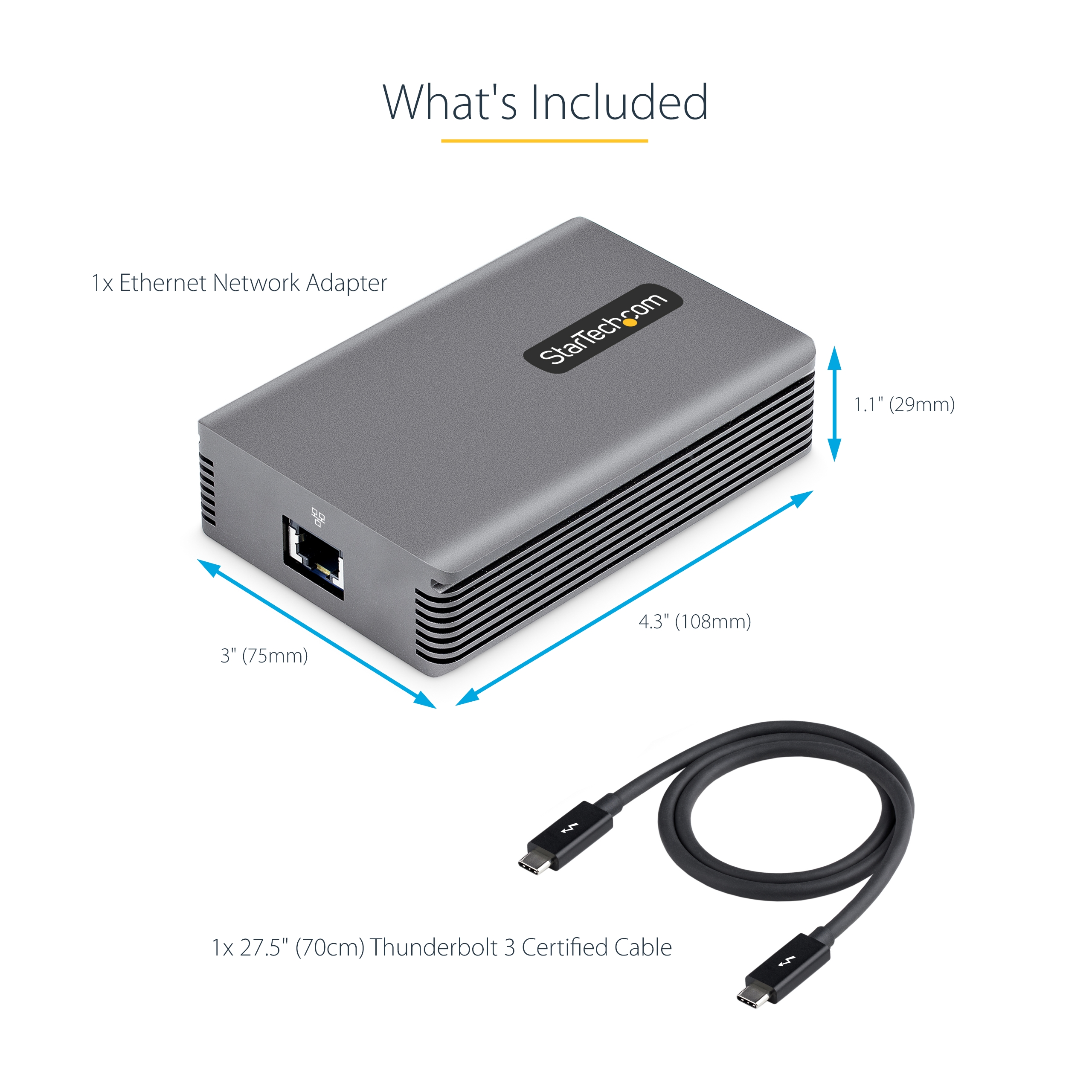

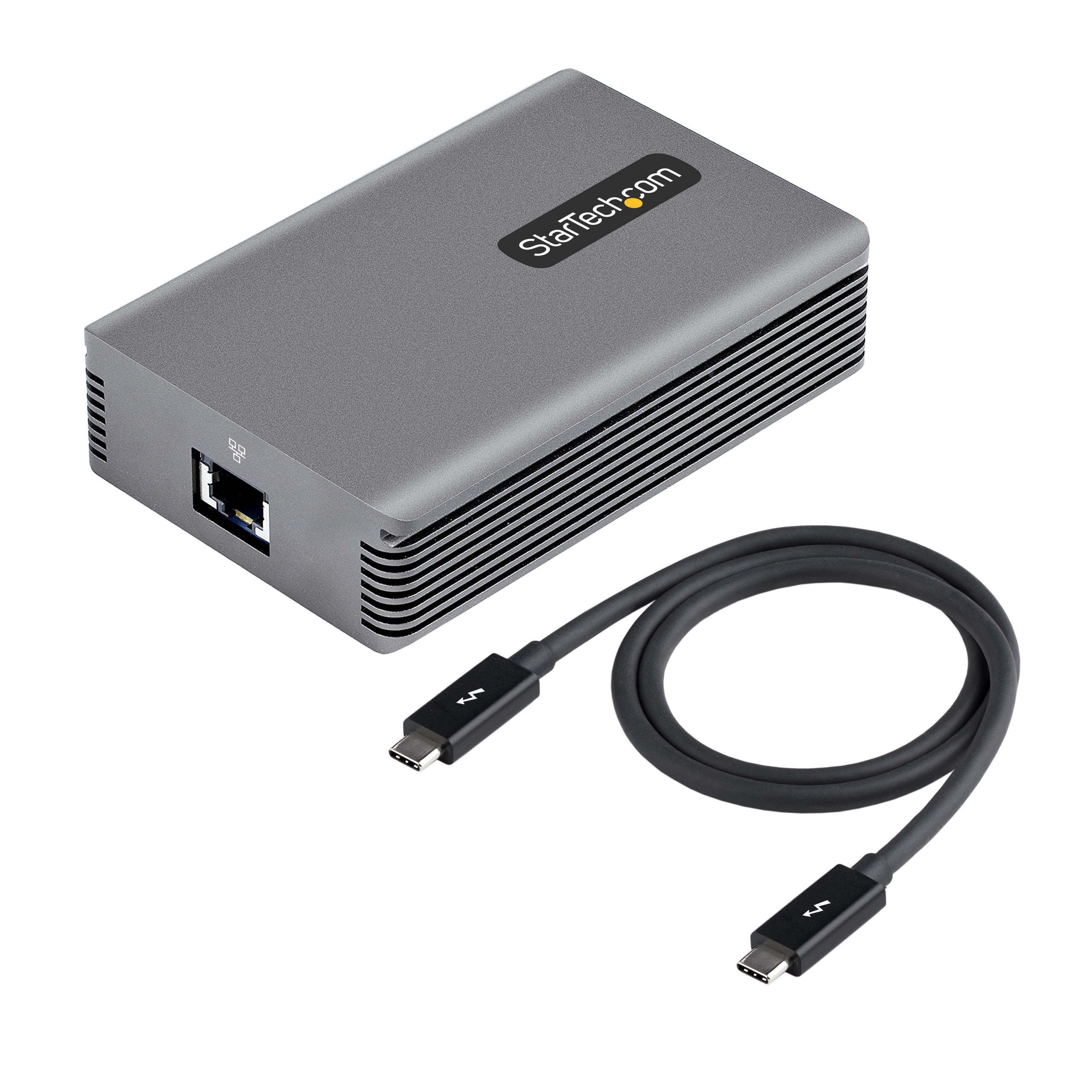

Network Adapter Host Thunderbolt 3 - USB-C Network Adapter LAN Ports 1 Carton Depth (mm) 406 Carton Height (mm) 319 Carton Quantity 20 Carton Weight Gross (g) 14556 Included in Package - 1 - Ethernet Network Adapter
- 1 - Quick-Start Guide

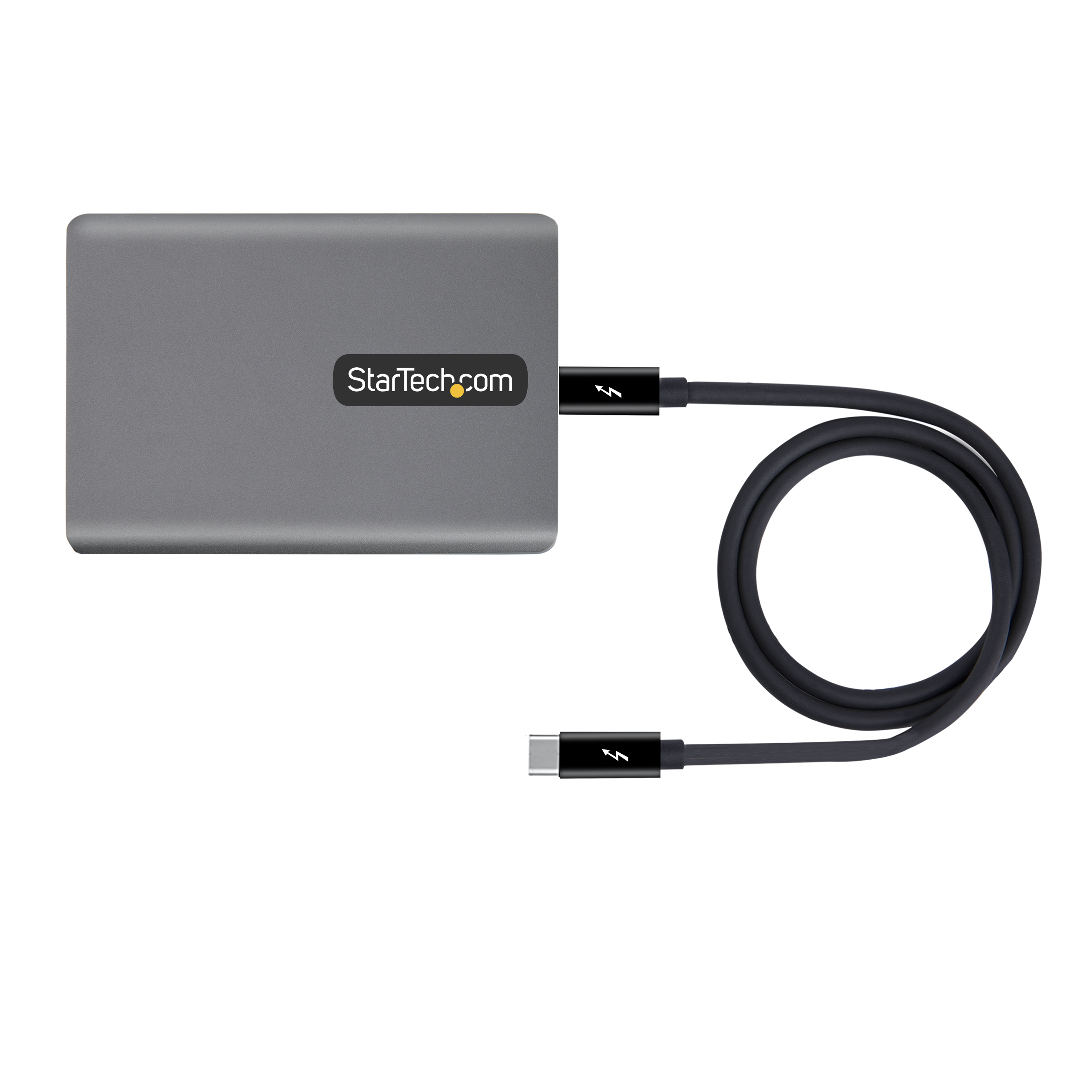

- 1 - 27.5 in (70 cm) Thunderbolt 3 Cable
Included In Package for Label - 1 - 27.5 In (70 Cm) Thunderbolt 3 Cable
- 1 - Quick-Start Guide
- 1 - Ethernet Network Converter
Package Depth (mm) 174 Package Height (mm) 76 Package Width (mm) 137 Package Quantity 1 Package Weight (g) 686 Packaging Description Thunderbolt 3 to 10GBase-T Ethernet Network Adapter Packaging Description India Thunderbolt 3 to 10GBase-T Ethernet Network Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 USB-C (Thunderbolt 40Gbps) Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2022-07-07 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2023-03-07 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology - None
- Thunderbolt 3
Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2022-06-10 Target Production Release 2022-07-30 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle Mainstream Video Required
