TB3CDK2DH

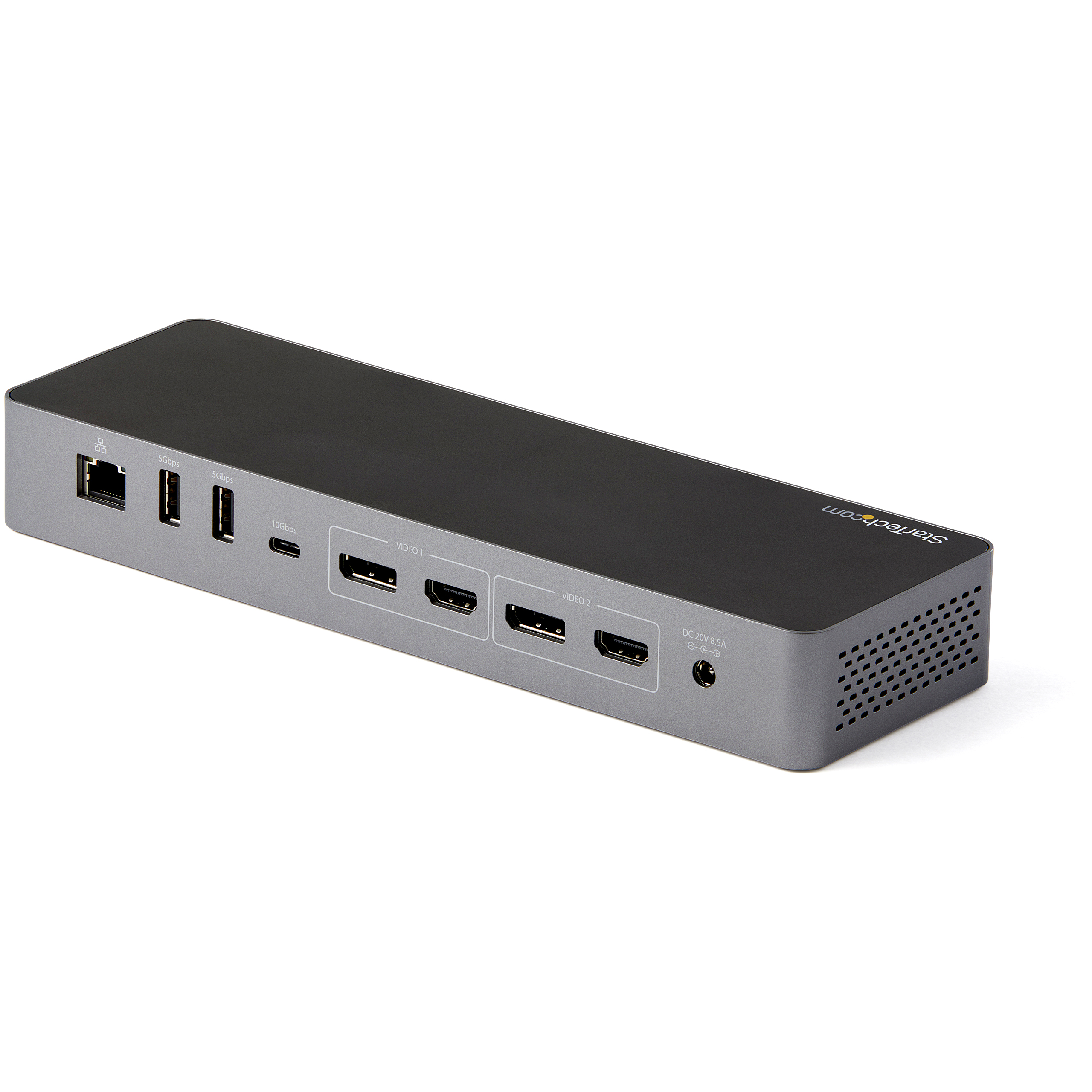

Thunderbolt 3 and USB C Dual DP 1 4 HDMI 2 0 Dock
Dual DP 4K 60Hz or Dual HDMI 2.0 Monitors | macOS & Windows®| 5x USB 3.0 Ports | 96W PD | 0.8 m Cable
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name Thunderbolt 3 and USB C Dual DP 1 4 HDMI 2 0 Dock Product Number TB3CDK2DH UPC 065030881005 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 3 Docks Family Universal Thunderbolt & USB-C Dock - v2 Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Product Title (Ultra-Short) Dual TB3/USB-C Dock Product Title (Short) Thunderbolt 3 Dock USB-C /Dual 4K/96W PD Product Title (Medium) Thunderbolt 3 Dock/USB-C Dock - Dual 4K DP/HDMI, 1x8K - 96W PD Product Title (Standard) USB C Docking Station for MacBook Pro/Air-M1/M2/M3/M4 (Thunderbolt Compatible) - Dual HDMI/DisplayPort, 96W Power Delivery Product Title (Long) USB C Docking Station for MacBook Pro/Air-M1/M2/M3/M4, Thunderbolt Compatible, HDMI/DisplayPort, Dual 4K 60Hz/Single 8K, USB Type-C Laptop Dock, 96W Power Delivery, USB 10Gbps Product Title (AMZ) USB C Docking Station for MacBook Pro/Air-M1/M2/M3/M4, Dual 4K 60Hz/Single 8K, Thunderbolt Compatible, HDMI/DisplayPort, 10Gbps USB Type-C Laptop Dock, 96W Power Delivery Title Ingram (Part 1) USB C Docking Station for Title Ingram (Part 2) MacBook Pro/Air-M1/M2/M3/M4, 96W Website Product Headline Dual DP 4K 60Hz or Dual HDMI 2.0 Monitors | macOS & Windows®| 5x USB 3.0 Ports | 96W PD | 0.8 m Cable Bullet 1 HIGH-PERFORMANCE DOCK: Alternative to TB3DK2DPPDUE; Easy Driverless setup; Dual monitor 4K 60Hz; 5x USB Hub (2x fast charge ports) with 3x USB-A (1x 10Gbps USB 3.2/3.1 Gen 2) & 2x USB-C 10Gbps; Gigabit Ethernet (WoL/PXE), headset ports; 96W Power Delivery Bullet 2 FLEXIBLE MONITOR OUTPUTS: Dual 4K 60Hz video output utilizing direct GPU performance with no software or compression; Use DP or HDMI monitors; Up to dual 4K 30Hz on USB-C (non TB3) laptops; Thunderbolt 3 Dock with 2x DP 1.4 & 2x HDMI 2.0 ports Bullet 3 COMPATIBILITY: This docking station is compatible with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later Bullet 4 96W POWER DELIVERY 3.0 CERTIFIED: The port replicator includes a fully spec'd power adapter that provides full power to laptop and peripheral devices unlike consumer docks that use SMART power; The Dock can deliver up to 100W peak power (96W sustained) Bullet 5 DEVICE SECURITY: Thunderbolt/USB-C dock Includes 2.6ft (0.8m) Thunderbolt 3 host cable; Mounting holes for optional brackets (SSPMSVESA, SSPMSUDWM); K-Slot for security lock Bullets (Compact) Universal Thunderbolt dock for TB/USB Type-C laptops - Docking station with dual monitor 4K 60Hz DisplayPort 1.4 (DSC, single 8K) and/or HDMI, 3xUSB-A, 2xUSB-C 10Gbps, 96W PD, GbE, Audio - Windows/macOS - Auto install - Alternative to TB3DK2DPPD Bullets (Consolidated) High-Performance Thunderbolt docking station w/4K 60Hz dual monitor DisplayPort 1.4 w/ DSC (single 8K) and/or HDMI 2.0 dock; Alternative to TB3DK2DPPD - USB Hub 3xA/2xC 10Gbps/GbE/Audio - 96W sustained Power Delivery (100W peak) for charging; 2.6ft Thunderbolt cable - For USB Type-C laptops like MacBook Pro/Lenovo ThinkPad/EliteBook/Dell; Windows macOS - Extended Dual Display on Apple M1/M2/M3/M4 Max/Pro MacBooks; Single Display on base M-series MacBooks and iPad Pro M1 & later Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 4k docking station
- 4k usb c dock
- apple thunderbolt 3 dock
- belkin thunderbolt 3 dock
- cable matters aluminum thunderbolt 3 dock
- cable matters thunderbolt 3 dock
- dell dock 4k 60hz
- dell thunderbolt 3 dock
- dell thunderbolt dock
- dell universal dock
- dell usb c dock
- docking station 4k 60hz
- docking station with displayport
- dual 4k 60hz docking station
- dual 4k display docking station
- apple
- apple M3
- M3 Pro
- M3 Max
- Apple M3 Pro
- Apple M3 Max
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords

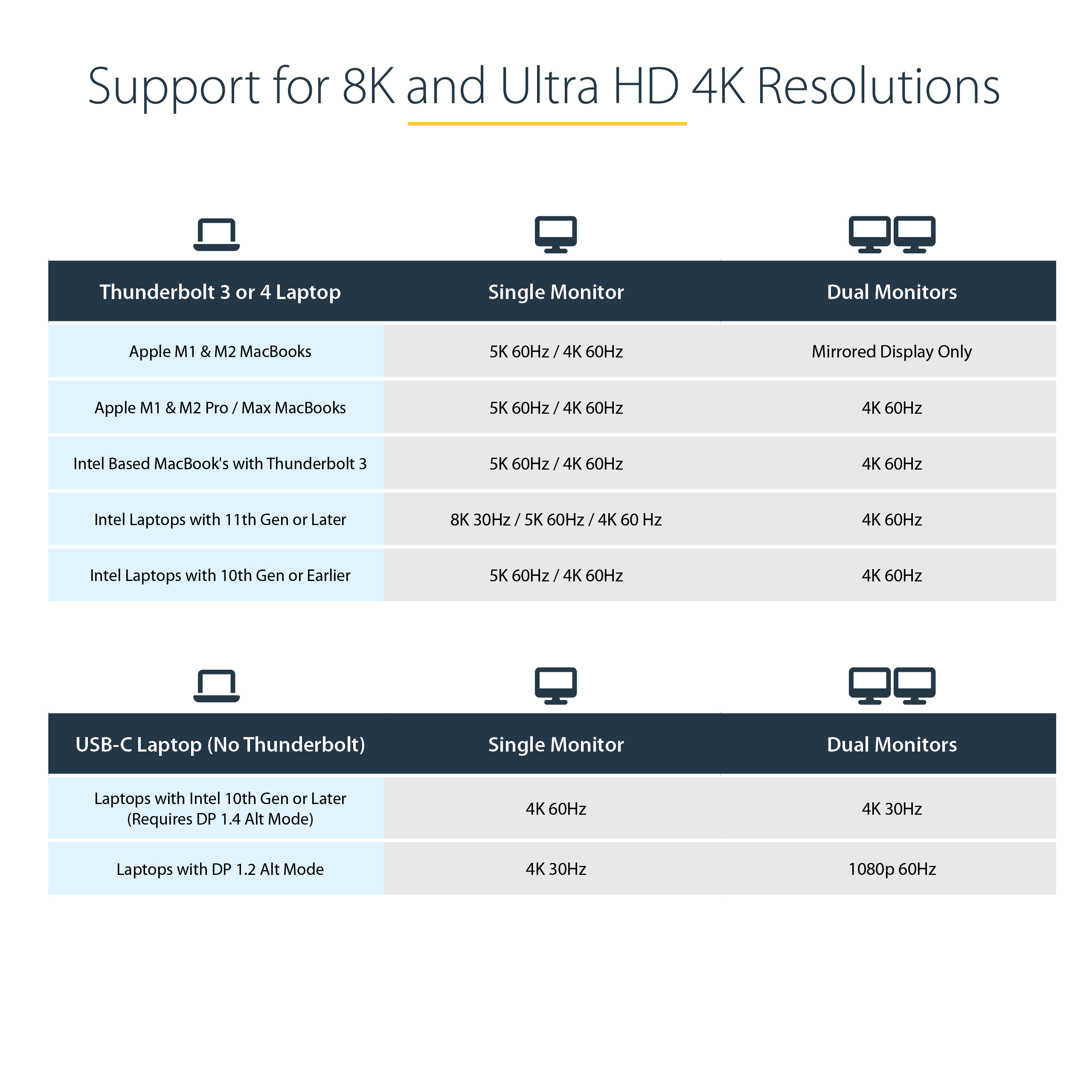

Special Notes MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3. Accessory Products - HDMIDVIMM6
- DP2VGA2
- DP2HD4K60S
- DP2DVID2
- DP14MM2M
- SSPMSUDWM
- HDMMV2M
- DOCK-NUC-VESA-MOUNT
Constrained SKU Alternatives (Limited Stock) TB3DK2DHV Equivalent Part Number in the EU TB3CDK2DHUE Equivalent Part Number in the UK TB3CDK2DHUE Input Current 2.5A Input Voltage 110V-240V AC Output Current 8.5A Output Voltage (V) 20V DC Power Delivery 96W Power Source AC Adapter Included Plug Type N Cable Length (mm) 80 Color Black & Space Gray Humidity 0% to 95% (non-condensing) at 25°C Operating Temperature 0°C to 35°C Product Length (mm) 80.000 Product Width (mm) 220.000 Product Height (mm) 30.000 Product Weight (g) 250.000 Storage Temperature -20°C to 70°C TAA Compliant No Downstream Maximum Data Transfer Rate Thunderbolt 3 (40Gbps) Maximum Digital Resolutions Maximum Supported Resolution 8K 30Hz (7680x4320) OS Compatibility - Windows 10
- Windows 8
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
PXE Yes StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
Supported Charging Outputs BC 1.2 (1.5A) USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate - Thunderbolt 3 (40Gbps)
- USB 10Gbps
- USB 5Gbps
- USB 3.0 (5Gbps)
Video Output Port - DisplayPort
- HDMI
Video Transport Technology Thunderbolt Wake-On-LAN (WOL) Yes Audio Yes Bus Type - Thunderbolt 3
- USB 3.2 Gen 2 10Gbps
- USB-C
Chipset ID - C-Media - CM6533
- Genesys Logic - GL3590
- Genesys Logic - GL3523
- Realtek - RTD2186
- Titan Ridge - JHL7440
- Cypress - CCG5C
- Realtek - RTL8153

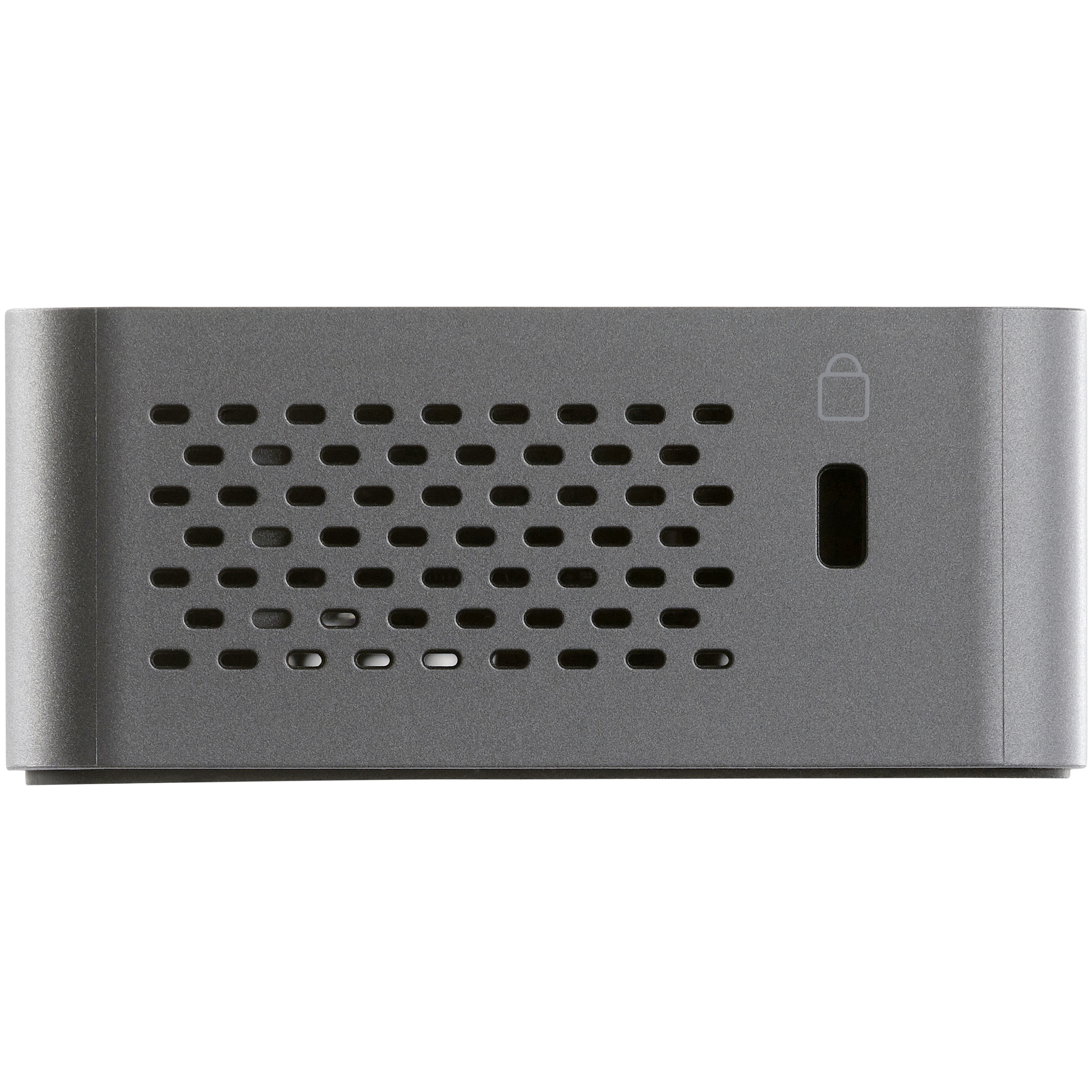

Compatible Lock Slot Kensington Standard Slot (K-Slot) Host Connection Port Thunderbolt Interface/Bridge - Thunderbolt 3
- USB 10Gbps
Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes Network Adapter LAN Ports 1 Number of Battery Charge 1.2 Ports 2 Number of Displays 2 Other Ports - USB-A BC 1.2 Fast Charge
- Gigabit Ethernet
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack

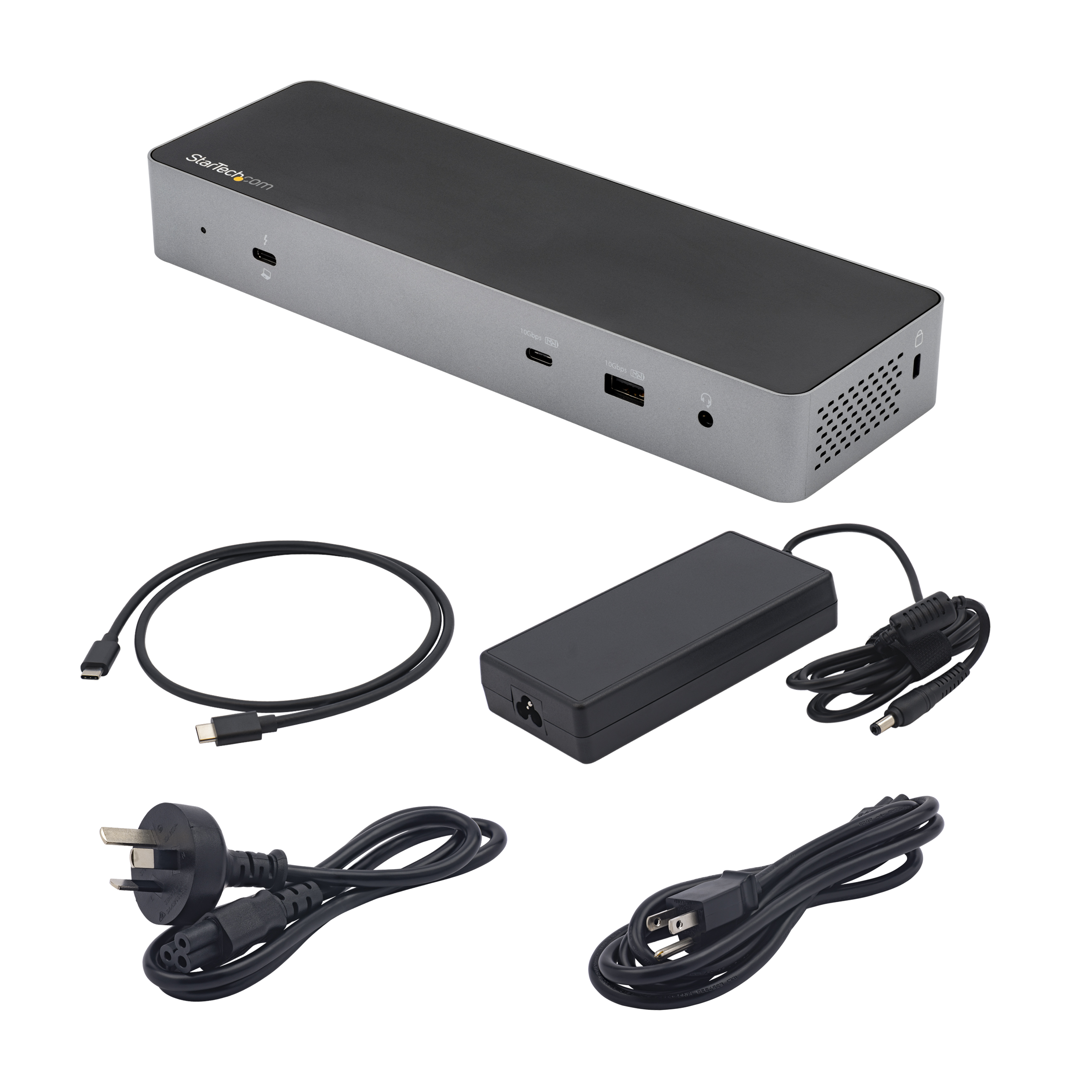

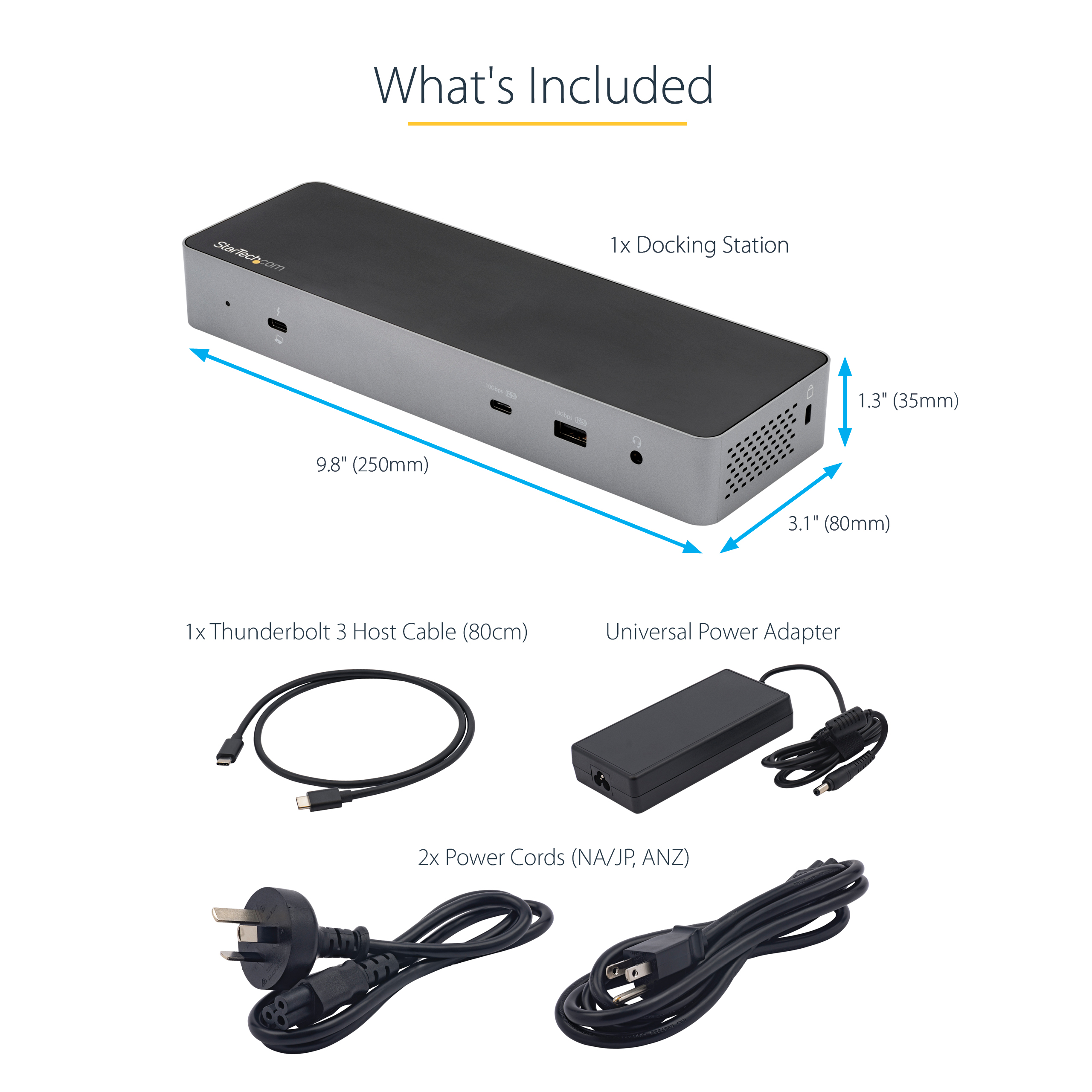

Carton Depth (mm) 507 Carton Height (mm) 252 Carton Quantity 6 Carton Weight Gross (g) 12074 Included in Package - 1 - Docking Station
- 1 - Universal Power Adapter
- 2 - Power Cords (NA/JP, ANZ)
- 1 - Thunderbolt 3 Host Cable (80 cm)
- 1 - User Manual

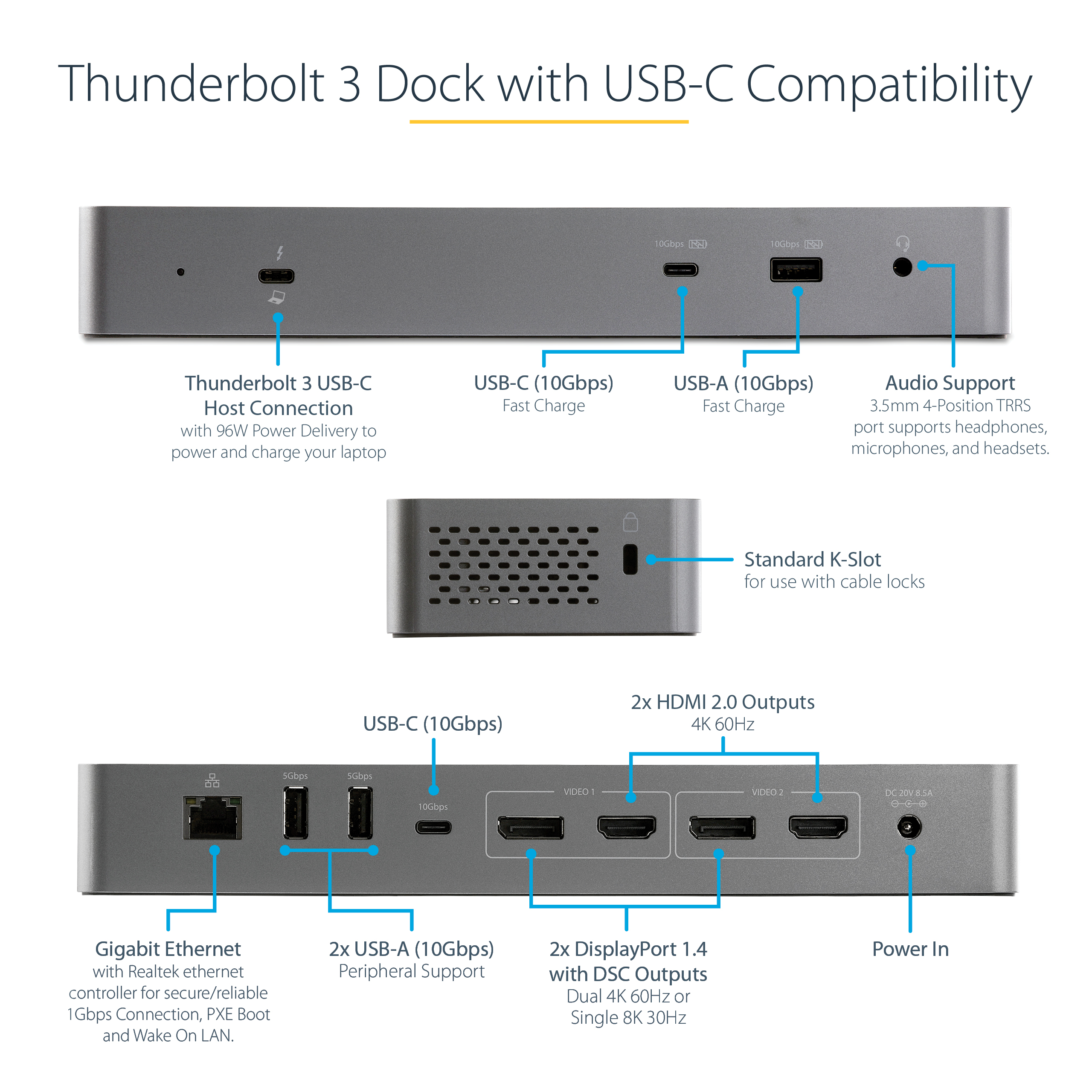

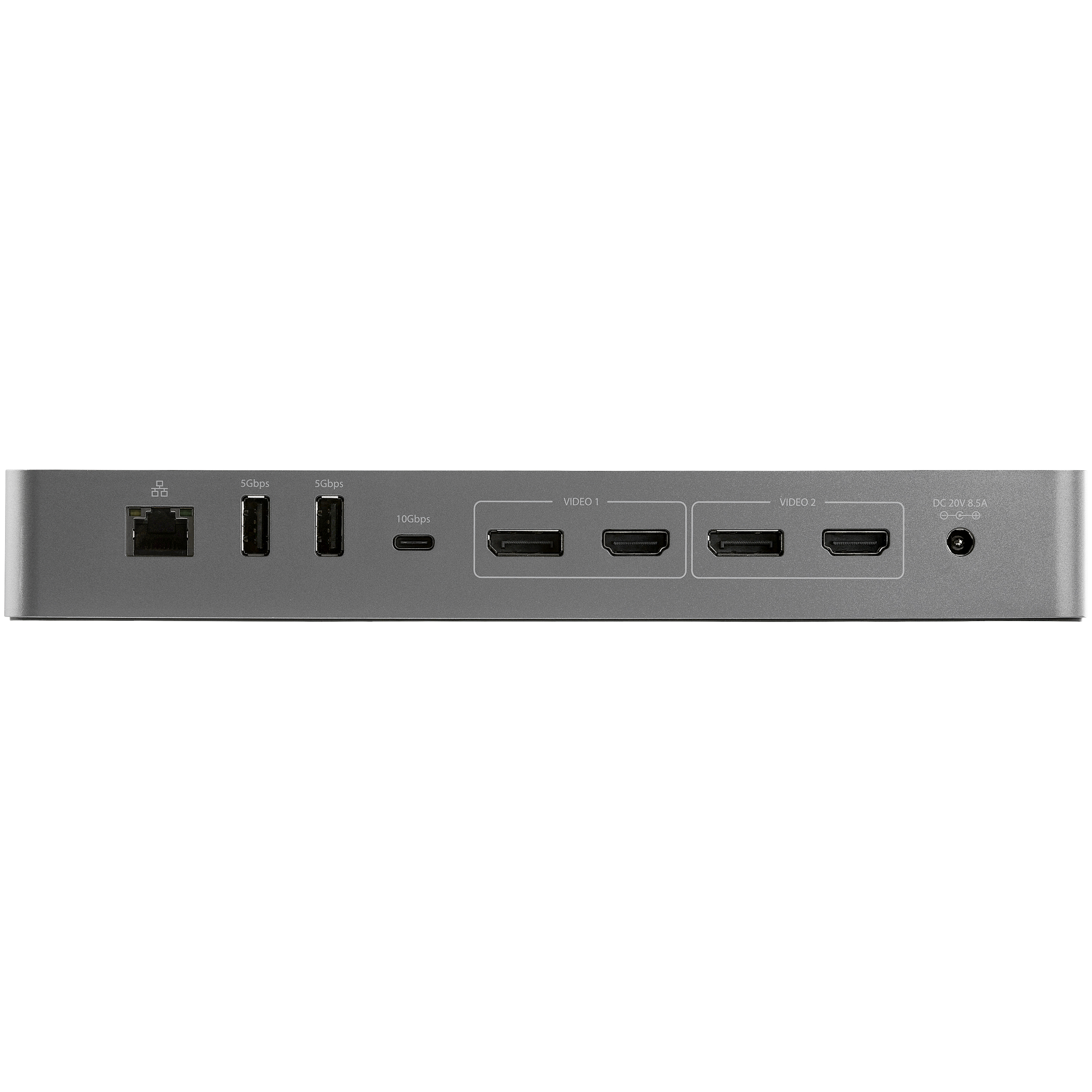

Package Depth (mm) 307 Package Height (mm) 110 Package Width (mm) 163 Package Quantity 1 Package Weight (g) 1834 Packaging Description Thunderbolt 3/USB-C - Dual-4K Dock - DP 1.4/HDMI Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (10Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (10Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 2 Connector 5 USB-C (10Gbps, 4.5W) Connector 5 (Quantity) 1 Connector 6 DisplayPort Connector 6 (Quantity) 2 Connector 7 HDMI Connector 7 (Quantity) 2 Connector 8 RJ-45 Connector 8 (Quantity) 1 Host Connector 1 USB-C (Thunderbolt 40Gbps) Host Connector 1 (Quantity) 1 A+ Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Required Artwork Due Date 2020-09-24 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2021-03-23 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AU,CA,JP,NZ,SG,US Primary Technology - Thunderbolt 3
