Main Image
TB3CDK2DHUE
Thunderbolt 3 and USB C Dual DP 1 4 HDMI 2 0 Dock UK EU
Dual DP 4K 60Hz or Dual HDMI 2.0 Monitors | macOS & Windows®| 5x USB 3.0 Ports | 96W PD | 0.8 m Cable
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name Thunderbolt 3 and USB C Dual DP 1 4 HDMI 2 0 Dock UK EU Product Number TB3CDK2DHUE UPC 065030880992 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 3 Docks Family Universal Thunderbolt & USB-C Dock - v2 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Product Title (Ultra-Short) Dual TB3/USB-C Dock Product Title (Short) Thunderbolt 3 Dock USB-C /Dual 4K/96W PD Product Title (Medium) Thunderbolt 3 Dock/USB-C Dock - Dual 4K DP/HDMI, 1x8K - 96W PD Product Title (Standard) USB C Docking Station for MacBook Pro/Air-M1/M2/M3/M4 (Thunderbolt Compatible) - Dual HDMI/DisplayPort, 96W Power Delivery Product Title (Long) USB C Docking Station for MacBook Pro/Air-M1/M2/M3/M4, Thunderbolt Compatible, HDMI/DisplayPort, Dual 4K 60Hz/Single 8K, USB Type-C Laptop Dock, 96W Power Delivery, USB 10Gbps Product Title (AMZ) USB C Docking Station for MacBook Pro/Air-M1/M2/M3/M4, Dual 4K 60Hz/Single 8K, Thunderbolt Compatible, HDMI/DisplayPort, 10Gbps USB Type-C Laptop Dock, 96W Power Delivery Title Ingram (Part 1) USB C Docking Station for Title Ingram (Part 2) MacBook Pro/Air-M1/M2/M3/M4, 96W Website Product Headline Dual DP 4K 60Hz or Dual HDMI 2.0 Monitors | macOS & Windows®| 5x USB 3.0 Ports | 96W PD | 0.8 m Cable Bullet 1 HIGH-PERFORMANCE DOCK: Alternative to TB3DK2DPPDUE; Easy Driverless setup; Dual monitor 4K 60Hz; 5x USB Hub (2x fast charge ports) with 3x USB-A (1x 10Gbps USB 3.2/3.1 Gen 2) & 2x USB-C 10Gbps; Gigabit Ethernet (WoL/PXE), headset ports; 96W Power Delivery Bullet 2 FLEXIBLE MONITOR OUTPUTS: Dual 4K 60Hz video output utilizing direct GPU performance with no software or compression; Use DP or HDMI monitors; Up to dual 4K 30Hz on USB-C (non TB3) laptops; Thunderbolt 3 Dock with 2x DP 1.4 & 2x HDMI 2.0 ports Bullet 3 COMPATIBILITY: This docking station is compatible with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later Bullet 4 96W POWER DELIVERY 3.0 CERTIFIED: The port replicator includes a fully spec'd power adapter that provides full power to laptop and peripheral devices unlike consumer docks that use SMART power; The Dock can deliver up to 100W peak power (96W sustained) Bullet 5 DEVICE SECURITY: Thunderbolt/USB-C dock Includes 2.6ft (0.8m) Thunderbolt 3 host cable; Mounting holes for optional brackets (SSPMSVESA, SSPMSUDWM); K-Slot for security lock Bullets (Compact) Universal Thunderbolt dock for TB/USB Type-C laptops - Docking station with dual monitor 4K 60Hz DisplayPort 1.4 (DSC, single 8K) and/or HDMI, 3xUSB-A, 2xUSB-C 10Gbps, 96W PD, GbE, Audio - Windows/macOS - Auto install - Alternative to TB3DK2DPPD Bullets (Consolidated) High-Performance Thunderbolt docking station w/4K 60Hz dual monitor DisplayPort 1.4 w/ DSC (single 8K) and/or HDMI 2.0 dock; Alternative to TB3DK2DPPD - USB Hub 3xA/2xC 10Gbps/GbE/Audio - 96W sustained Power Delivery (100W peak) for charging; 2.6ft Thunderbolt cable - For USB Type-C laptops like MacBook Pro/Lenovo ThinkPad/EliteBook/Dell; Windows macOS - Extended Dual Display on Apple M1/M2/M3/M4 Max/Pro MacBooks; Single Display on base M-series MacBooks and iPad Pro M1 & later Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 4k docking station
- 4k usb c dock
- apple thunderbolt 3 dock
- belkin thunderbolt 3 dock
- cable matters aluminum thunderbolt 3 dock
- cable matters thunderbolt 3 dock
- dell dock 4k 60hz
- dell thunderbolt 3 dock
- dell thunderbolt dock
- dell universal dock
- dell usb c dock
- docking station 4k 60hz
- docking station with displayport
- dual 4k 60hz docking station
- dual 4k display docking station
- apple
- apple M3
- M3 Pro
- M3 Max
- Apple M3 Pro
- Apple M3 Max
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3. Accessory Products - DP2DVIS
- DP2VGA2
- DP2HD4K60S
- DP2DVID2
- SSPMSVESA
- SSPMSUDWM
- DOCK-NUC-VESA-MOUNT
Constrained SKU Alternatives (Limited Stock) TB3CDK2DPUE Input Current 2.5A Input Voltage 110V-240V AC Output Current 8.5A Output Voltage (V) 20V DC Power Delivery 96W Power Source AC Adapter Included Plug Type N Cable Length (mm) 80 Color Black & Space Gray Humidity 0% to 95% (non-condensing) at 25°C Operating Temperature 0°C to 35°C Product Length (mm) 80.000 Product Width (mm) 220.000 Product Height (mm) 30.000 Product Weight (g) 250.000 Storage Temperature -20°C to 70°C TAA Compliant No Downstream Maximum Data Transfer Rate Thunderbolt 3 (40Gbps) Maximum Digital Resolutions Maximum Supported Resolution 8K 30Hz (7680x4320) OS Compatibility - Windows 10
- Windows 8
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
PXE Yes StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
Supported Charging Outputs BC 1.2 (1.5A) USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate - Thunderbolt 3 (40Gbps)
- USB 10Gbps
- USB 5Gbps
- USB 3.0 (5Gbps)
Video Output Port - DisplayPort
- HDMI
Video Transport Technology Thunderbolt Wake-On-LAN (WOL) Yes Audio Yes Bus Type - Thunderbolt 3
- USB 3.2 Gen 2 10Gbps
- USB-C
Chipset ID - C-Media - CM6533
- Genesys Logic - GL3590
- Genesys Logic - GL3523
- Realtek - RTD2186
- Titan Ridge - JHL7440
- Cypress - CCG5C
- Realtek - RTL8153
Compatible Lock Slot Kensington Standard Slot (K-Slot) Host Connection Port Thunderbolt Interface/Bridge - Thunderbolt 3
- USB 10Gbps
Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes Network Adapter LAN Ports 1 Number of Battery Charge 1.2 Ports 2 Number of Displays 2 Other Ports - USB-A BC 1.2 Fast Charge
- Gigabit Ethernet
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack

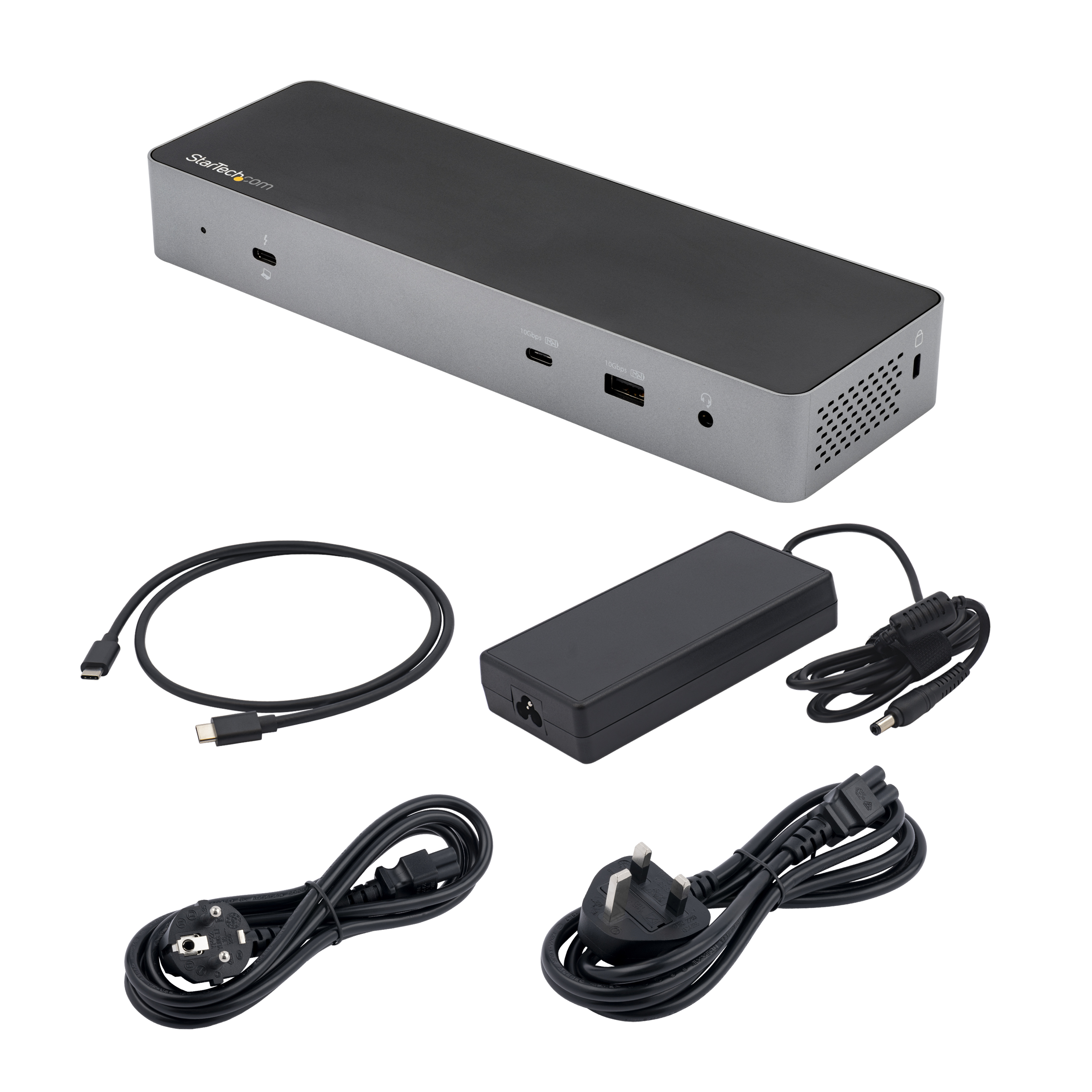

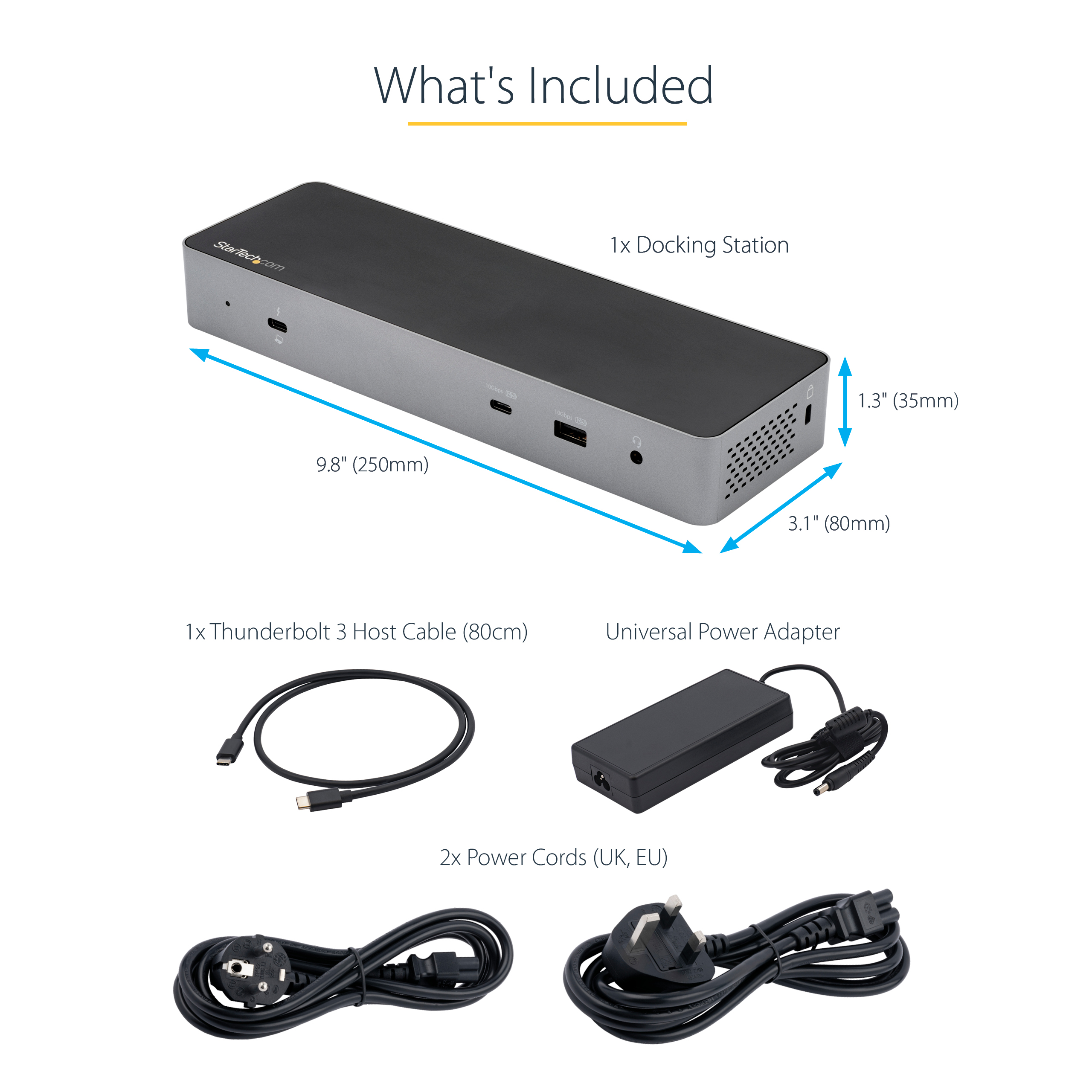

Carton Depth (mm) 248 Carton Height (mm) 320 Carton Quantity 6 Carton Weight Gross (g) 12100 Included in Package - 1 - Docking Station
- 1 - Universal Power Adapter
- 2 - Power Cords (UK, EU)
- 1 - Thunderbolt 3 Host Cable (80 cm)
- 1 - User Manual
Package Depth (mm) 305 Package Height (mm) 110 Package Width (mm) 160 Package Quantity 1 Package Weight (g) 1085 Packaging Description Thunderbolt 3/USB-C - Dual-4K Dock - DP 1.4/HDMI Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (10Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (10Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 2 Connector 5 USB-C (10Gbps, 4.5W) Connector 5 (Quantity) 1 Connector 6 DisplayPort Connector 6 (Quantity) 2 Connector 7 HDMI Connector 7 (Quantity) 2 Connector 8 RJ-45 Connector 8 (Quantity) 1 Host Connector 1 USB-C (Thunderbolt 40Gbps) Host Connector 1 (Quantity) 1 A+ Required Amazon Merchandising Manager Kristian Haighton Application Photos Required Artwork Due Date 2020-03-26 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2021-02-04 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CH,CL,CO,DE,DK,ES,FI,FR,IE,IT,NL,PE,SE,SG,UK Primary Technology - Thunderbolt 3
- DisplayPort 1.4
- USB 3.2 Gen 2 / 10Gbps
- Power Delivery
Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2020-10-30 Target Production Release 2020-11-19 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine Video Not Required
