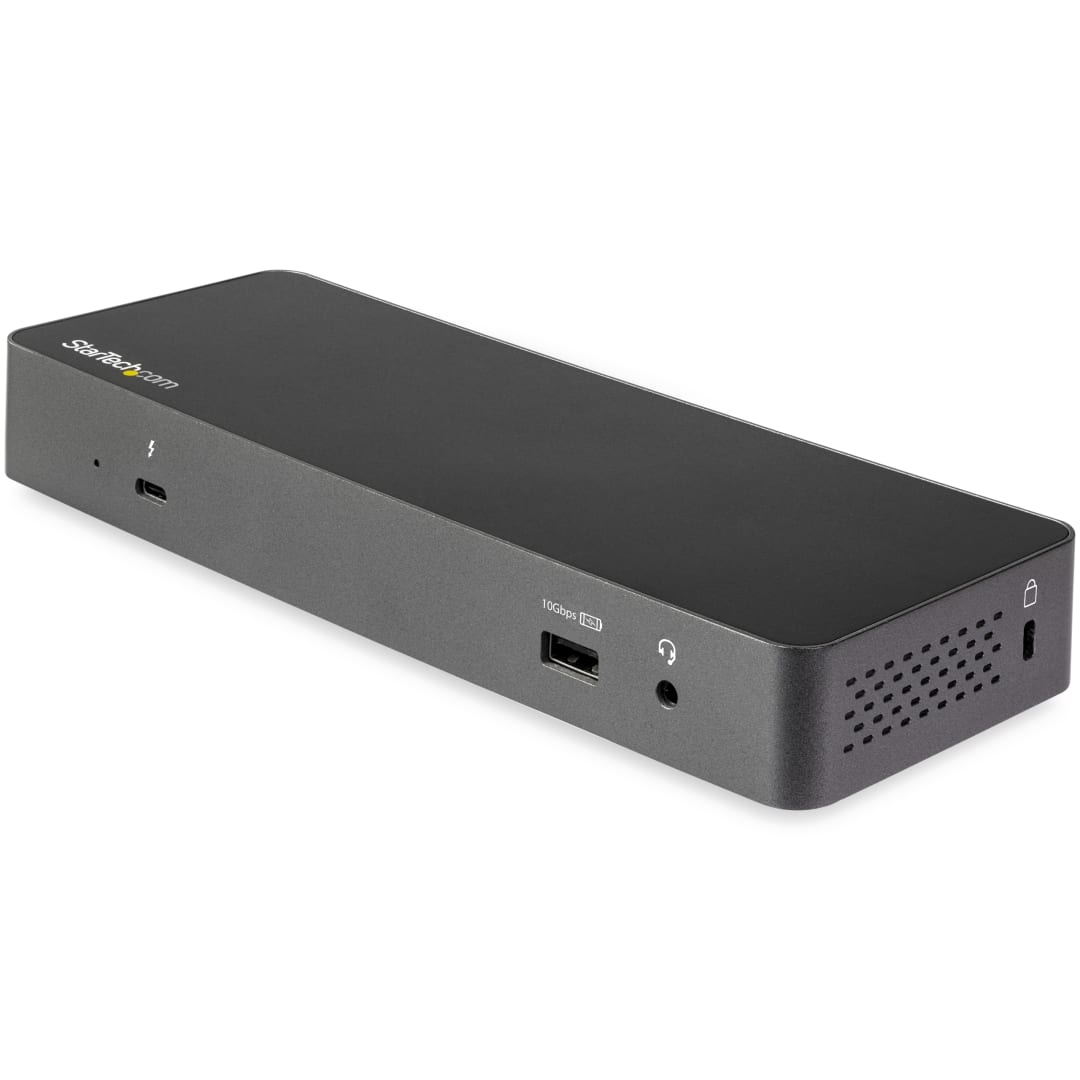

Thunderbolt 3 and USB C Dual DP Dock - UK & EU
Dual DP 4K 60Hz | macOS & Windows®| 5x USB 3.0 Ports | 60W PD | 0.7 m Cable
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Product Name Thunderbolt 3 and USB C Dual DP Dock - UK & EU Product Number TB3CDK2DPUE UPC 065030880268 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 3 Docks Family Universal Thunderbolt & USB-C Dock Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Product Title (Ultra-Short) Thunderbolt 3 Dock Product Title (Short) USB-C / Thunderbolt 3 Dock - 4K Dual DP Product Title (Medium) Thunderbolt 3 Dock with USB-C (USB 3.1 Gen & Gen 2) Host Device Compatibility Product Title (Standard) Thunderbolt 3 Dock w/ USB-C Compatibility - 4K60Hz DisplayPort Dual Monitor Laptop TB3 Docking Station - 5x USB, Gbe, 60W PD Product Title (Long) Thunderbolt 3 Dock w/ USB-C Compatibility - Dual Monitor 4K60Hz DisplayPort Laptop Docking Station - 60W PD, GbE, 5x USB Hub - TB3 / USB 3.1 Gen 2 10Gbps Dock - Windows & Mac Product Title (AMZ) Thunderbolt 3 Dock w/ USB-C Compatibility - Dual Monitor 4K60Hz DisplayPort Laptop Docking Station - 60W PD, GbE, 5xUSB Hub - TB3 / USB 3.1 Gen 2 10Gbps Dock - Windows & Mac (TB3CDK2DPUE) Title Ingram (Part 1) Thunderbolt 3 Docking Station Title Ingram (Part 2) - USB-C Host Compatible Website Product Headline Dual DP 4K 60Hz | macOS & Windows®| 5x USB 3.0 Ports | 60W PD | 0.7 m Cable Bullet 1 BROAD LAPTOP COMPATIBILITY: For high performance & productivity users, this universal Thunderbolt 3 Certified dock is compatible with TB3 & USB-C laptops like Dell, Apple, HP, & Lenovo on Windows & macOS Bullet 2 FULL FUNCTION DOCK: Dual monitor laptop docking station features dual DisplayPort, 3x USB-A (1x 10Gbps & 2x 5Gbps) & 2x USB-C (USB 3.1 Gen 2), incl. 2 fast-charge ports, 60W PD, Ethernet, Headset Jack Bullet 3 HIGH PERFORMANCE VIDEO OUTPUTS: Two Displayport 1.2 ports w/ up to 4K 60Hz dual monitor with Thunderbolt 3 laptops and dual 1080p w/ USB-C laptops; extended dual displays on MacBook Pro/Air w/ Intel processor & single display w/ Apple M1 Chip Bullet 4 EASY TO DEPLOY & SETUP: TB3 Dock requires no drivers, incl a 0.7m TB3 cable, front facing USB-C host port, mounting holes for optional bracket, k-slot for security lock Bullet 5 60W POWER DELIVERY: Power & charging for high performance ultra thin TB3 laptops like MacBook, Lenovo Thinkpad T Series, X1 Carbon, & Surface Pro 7 w/ this TB3 / USB 3.1 Gen 2 Type-C compatible dock Bullets (Compact) Thunderbolt 3 docking station with USB-C compatibility for Windows, macOS laptops - Dual DisplayPort 1.2 at 4K60Hz, 5 USB ports (2 USB 3.1 Gen 2 ports), 60W Power Delivery, Ethernet, and audio - Driverless setup - Incl. 0.7m TB3 host cable Bullets (Consolidated) Thunderbolt 3 Certified docking station for TB3 and USB-C laptops; MacBook/Lenovo Thinkpad T X1 Carbon/HP Elitebook/Dell/Surface; Windows macOS - Dual monitor DisplayPort 1.2 dock (4K 60Hz on TB3 and 1080p on USB-C) - Extended dual displays on MacBook Pro/Air w/ Intel processor & single display w/ Apple M1 Chip - 3xA/2xC 10Gbps/GbE/audio - 60W Power Delivery for charging TB3/USB 3.1 Gen 2 Type-C laptops - No drivers/0.7m TB3 cable/front facing host port/mountable/k-slot/MAC address changer - Marketing Copy Marketing Copy (No HTML) Applications - Engineers
- Content Creators
- Graphic Designers
- AV Production
- Bring Your Own Device (BYOD) Setups
- Hoteling
- Free Address Environments
- Home Offices
- Educational Facilities
Website Search Keyword Docking Stations Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3. Accessory Products - DP2DVIS
- DP2DVIMM6BS
- DP2DVIMM3BS
- DP2HD4KS
- DP2VGA2
- SSPMSUDWM
- SSPMSVESA
- TBLT3MM2MA
- TBLT3MM1MA
- TBLT34MM80CM
- DP2HD4K60S
- DP2DVID2
- DOCK-NUC-VESA-MOUNT
Constrained SKU Alternatives (Limited Stock) TB3CDK2DHUE Input Current 2.5A Input Voltage 100 - 240 AC Output Current 6.75A Output Voltage (V) 20V DC Power Consumption (In Watts) 135 W Power Delivery 60W Power Source AC Adapter Included Cable Length (mm) 70 Color Black & Space Gray Humidity 0% to 95% (non-condensing) at 25°C Material Plastic Operating Temperature -40 to 65°C Primary Material Plastic Product Length (mm) 80.000 Product Width (mm) 220.000 Product Height (mm) 30.000 Product Weight (g) 400.000 Storage Temperature 0 to 35°C TAA Compliant No 4Kn Support Yes Downstream Maximum Data Transfer Rate Thunderbolt 3 (40Gbps) Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 10
- Windows 8
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Sierra (10.12)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
Supported Charging Outputs BC 1.2 (1.5A) USB Type and Rate - Thunderbolt 3 (40Gbps)
- USB 10Gbps
- USB 5Gbps
- USB 3.0 (5Gbps)
Video Output Port DisplayPort Video Transport Technology Thunderbolt Bus Type - Thunderbolt 3
- USB-C
Compatible Lock Slot Kensington Standard Slot (K-Slot) Host Connection Port Thunderbolt Industry Standards DP 1.2a Version </br> HDCP 1.4 and HDCP 2.2 Compliant Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 2 Other Ports - USB-A BC 1.2 Fast Charge
- Gigabit Ethernet
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack
USB Port Type - USB-C
- USB-A

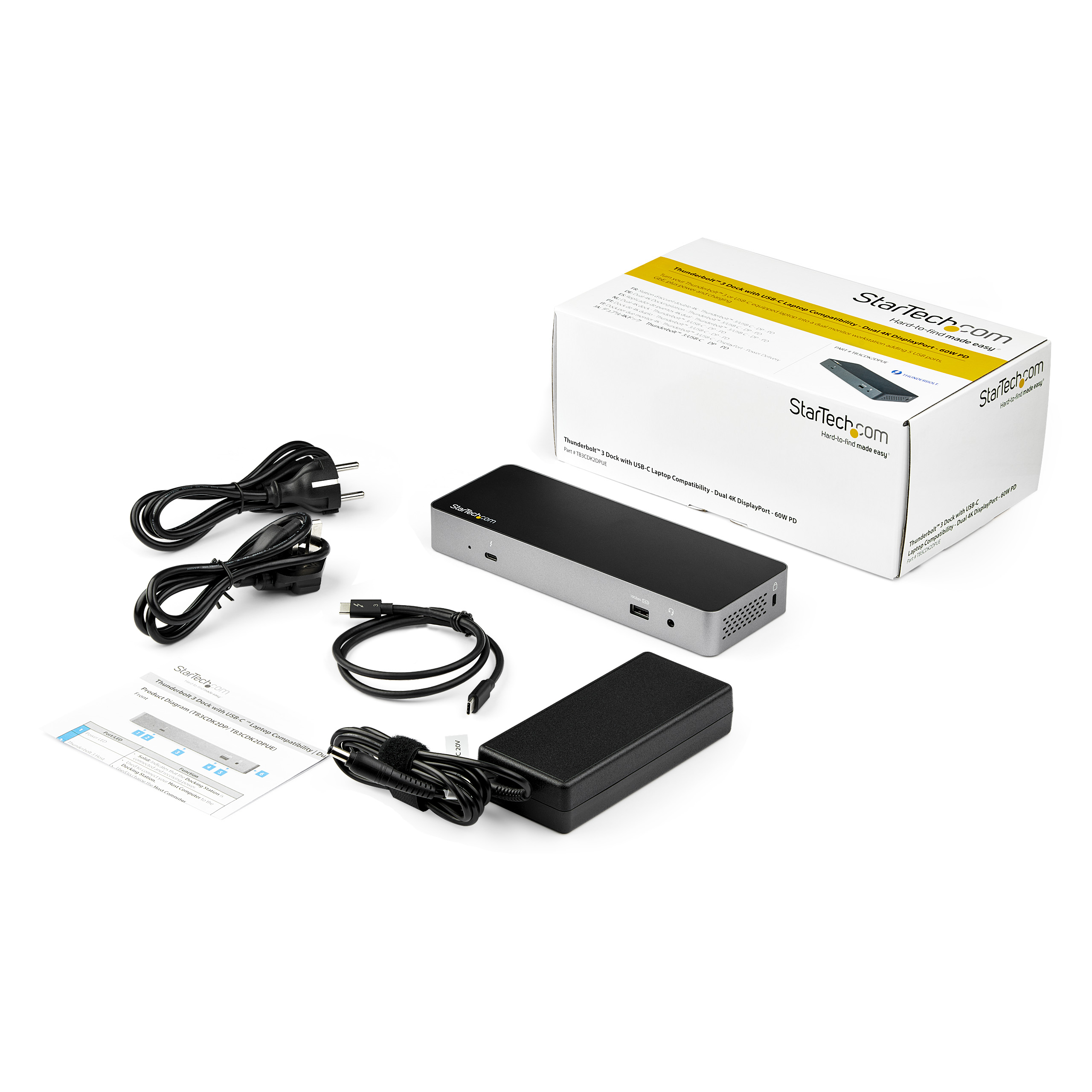

Carton Depth (mm) 295 Carton Height (mm) 250 Carton Quantity 6 Carton Weight Gross (g) 9900 Included in Package - 1 - Docking Station
- 1 - Universal Power Adapter (UK, EU)
- 1 - Thunderbolt 3 Cable (0.7 m)
- 1 - Quick-Start Guide
Package Depth (mm) 272 Package Height (mm) 115 Package Width (mm) 160 Package Quantity 1 Package Weight (g) 1500 Packaging Description Dual-4K Dock - Thunderbolt™ 3/USB-C - DP - PD Packaging Description India Dual-4K Dock - Thunderbolt™ 3/USB-C - DP - PD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2019-03-07 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2019-02-15 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IT,NL,PE,SE,UK Primary Technology - Thunderbolt 3
- USB 3.2 Gen 2 / 10Gbps
- Power Delivery
Priority New Product N/A Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2019-06-28 Target Production Release 2019-07-05 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
