Main Image
TB3CDOCKDP
Thunderbolt 3 Dock / USB C Docking Station - Dual DP 4K 60HZ
Dual DP 4K 60Hz | macOS & Windows®| 5x USB 3.0 Ports | 60W PD | 0.7 m Cable
Main Image
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Product Name Thunderbolt 3 Dock / USB C Docking Station - Dual DP 4K 60HZ Product Number TB3CDOCKDP UPC 065030883665 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 3 Docks Family Universal Thunderbolt & USB-C Dock Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Product Title (Ultra-Short) Thunderbolt 3 Dock Product Title (Short) USB-C/Thunderbolt 3 Dock Dual DP/60W PD Product Title (Medium) Thunderbolt 3 Dock with USB-C (USB 3.1 Gen & Gen 2) Laptop Compatibility Product Title (Standard) Universal Thunderbolt 3 Dock with USB-C Host Compatibility - Dual Monitor 4K 60Hz DisplayPort TB3 Laptop Docking Station - 60W PD, GbE, 5-Port USB Hub - USB 3.1 Gen 2 10Gbps Product Title (Long) Universal Thunderbolt 3 Dock with USB-C Host Compatibility - Dual Monitor 4K 60Hz DisplayPort TB3 Laptop Docking Station - 60W PD, GbE, 5-Port USB Hub - USB 3.1 Gen 2 10Gbps Product Title (AMZ) Universal Thunderbolt 3 Dock with USB-C Host Compatibility - Dual Monitor 4K 60Hz DisplayPort TB3 Laptop Docking Station - 60W PD, GbE, 5-Port USB Hub - USB 3.1 Gen 2 10Gbps (TB3CDOCKDP) Title Ingram (Part 1) Thunderbolt 3 Docking Station Title Ingram (Part 2) - USB-C (3.1 Gen 1 & 2) Compatible Website Product Headline Dual DP 4K 60Hz | macOS & Windows®| 5x USB 3.0 Ports | 60W PD | 0.7 m Cable Bullet 1 THUNDERBOLT 3 & USB-C COMPATIBILITY: This universal Thunderbolt 3 dock is compatible with both TB3 Macs like MacBook Pro/Air and Windows systems with TB3 & USB-C like Dell, HP, & Lenovo Bullet 2 FULL FUNCTION DOCK: Dual monitor laptop docking station features dual DisplayPort 4K 60Hz, 3x USB-A (1x 10Gbps & 2x 5Gbps) & 2x USB-C (10Gbps USB 3.2/3.1 Gen 2), incl. 2 fast-charge ports, 60W PD, Gigabit Ethernet, Headset Jack Bullet 3 HIGH-PERFORMANCE VIDEO OUTPUTS: Two Displayport 1.2 ports, 4K 60Hz dual display w/ TB3 laptops; dual 1080p on USB Type-C (non-Thunderbolt 3) laptops; extended dual displays on MacBook Pro/Air w/ Intel processor & single display w/ Apple M1 Chip Bullet 4 60W POWER DELIVERY: Power & charging for high-performance ultra-thin Thunderbolt 3 laptops like MacBook, Lenovo ThinkPad T Series, X1 Carbon, & Surface Pro 7 w/ this TB3 and USB Type-C compatible dock Bullet 5 EASY TO DEPLOY & SETUP: TB3 Dock requires no drivers, incl 2ft (0.7m) TB3 cable, front-facing USB-C host port, mounting holes for an optional bracket, k-slot for security lock; available in black/gray (TB3CDK2DP) Bullets (Compact) Thunderbolt 3 docking station with USB-C compatibility for Windows, macOS - Dual DisplayPort 1.2 at 4K 60Hz, 5-port USB hub (3x 10Gbps USB 3.2/3.1 Gen 2), 60W Power Delivery, Gigabit Ethernet, audio - Auto Install - 2ft TB3 host cable Bullets (Consolidated) Thunderbolt 3 docking station adapts to Thunderbolt 3 or USB-C(USB 3.1 Gen 1 and Gen 2) laptops - Dual 4K60Hz DisplayPort on TB3 laptops and both dual 1080p and single 4K30Hz setup options for USB Type C laptops - Windows and macOS; extended dual display support on MacBooks w/ Intel processor & single display w/ Apple M1 chip - 3x USB-A and 2x USB-C; 1x A and 1x C Fast-Charge ports to charge devices - Driverless / 60W Power Delivery / Ethernet / K-Slot for Kensington style security lock - Marketing Copy Marketing Copy (No HTML) For the first time, there is a plug-and-play Thunderbolt 3 docking station that intelligently adapts to your Thunderbolt 3 or USB-C (USB 3.1 Gen 1 and Gen 2) laptops, for optimal performance and compatibility. | Full 4K Display Functionality | With this dual DisplayPort Thunderbolt 3 dock, you can turn your TB3 or USB 3.1 (Type-C) laptop into a dual-monitor workstation, including dual 1080p on USB-C or dual 4K60Hz resolution on Thunderbolt 3 laptops. | Easy to Install and Deploy | This Thunderbolt 3 dock is plug-and-play right out of the box, with no time-consuming driver installations required. | Plenty of Ports | This universal Thunderbolt 3 dock (TB3) features plenty of USB 3.0 ports: 3 x USB-A Ports (including 1x Fast-Charge), 2 x USB-C Ports (including 1x Fast-Charge), 1 x Gigabit Ethernet Port, 1 x 3.5mm Audio/Mic Port, and 1 x K-Slot for Cable Security Locks | Power Your Laptop While Charging USB-C & USB-A Devices | The USB-A and USB-C Fast-Charge ports can charge your smartphone, tablet or other USB peripherals whether you are working, away from your desk, and even if you disconnect your laptop. The docking station is backed by a StarTech.com 3-Year warranty and free lifetime multilingual technical support located at StarTech.com headquarters. Applications - Engineers
- Content Creators
- Graphic Designers
- AV Production
- Bring Your Own Device (BYOD) Setups
- Hoteling
- Free Address Environments
- Home Offices
- Educational Facilities
Website Search Keyword - 60W
- 60W thunderbolt 3 dock
- 60w usb c docking station
- belkin thunderbolt 3 dock
- cable matters 201054-sil
- dell thunderbolt dock
- dell universal dock
- dell usb c dock
- displayport 1.2
- displayport 1.2 mst
- displayport 1.2 mst hub
- displayport mst
- dock
- docking station
- docking station with displayport
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - Please note that host laptops which do not support MST or Thunderbolt™ 3, support only a single display
- MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3.
Accessory Products - DP2DVIS
- DP2DVIMM6BS
- DP2DVIMM3BS
Constrained SKU Alternatives (Limited Stock) TB3CDK2DH Input Current 0.5A Input Voltage 100 - 240 AC Output Current 3.0A Output Voltage (V) 5 DC Power Delivery 60W Cable Length (mm) 70 Color Space Gray Humidity 0% to 95% (non-condensing) at 25°C Material Plastic Operating Temperature -40 to 65°C Primary Material Plastic Product Length (mm) 80.000 Product Width (mm) 220.000 Product Height (mm) 30.000 Product Weight (g) 416.000 Storage Temperature 0 to 35°C TAA Compliant No Downstream Maximum Data Transfer Rate Thunderbolt 3 (40Gbps) Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 10
- Windows 8
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- macOS Sierra (10.12)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
Supported Charging Outputs BC 1.2 (1.5A) USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate - Thunderbolt 3 (40Gbps)
- USB 10Gbps
- USB 5Gbps
- USB 3.0 (5Gbps)
Video Output Port DisplayPort Video Transport Technology Thunderbolt Audio Yes Bus Type - Thunderbolt 3
- USB-C
Compatible Lock Slot Kensington Standard Slot (K-Slot) Host Connection Port Thunderbolt Industry Standards DP 1.2a Version </br> HDCP 1.4 and HDCP 2.2 Compliant IO Card Port Style External Hub Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 2 Other Ports - USB-A BC 1.2 Fast Charge
- Gigabit Ethernet
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack
USB-C Host Connection Yes USB Port Type - USB-C
- USB-A

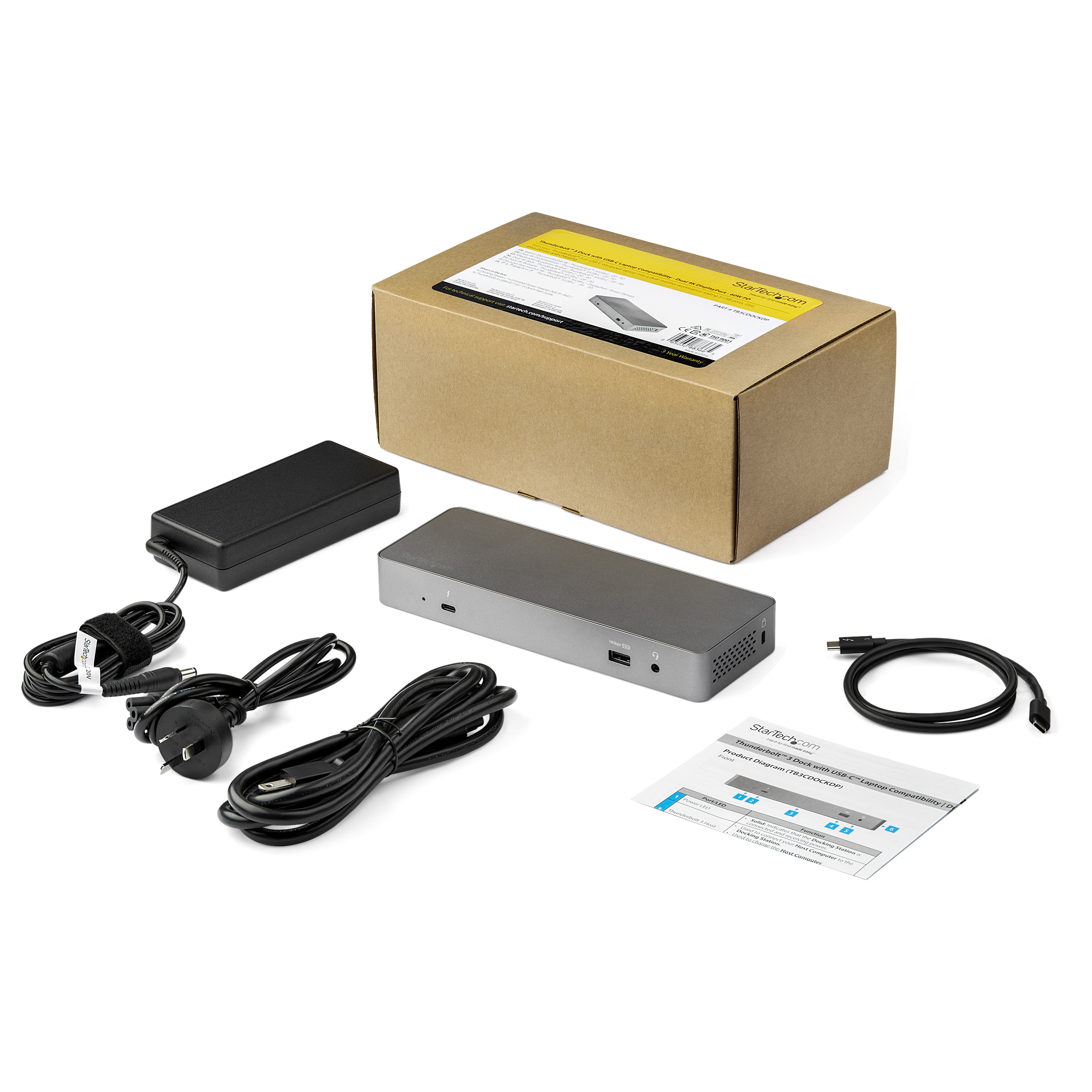

Carton Depth (mm) 290 Carton Height (mm) 248 Carton Quantity 6 Carton Weight Gross (g) 8784 Included in Package - 1 - Docking Station
- 1 - Universal Power Adapter (NA/JP, ANZ)
- 1 - Thunderbolt 3 Cable (0.7 m)
- 1 - Quick-Start Guide
Package Depth (mm) 272 Package Height (mm) 110 Package Width (mm) 160 Package Quantity 1 Package Weight (g) 1464 Packaging Description Dual-4K Dock - Thunderbolt™ 3/USB-C - DP - PD Packaging Description India Dual-4K Dock - Thunderbolt™ 3/USB-C - DP - PD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (10Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 2 Connector 5 USB-C (10Gbps, 4.5W) Connector 5 (Quantity) 2 Connector 6 DisplayPort Connector 6 (Quantity) 2 Host Connector 1 USB-C (Thunderbolt 40Gbps) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2019-08-08 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2019-08-16 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology - Thunderbolt 3
- USB 3.2 Gen 2 / 10Gbps
- Power Delivery
Priority New Product N/A Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2019-07-12 Target Production Release 2019-08-15 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
