TB3DK2DHVUE
Dual 4K Thunderbolt 3 dk
Laptop Dock | Mac & Windows® | HDMI | DisplayPort | VGA | 85W PD
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name Dual 4K Thunderbolt 3 dk Product Number TB3DK2DHVUE UPC 065030876247 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 3 Docks Family no family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX081X Product Title (Ultra-Short) Thunderbolt 3 Dock Product Title (Short) Thunderbolt 3 Dock - Dual 4K DP HDMI VGA Product Title (Medium) Thunderbolt 3 Dock - MacBook Pro & Windows - Dual 4K 60Hz - DP/HDMI/VGA - PD Product Title (Standard) Thunderbolt 3 Dock, Dual 4K 60Hz Monitor TB3 Docking Station with DisplayPort, HDMI & 1080p VGA, 85W Power Delivery, TAA Product Title (Long) Thunderbolt 3 Dock - Dual 4K 60Hz Monitor TB3 Laptop Docking Station with DisplayPort, HDMI & 1080p VGA - 85W Power Delivery & Charging - 2x USB-A, Ethernet - Mac & Windows - TAA Product Title (AMZ) Thunderbolt 3 Dock - Dual 4K 60Hz Monitor TB3 Laptop Docking Station with DisplayPort, HDMI & 1080p VGA - 85W Power Delivery & Charging - 2x USB-A, Ethernet - Mac & Windows Title Ingram (Part 1) Dual 4K 60Hz Thunderbolt 3 Dock Title Ingram (Part 2) - MacBook Pro/Windows, DP/HDMI/VGA Website Product Headline Laptop Dock | Mac & Windows® | HDMI | DisplayPort | VGA | 85W PD Bullet 1 HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: Driverless setup for plug-and-play installation; Thunderbolt 3 (40Gbps); Up to dual 4K 60Hz video; 2x DisplayPort, 1x HDMI, 1x VGA; 2-Port USB-A Hub (USB 3.2 Gen 1 5Gbps); Gigabit Ethernet; 85W Power Delivery Bullet 2 FLEXIBLE MONITOR OUTPUTS: Connect up to two external monitors for up to dual 4K video with any combination of 2x DP (4K 60Hz), 1x HDMI (4K 60Hz) or VGA (1080p 60Hz); Video output utilizes direct GPU performance with no software or compression Bullet 3 COMPATIBILITY: This docking station is compatible with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later Bullet 4 EASY TO DEPLOY & SETUP: Thunderbolt 3 Dock requires no driver setup or additional display adapters; Included 1.6 ft (0.5 m) Thunderbolt 3 host cable; Front facing Thunderbolt 3 host port for hassle-free installation Bullet 5 OUR ADVANTAGE: Includes power adapter that simultaneously provides 85W of Power Delivery to charge the laptop & full power to all ports; Connectivity Tools w/Network MAC Address Pass-Through, WiFi Auto Switching, USB Event Monitoring & Windows Layout Bullets (Compact) Thunderbolt 3 Docking Station - Dual 4K60Hz / 85W Power Delivery / USB-A and Gigabit Ethernet ports - Dual Monitor DisplayPort / DP + HDMI / DP + VGA / HDMI + VGA - No drivers - TB3 cable - For TB3 laptops ie. MacBook Pro 16" - Windows, macOS Bullets (Consolidated) Certified Thunderbolt 3 docking station; Driverless setup; Dual monitor 4K 60Hz - Works with all TB 3/4 laptops; Extended dual displays on Apple M3 MacBook Air/Pro and M1/M2 /M3 Max and Pro MacBooks (single Display on Apple M1/M2 entry level) - Flexible monitor combinations: Dual DisplayPort | DP + HDMI | DP + VGA | HDMI + VGA - 85W Power Delivery; 2x USB-A (5Gbps); Gigabit Ethernet; Incl. 1.5ft Thunderbolt 3 host cable - Connectivity Tools w/Network MAC Address Pass-Through/Windows Layout Marketing Copy Marketing Copy (No HTML) Applications - Review or edit images, video or media files on two 4K displays

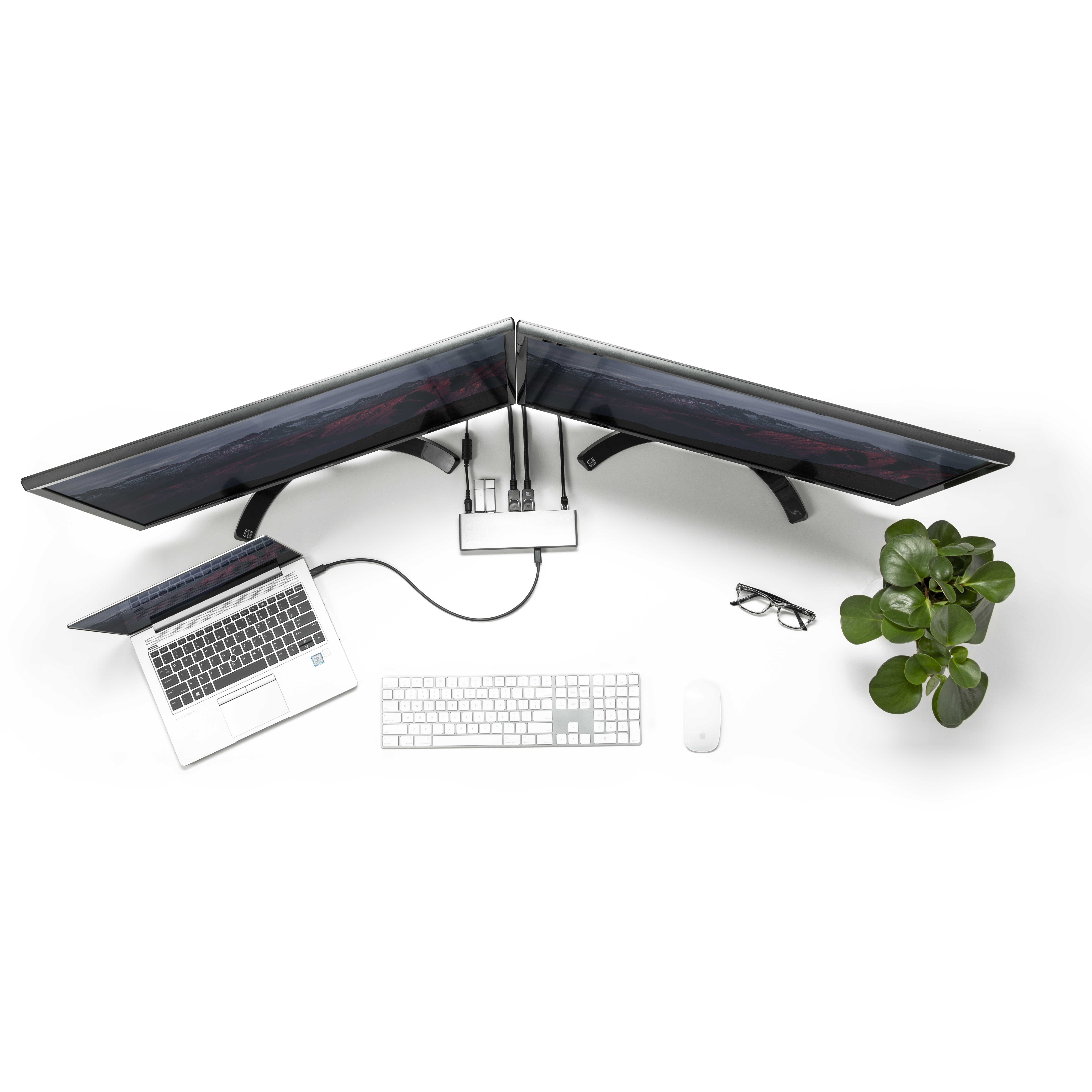

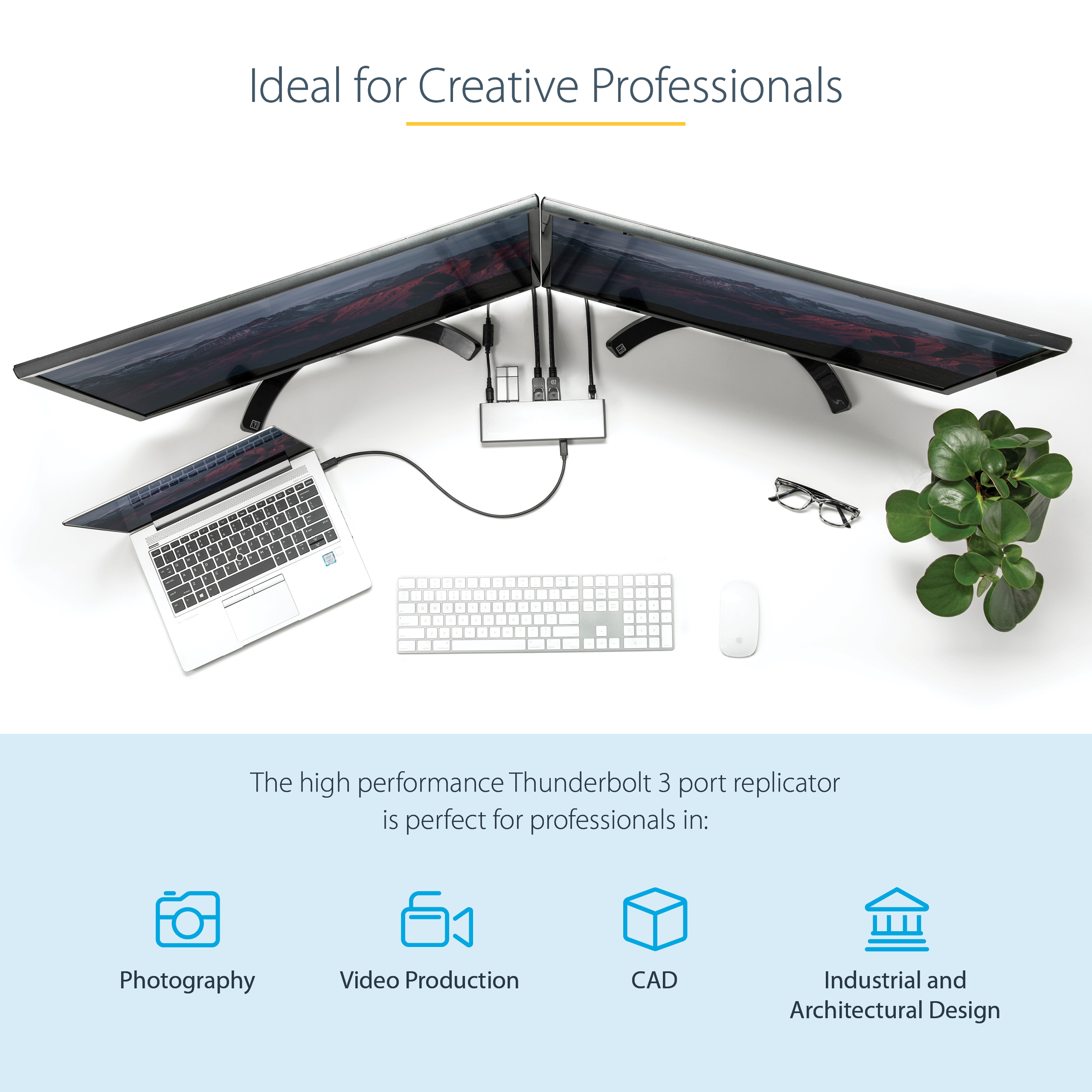

- Ideal for permanent or mobile workstations, with multiple monitor options
Website Search Keyword - Thunderbolt 3 Dock
- Thunderbolt 3 Dock Dual-4K
- MacBook Pro Dock
- owc thunderbolt 3 dock
- thunderbolt 3 to hdmi
- thunderbolt 3 to dp
- thunderbolt 3 to displayport
- thunderbolt 3 to vga
- Thunderbolt 3 Dock for Laptops
- Laptop docking station
- docking station
- TB3 dock
- thunderbolt 3 to usb
- MTB3-DOCK-03INT
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU

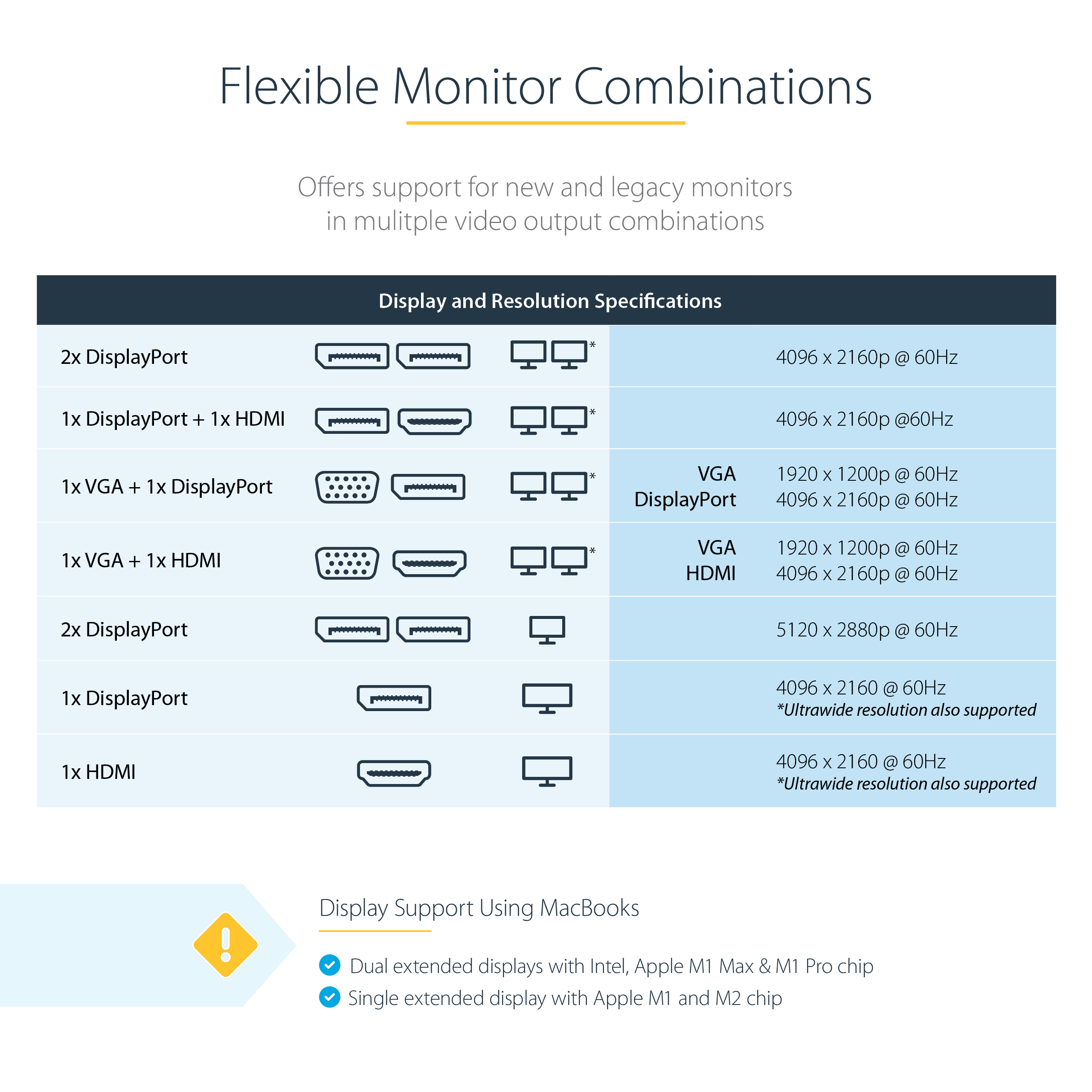

Special Notes - A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).

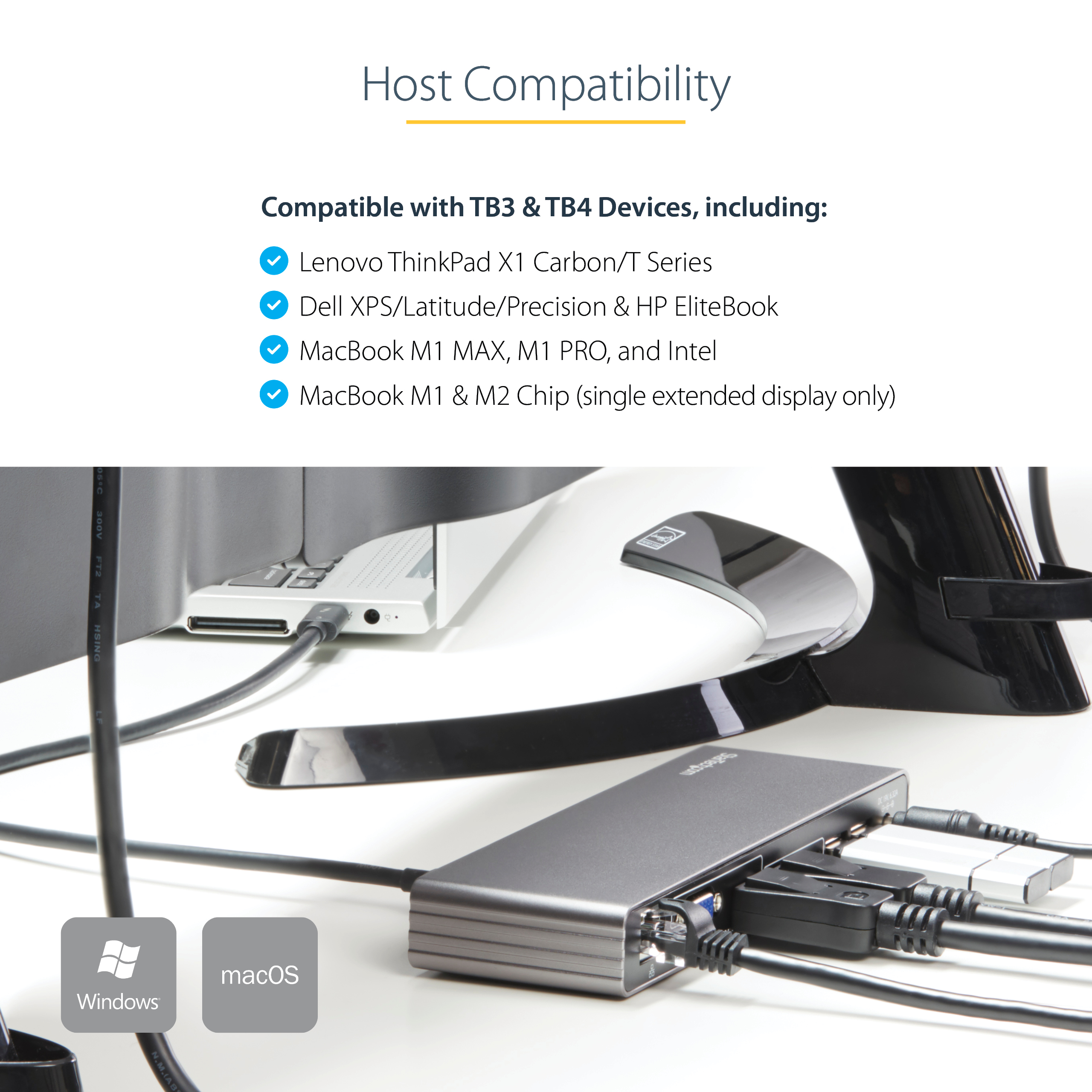

- MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3.
System and Cable Requirements Thunderbolt 3 equipped computer with a Thunderbolt 3 port Accessory Products - DP2DVIS
- DP2HD4K60S
- DP2HD4KS
- DP2VGA2
- N6PATCH10WH
- DISPLPORT6L
- TBLT34MM50CM
- S352BU33HR
- USBAUB1BK
- USBLT30CMB
- USBLT30CMW
- DP2DVIMM6BS
- DP2DVIMM3BS
- DP2VGAA

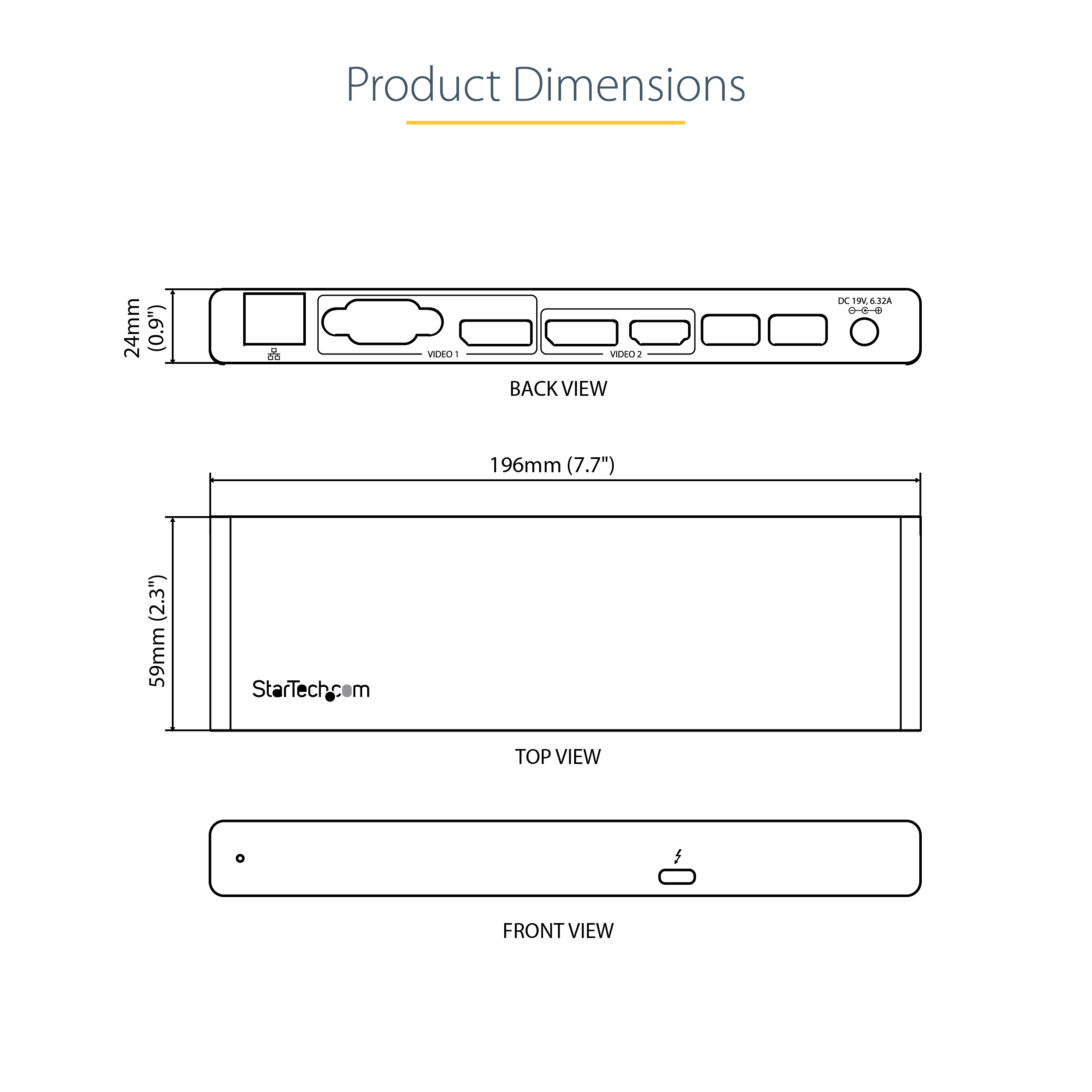

Input Current 1.8 A Input Voltage 110V-240V AC Output Current 6.32 A Output Voltage (V) 19V DC Power Consumption (In Watts) 120W Power Delivery 85W Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Cable Length (mm) 500 Color Gray Humidity 20~80% RH (Non-condensing) Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 196.000 Product Width (mm) 58.600 Product Height (mm) 23.500 Product Weight (g) 340.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Device Power Consumption (In Watts) 500 Downstream Maximum Data Transfer Rate Thunderbolt 3 (40Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - macOS High Sierra (10.13)
- Windows 10
- Windows 8
- Windows 7
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- macOS Sierra (10.12)
PXE Yes UASP Support Yes USB Type and Rate Thunderbolt 3 (40Gbps) Video Output Port - DisplayPort
- HDMI
- VGA

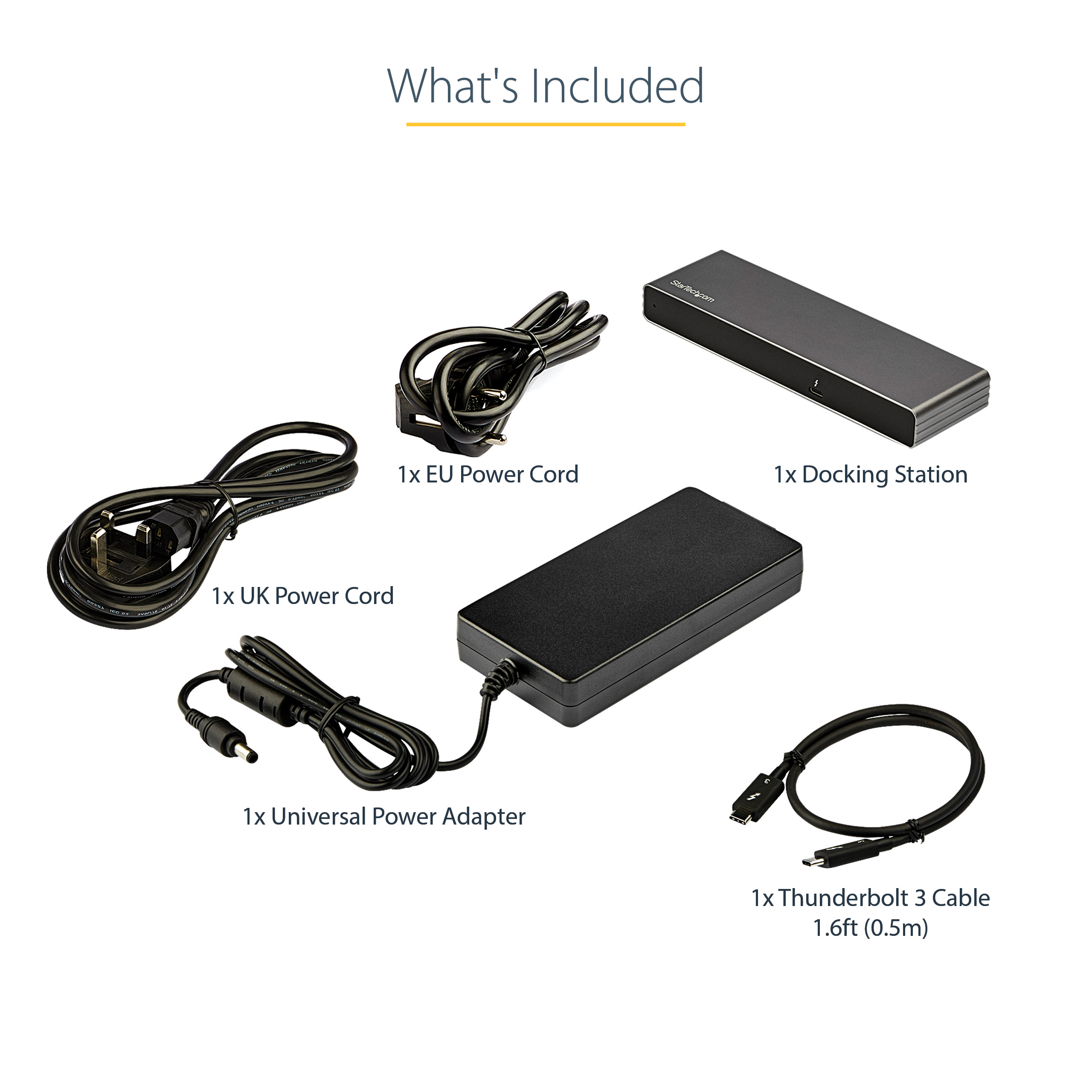

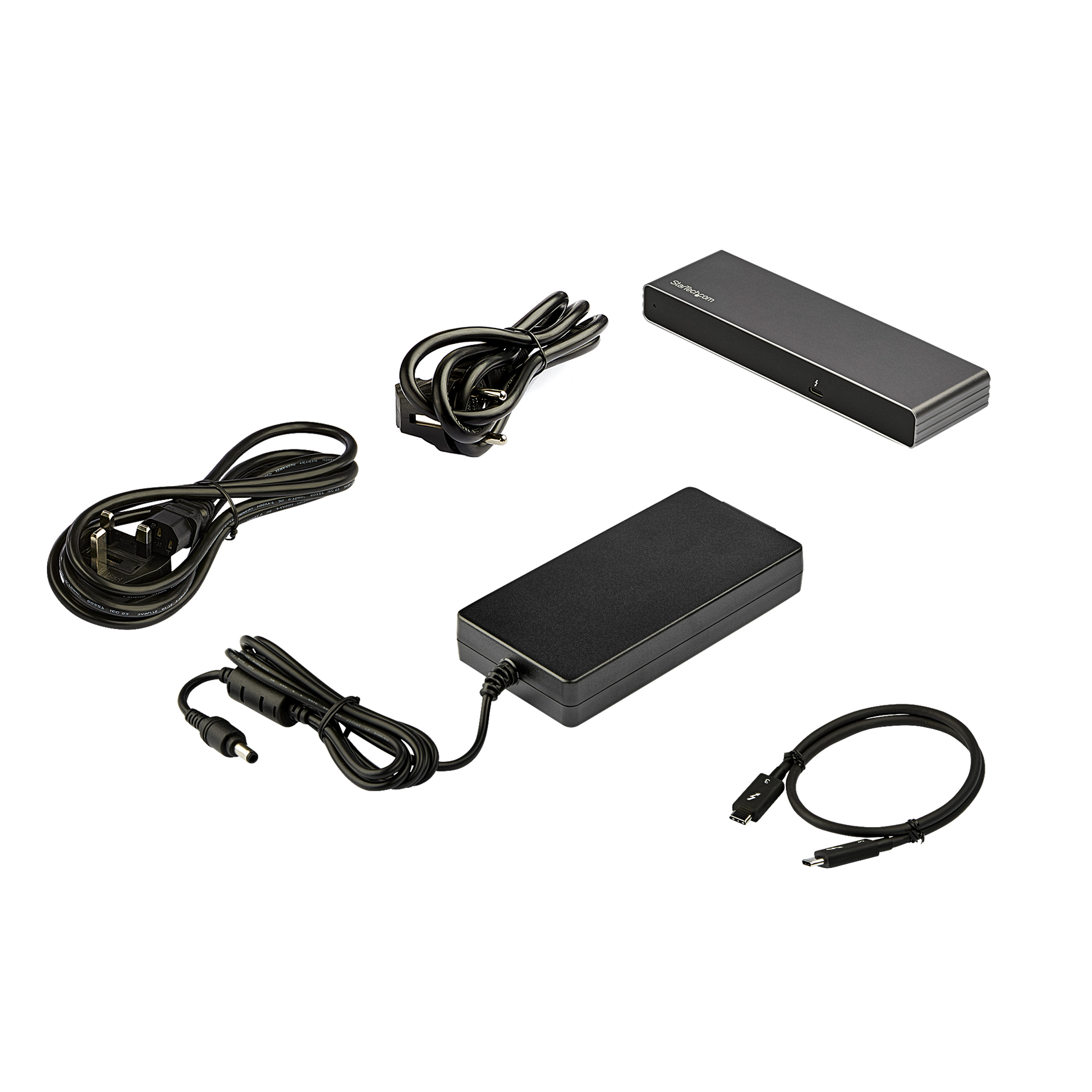

Video Transport Technology Thunderbolt Wake-On-LAN (WOL) Yes Bus Type Thunderbolt 3 Chipset ID Host Connection Port Thunderbolt Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 2 Other Ports Gigabit Ethernet Carton Depth (mm) 390 Carton Height (mm) 280 Carton Quantity 20 Carton Weight Gross (g) 28500 Included in Package - 1 - docking station
- 1 - Thunderbolt 3 cable
- 1 - universal power adapter
- 2 - power cords (UK, EU)
- 1 - instruction manual

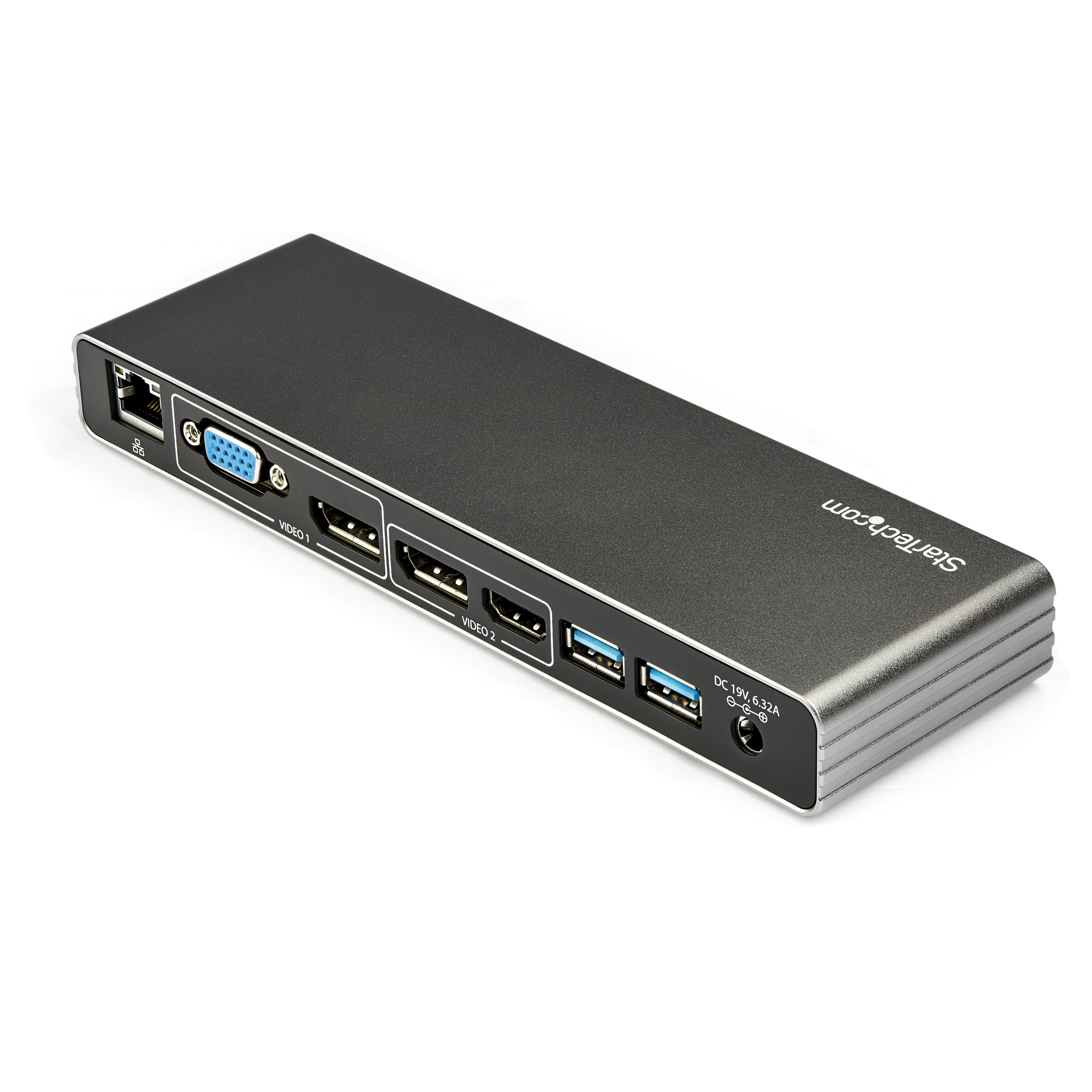

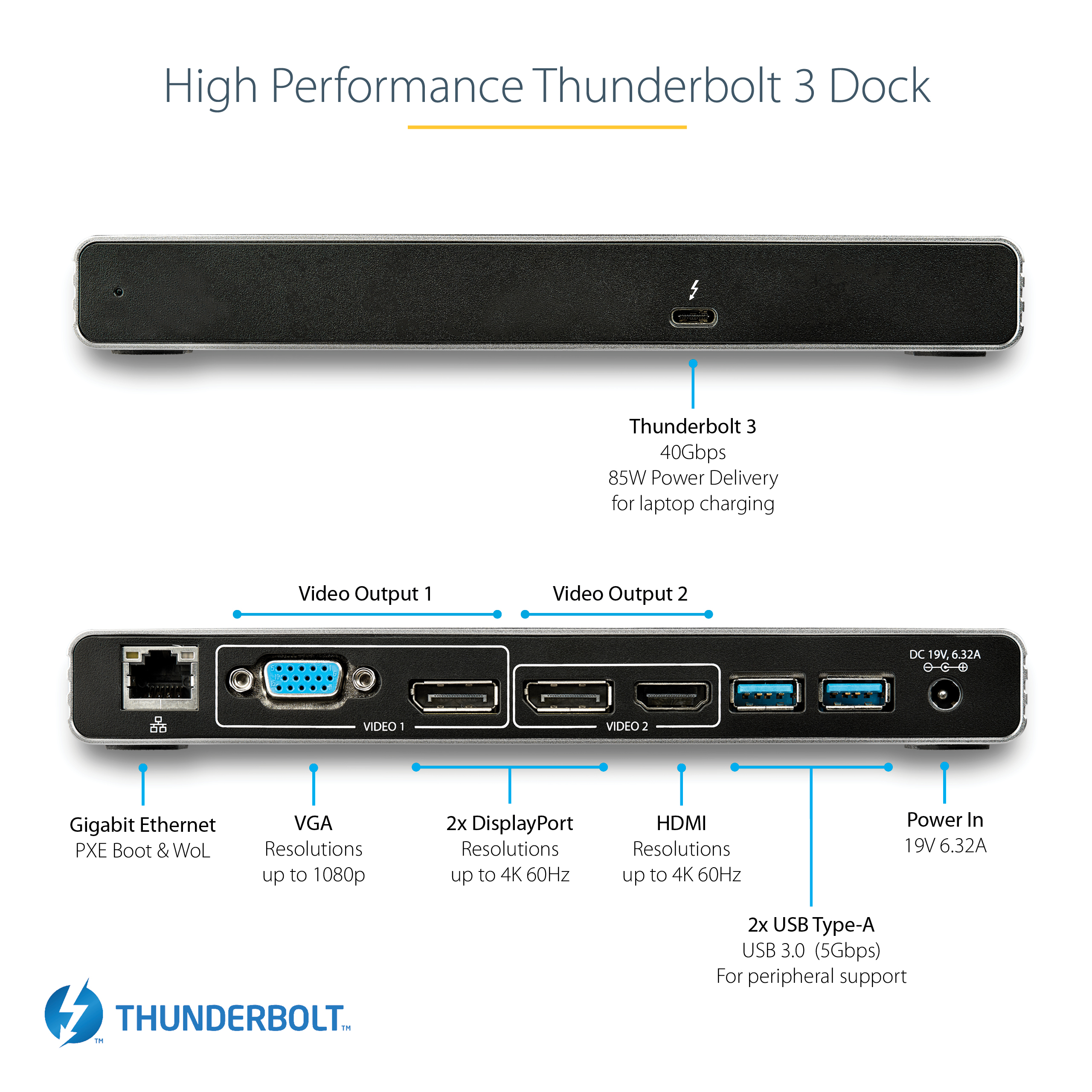

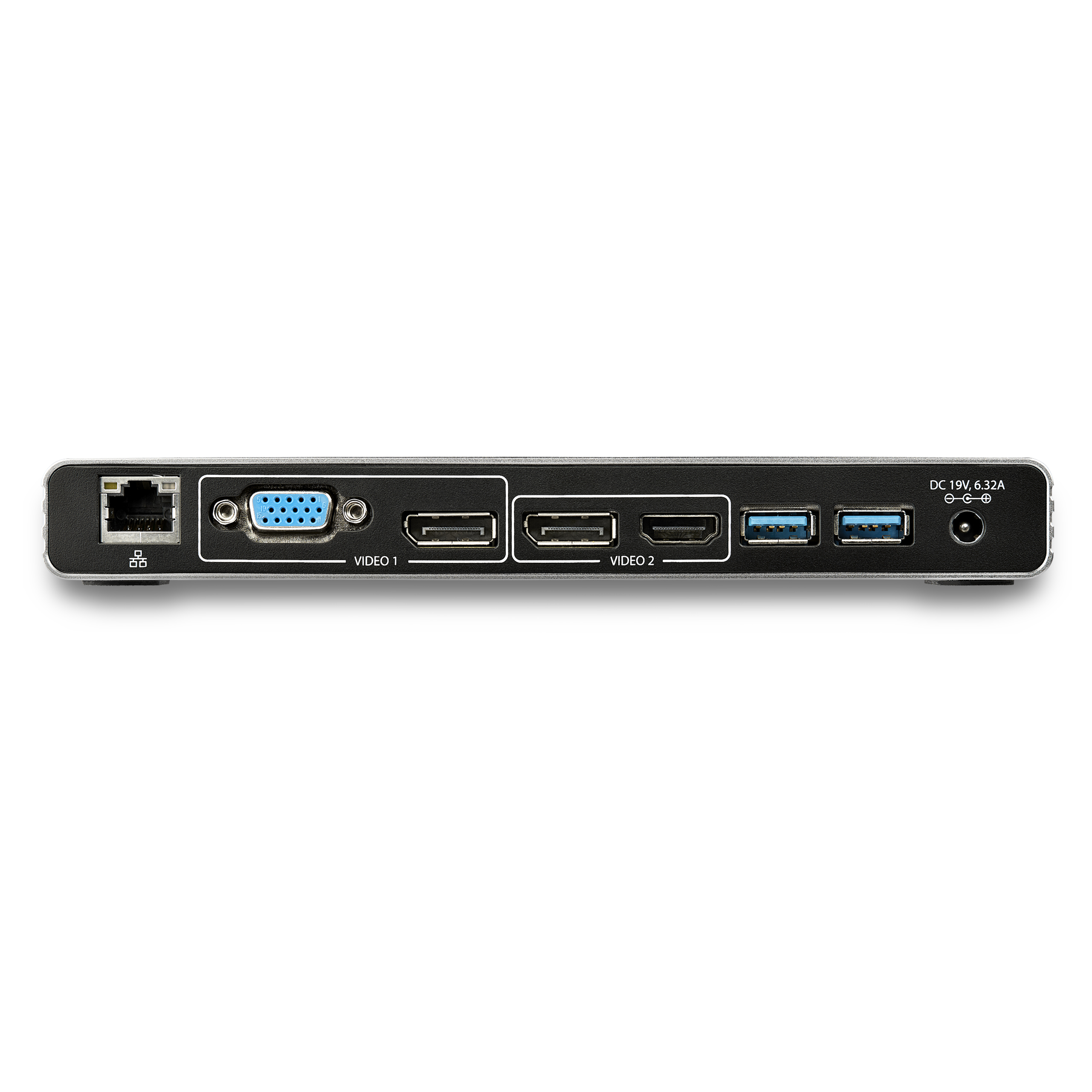

Package Depth (mm) 187 Package Height (mm) 65 Package Width (mm) 254 Package Quantity 1 Package Weight (g) 1300 Packaging Description Thunderbolt 3 Dual-4K Laptop Dock - PD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 40Gbps) Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 2 Connector 3 HDMI Connector 3 (Quantity) 1 Connector 4 VGA Connector 4 (Quantity) 1 Connector 5 USB-A (5Gbps, 4.5W) Connector 5 (Quantity) 2 Connector 6 RJ-45 Connector 6 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2018-03-23 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2018-06-08 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CH,CL,DE,DK,ES,EU,FI,FR,IE,IT,NL,SE,SG,UK Primary Technology Thunderbolt 3 Priority New Product N/A Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2018-05-25 Target Production Release 2018-05-25 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
