TB3DK2DPM2
Dual 4K Thunderbolt 3 Dock
Laptop Docking Station | Mac & Windows® | 3x USB Ports | 10G USB-C | 5K | 85W PD
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name Dual 4K Thunderbolt 3 Dock Product Number TB3DK2DPM2 UPC 065030876254 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 3 Docks Family no family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) Dual 4K TB3 Dock M.2 Product Title (Short) Thunderbolt 3 Dock Dual 4K 60Hz -M.2, SD Product Title (Medium) Dual 4K Thunderbolt 3 Dock - PCIe M.2 Slot - SD 4.0 Slot - 3x USB Ports - 85W PD Product Title (Standard) Thunderbolt 3 Dock - Dual Monitor 4K 60Hz Docking Station w/ DisplayPort - PCIe M.2 NVMe SSD Enclosure, SD 4.0, USB, 85W PD Product Title (Long) Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - PCIe M.2 NVMe SSD Enclosure - 85W Power Delivery - SD 4.0, 10Gbps USB-C, 2 USB-A Hub - TAA Product Title (AMZ) Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - PCIe M.2 NVMe SSD Enclosure - 85W Power Delivery - SD 4.0, 10Gbps USB-C, 2 USB-A Hub (TB3DK2DPM2) Title Ingram (Part 1) Dual 4K 60Hz Thunderbolt 3 Dock Title Ingram (Part 2) - PCIe M.2 Slot - SD 4.0 - 3x USB Website Product Headline Laptop Docking Station | Mac & Windows® | 3x USB Ports | 10G USB-C | 5K | 85W PD Bullet 1 LOCALIZED HIGH-PERFORMANCE STORAGE: Thunderbolt 3 dock has a PCIe NVMe M.2 SSD bay to store/back up files, SD/SDHC/SDXC 4.0 UHS-II card slot & USB-C 3.1 Gen 2 10Gbps port to connect an external drive Bullet 2 DESIGNED FOR CONTENT CREATORS: The Thunderbolt 3 Dock features dual monitor 4K 60Hz or single 5K 60Hz via DisplayPort & downstream TB3/USB-C port, SD, 1x USB-C & 2x USB-A Hub, Gigabit Ethernet & audio Bullet 3 85W POWER DELIVERY: Thunderbolt 3 docking station with charging to power & charge workstation laptops like MacBook Pro 13/15/16, HP EliteBook, Lenovo ThinkPad, Dell XPS using macOS and Windows Bullet 4 FLEXIBLE THUNDERBOLT 3 PORT: Thunderbolt 3 docking station’s downstream TB3 port supports 15W & three modes of operation: a second display, daisy chain TB3 peripherals, or connects USB-C accessories Bullet 5 COMPATIBILITY: Auto drivers; incl. TB3 host cable, front facing ports, USB-A & USB-C BC 1.2 Fast Charge; Extended dual displays on Apple M3 MacBook Air / Pro and M1 / M2 / M3 Max and Pro MacBooks; single Display on Apple M1 / M2 entry level MacBooks Bullets (Compact) Thunderbolt 3 docking station - PCIe NVMe M.2 SSD bay, Dual Monitor 4K 60Hz via DisplayPort & TB3, SD 4.0, 85W PD, 10G USB-C 2x USB-A, GbE, audio - MacBook Pro TB3 Dock/macOS/Windows - TB3 cable - Downstream TB3 to daisy chain TB3/USB-C devices Bullets (Consolidated) Thunderbolt 3 dock w/ PCIe NVMe M.2 SSD bay/SD 4.0 UHS-II card slot - Docking station w/dual monitor 4K 60Hz or single 5K 60Hz via DisplayPort + TB3/1x USB-C 2x USB-A/GbE - 85W PD/10G USB-C + USB-A BC 1.2 Fast Charge/Audio/Auto drivers/TB3 cable - HP/Lenovo/Dell workstation laptops; macOS Windows - 15W TB3 downstream port for display/to daisy chain TB3/USB-C devices - Extended dual displays on Apple M3 MacBook Air/Pro and M1/M2 /M3 Max and Pro MacBooks (single Display on Apple M1/M2 entry level) Marketing Copy Marketing Copy (No HTML) Applications - Work with uncompressed, high-bandwidth and graphically intensive images and video

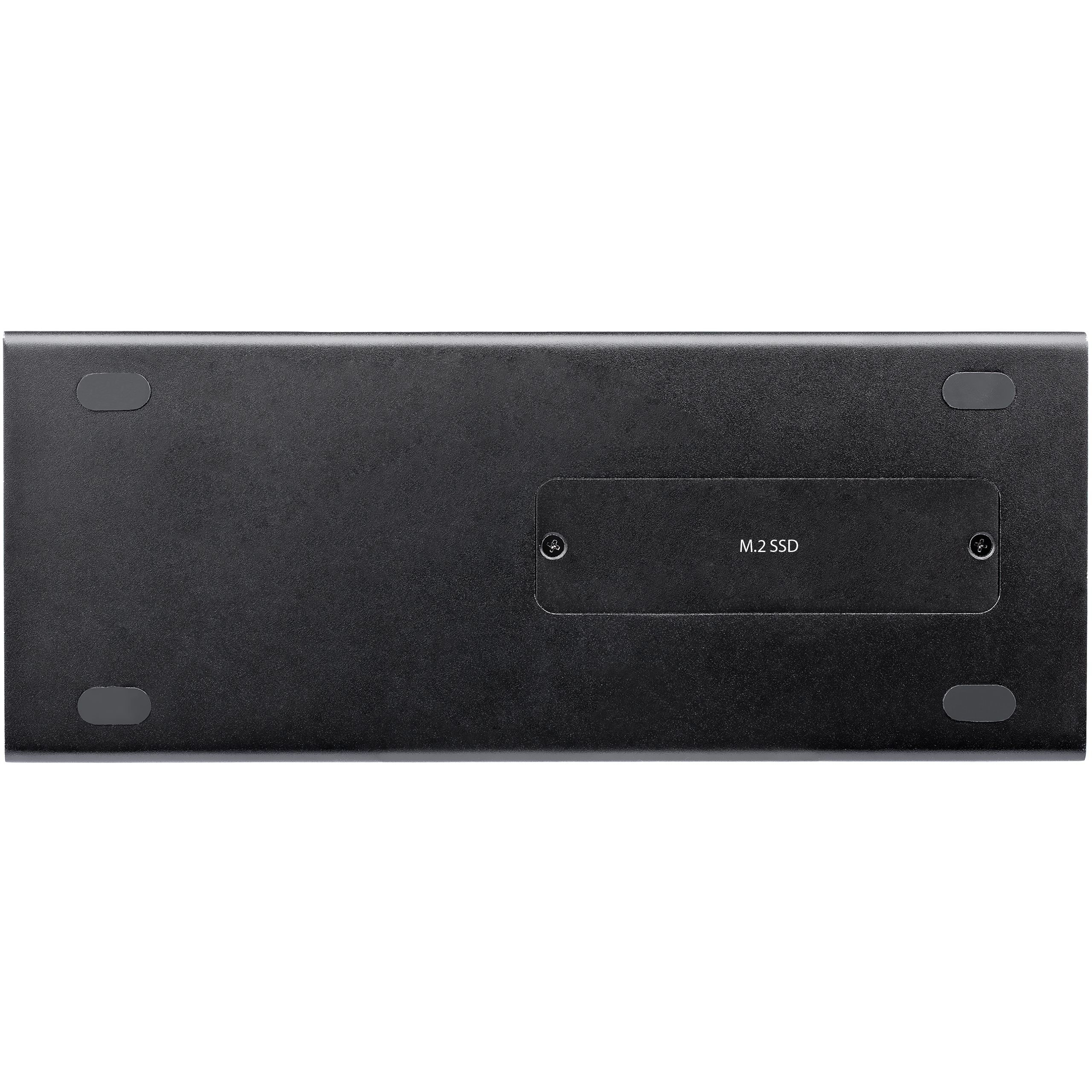

- Increase data storage with the dock’s built-in PCIe M.2 (NVMe or AHCI) SSD enclosure
- Access camera and phone SD cards from your MacBook Pro or PC laptop through the dock
- Edit 4K video on one display, with a full-size preview on the second 4K display
Website Search Keyword - 85w thunderbolt 3 dock
- asus thunderbolt 3 dock
- dell xps docking station
- dual 4k docking station
- dual monitor thunderbolt 3 dock
- elgato thunderbolt 3 dock
- hp elite thunderbolt 3 dock
- hp zbook dock with thunderbolt 3
- hp zbook docking station
- laptop dock
- laptop docking station
- lenovo thunderbolt 3 dock
- m.2 ssd enclosure
- macbook pro 2016 dock
- macbook pro 2017 dock
- MacBook pro dock
- MacBook pro docking station
- macbook pro usb c dock
- owc thunderbolt 3 dock
- plugable thunderbolt 3 docking station
- port replicator
- tb3 dock
- thunderbolt 3 dock
- thunderbolt 3 dock dual monitor
- thunderbolt 3 dock macbook pro
- thunderbolt 3 dock with charging
- thunderbolt 3 docking station
- thunderbolt 3 enclosure
- thunderbolt 3 hard drive enclosure
- thunderbolt 3 port replicator
- thunderbolt 3 ssd enclosure
- thunderbolt 3 to displayport
- thunderbolt 3 to sd
- thunderbolt 3 to sd card
- thunderbolt 3 to usb
- thunderbolt 3 type c dock
- thunderbolt port expander
- universal docking station
- usb c dock
- usb c docking station
- usb c thunderbolt 3 dock
- usb c thunderbolt dock
- usb type c dock
- usb-c docking station
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
- When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display.
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps.
- MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3.
System and Cable Requirements - Thunderbolt 3 equipped computer with a Thunderbolt 3 port.
- Your laptop's Thunderbolt 3 port must support USB Power Delivery 2.0 in order to power and charge your laptop.
Accessory Products - TB3ESATU31
- TB33A1C
- TB31PCIEX16
- TBLT3MM1MA
- 45PATCH6BK
- 45PATCH10BK
- TBT3TBTADAP
- DP2VGA2
- ACCSMNT
- ARMBARDUO
- ARMBARDUOV
- ARMDUAL
- ARMDUAL30
- ARMDUALV
- ARMSLIMDUO
- DP2DVIS
- DP2HD4K60S
- DP2DVID2
- 158-DOCKPOWERADAPTER
Related Products - TB3DK2DPPD
- TB3DKM2DP
- TB3DKDPMAW
- TB3DK2DPW
- TB3DOCK2DPPD
Constrained SKU Alternatives (Limited Stock) TB3DOCK2DPPD Input Current 2.5 A Input Voltage 100 - 240 AC Output Current 7.5 A Output Voltage (V) 20V DC Power Consumption (In Watts) 170 Power Delivery 85W Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Cable Length (mm) 500 Color Black Humidity 20~80% RH Material Aluminum Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Aluminum Product Length (mm) 95.000 Product Width (mm) 239.000 Product Height (mm) 25.000 Product Weight (g) 780.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate Thunderbolt 3 (40Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 5K 60Hz Memory Media Type - SD/MMC (Secure Digital/Multimedia Card)
- SDHC (Secure Digital High Capacity)
- SDXC (Secure Digital eXtended Capacity)
- microSD (Micro Secure Digital) (adapter required)
- microSDHC (Micro Secure Digital High Capacity) (adapter required)
- microSDXC (Micro Secure Digital eXtended Capacity) (adapter required)
OS Compatibility - Windows 10
- Windows 8
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
PXE Yes StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
UASP Support Yes USB Type and Rate Thunderbolt 3 (40Gbps) Video Output Port - DisplayPort
- Thunderbolt
Video Transport Technology Thunderbolt Wake-On-LAN (WOL) Yes Bus Type Thunderbolt 3 Chipset ID Host Connection Port Thunderbolt Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 2 Other Ports - USB-A BC 1.2 Fast Charge
- Gigabit Ethernet
- SD Card Reader
- 3.5mm TRRS Mic Audio Jack
- 3.5mm TRRS Speaker Audio Jack

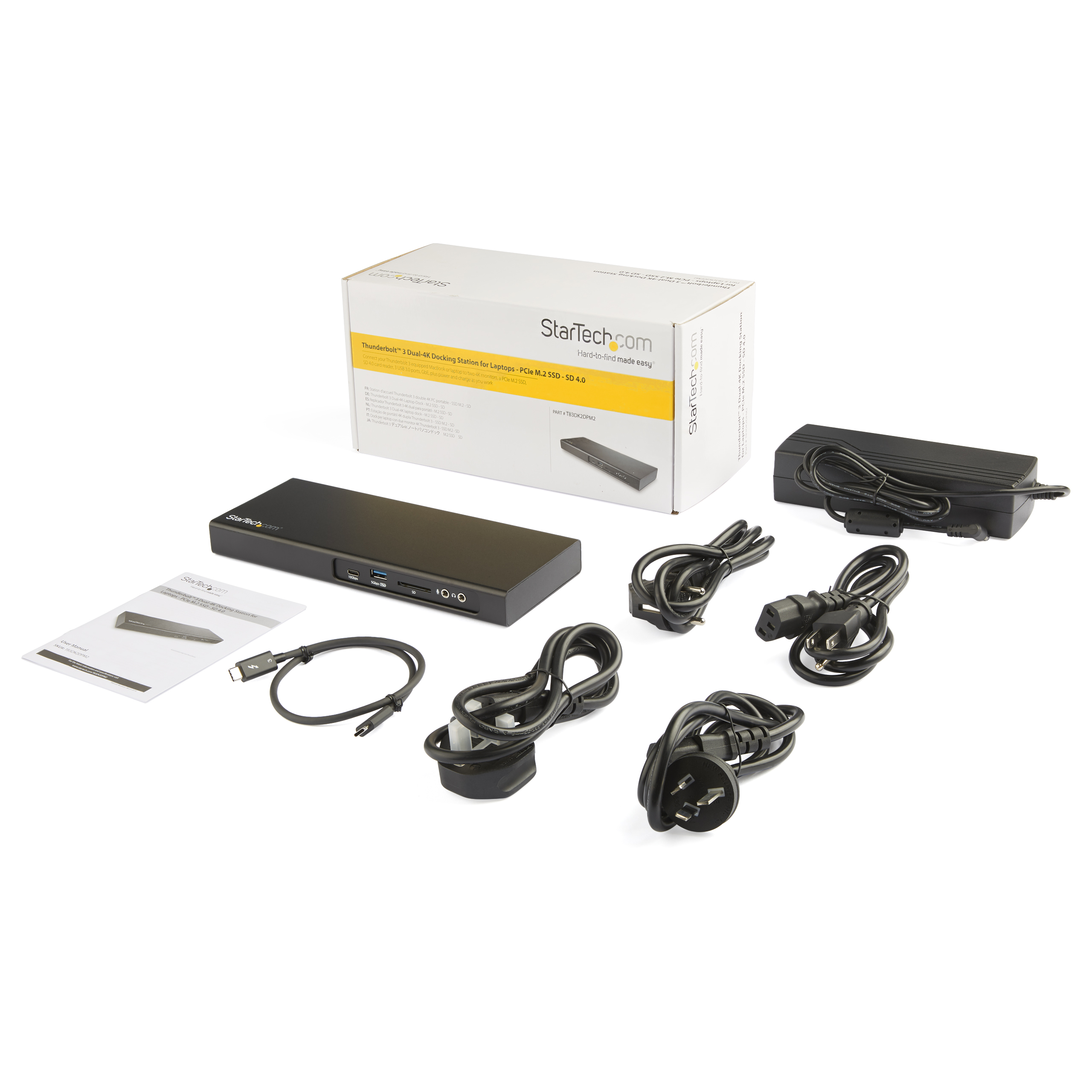

Carton Depth (mm) 270 Carton Height (mm) 326 Carton Quantity 4 Carton Weight Gross (g) 7150 Included in Package - 1 - docking station
- 1 - Thunderbolt 3 cable
- 1 - universal power adapter
- 1 - instruction manual
- 4 - power cords (NA/JP, EU, UK, ANZ)
Package Depth (mm) 128 Package Height (mm) 140 Package Width (mm) 292 Package Quantity 1 Package Weight (g) 2166 Packaging Description Thunderbolt 3 Dual-4K Laptop Dock - M.2 SSD - SD Packaging Description India Thunderbolt 3 Dual-4K Laptop Dock - M.2 SSD - SD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 40Gbps) Connector 1 (Quantity) 2 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Connector 5 M.2 M-Key (PCIe, AHCI / NVMe) Connector 5 (Quantity) 1 Connector 6 DisplayPort Connector 6 (Quantity) 1 Connector 7 USB-C (5Gbps, 4.5W) Connector 7 (Quantity) 1 Connector 8 SD Card Slot Connector 8 (Quantity) 1 Connector 9 3.5mm (3 Conductors, TRS) Connector 9 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2018-06-14 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2018-08-08 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FI,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology Thunderbolt 3 Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2018-05-11 Target Production Release 2018-06-15 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
