Main Image
TB3DK2DPPDUE
Dual 4K Thunderbolt 3 Dock Mac Windows 85W PD
Laptop Docking Station | Mac & Windows® | USB-C to DP Cable | 85W PD
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name Dual 4K Thunderbolt 3 Dock Mac Windows 85W PD Product Number TB3DK2DPPDUE UPC 065030868433 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 3 Docks Family no family Country of Origin Europe & Japan Thailand Country of Origin North America Thailand Country of Origin History (1) Thailand Country of Origin Revision (1) XXXXXX064X Product Title (Ultra-Short) Thunderbolt 3 Dock Product Title (Short) Thunderbolt 3 Dock - Dual 4K DP - 85W PD Product Title (Medium) Thunderbolt 3 Dock - MacBook Pro & Windows - Dual 4K - 85W Power Delivery Product Title (Standard) Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery - 3x USB 3.0, GbE Product Title (Long) Thunderbolt 3 Dock - Dual Monitor 4K 60Hz Laptop Docking Station with DisplayPort - 85W Power Delivery - 3-Port USB 3.0 Hub, Ethernet, Audio - TB3 Dock - Windows & Mac Product Title (AMZ) Thunderbolt 3 Dock - Dual Monitor 4K 60Hz Laptop Docking Station with DisplayPort - 85W Power Delivery - 3-Port USB 3.0 Hub, Ethernet, Audio - TB3 Dock - Windows & Mac (TB3DK2DPPDUE) Title Ingram (Part 1) Thunderbolt 3 Dock w/ Dual 4K - Title Ingram (Part 2) 85W PD - MacBook Pro & Windows Website Product Headline Laptop Docking Station | Mac & Windows® | USB-C to DP Cable | 85W PD Bullet 1 COMPATIBILITY: This docking station is compatible with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later Bullet 2 FLEXIBLE THUNDERBOLT 3 PORT: Thunderbolt 3 port replicator w/ a downstream TB3 port that supports 3 modes of operation: a second monitor, daisychain TB3 peripherals, or connect USB Type-C accessories Bullet 3 DAISYCHAIN UP TO 5 THUNDERBOLT 3 DEVICES: Connect additional TB3 devices to this TB3 dock including monitors, external hard drive bays, card readers, or an external GPU; using the downstream TB3 port. Bullet 4 85W POWER DELIVERY: This Thunderbolt 3 Docking Station will power and charge laptops & ultrabooks such as MacBook Pro 13 & 16, MacBook Air, HP, Lenovo ThinkPad, & Dell XPS using macOS and Windows. Bullet 5 THUNDERBOLT 3 CERTIFIED DOCK: 40Gbps video/data bandwidth, dual 4K 60Hz DP & TB3 (USB-C) video outputs, 85W PD, USB 3.0 5 Gbps Hub w/ 2x USB-A (1 Front Fast-Charging) & 1x USB-C, GbE, 3.5mm audio/mic Bullets (Compact) Certified Thunderbolt 3 docking station with dual monitor 4K 60Hz DisplayPort + TB3 (USB-C), 85W Power Delivery, 2x USB-A, 1x USB-C, GbE, audio - Macbook Pro / Air, macOS, Windows - Incl. TB3 cable, USB-C to DP adapter - Daisychain TB3 devices Bullets (Consolidated) Certified Thunderbolt 3 docking station w/ dual 4K 60Hz DisplayPort + TB3/2x USB-A (1 Fast-Charge) + 1x USB-C/GbE/audio - Thunderbolt 3 dock w/ 85W Power Delivery to power/charge MacBook Pro HP Lenovo Dell laptops/ultrabook w/ macOS Windows - Driverless/TB3 host cable/USB-C to DP cable for 2nd DP monitor/MAC Address Changer Utility - TB3 downstream port to daisychain up to 5 TB3 devices/USB-C devices - Extended dual displays on MacBooks w/ Intel processor and single display w/ Apple M1 chip Marketing Copy Marketing Copy (No HTML) Applications - Review/edit images or media files on two 4K displays
- Transfer a 4K movie in under 30 seconds
- Transfer 3 hours of 4K GoPro® video in less than a minute
- Dock and undock quickly, with a single cable for data, power, and external displays
Website Product Alert Website Search Keyword - thunderbolt port expander
- thunderbolt port replicator
- thunderbolt type c dock
- universal docking station
- universal laptop docking station
- usb c docking station
- usb c thunderbolt 3 dock
- usb type c dock
- usb type c docking station
- usb type c thunderbolt 3 dock
- usb-c docking station
- xps 13 docking station
- macbook pro docking station
- macbook pro docking station dual monitor
- port replicator
- tb3 dock
- thunderbolt 3 dock
- thunderbolt 3 dock with charging
- thunderbolt 3 dock with displayport
- thunderbolt 3 dock with power delivery
- thunderbolt 3 docking station
- thunderbolt 3 port replicator
- thunderbolt 3 to displayport
- thunderbolt 4k
- thunderbolt dock
- thunderbolt docking station
- thunderbolt laptop docking station
- dell usb c dock
- dell xps docking station
- docking station laptop
- docking station thunderbolt 3
- Dual 4k docking station
- dual 4k monitor docking station
- dual displayport docking station
- dual monitor thunderbolt 3 dock
- hp zbook docking station
- laptop dock
- laptop docking station
- mac docking station
- macbook dock
- macbook docking station
- macbook pro dock
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
- When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display.
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps.
- Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz).
- MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3.
System and Cable Requirements - Thunderbolt 3 equipped computer with a Thunderbolt 3 port.
- Your laptop's Thunderbolt 3 port must support USB Power Delivery 2.0 in order to power and charge your laptop.
Accessory Products - CDP2HD
- CDP2VGA
- CDP2HDW
- CDP2VGAW
- TBT3TBTADAP
- N6PATCH10WH
- DISPLPORT6L
- TBLT34MM50CM
- USB31CC1M
- S352BU33HR
- HB30C3A1CFS
- HB30C3A1CFB
- USBAUB1BK
- USBLT30CMB
- USBLT30CMW
- CDP2DPMM1MB
- CDP2DPMM6B
- DP2VGA2
- DP2DVI
- DP2DVIS
- DP2HDMI
- DP2DVIMM6BS
- DP2DVIMM3BS
- DP2HDMI2
- DP2HDMM1MB
- DP2DVI2
- DP2VGAA
Related Products - TB3DOCK2DPPD
- TB2DOCK4K2DP
- TB2DOCK4KDHC
- TB3DK2DPWUE
- TB3DKDPMAWUE
Input Current 2.5 A Input Voltage 100 - 240 AC Output Current 8.5 A Output Voltage (V) 20V DC Power Consumption (In Watts) 170 Power Delivery 85W Power Source AC Adapter Included Plug Type CP (OD:7.4/ID:5.1/CPD:0.6) Cable Length (mm) 520 Color Gray and Black Humidity 5~95% RH (Non-condensing) Material Aluminum and Plastic Operating Temperature 5°C to 40°C (41°F to 104°F) Primary Material Aluminum Product Length (mm) 220.000 Product Width (mm) 80.000 Product Height (mm) 27.000 Product Weight (g) 474.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate Thunderbolt 3 (40Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 10
- Windows 8
- Windows 7
- macOS Sierra (10.12)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
UASP Support Yes USB Type and Rate Thunderbolt 3 (40Gbps) Video Output Port - DisplayPort
- Thunderbolt
Video Transport Technology Thunderbolt Bus Type Thunderbolt 3 Chipset ID Host Connection Port Thunderbolt Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 2 Other Ports - USB-A BC 1.2 Fast Charge
- Gigabit Ethernet
- 3.5mm TRRS Mic Audio Jack
- 3.5mm TRRS Speaker Audio Jack

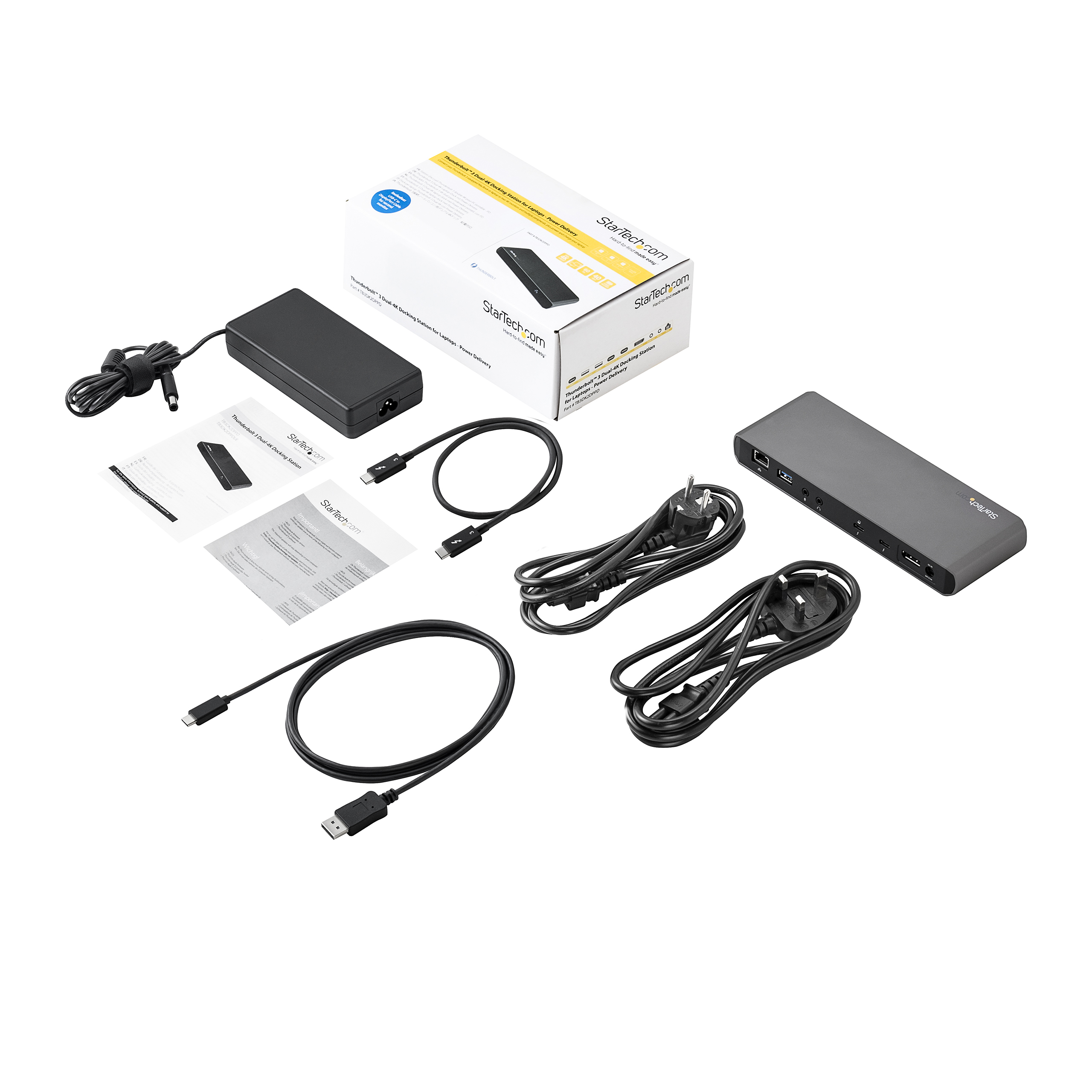

Carton Depth (mm) 268 Carton Height (mm) 188 Carton Quantity 4 Carton Weight Gross (g) 6841 Included in Package - 1 - docking station
- 1 - 1.7 ft. [520 mm] Thunderbolt 3 cable
- 1 - universal power adapter
- 2 - power cords (EU, UK)
- 1 - instruction manual
- 1 - 6 ft. [1.8 m] USB-C to DP cable

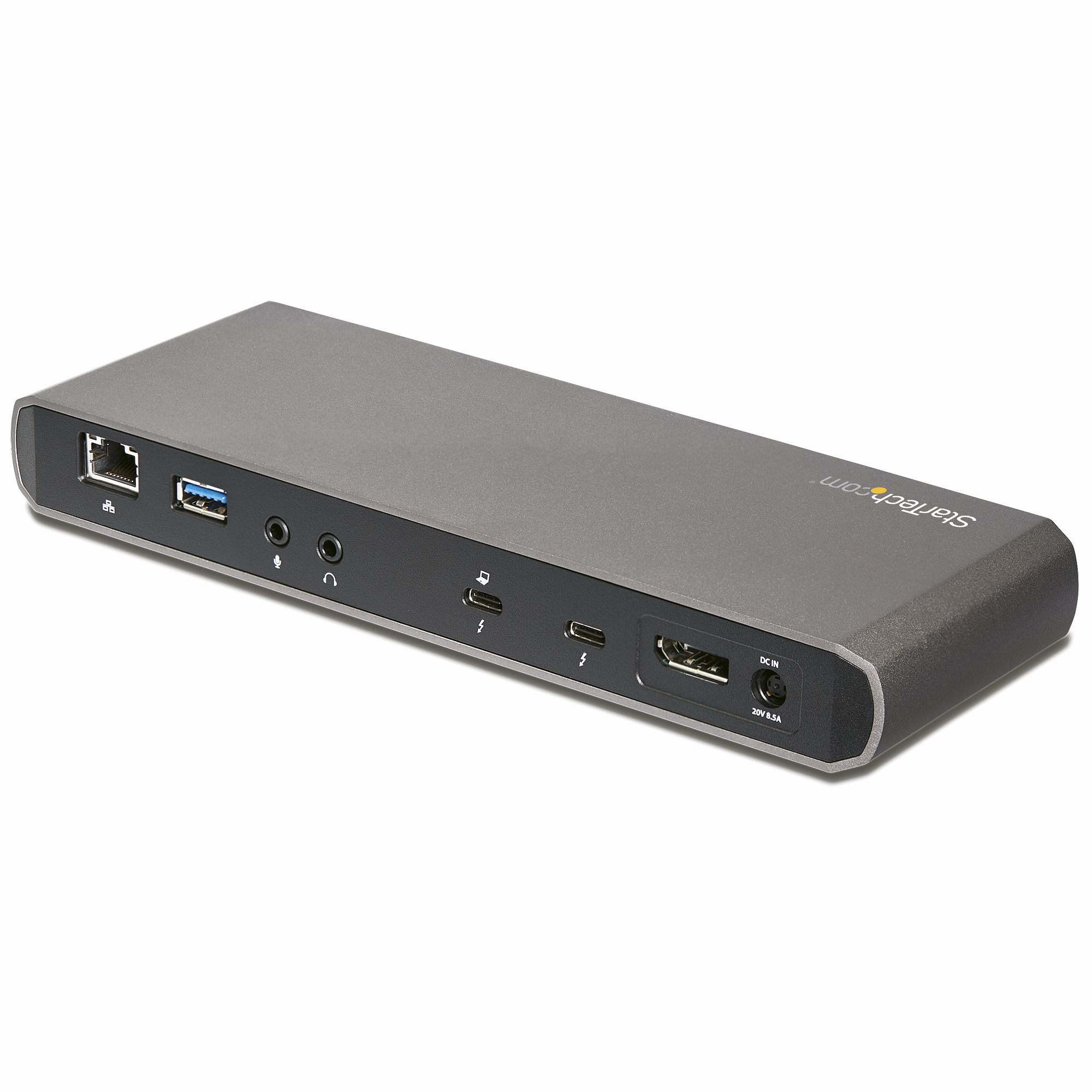

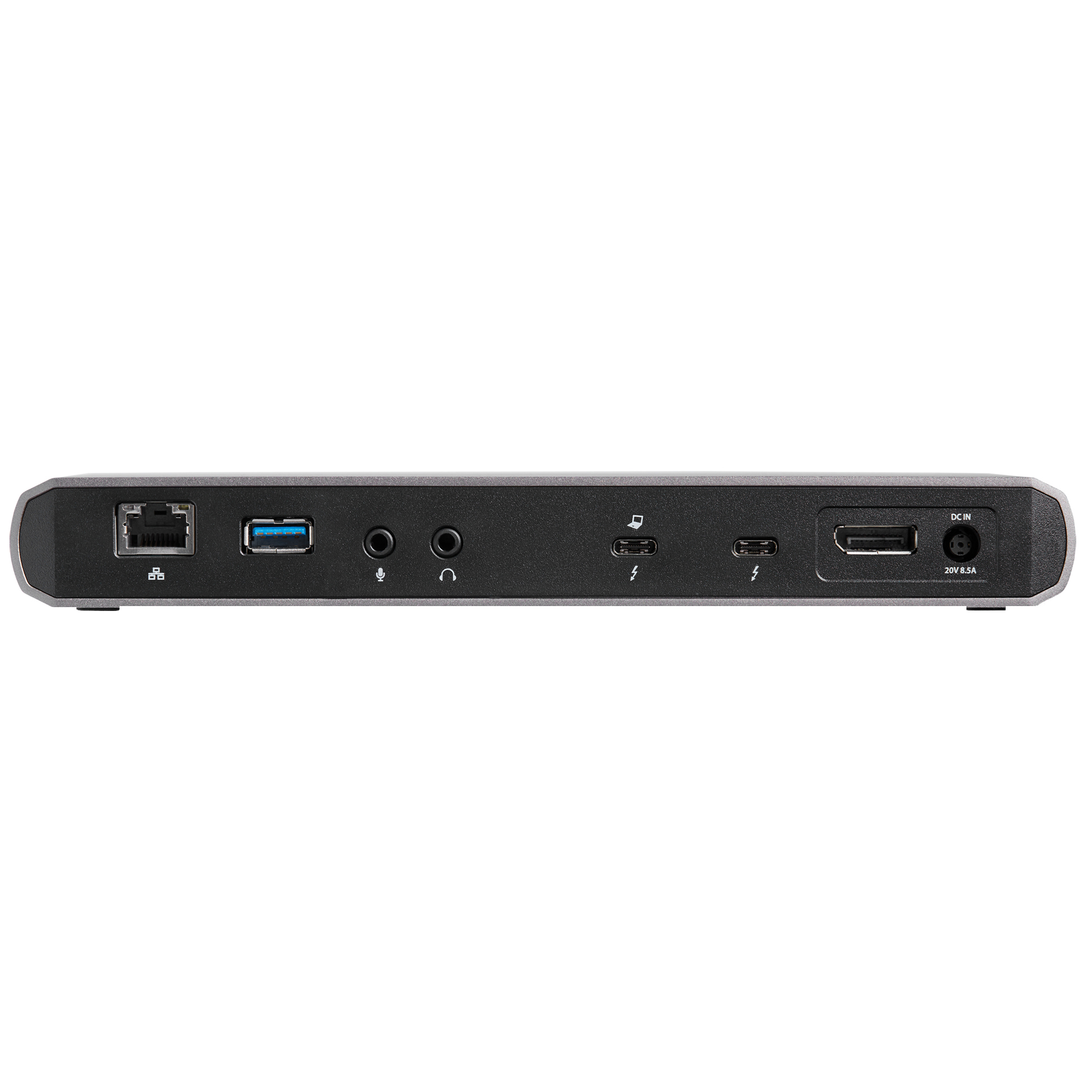

Package Depth (mm) 148 Package Height (mm) 176 Package Width (mm) 248 Package Quantity 1 Package Weight (g) 1552 Packaging Description Thunderbolt 3 Dual-4K Laptop Dock with Power Delivery Packaging Description India Thunderbolt 3 Dual-4K Laptop Dock with Power Delivery Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 40Gbps) Connector 1 (Quantity) 2 Connector 2 DisplayPort Connector 2 (Quantity) 1 Connector 3 USB-C (5Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 USB-A (7.5W Power Only) Connector 4 (Quantity) 1 Connector 5 USB-A (5Gbps, 4.5W) Connector 5 (Quantity) 1 Connector 6 3.5mm (3 Conductors, TRS) Connector 6 (Quantity) 2 Connector 7 RJ-45 Connector 7 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2017-01-31 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2016-11-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CH,CL,DE,DK,ES,EU,FI,FR,IE,IT,NL,SE,SG,UK Primary Technology Thunderbolt 3 Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2017-06-09 Target Production Release 2017-06-16 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy
