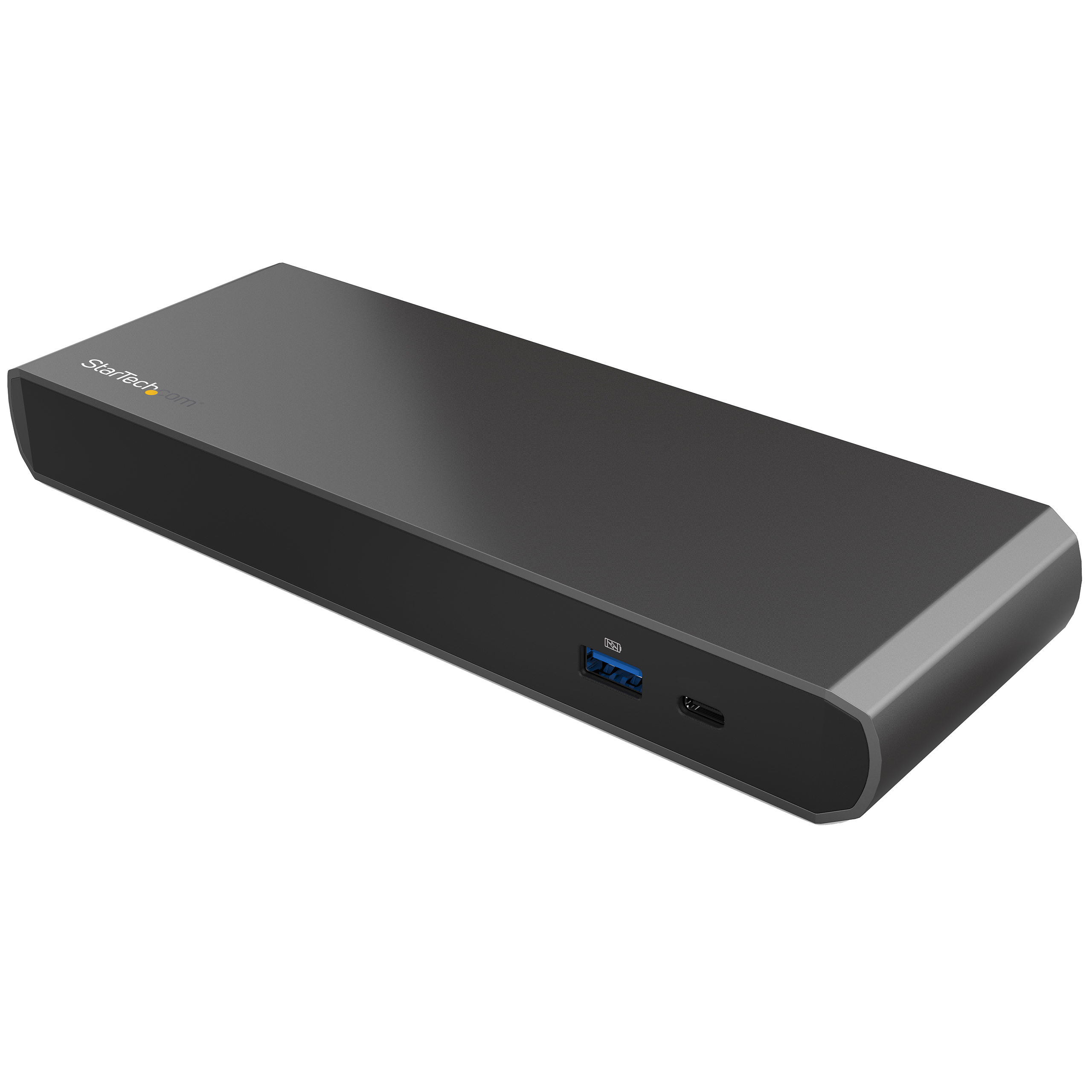

Thunderbolt 3 Dual-4K Docking Station - WINDOWS
Laptop Docking Station | Windows® | Dual 4K DisplayPort | 3x USB 3.0 (Type A) Ports
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Product Name Thunderbolt 3 Dual-4K Docking Station - WINDOWS Product Number TB3DK2DPW UPC 065030864893 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 3 Docks Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) Thunderbolt 3 Dock Product Title (Short) Thunderbolt 3 Dual-4K Dock for Windows Product Title (Medium) Thunderbolt 3 Dual-4K Docking Station for Laptops - Windows Only Product Title (Standard) Thunderbolt 3 Dual-4K Docking Station for Laptops - - No driver installation required - Windows Only - Thunderbolt 3 Dock with Dual-4K Video - Includes TB Cable Product Title (Long) Thunderbolt 3 Dual-4K Docking Station for Laptops - Windows Only Product Title (AMZ) Thunderbolt 3 Docking Station - Dual 4K DisplayPort Monitors - TB3 USB-C Laptop Dock (TB3DK2DPW) Title Ingram (Part 1) Thunderbolt 3 Dock for Windows Title Ingram (Part 2) - Dual-4K Video Docking Station Website Product Headline Laptop Docking Station | Windows® | Dual 4K DisplayPort | 3x USB 3.0 (Type A) Ports Bullet 1 Improve your workflow with single-cable docking and up to 40Gbps bandwidth Bullet 2 Supports dual-4K monitors, with 3840 x 2160p or 4096 x 2160p on each display Bullet 3 Includes three USB 3.0 ports (USB-C, 2x USB-A), two Thunderbolt 3 USB-C ports, 3.5mm audio out, 3.5mm microphone in, and GbE Bullet 4 Fast charge your phone or tablet with the always-on USB 3.0 fast-charge and sync port Bullet 5 Thunderbolt Certified and includes a Thunderbolt 3 host cable (0.5 m) Bullets (Compact) Dual 4K Monitor Thunderbolt 3 Dock for Laptops - Windows Only - No drivers to install - With a single cable connect your Windows laptop - Dual 4K & peripherals at speeds up to 40Gbps - TB3 Dock ideal for Dell XPS 13, Asus ROG G752, Lenovo P50 Bullets (Consolidated) With a single cable connect your Windows laptop to dual-4K displays and multiple peripherals at speeds up to 40Gbps - Easily deployed and installed with display adapter included and no driver installation required - Thunderbolt 3 Dual-4K Docking Station for Laptops - Windows Only - Thunderbolt 3 Dock w/ Dual 4K Ultra HD - Compatible with most Windows based Thunderbolt 3 equipped laptops and Ultrabooks/Dell XPS/Asus Zenbook/HP Zbook 15 G3/ HP Zbook 17 G3/ Lenovo P50 Marketing Copy Marketing Copy (No HTML) Applications - Ideal for creative professionals working with high-resolution, high-bandwidth, and graphically intensive images, video, CAD drawings, and medical imagery
- Recommended for video producers, graphic and web designers, engineers, architects, and more
- Access and edit large, uncompressed files such as videos and images on the fly, for dynamic on-site production
- Transfer a 4K movie in under 30 seconds, or 3 hours of 4K GoPro® video in less than a minute
- Edit 4K video on one display, with a full-size video preview on the second 4K display
- Dock and undock quickly, with a single cable for data and external displays
Website Search Keyword - Thunderbolt 3 Docking Station
- Thunderbolt 3 Dock
- Thunderbolt 3 Laptop Docking Station
- Thunderbolt 3 Laptop Dock
- Thunderbolt 3 dual 4k docking station
- Thunderbolt dual video docking station
- Thunderbolt docking station
- Thunderbolt 3 dual video docking station
- Thunderbolt dock
- dual 4k dock
- dual 4k docking station
- dual 4k laptop docking station
- dual 4k laptop dock
- dual 4k video
- thunderbolt 3 dock for windows
- dock for thunderbolt 3 laptop
- dual 4k video docking station
- dual monitor docking station
- dual 4k displays
- dual 4k monitors
- ultrabook dock
- ultrabook docking station
- macbook pro dock
- macbook pro docking station
- macbook dock
- macbook docking station
- macbook air dock
- macbook air docking station
- tb dock
- thunderbolt express docking station
- Thunderbolt laptop docking station
- notebook docking station
- laptop dock
- notebook dock
- 4k docking station
- thunderbolt 4k dock
- thunderbolt 4k docking station
- 4k laptop dock
- thunderbolt hd dock
- Ultra High Definition
- HD docking station
- 4k laptop docking station
- 4K2K
- 4K x 2K
- port replicator
- laptop accessory
- SPDIF docking station
- macbook accessory
- apple docking station
- thunderbolt display
- macbook pro retina
- high-definition dock
- high-definition docking station
- express dock hd
- apple dock
- digital audio
- eSATA docking station
- carbon dock
- lenovo docking station
- hp docking station
- dell docking station
- thinkpad docking station
- Dell XPS
- dell dock
- dell laptop dock
- dell laptop docking station
- HP ZBook
- HP ZBook Dock
- P5Q58UT#ABA
- HP Elite dock
- HP elite
- P5Q54UT#ABA
- Dell thunderbolt 3 dock
- R3YYP
- Dell tb15
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes - A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps.
- When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter may be required depending on the input of your display.
- This docking station will not charge your host laptop.
- Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz).
- The DisplayPort output port on this dock does not support MST.
- Your computer’s Thunderbolt 3 ports might not function properly until you update one or more of the following on your computer:</br> • BIOS</br> • Thunderbolt firmware</br> • Thunderbolt 3 controller drivers</br> • Thunderbolt 3 software</br> The required updates will vary depending on your computer.</br> For an up-to-date list of affected computers and instructions, visit http://thunderbolttechnology.net/updates. If your manufacturer isn’t listed on the Thunderbolt website, contact your manufacturer.</br>
System and Cable Requirements - Thunderbolt 3 equipped computer with a Thunderbolt 3 port - Windows only.
- The docking station does not support Mac or Linux operating systems.
Accessory Products - USB31CC1M
- S352BU33HR
- HB30C3A1CFS
- HB30C3A1CFB
- USBAUB1BK
- USBLT30CMB
- USBLT30CMW
- DP2VGA2
- DP2DVIS
- C6PATCH3BK
- C6PATCH6BK
- C6PATCH10BK
- C6PATCH15BK
- N6PATCH3BK
- N6PATCH6BK
- N6PATCH10BK
- N6PATCH15BK
- C6PATCH3WH
- C6PATCH6WH
- C6PATCH10WH
- C6PATCH15WH
- N6PATCH3WH
- N6PATCH6WH
- N6PATCH10WH
- N6PATCH15WH
- DP2HD4K60S
- DP2DVID2
Related Products - TB3DOCK2DPPD
- TB2DOCK4K2DP
- TB2DOCK4KDHC
Equivalent Part Number in the EU TB3DK2DPWUE Equivalent Part Number in the UK TB3DK2DPWUE Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 72 Power Delivery No PD Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Cable Length (mm) 520 Color Gray and Black Humidity 5~95% RH (Non-condensing) Material Aluminum and Plastic Operating Temperature 5°C to 40°C (41°F to 104°F) Product Length (mm) 220.000 Product Width (mm) 80.000 Product Height (mm) 27.000 Product Weight (g) 442.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate Thunderbolt 3 (40Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 10
- Windows 8
- Windows 7
- Windows 11

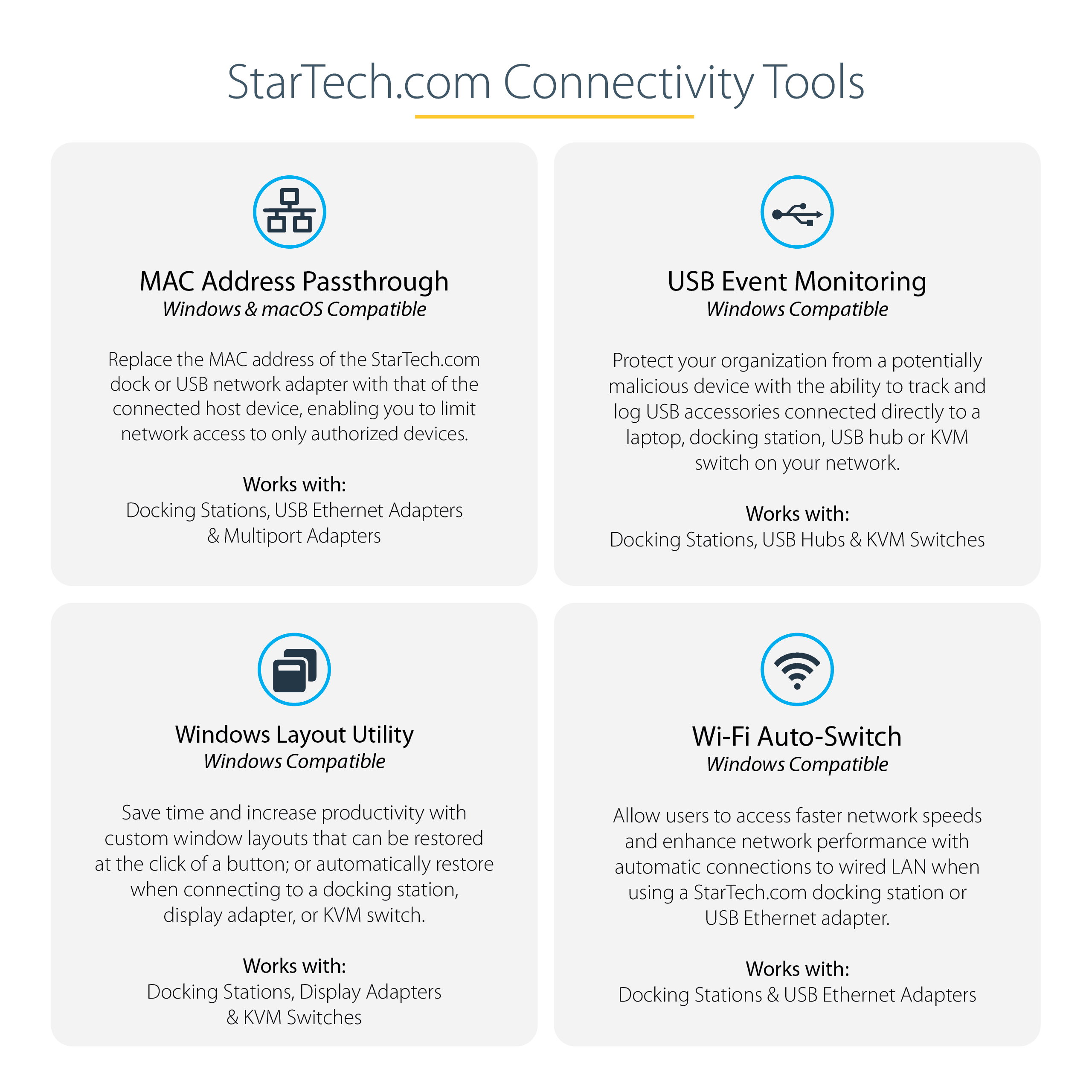

StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
UASP Support Yes USB Type and Rate Thunderbolt 3 (40Gbps) Video Output Port - DisplayPort
- Thunderbolt

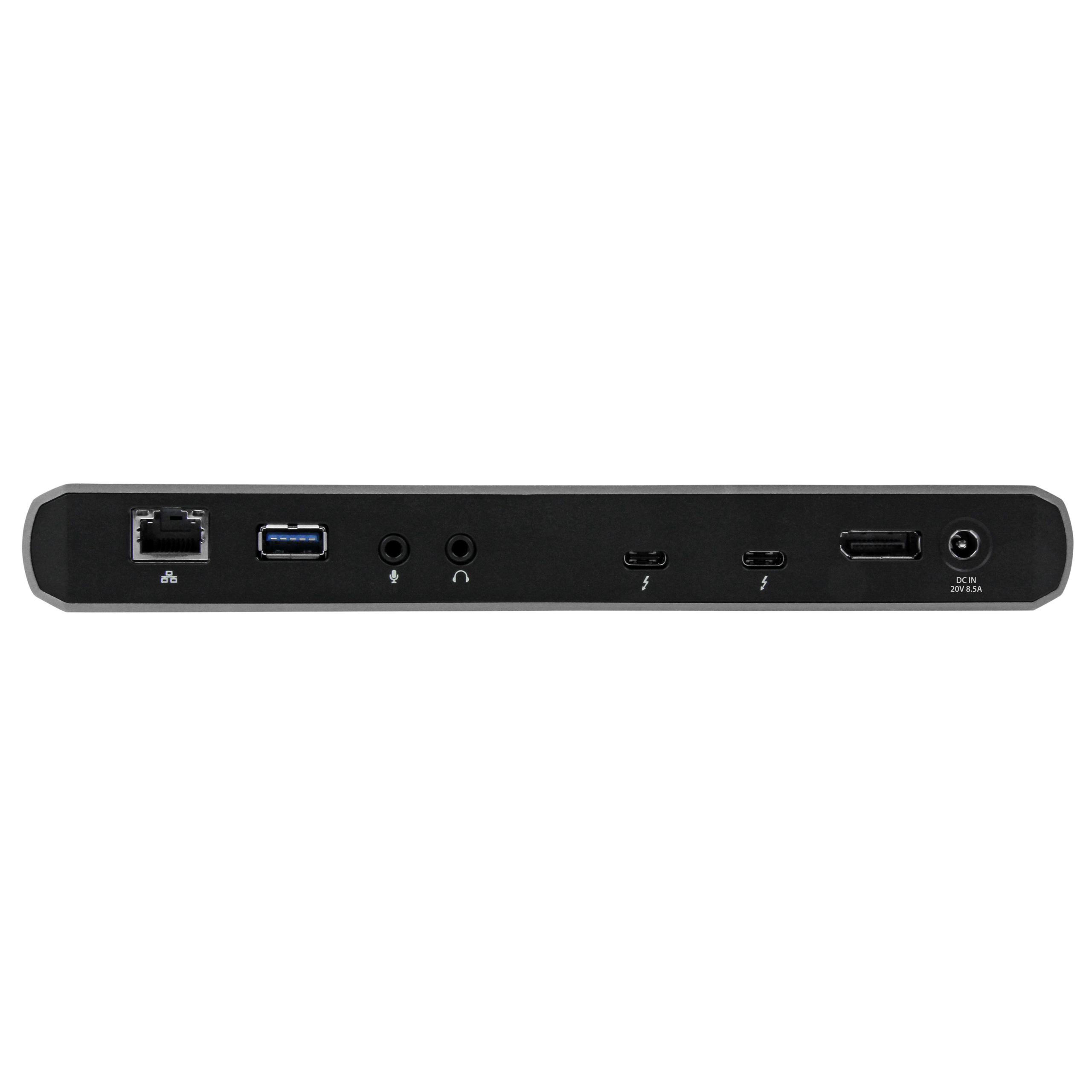

Video Transport Technology Thunderbolt Bus Type Thunderbolt 3 Chipset ID Host Connection Port Thunderbolt Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 2 Other Ports - USB-A BC 1.2 Fast Charge
- Gigabit Ethernet
- 3.5mm TRRS Mic Audio Jack
- 3.5mm TRRS Speaker Audio Jack

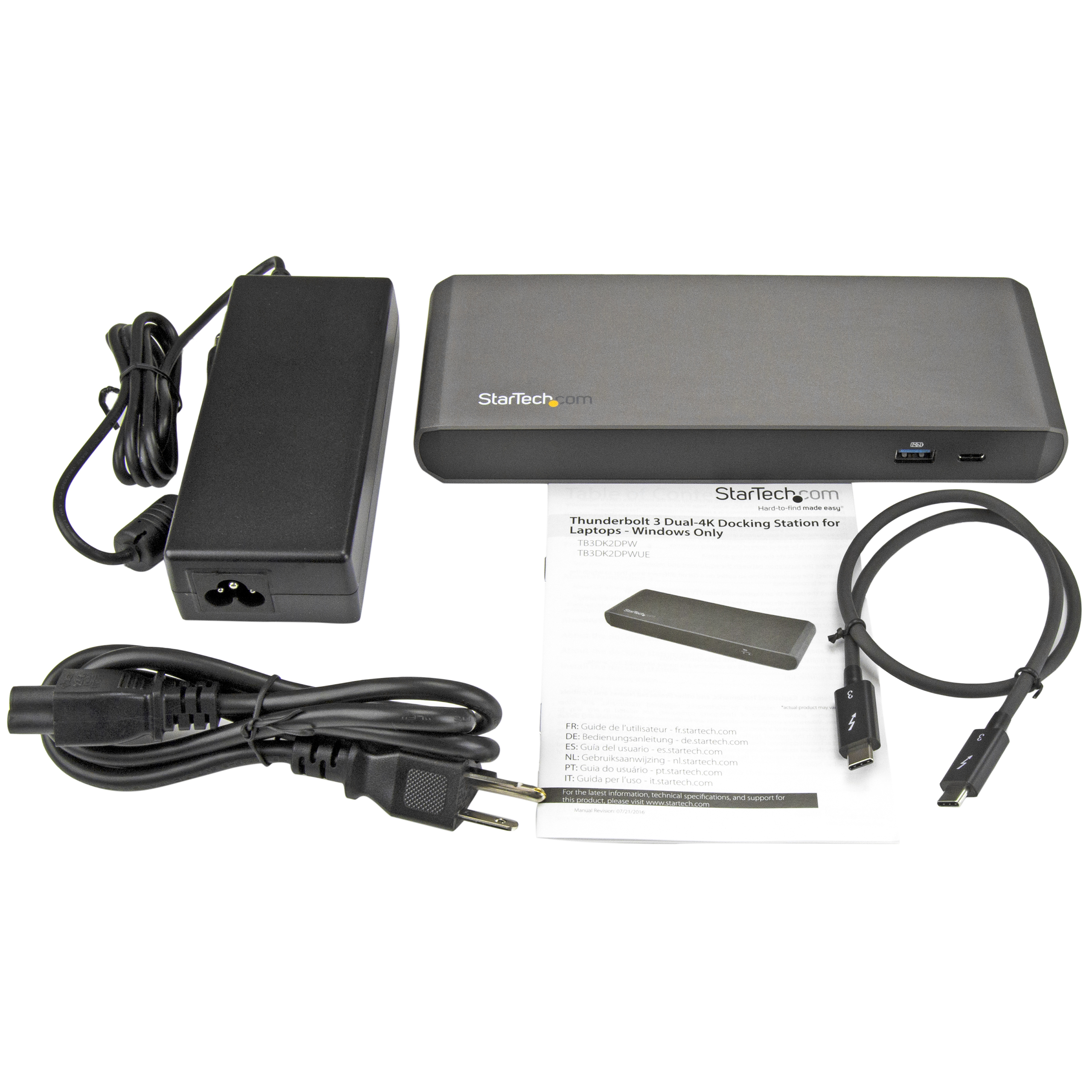

Carton Depth (mm) 420 Carton Height (mm) 265 Carton Quantity 12 Carton Weight Gross (g) 15532 Included in Package - 1 - Thunderbolt™ 3 dual-4K docking station for laptops
- 1 - Thunderbolt 3 cable - 40Gbps - 0.5m
- 1 - universal power adapter
- 1 - power cord (NA)
- 1 - instruction manual
Package Depth (mm) 134 Package Height (mm) 114 Package Width (mm) 250 Package Quantity 1 Package Weight (g) 1172 Packaging Description Thunderbolt 3 Dual-4K Laptop Dock Packaging Description India Thunderbolt 3 Dual-4K Laptop Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 40Gbps) Connector 1 (Quantity) 2 Connector 2 DisplayPort Connector 2 (Quantity) 1 Connector 3 USB-A (7.5W Power Only) Connector 3 (Quantity) 1 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 1 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 2 Connector 6 RJ-45 Connector 6 (Quantity) 1 Connector 7 USB-C (5Gbps, 4.5W) Connector 7 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2016-07-29 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2016-08-26 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,JP,SG,US Primary Technology Thunderbolt 3 Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2016-08-19 Target Production Release 2016-07-29 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
