TB3DK2DPWUE
UE Thunderbolt 3 Dual-4K Dock
With a single cable, connect your Windows laptop to dual-4K displays and multiple peripherals at the unrivaled speed of 40Gbps
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Product Name UE Thunderbolt 3 Dual-4K Dock Product Number TB3DK2DPWUE UPC 065030865180 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 3 Docks Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) Thunderbolt 3 Dock Product Title (Short) Thunderbolt 3 Dual-4K Dock for Windows Product Title (Medium) Thunderbolt 3 Dual-4K Docking Station for Laptops - Windows Only Product Title (Standard) Thunderbolt 3 Dual-4K Docking Station for Laptops - Windows Only - Thunderbolt 3 Dock with Dual-4K Video - Includes TB Cable Product Title (Long) Thunderbolt 3 Dual-4K Docking Station for Laptops - Windows Only Product Title (AMZ) Thunderbolt 3 Dual-4K Docking Station for Laptops - Windows Only - Thunderbolt 3 Dock with Dual-4K Video (TB3DK2DPWUE) Title Ingram (Part 1) Thunderbolt 3 Dock for Windows Title Ingram (Part 2) - Dual-4K Video Docking Station Website Product Headline With a single cable, connect your Windows laptop to dual-4K displays and multiple peripherals at the unrivaled speed of 40Gbps Bullet 1 Improve your workflow with single-cable docking and up to 40Gbps bandwidth Bullet 2 Connects to your laptop’s Thunderbolt 3 USB-C port, so you can access multiple displays and peripherals Bullet 3 Fast charge your phone or tablet with the always-on USB 3.0 fast-charge and sync port Bullet 4 Includes three USB 3.0 ports (USB-C, 2x USB-A), two Thunderbolt 3 USB-C ports, 3.5mm audio out, 3.5mm microphone in, and GbE Bullet 5 Thunderbolt Certified and includes a Thunderbolt 3 host cable (0.5 m) Bullets (Compact) Use a single cable to connect your Windows based laptop to dual-4K Ultra HD displays, or a single display - Use with multiple peripherals at the unrivaled speed of 40Gbps - Dock features one DP and two Thunderbolt 3 USB-C ports Bullets (Consolidated) With a single cable connect your Windows laptop to dual-4K displays and multiple peripherals at speeds up to 40Gbps - Thunderbolt 3 Dual-4K Docking Station for Laptops - Windows Only - Thunderbolt 3 Dock w/ Dual 4K Ultra HD - Compatible with most Windows based Thunderbolt 3 equipped laptops and Ultrabooks/Dell XPS 13 9350/Asus Zenbook UX501VW/Asus ROG G752 HP Zbook 15 G3/ HP Zbook 17 G3/ Lenovo P50 - Thunderbolt 3 Laptop Docking Station - This Thunderbolt dock will not charge your host laptop Marketing Copy Marketing Copy (No HTML) Applications - Ideal for creative professionals working with high-resolution, high-bandwidth, and graphically intensive images, video, CAD drawings, and medical imagery
- Recommended for video producers, graphic and web designers, engineers, architects, and more
- Access and edit large, uncompressed files such as videos and images on the fly, for dynamic on-site production
- Transfer a 4K movie in under 30 seconds, or 3 hours of 4K GoPro® video in less than a minute
- Edit 4K video on one display, with a full-size video preview on the second 4K display
- Dock and undock quickly, with a single cable for data and external displays
Website Search Keyword - Thunderbolt 3 Docking Station
- ultrabook dock
- ultrabook docking station
- Thunderbolt 3 Dock
- macbook pro dock
- Thunderbolt 3 Laptop Docking Station
- macbook pro docking station
- Thunderbolt 3 Laptop Dock
- macbook dock
- Thunderbolt 3 dual 4k docking station
- macbook docking station
- Thunderbolt dual video docking station
- macbook air dock
- Thunderbolt docking station
- macbook air docking station
- Thunderbolt 3 dual video docking station
- tb dock
- Thunderbolt dock
- thunderbolt express docking station
- dual 4k dock
- Thunderbolt laptop docking station
- dual 4k docking station
- notebook docking station
- dual 4k laptop docking station
- laptop dock
- dual 4k laptop dock
- notebook dock
- dual 4k video
- thunderbolt 3 dock for windows
- dock for thunderbolt 3 laptop
- 4k docking station
- dual 4k video docking station
- dual monitor docking station
- dual 4k displays
- dual 4k monitors
- thunderbolt 4k dock
- thunderbolt 4k docking station
- 4k laptop dock
- thunderbolt hd dock
- Ultra High Definition
- HD docking station
- 4k laptop docking station
- 4K2K
- 4K x 2K
- port replicator
- laptop accessory
- carbon dock
- SPDIF docking station
- lenovo docking station
- macbook accessory
- hp docking station
- apple docking station
- dell docking station
- thunderbolt display
- thinkpad docking station
- macbook pro retina
- high-definition dock
- high-definition docking station
- express dock hd
- apple dock
- digital audio
- eSATA docking station
- Dell Precision
- Dell XPS
- dell dock
- dell laptop dock
- dell laptop docking station
- HP ZBook
- HP ZBook Dock
- P5Q58UT#ABA
- HP Elite dock
- HP elite
- P5Q54UT#ABA
- Dell thunderbolt 3 dock
- R3YYP
- Dell tb15
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes - A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
- When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter may be required depending on the input of your display.
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps.
- This docking station will not charge your host laptop.
- Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz).
- The DisplayPort output port on this dock does not support MST.
System and Cable Requirements - Thunderbolt 3 equipped computer with a Thunderbolt 3 port - Windows only.
- The docking station does not support Mac or Linux operating systems.
Accessory Products - CDP2HD
- CDP2VGA
- CDP2HDW
- CDP2VGAW
- TBT3TBTADAP
- N6PATCH10WH
- DISPLPORT6L
- TBLT34MM50CM
- USB31CC1M
- S352BU33HR
- HB30C3A1CFS
- HB30C3A1CFB
- USBAUB1BK
- USBLT30CMB
- USBLT30CMW
- CDP2DPMM1MB
- CDP2DPMM6B
- DP2VGA2
- DP2DVI
- DP2DVIS
- DP2HDMI
- DP2DVIMM6BS
- DP2DVIMM3BS
- DP2HDMI2
- DP2HDMM1MB
- DP2DVI2
- DP2VGAA
Related Products - TB3DOCK2DPPD
- TB2DOCK4K2DP
- TB2DOCK4KDHC
Replacement Product TB3DKDPMAWUE Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 72 Power Delivery No PD Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Cable Length (mm) 520 Color Gray and Black Humidity 5~95% RH (Non-condensing) Material Aluminum and Plastic Operating Temperature 5°C to 40°C (41°F to 104°F) Product Length (mm) 220.000 Product Width (mm) 80.000 Product Height (mm) 27.000 Product Weight (g) 442.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate Thunderbolt 3 (40Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 10
- Windows 8
- Windows 7
- Windows 11
StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
UASP Support Yes USB Type and Rate Thunderbolt 3 (40Gbps) Video Output Port - DisplayPort
- Thunderbolt
Video Transport Technology Thunderbolt Bus Type Thunderbolt 3 Chipset ID Host Connection Port Thunderbolt Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 2 Other Ports - USB-A BC 1.2 Fast Charge
- Gigabit Ethernet
- 3.5mm TRRS Mic Audio Jack
- 3.5mm TRRS Speaker Audio Jack

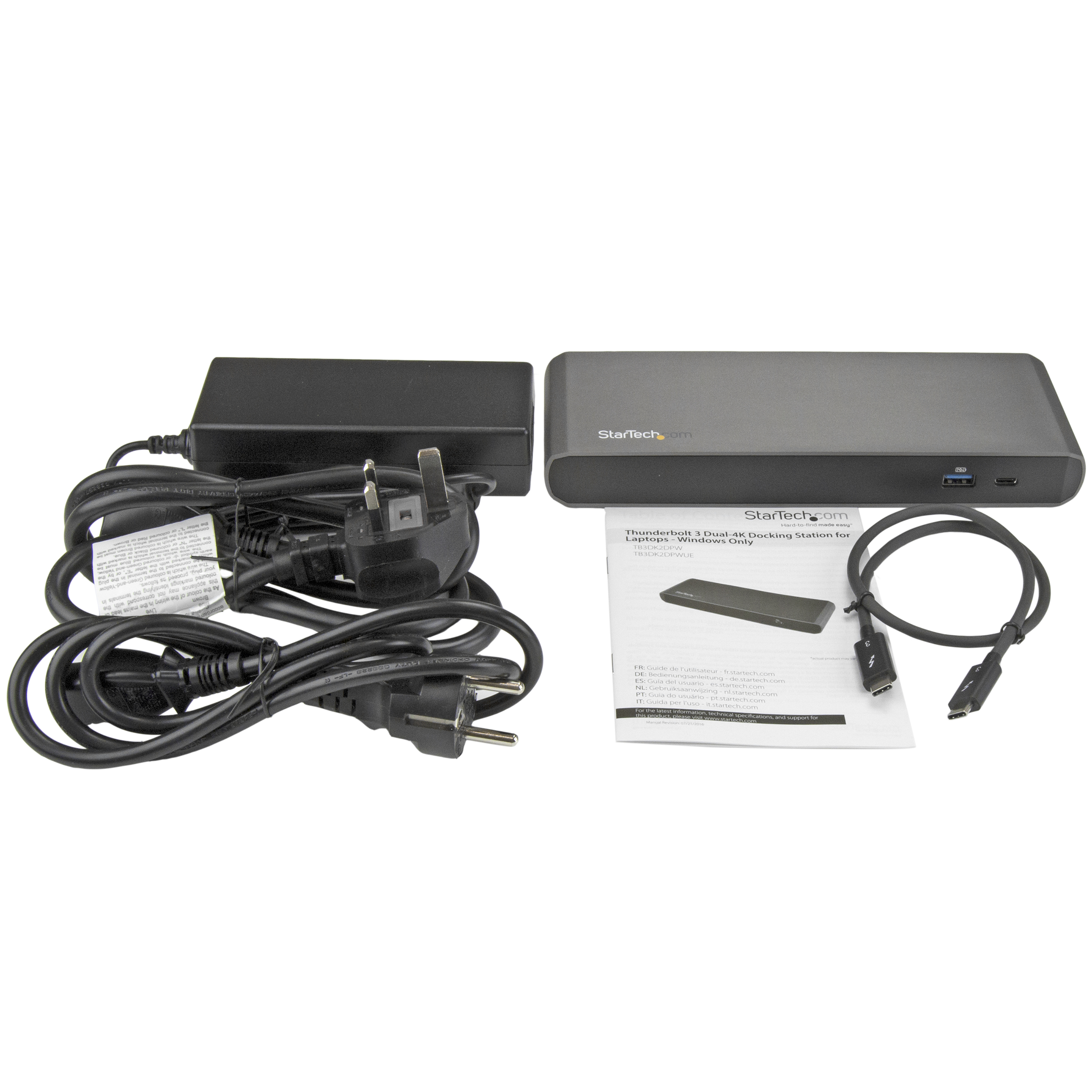

Carton Depth (mm) 420 Carton Height (mm) 265 Carton Quantity 12 Carton Weight Gross (g) 17369 Included in Package - 1 - Thunderbolt™ 3 dual-4K docking station for laptops
- 1 - Thunderbolt 3 cable - 40Gbps - 0.5m
- 1 - universal power adapter
- 2 - power cords (EU/UK)
- 1 - instruction manual
Package Depth (mm) 134 Package Height (mm) 114 Package Width (mm) 250 Package Quantity 1 Package Weight (g) 1350 Packaging Description Thunderbolt 3 Dual-4K Laptop Dock Packaging Description India Thunderbolt 3 Dual-4K Laptop Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 40Gbps) Connector 1 (Quantity) 2 Connector 2 DisplayPort Connector 2 (Quantity) 1 Connector 3 USB-C (5Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 USB-A (7.5W Power Only) Connector 4 (Quantity) 1 Connector 5 USB-A (5Gbps, 4.5W) Connector 5 (Quantity) 1 Connector 6 3.5mm (3 Conductors, TRS) Connector 6 (Quantity) 2 Connector 7 RJ-45 Connector 7 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2016-09-12 Buying Center - End User Compute Yes Digital Content Due Date 2016-10-10 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,DE,DK,ES,FR,IE,IT,NL,SE,UK Primary Technology Thunderbolt 3 Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Production Release 2016-07-29 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
