Main Image
TB3DKDPMAWUE

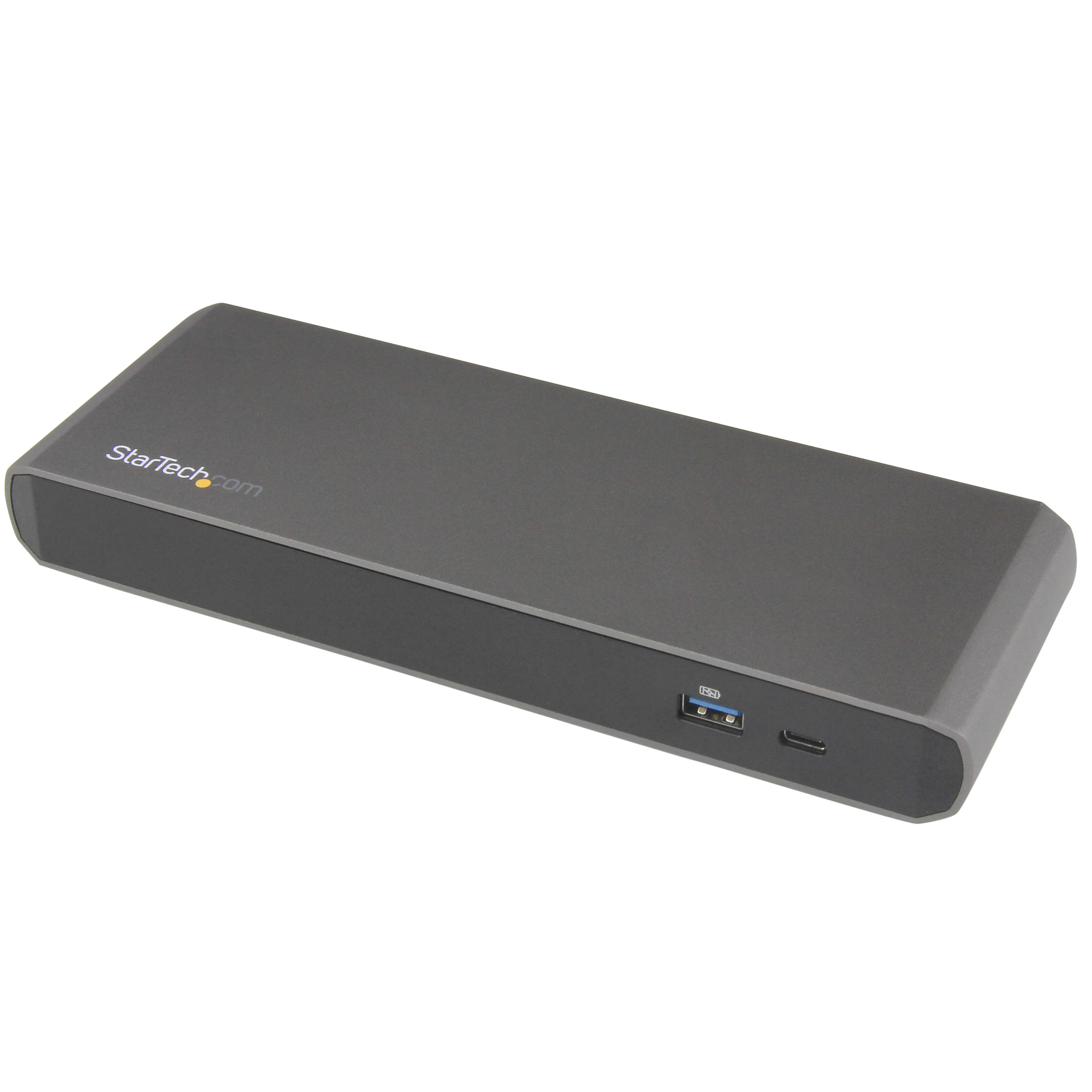

UE Thunderbolt 3 Dual-4K Docking Station- WIN/MAC
Laptop Docking Station | Mac & Windows® | 2x USB-C | 1x USB-A | 15W PD | Audio & Mic
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name UE Thunderbolt 3 Dual-4K Docking Station- WIN/MAC Product Number TB3DKDPMAWUE UPC 065030867665 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 3 Docks Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) Thunderbolt 3 Dock Product Title (Short) Thunderbolt 3 Dual-4K Dock - Windows Mac Product Title (Medium) Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows Product Title (Standard) StarTech.com Thunderbolt 3 Docking Station - No Drivers to Install - Compatible with Windows / macOS - Supports Dual 4K HD Displays - TB3DKDPMAWUE Product Title (Long) Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - Thunderbolt 3 Dock for MacBook Pro Product Title (AMZ) Thunderbolt 3 Docking Station - Windows & macOS - Supports Dual 4K HD Displays - TB3 Laptop Dock (TB3DKDPMAWUE) Title Ingram (Part 1) Thunderbolt 3 Dock w/ Dual 4K - Title Ingram (Part 2) Mac and Windows Website Product Headline Laptop Docking Station | Mac & Windows® | 2x USB-C | 1x USB-A | 15W PD | Audio & Mic Bullet 1 Improve your workflow with single-cable docking and up to 40Gbps bandwidth — twice the speed of Thunderbolt 2 (20Gbps) and eight times faster than USB 3.0 (5Gbps) Bullet 2 Supports dual-4K monitors, with 3840 x 2160p or 4096 x 2160p on each display Bullet 3 Connects to your laptop’s Thunderbolt 3 USB-C port, so you can access multiple displays and peripherals Bullet 4 Thunderbolt Certified and includes a Thunderbolt 3 host cable (0.5 m) Bullet 5 Includes three USB 3.0 ports (USB-C, 2x USB-A), two Thunderbolt 3 USB-C ports, 3.5mm audio out, 3.5mm microphone in, and Gigabit Ethernet Bullets (Compact) With one cable connect your Thunderbolt 3 MacBook or laptop to two 4K monitors and peripherals at 40 Gbps - No drivers to install - Thunderbolt 3 Dual-4K Docking Station for Laptops - Mac and Windows - TB3 Dock with Cable Bullets (Consolidated) Universal laptop dock compatible with all Thunderbolt 3 equipped MacBook Pro and PC laptops - No drivers to install - Supports up to two 4K HD displays - Delivers 15W of power to a MacBook Pro for slow charging while in sleep mode - Charge tablets and smartphones with always-on Fast-Charge USB 3.0 Type-A port - Thunderbolt 3 dock provides fast laptop-to-dock connection with 40Gbps throughput Marketing Copy Marketing Copy (No HTML) Applications - The perfect docking station for the MacBook Pro, with support for macOS Sierra (or later)
- A vital accessory for your Thunderbolt 3 equipped laptop
- Ideal for creative professionals and those who work with high-resolution, high-bandwidth, and graphically intensive images, video, CAD drawings, and medical imagery
- Recommended for video producers, graphic and web designers, engineers, architects, and more
- Access and edit large, uncompressed files such as videos and images on the fly, for dynamic on-site production
- Transfer a 4K movie in under 30 seconds, or 3 hours of 4K GoPro® video in less than a minute
- Edit 4K video on one display, with a full-size video preview on the second 4K display
- Dock and undock quickly, with a single cable for data and external displays
Website Search Keyword - thunderbolt dock
- ultrabook dock
- ultrabook docking station
- thunderbolt 3 dock
- thunderbolt 3 docking station
- Thunderbolt 3 Laptop Docking Station
- thunderbolt docking station
- Thunderbolt 3 Laptop Dock
- macbook pro docking station
- Thunderbolt 3 dual 4k docking station
- apple docking station
- Thunderbolt dual video docking station
- macbook air dock
- macbook docking station
- macbook air docking station
- macbook pro docking station dual monitor
- macbook pro thunderbolt dock
- Thunderbolt 3 dual video docking station
- tb dock
- macbook pro dock
- thunderbolt express docking station
- macbook dock
- dual 4k dock
- Thunderbolt laptop docking station
- mac docking station
- dual 4k docking station
- notebook docking station
- dual 4k laptop docking station
- laptop dock
- dual 4k laptop dock
- notebook dock
- dual 4k video
- thunderbolt 3 dock for windows
- dock for thunderbolt 3 laptop
- 4k docking station
- dual 4k video docking station
- dual monitor docking station
- dual 4k displays
- dual 4k monitors
- thunderbolt 4k dock
- thunderbolt 4k docking station
- 4k laptop dock
- thunderbolt hd dock
- Ultra High Definition
- HD docking station
- 4k laptop docking station
- 4K2K
- 4K x 2K
- port replicator
- laptop accessory
- carbon dock
- lenovo docking station
- macbook accessory
- hp docking station
- dell docking station
- thunderbolt display
- thinkpad docking station
- macbook pro retina
- high-definition dock
- high-definition docking station
- express dock hd
- apple dock
- dell dock
- dell laptop dock
- dell laptop docking station
- HP ZBook
- HP ZBook Dock
- P5Q58UT#ABA
- HP Elite dock
- HP elite
- P5Q54UT#ABA
- Dell thunderbolt 3 dock
- R3YYP
- Dell tb15
- dock for macbook
- docking station for MacBook
- dell xps
- macbook pro 13
- macbook pro 15
- thunderbolt 3 dock for mac
- thunderbolt 3
- laptop docking station
- usb c dock
- universal docking station
- usb c docking station
- docking station laptop
- usb type c dock
- thunderbolt 3 to hdmi
- usb type c docking station
- thunderbolt 3 to displayport
- hp zbook docking station
- macbook thunderbolt dock
- xps 15 docking station
- thunderbolt port replicator
- thunderbolt 3 to usb
- tb3 dock
- thunderbolt 3 to usb c
- thunderbolt dock dual monitor
- thunderbolt 3 port replicator
- thunderbolt docking station dual monitor
- thunderbolt laptop docking station
- dual monitor thunderbolt dock
- 4k dock
- thunderbolt to two monitors
- thunderbolt 3 to dp
- thunderbolt 3 laptop dock
- thunderbolt 3 for mac
- thunderbolt type c dock
- thunderbolt 3 dual-4K docking station
- Thunderbolt 3 Dual-4K Docking Station for Laptops
- Thunderbolt 3 Dual-4K Laptop dock
- thunderbolt 3 docking station dual monitor
- Thunderbolt 3 docking station for laptops
- thunderbolt 3 dock dual monitor
- Thunderbolt 3 dock for laptops
- tb3 docking station
- Thunderbolt 3 4k docking station
- mackbook tb3 docking station
- macbook thunderbolt 3 dock
- mac os thunderbolt 3 docking station
- mac thunderbolt 3 docking station
- dual 4K video
- dual monitor thunderbolt 3 dock
- docking station with 4k
- 4k x 2k dual video
- dock for tb3 laptops
- thunderbolt usb-c docking
- thunderbolt 3 for windows
- thunderbolt 3 for windows and mac
- thunderbolt 3 laptop docking station
- thunderbolt 3 macbook dock
- thunderbolt 3 replicator
- thunderbolt 3 to two monitors
- thunderbolt 3 to usb type c
- thunderbolt 3 universal dock
- thunderbolt 3 universal docking station
- thunderbolt and type c
- thunderbolt 3 dock with power delivery
- thunderbolt 3 dock with charging
- Thunderbolt 3 dock with 15W charging
- macbook pro charging dock
- Docking Stations
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes - A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
- When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display.
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps.
- Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz).
- 5K support can only be achieved using a Thunderbolt 3 5K monitor. DisplayPort 5K monitors will not work with this docking station.
- This docking station does not provide full power delivery but will provide 15W of power, resulting in a slow charge to some laptops, such as MacBook Pro (2016). When the dock is connected to your host laptop, a charging icon may appear on your laptop's screen. This is only sufficient enough to charge your laptop in sleep state, and charging will require an extended time period.
System and Cable Requirements Thunderbolt 3 equipped computer with a Thunderbolt 3 port. Accessory Products - CDP2HD
- CDP2VGA
- CDP2HDW
- CDP2VGAW
- TBT3TBTADAP
- N6PATCH10WH
- DISPLPORT6L
- TBLT34MM50CM
- USB31CC1M
- S352BU33HR
- HB30C3A1CFS
- HB30C3A1CFB
- USBAUB1BK
- USBLT30CMB
- USBLT30CMW
- CDP2DPMM1MB
- CDP2DPMM6B
- DP2VGA2
- DP2DVI
- DP2DVIS
- DP2HDMI
- DP2DVIMM6BS
- DP2DVIMM3BS
- DP2HDMI2
- DP2HDMM1MB
- DP2DVI2
- DP2VGAA
Related Products - TB3DK2DPPDUE
- TB3DK2DPWUE
- TB3DOCK2DPPD
- TB2DOCK4K2DP
- TB2DOCK4KDHC
Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 72 Power Delivery 15W (MacBook Pro only) Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Cable Length (mm) 520 Color Gray and Black Humidity 5~95% RH (Non-condensing) Material Aluminum and Plastic Operating Temperature 5°C to 40°C (41°F to 104°F) Product Length (mm) 220.000 Product Width (mm) 80.000 Product Height (mm) 27.000 Product Weight (g) 452.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate Thunderbolt 3 (40Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 10
- Windows 8
- Windows 7
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
UASP Support Yes USB Type and Rate Thunderbolt 3 (40Gbps) Video Output Port - DisplayPort
- Thunderbolt
Video Transport Technology Thunderbolt Bus Type Thunderbolt 3 Chipset ID Host Connection Port Thunderbolt Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 2 Other Ports - USB-A BC 1.2 Fast Charge
- Gigabit Ethernet
- 3.5mm TRRS Mic Audio Jack
- 3.5mm TRRS Speaker Audio Jack

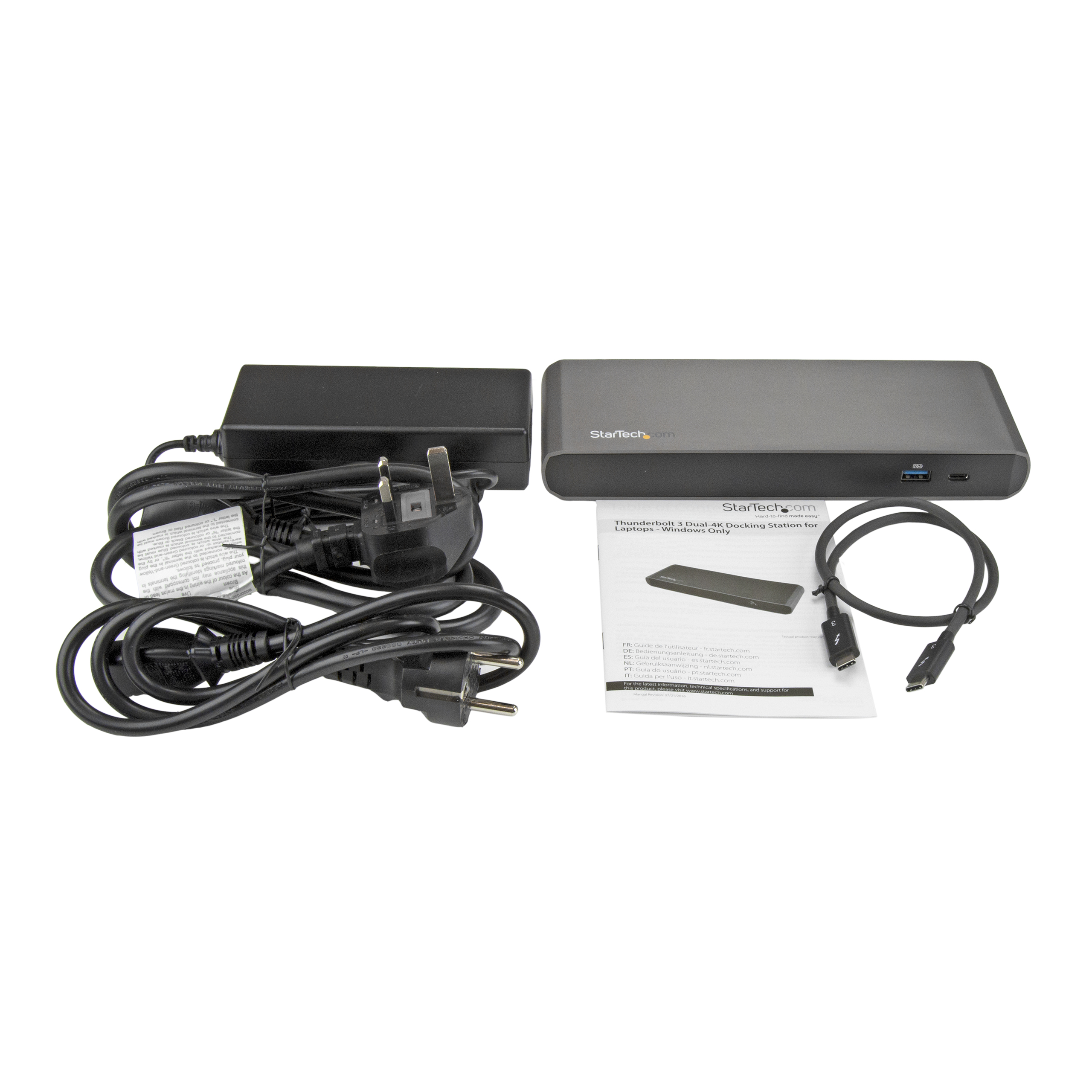

Carton Depth (mm) 420 Carton Height (mm) 265 Carton Quantity 12 Carton Weight Gross (g) 17439 Included in Package - 1 - Thunderbolt 3 docking station
- 1 - Thunderbolt 3 cable
- 1 - universal power adapter
- 2 - power cords (EU, UK)
- 1 - instruction manual
Package Depth (mm) 127 Package Height (mm) 110 Package Width (mm) 250 Package Quantity 1 Package Weight (g) 1342 Packaging Description Thunderbolt 3 Dual-4K Laptop Dock Packaging Description India Thunderbolt 3 Dual-4K Laptop Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 40Gbps) Connector 1 (Quantity) 2 Connector 2 DisplayPort Connector 2 (Quantity) 1 Connector 3 USB-C (5Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 USB-A (7.5W Power Only) Connector 4 (Quantity) 1 Connector 5 USB-A (5Gbps, 4.5W) Connector 5 (Quantity) 1 Connector 6 3.5mm (3 Conductors, TRS) Connector 6 (Quantity) 2 Connector 7 RJ-45 Connector 7 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2017-02-08 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2017-02-22 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CH,DE,DK,ES,FR,IE,IT,NL,SE,UK Primary Technology Thunderbolt 3 Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2017-01-20 Target Production Release 2017-01-20 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
