TB3DKM2HD
Thunderbolt 3 Mini Bus Powered Dock Dual HDMI 4K at 60 2
Laptop Docking Station | Mac & Windows® | Bus-Powered | 2x USB-A
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Video Link YouTube
Product Name Thunderbolt 3 Mini Bus Powered Dock Dual HDMI 4K at 60 2 Product Number TB3DKM2HD UPC 065030872911 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Multiport Adapters Category Level 2 Thunderbolt Multiport Adapters Category Level 3 Thunderbolt 3 Multiport Adapters Country of Origin Europe & Japan Thailand Country of Origin North America Thailand Country of Origin History (1) Thailand Country of Origin Revision (1) XXXXXX064X Product Title (Ultra-Short) Mini TB3 Dock, HDMI Product Title (Short) Dock - Mini Thunderbolt 3 - Dual 4K HDMI Product Title (Medium) Mini Thunderbolt 3 Dock - MacBook Pro & Windows - Dual 4K 60Hz HDMI, Bus Powered Product Title (Standard) Mini Thunderbolt 3 Dock Dual 4K 6Hz HDMI - Mac/Windows Docking Station - Discontinued, Limited Stock, Replaced by TB3DKM2DPL Product Title (Long) Dual 4K Monitor Mini Thunderbolt 3 Dock with HDMI - Mac & Windows Docking Station - Discontinued, Limited Stock, & Replaced by TB3DKM2HDL (TB3DKM2HD) Product Title (AMZ) Dual 4K Monitor Mini Thunderbolt 3 Dock with HDMI - Mac & Windows Docking Station - Discontinued, Limited Stock, & Replaced by TB3DKM2HDL (TB3DKM2HD) Title Ingram (Part 1) Mini Thunderbolt 3 Dock for Mac Title Ingram (Part 2) /Windows, Dual 4K 60Hz HDMI Website Product Headline Laptop Docking Station | Mac & Windows® | Bus-Powered | 2x USB-A Bullet 1 REPLACED BY TB3DKM2HDL: New version offers the same functionality plus, extra-long 11" (28cm) attached cable provides extended reach to reduce port/connector strain on MacBook's and laptops on riser stands Bullet 2 Dual UHD 4K HDMI monitors at 60Hz to your laptop with this portable Thunderbolt 3 docking station; Windows and macoS compatible Bullet 3 Extended dual displays on MacBook Pro/Air with Intel processor & single display with Apple M1 Chip Bullet 4 Wired network and device connectivity with 2x USB-A ports (1x USB 3.0 and 1x USB 2.0) and Gigabit Ethernet Bullet 5 Bus-powered (no external power required) via extended length 7.8 in. (20 cm) cable; compact design in durable aluminum Bullets (Compact) The new version (TB3DKM2HDL) offers the same functionality plus, extra-long 11" (28cm) attached cable - Mini Thunderbolt 3 dock creates a dual-monitor bus-powered workstation with Dual 4K 60Hz HDMI displays - Ports incl a USB 3.0, USB 2.0 and GbE Bullets (Consolidated) Replaced by TB3DKM2HDL which offers the same function plus extra-long 11" (28cm) attached cable provides extended reach to reduce connector strain on MacBook's and laptops on riser stands - Bus-powered mini Thunderbolt 3 dock; dual 4K 60Hz HDMI video outputs - 2x USB-A ports 2.0/3.0 downstream - Gigabit Ethernet (PXE Boot and WoL) - For MacBook Pro or Dell XPS 15 and other Thunderbolt 3 laptops - Extended dual display support on MacBooks w/ Intel processor and single display w/ Apple M1 chip Marketing Copy Marketing Copy (No HTML) Applications - Review/edit images or media files on two 4K HDMI displays
- Transfer a 4K movie in under 30 seconds

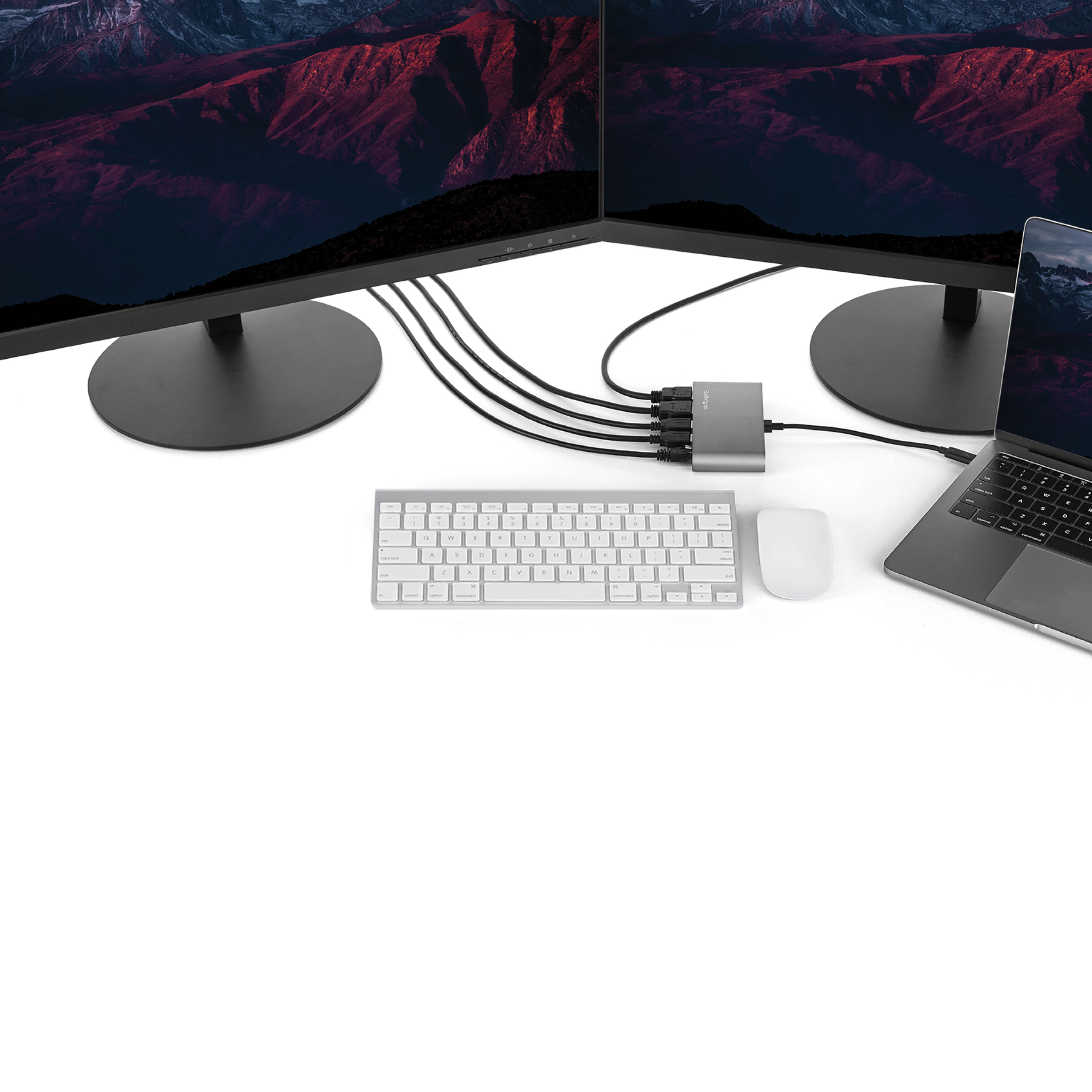

- Ideal for shared or temporary work stations, such as hot desks (hoteling)
Website Search Keyword - Thunderbolt 3 dock
- Mini Thunderbolt 3 dock
- Thunderbolt 3 mini dock
- laptop docking station
- laptop dock
- USB-C docking station
- Thunderbolt 3 docking station
- Dual HDMI Thunderbolt 3 dock
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
- MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3.
System and Cable Requirements Thunderbolt 3 equipped computer with a Thunderbolt 3 port. Accessory Products - N6PATCH1BL
- N6PATCH3BL
- N6PATCH6BL
- N6PATCH15BL
- HDMM1
- HDMM3
- HDMM6
- HDMM8
- HDMM10
- HDMM12
- HDMM15
- HDMM20
- HDMM25
- HDMM30
- UUSBHAUB1
- UUSBHAUB3
- UUSBHAUB6
- UUSBHAUB10
Replacement Product TB3DKM2HDL Constrained SKU Alternatives (Limited Stock) - 102B-USBC-MULTIPORT
- 120B-USBC-MULTIPORT

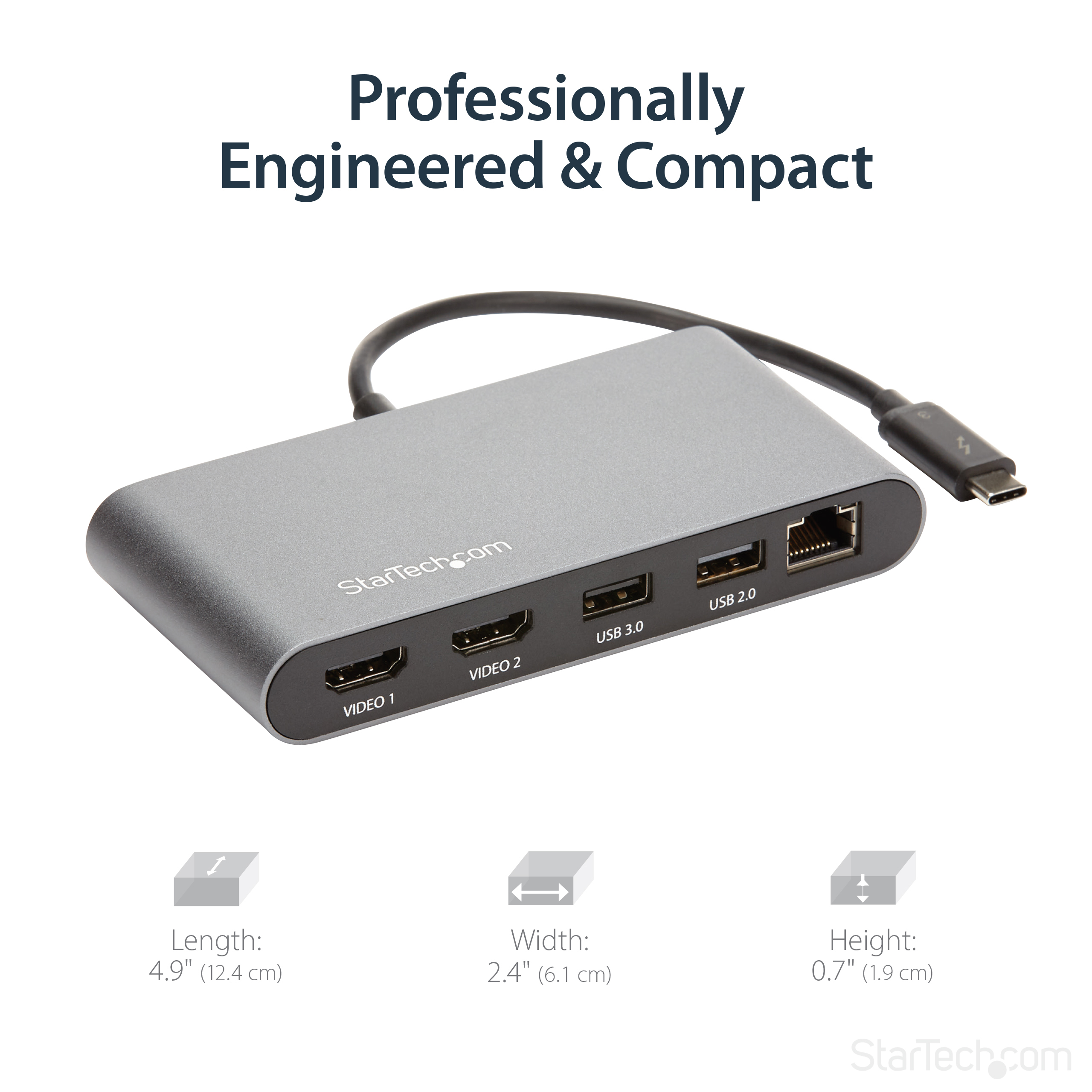

Input Voltage 5V DC Output Voltage (V) 5 DC Power Delivery No PD Power Source USB-Powered Cable Length (mm) 200 Color Black & Gray Humidity 5~95% RH (Non-condensing) Material Aluminum Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 124.000 Product Width (mm) 61.000 Product Height (mm) 18.800 Product Weight (g) 145.800 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate Thunderbolt 3 (40Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Dual 4K displays - HDMI 4096 x 2160p @ 60Hz / 3840 x 2160p @ 60Hz Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 10
- Windows 8
- Windows 7
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
PXE Yes StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch

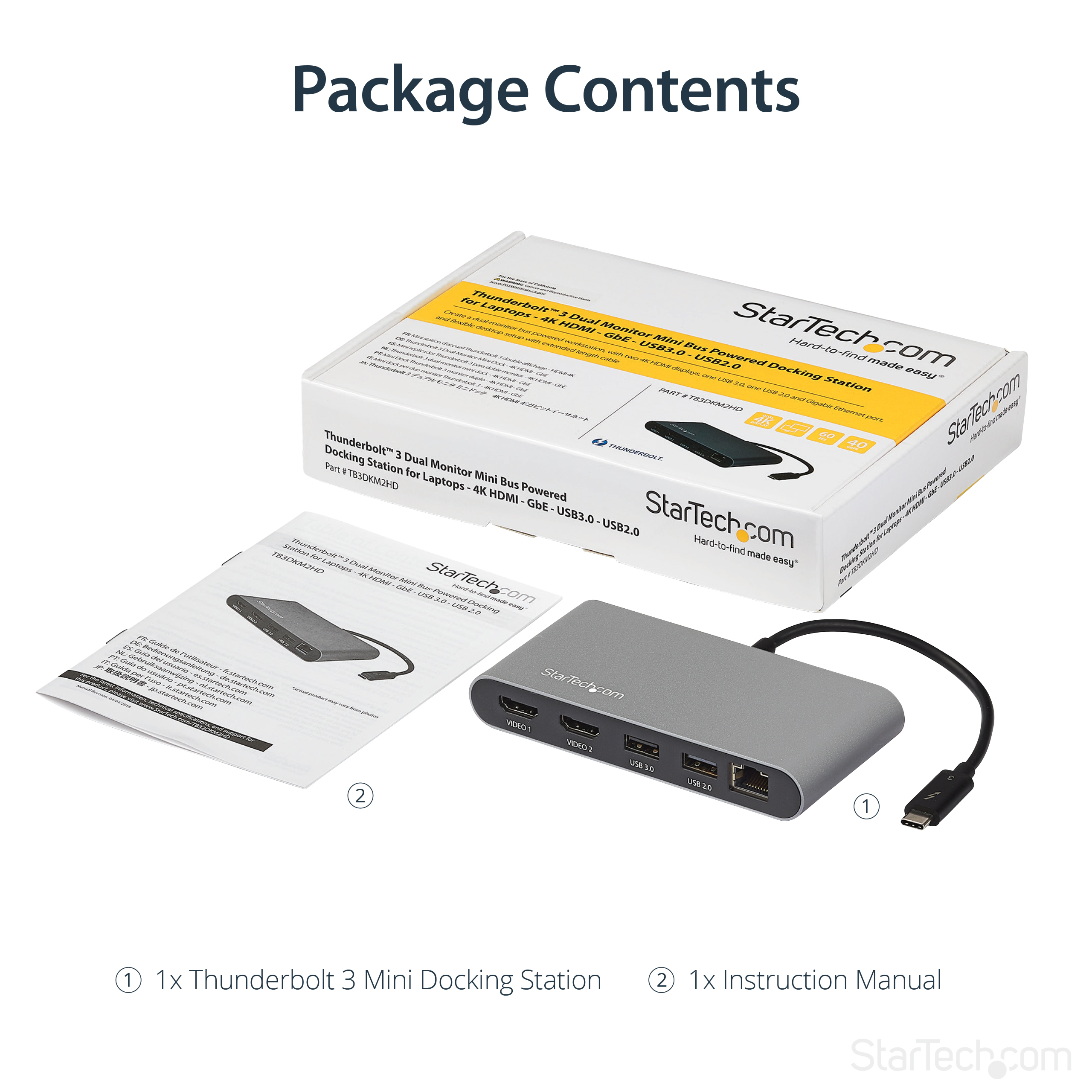

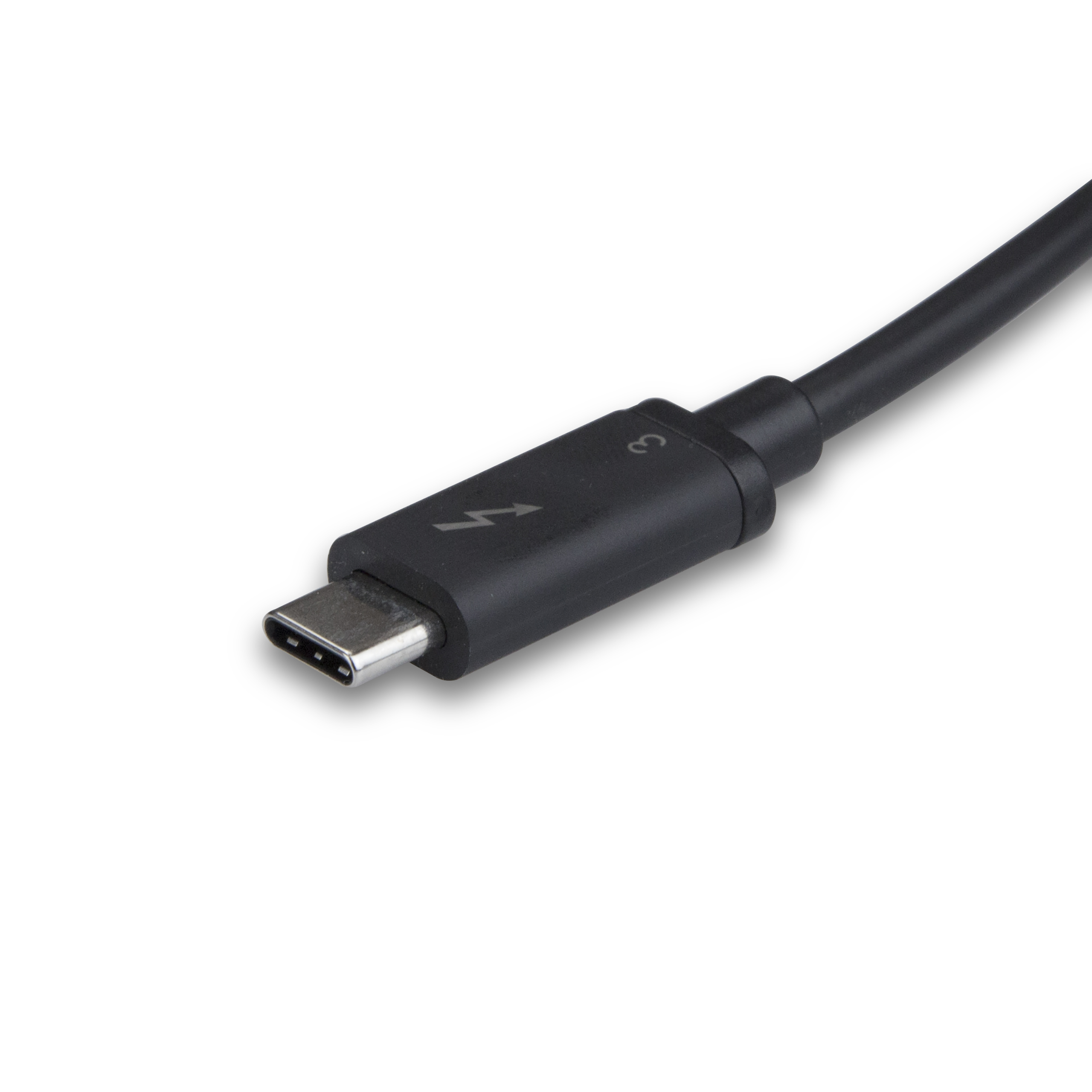

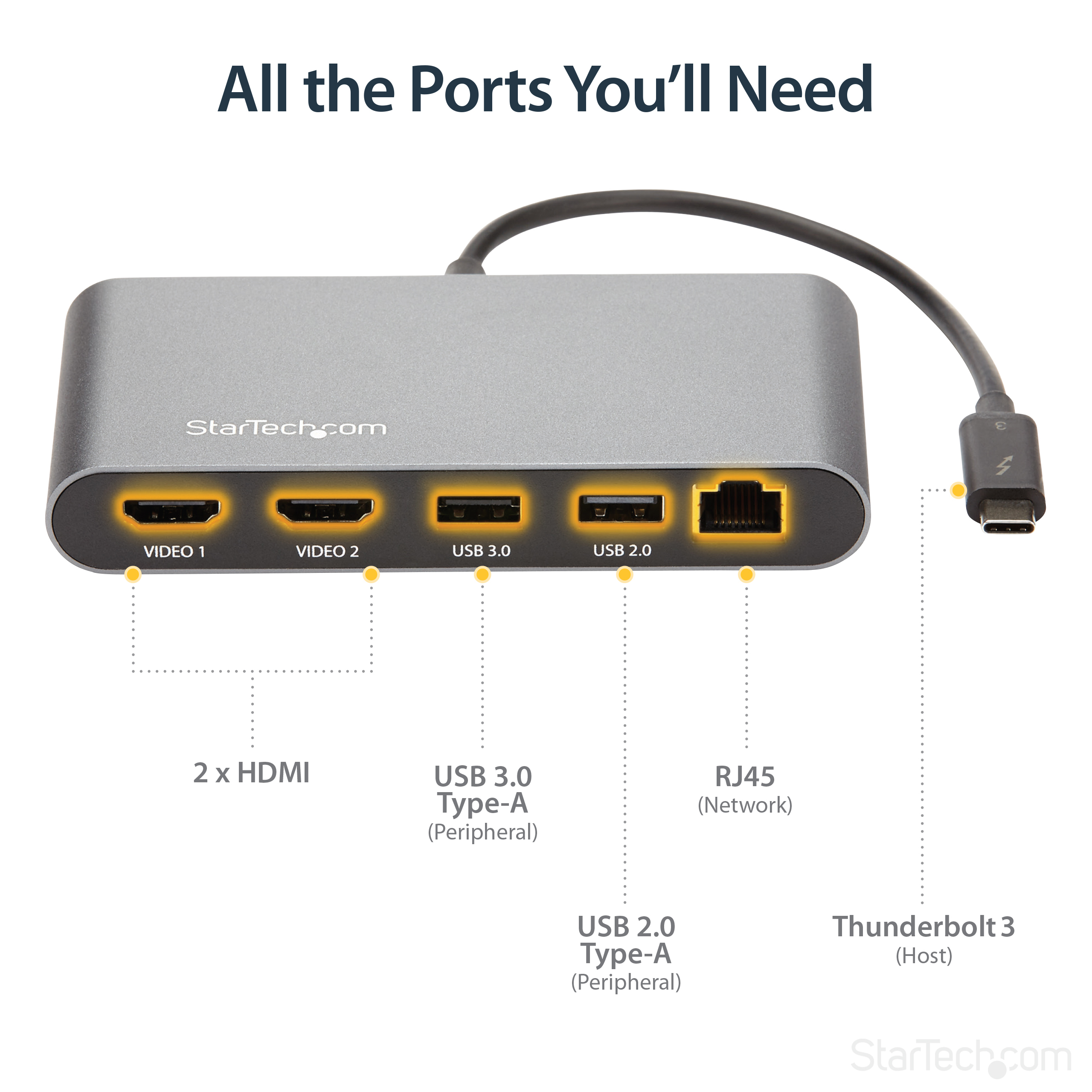

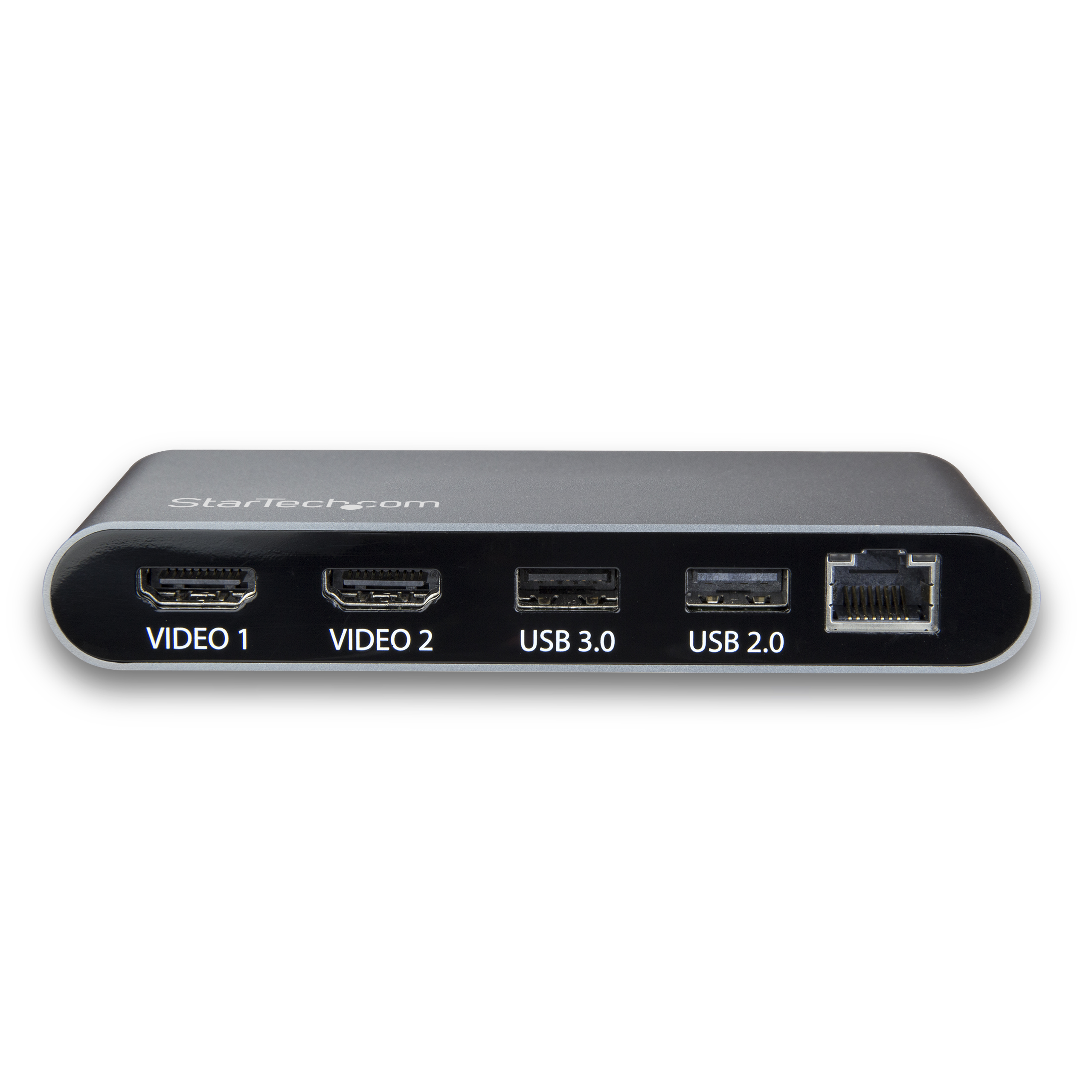

UASP Support Yes USB Type and Rate Thunderbolt 3 (40Gbps) Video Output Port HDMI Video Transport Technology Thunderbolt Wake-On-LAN (WOL) Yes Bus Type Thunderbolt 3 Chipset ID Host Connection Port Thunderbolt Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge No Number of Displays 2 Other Ports Gigabit Ethernet Carton Depth (mm) 312 Carton Height (mm) 275 Carton Quantity 24 Carton Weight Gross (g) 7150 Included in Package - 1 - Docking Station
- 1 - User Manual
Package Depth (mm) 145 Package Height (mm) 36 Package Width (mm) 208 Package Quantity 1 Package Weight (g) 260 Packaging Description Thunderbolt 3 Dual Monitor Mini Dock - 4K HDMI - GbE Packaging Description India Thunderbolt 3 Dual Monitor Mini Dock - 4K HDMI - GbE Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 40Gbps) Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 2 Connector 3 USB-A (5Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 RJ-45 Connector 4 (Quantity) 1 Connector 5 USB-A (480Mbps, 2.5W) Connector 5 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2018-04-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2018-05-25 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,HK,IE,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology Thunderbolt 3 Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2018-04-27 Target Production Release 2018-04-27 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle None
