TB3DKM2HDL

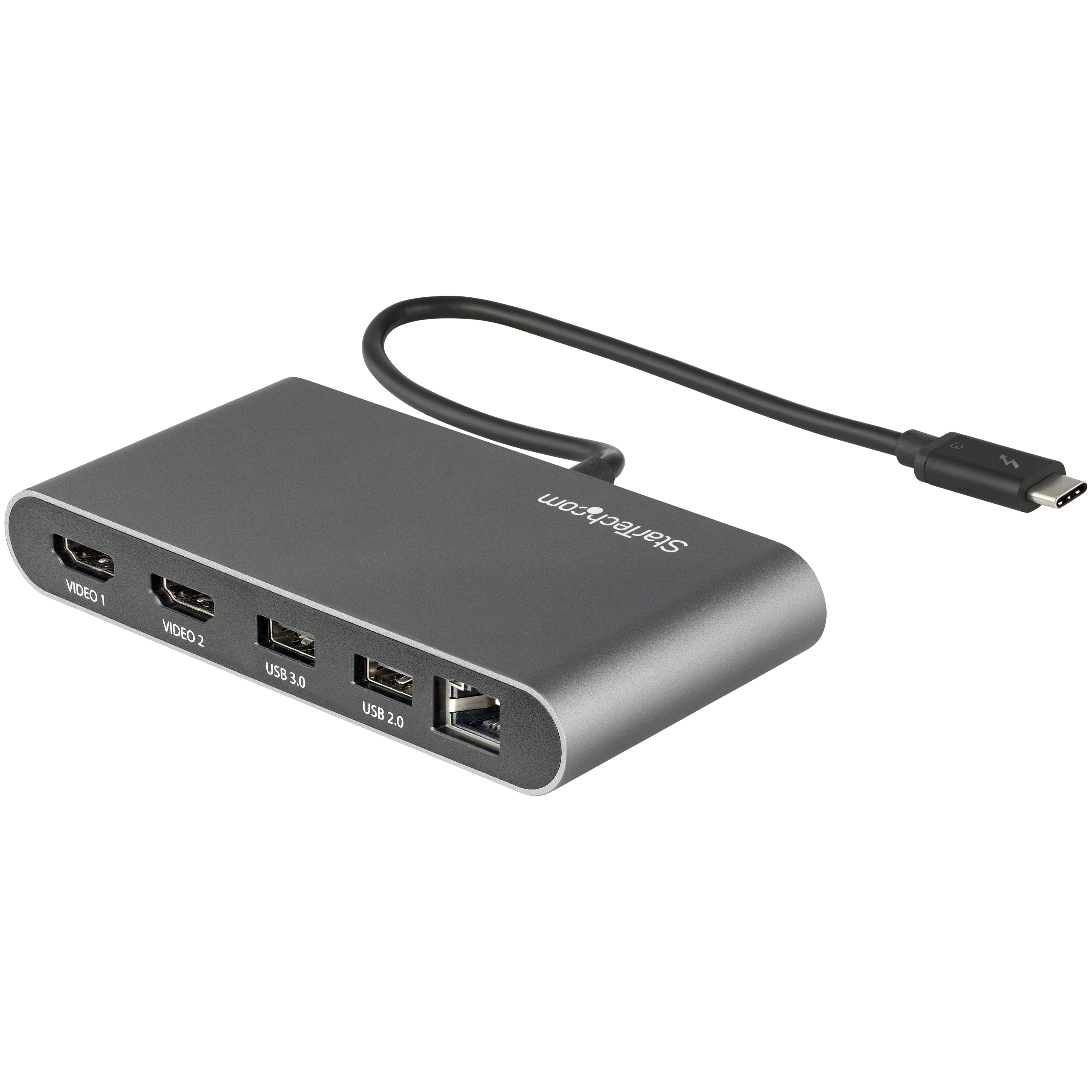

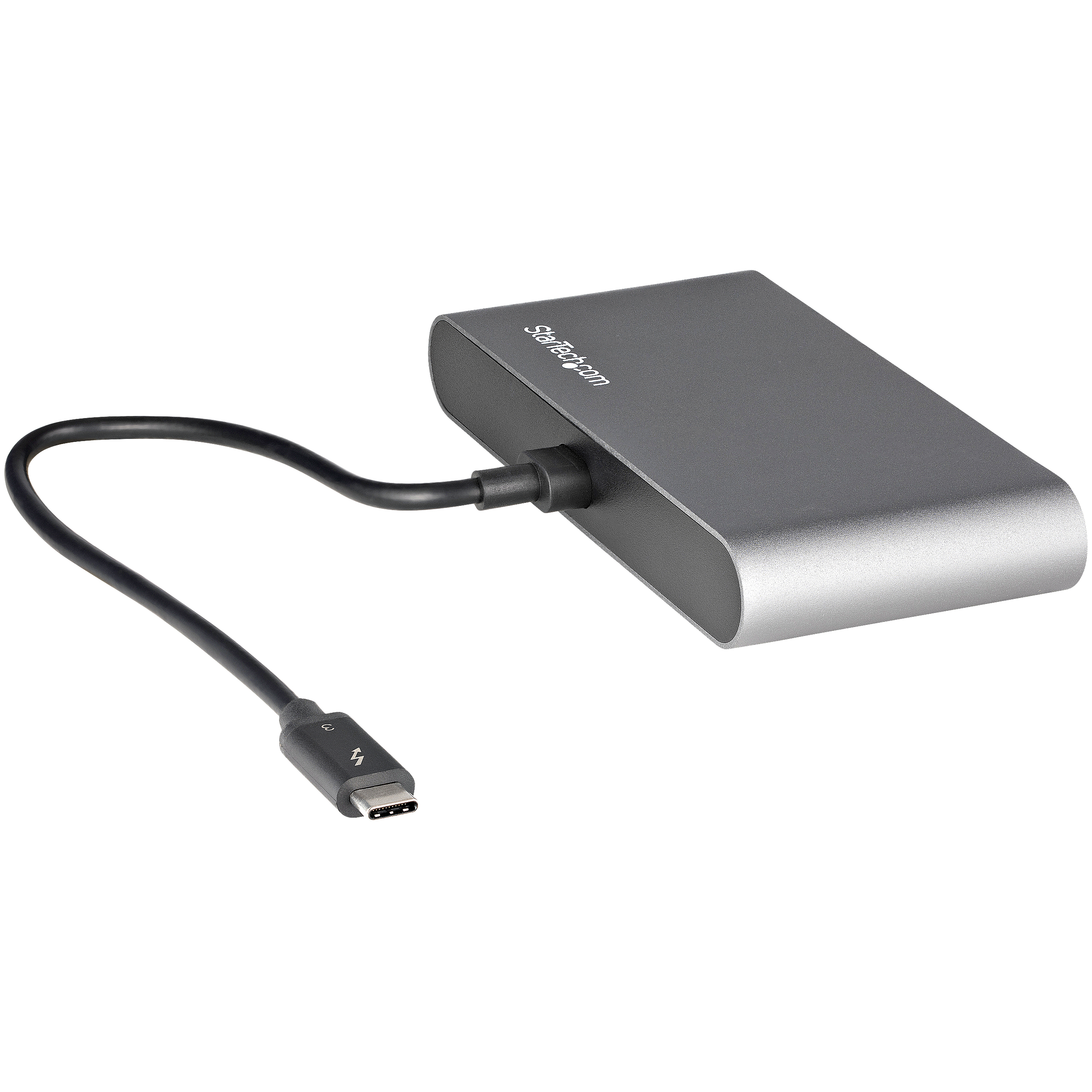

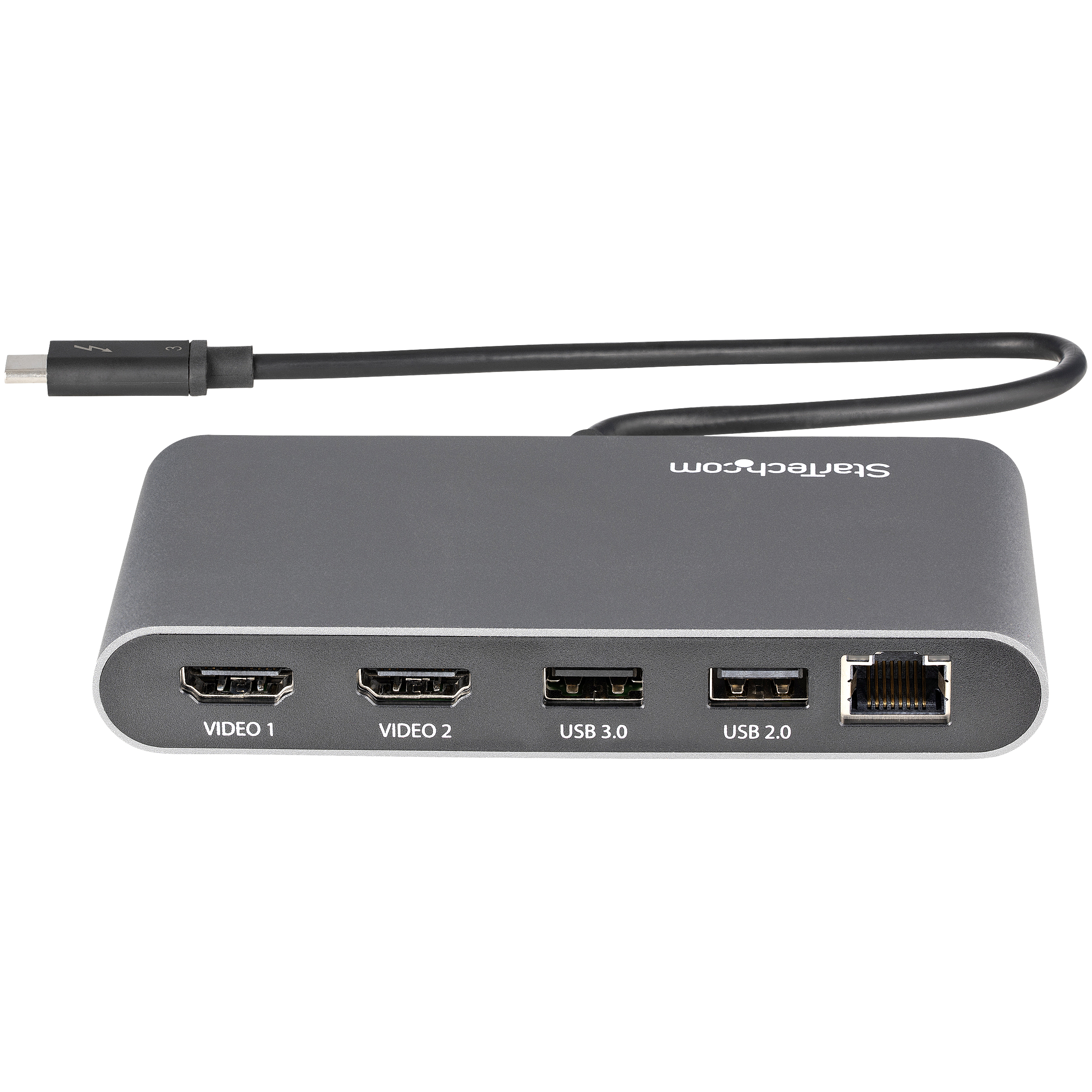

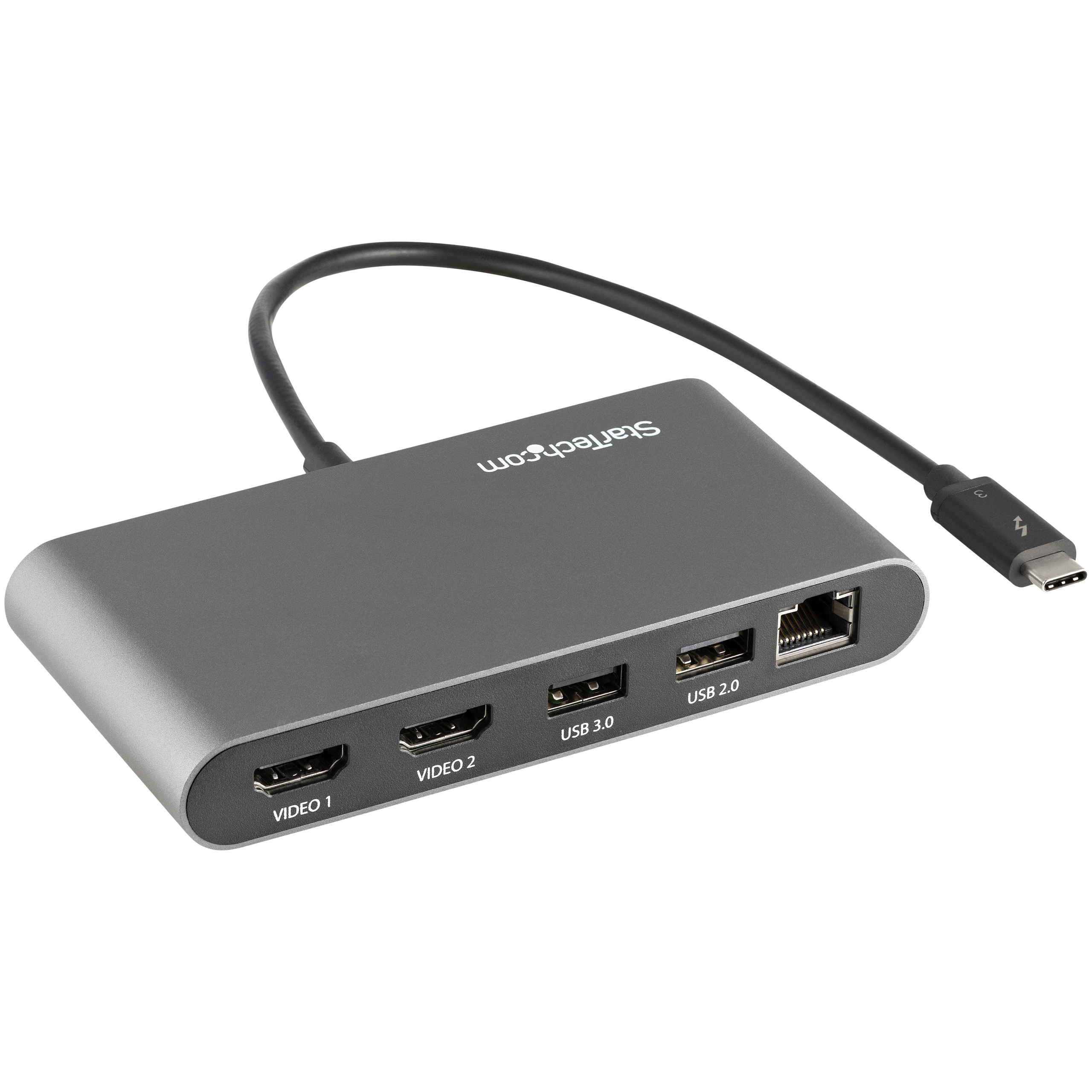

Thunderbolt 3 Mini Dock with Dual 4K 60Hz HDMI
Portable Laptop Dock offering driverless compatibility with Windows and macOS
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name Thunderbolt 3 Mini Dock with Dual 4K 60Hz HDMI Product Number TB3DKM2HDL UPC 065030888042 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Multiport Adapters Category Level 2 Thunderbolt Multiport Adapters Category Level 3 Thunderbolt 3 Multiport Adapters Family Thunderbolt 3 Multiport Adapters Country of Origin Europe & Japan Thailand Country of Origin North America Thailand Country of Origin History (1) Thailand Country of Origin Revision (1) XXXXXX167X Product Title (Ultra-Short) Thunderbolt Dock Product Title (Short) Thunderbolt Mini Dock - Dual HDMI 4K Product Title (Medium) Dual-Monitor Thunderbolt Mini Dock, 4K 60Hz HDMI, Driverless Hub for Windows/Mac Product Title (Standard) Dual-Monitor Thunderbolt Mini Dock, 4K 60Hz HDMI, Driverless Hub for Windows & Mac, Gigabit Ethernet, 2x USB-A Product Title (Long) Dual-Monitor Thunderbolt Mini Dock, 4K 60Hz HDMI, Driverless Hub for Windows & Mac, Gigabit Ethernet, 1 x USB 5Gbps & 1x USB 2.0, 11in (28cm) Cable Product Title (AMZ) Dual-Monitor Thunderbolt Mini Dock, 4K 60Hz HDMI, Driverless Hub for Windows and Mac, Gigabit Ethernet, 1 x USB 5Gbps, 1x USB 2.0, 11in (28cm) Cable Title Ingram (Part 1) Dual-Monitor Thunderbolt Title Ingram (Part 2) Mini Dock, 4K 60Hz HDMI Website Product Headline Portable Laptop Dock offering driverless compatibility with Windows and macOS Bullet 1 HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: Driverless setup for plug-and-play installation; Thunderbolt (40 Gbps); Dual 4K 60Hz HDMI outputs; 1x USB 5Gbps port; Gigabit Ethernet port with PXE boot and WoL Bullet 2 FOR HIGH-POWERED LAPTOPS: Dual 4K 60Hz video output with direct GPU performance and no software or compression; Ideal for high-performance laptops that need a direct power adapter connection, but require Thunderbolt 3 dock performance & functionality Bullet 3 COMPATIBILITY: This docking station is compatible with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later Bullet 4 EXTRA-LONG CABLE: Attached 11in (28cm) cable provides long reach for easy setup and prevents adapter from dangling on the host connector; Ideal cable length to reduce port strain on 2-in-1 convertible laptops, or host laptops on riser stands Bullet 5 THE IT PRO'S CHOICE: Our docking stations are rigorously tested in our Innovation Lab to ensure enterprise-grade reliability and cross-platform compatibility; Built to support large-scale deployments, Windows 11 upgrades, and the shift to AI-enabled PCs Bullets (Compact) Thunderbolt mini dock - 40Gb video & data/dual monitor HDMI 4K 60Hz/2x USB-A (1x5Gbps/1 USB 2.0)/GbE - Portable bus powered laptop docking station w/11in cable - No drivers - MacBook 13/16/Air Dell XPS/HP EliteBook/Lenovo X1 Carbon - TB3 certified Bullets (Consolidated) - Certified Thunderbolt docking station; Driverless setup; Dual monitor 4K 60Hz HDMI - Works with all Thunderbolt laptops; Extended Dual Display on Apple M1/M2/M3/M4 Max/Pro MacBooks; Single Display on base M-series MacBooks and iPad Pro M1 & later - 11in attached cable for extended reach to reduce port strain; Compact USB Bus-Powered multiport adapter - 1x USB 5Gbps , 1x USB 2.0 Gigabit Ethernet w/PXE boot/WoL - Connectivity Tools w/Network MAC Address Pass-Through/Windows Layout and more Marketing Copy Website Search Keyword - Thunderbolt 3 dock
- Mini Thunderbolt 3 dock
- Thunderbolt 3 mini dock
- laptop docking station
- laptop dock
- USB-C docking station
- Thunderbolt 3 docking station
- Dual HDMI Thunderbolt 3 dock
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3. Accessory Products - RHDMM2MP
- HDMM2MP
- HDMM1MP
- HDMM3MP
- HDMM50CMP
- HDMM5MP
- HDMM7MP
- HDMM2MLP
- RHDMM1MPW
- RHDMM2MPW
- RHDMM1MP
- HDMM3
- HDMM6
- HDMM8
- HDMM10
- HDMM12
- HDMM15
- HDMM20
- HDMM25
- HDMM30
- UUSBHAUB1
- UUSBHAUB3
- UUSBHAUB6
- UUSBHAUB10
- N6PATCH1BL
- N6PATCH3BL
- N6PATCH6BL
- N6PATCH15BL
Related Products - TB3DKM2DP
- TB3DKM2DPL
- TB3DKM2HD
Constrained SKU Alternatives (Limited Stock) TB3DKM2HD Input Voltage 5V DC Output Voltage (V) 5 DC Power Delivery No PD Power Source Bus Powered Cable Length (mm) 280 Color Black & Silver Humidity 0% to 95% (non-condensing) at 25°C Material Aluminum and Plastic Operating Temperature 5°C to 40°C Primary Material Aluminum Product Length (mm) 124.000 Product Width (mm) 69.000 Product Height (mm) 27.000 Product Weight (g) 147.800 Storage Temperature -20°C to 70°C TAA Compliant No Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate Thunderbolt 3 (40Gbps) Maximum Cable Length (mm) 280 Maximum Digital Resolutions 4K 60Hz Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - macOS Catalina (10.15)
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- macOS Sierra (10.12)
- Mac OS X El Capitan (10.11)
- Mac OS X Yosemite (10.10)
- Windows 10
- Windows 8.1
- Windows 7
- Windows Server 2012 R2
- Windows Server 2008 R2
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
PXE Yes StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
Video Output Port HDMI Video Transport Technology Thunderbolt Wake-On-LAN (WOL) Yes Audio No Bus Type Thunderbolt 3 Chipset ID - Intel JHL6540 (Alpine Ridge)
- Texas Instruments TPS65983A
- Parade PS176
- ASMedia ASM1042A
- Intel WGI210
Host Connection Port Thunderbolt Industry Standards - 1Gb connectivity to any 1000Base-T device (IEEE802.3ab Compliant)
- 100Mb connectivity to any 100Base-TX device (IEEE802.3u Compliant)
- 10Mb connectivity to any 10Base-T device (IEEE802.3i Compliant)
Interface/Bridge Thunderbolt 3 Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge No Network Adapter LAN Ports 1 Number of Displays 2 Other Ports Gigabit Ethernet USB Port Type USB-A Carton Depth (mm) 308 Carton Height (mm) 278 Carton Quantity 24 Carton Weight Gross (g) 7210 Included in Package - 1 - Docking Station
- 1 - User Manual
Included In Package for Label - 1 - Docking Station
- 1 - User Manual
Package Depth (mm) 148 Package Height (mm) 40 Package Width (mm) 211 Package Quantity 1 Package Weight (g) 266 Packaging Description Thunderbolt™ 3 Dual 4K60 HDMI Mini Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2020-02-13 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2020-08-20 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology - Thunderbolt 3
- HDMI 2.0 / 4K 60 Hz and HDR
Priority New Product Yes Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2020-05-29 Target Production Release 2020-07-18 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Mainstream
