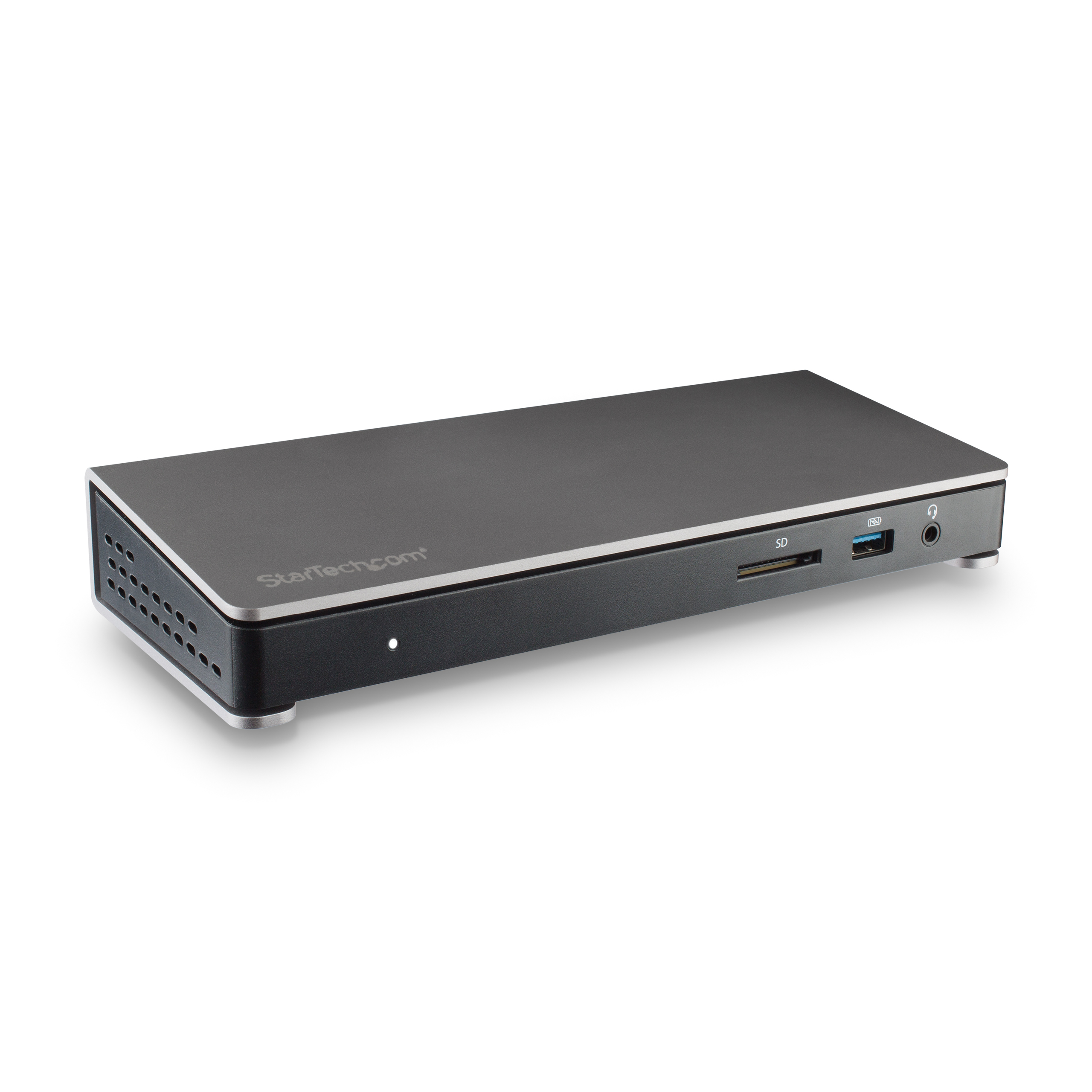

TB3DOCK2DPPD
Thunderbolt 3 dock with dual 4K display, type-c
Laptop Docking Station | Mac & Windows® | SD Card Reader | USB-C to DP Cable | 85W PD
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Product Name Thunderbolt 3 dock with dual 4K display, type-c Product Number TB3DOCK2DPPD UPC 065030863667 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 3 Docks Family no family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX158X Product Title (Ultra-Short) Thunderbolt 3 Dock Product Title (Short) Thunderbolt 3 Dock - Dual 4K DP - 6xUSB Product Title (Medium) Dual 4K Thunderbolt 3 Dock with 6x USB 3.0 Ports - SD Card Reader, Mac & Windows Product Title (Standard) Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Docking Station with DisplayPort - 85W Power Delivery, 6-Port USB 3.0, SD, GbE Product Title (Long) Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery Charging - 6-Port USB 3.0 Hub, SD 4.0, GbE, Audio - Windows & Mac Product Title (AMZ) USB-C Dual Monitor Docking Station for MacBook Pro / Air M1 M2 M3 M4 & Windows, Universal 4K 60Hz USB C DP Thunderbolt Dock, 85W Laptop Charging Title Ingram (Part 1) Dual 4K Thunderbolt 3 Dock with Title Ingram (Part 2) - 6x USB 3.0 Ports - SD Card Reader Website Product Headline Laptop Docking Station | Mac & Windows® | SD Card Reader | USB-C to DP Cable | 85W PD Bullet 1 HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: Easy Driverless setup; Thunderbolt 3 (40Gbps); Dual 4K 60Hz (DP + TB3) video output or single monitor 5K 30Hz; 5x USB Hub; SD 4.0 card reader, Gigabit Ethernet, headset port; 85W PD Bullet 2 COMPATIBILITY: Windows, macOS & Ubuntu; Works with all Thunderbolt 3/4 laptops; Extended dual displays on Apple M3 MacBook Air / Pro and M1 / M2 / M3 Max and Pro MacBooks; single Display on Apple M1 / M2 entry level MacBooks; Included USB-C to DP cable Bullet 3 MORE USB DEVICE PORTS: TB3 docking station has a 6-port USB 3.1 Gen 1 5Gbps Hub (5x USB-A, 1x USB-C ports) w/ 1x BC 1.2 (1.5A) fast charging always-on port that works with or without laptop connected Bullet 4 FLEXIBLE THUNDERBOLT 3 PORT: Downstream TB3 port supports 3 modes of operation: 2nd monitor for dual 4K 60Hz video utilizing direct GPU performance with no software or compression, daisy chain up to 5 TB3 peripherals, or connect USB Type-C accessories Bullet 5 OUR ADVANTAGE: Includes power adapter that simultaneously provides 85W of Power Delivery to charge the laptop & full power to all ports; Connectivity Tools w/Network MAC Address Pass-Through, Windows Layout and more Bullets (Compact) Certified Thunderbolt 3 docking station 40Gbps w/ dual monitor 4K 60Hz DisplayPort + TB3 (USB-C) downstream port / 85W Power Delivery / USB 3.0 Hub (5xUSB-A + 1xUSB-C) / SD 4.0 /GbE/Audio - macOS/Windows - Incl. USB-C to DP cable/TB3 host cable Bullets (Consolidated) Certified Thunderbolt 3 docking station; Driverless setup; Dual monitor 4K 60Hz w/DisplayPort + TB3 (USB-C) video output or single 5K - Works w/all TB3/4 laptops; Extended dual displays on Apple M3 MacBook Air/Pro and M1/M2 /M3 Max and Pro MacBooks (single Display on Apple M1/M2 entry level) - Downstream TB3 port for 2nd display/daisy chain; 85W PD; 6x USB; SD; GbE; Headset Port - 6ft USB-C to DP and TB3 host cables incl - Connectivity Tools w/Network MAC Address Pass-Through/Windows Layout Marketing Copy Marketing Copy (No HTML) Applications - Work productively with high-resolution images and video
- Transfer a 4K movie in under 30 seconds
- Transfer 3 hours of 4K GoPro® video in less than a minute
- Edit 4K video on one display, with a full-size preview on the second 4K display
Website Product Alert Website Search Keyword Docking Stations Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes - A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
- When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display.
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps.
- MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3.
System and Cable Requirements - Thunderbolt 3 equipped computer with a Thunderbolt 3 port.
- Your laptop's Thunderbolt 3 port must support USB Power Delivery 2.0 in order to power and charge your laptop.
Accessory Products - DP2VGA2
- DP2DVIS
- DP14MM2M
- DP2HD4K60S
- CDP2HDMM2MB

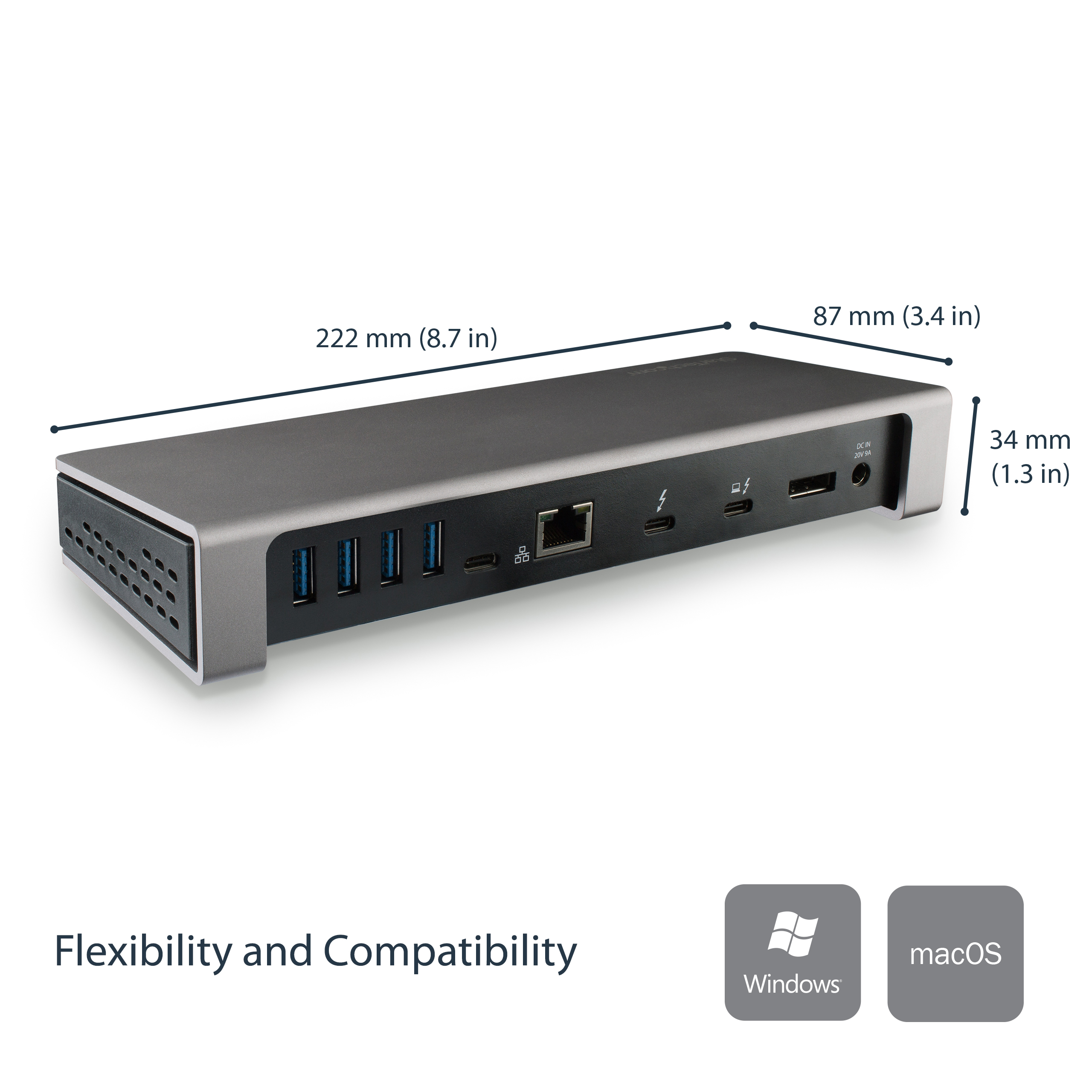

Equivalent Part Number in the EU TB3DOCK2DPPU Equivalent Part Number in the UK TB3DOCK2DPPU Input Current 2.5 A Input Voltage 110V-240V AC Output Current 9 A Output Voltage (V) 20V DC Power Consumption (In Watts) 180 Power Delivery 85W Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Space Gray Humidity 0~95% RH Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 222.000 Product Width (mm) 87.000 Product Height (mm) 34.000 Product Weight (g) 492.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate Thunderbolt 3 (40Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 5K 30Hz Memory Media Type - SD/MMC (Secure Digital/Multimedia Card)
- SDHC (Secure Digital High Capacity)
- SDXC (Secure Digital eXtended Capacity)
- microSD (Micro Secure Digital) (adapter required)
- microSDHC (Micro Secure Digital High Capacity) (adapter required)
- microSDXC (Micro Secure Digital eXtended Capacity) (adapter required)
OS Compatibility - Windows 10
- Windows 8
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- macOS High Sierra (10.13)
- macOS Sierra (10.12)
PXE Yes StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
UASP Support Yes USB Type and Rate Thunderbolt 3 (40Gbps) Video Output Port - DisplayPort
- Thunderbolt
Video Transport Technology Thunderbolt Bus Type Thunderbolt 3 Chipset ID Host Connection Port Thunderbolt Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 2 Other Ports - USB-A BC 1.2 Fast Charge
- Gigabit Ethernet
- SD Card Reader
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack

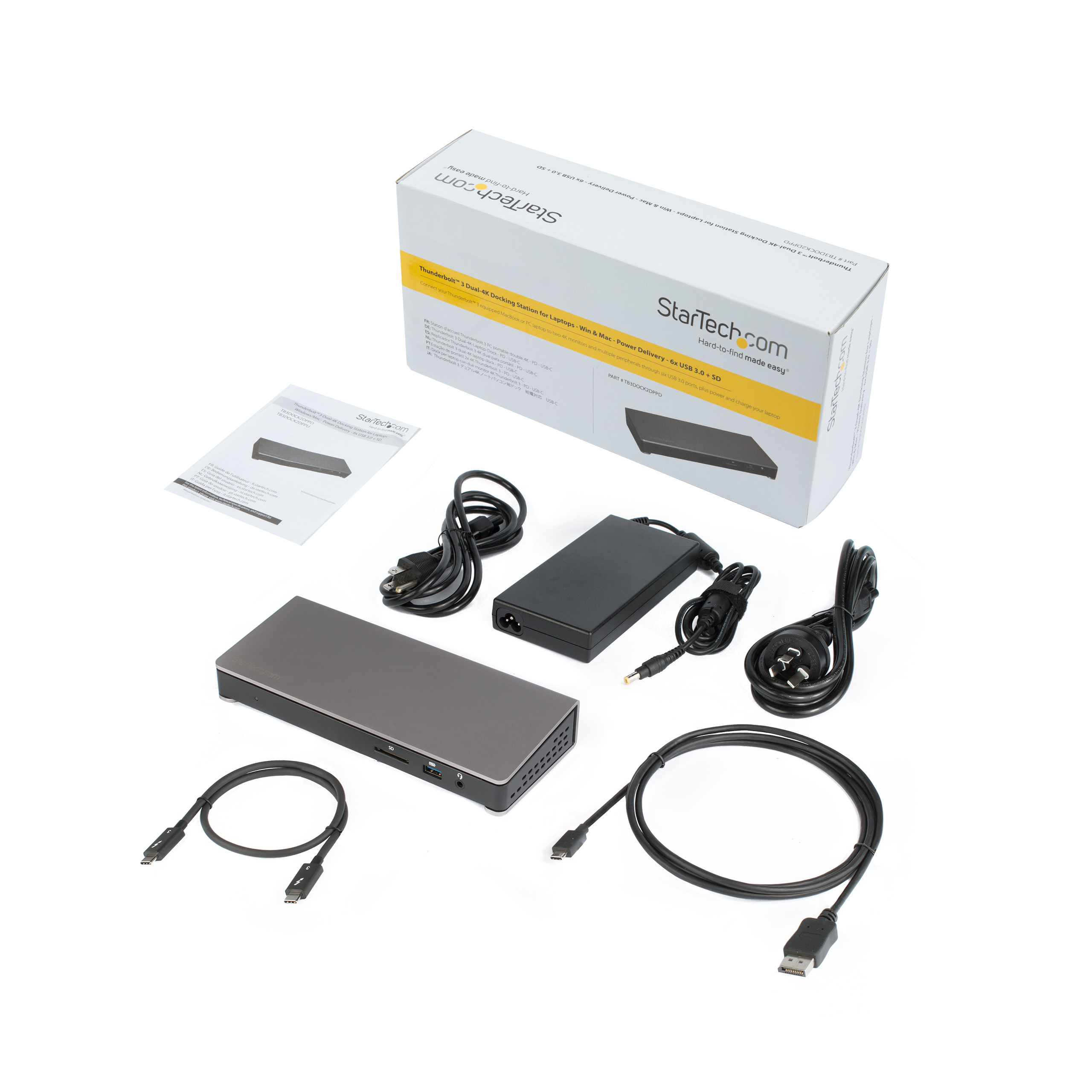

Carton Depth (mm) 318 Carton Height (mm) 320 Carton Quantity 10 Carton Weight Gross (g) 18882 Included in Package - 1 - docking station
- 1 - Thunderbolt 3 cable
- 1 - universal power adapter
- 2 - power cords (NA/JP, ANZ)
- 1 - instruction manual
- 1 - USB-C to DisplayPort cable

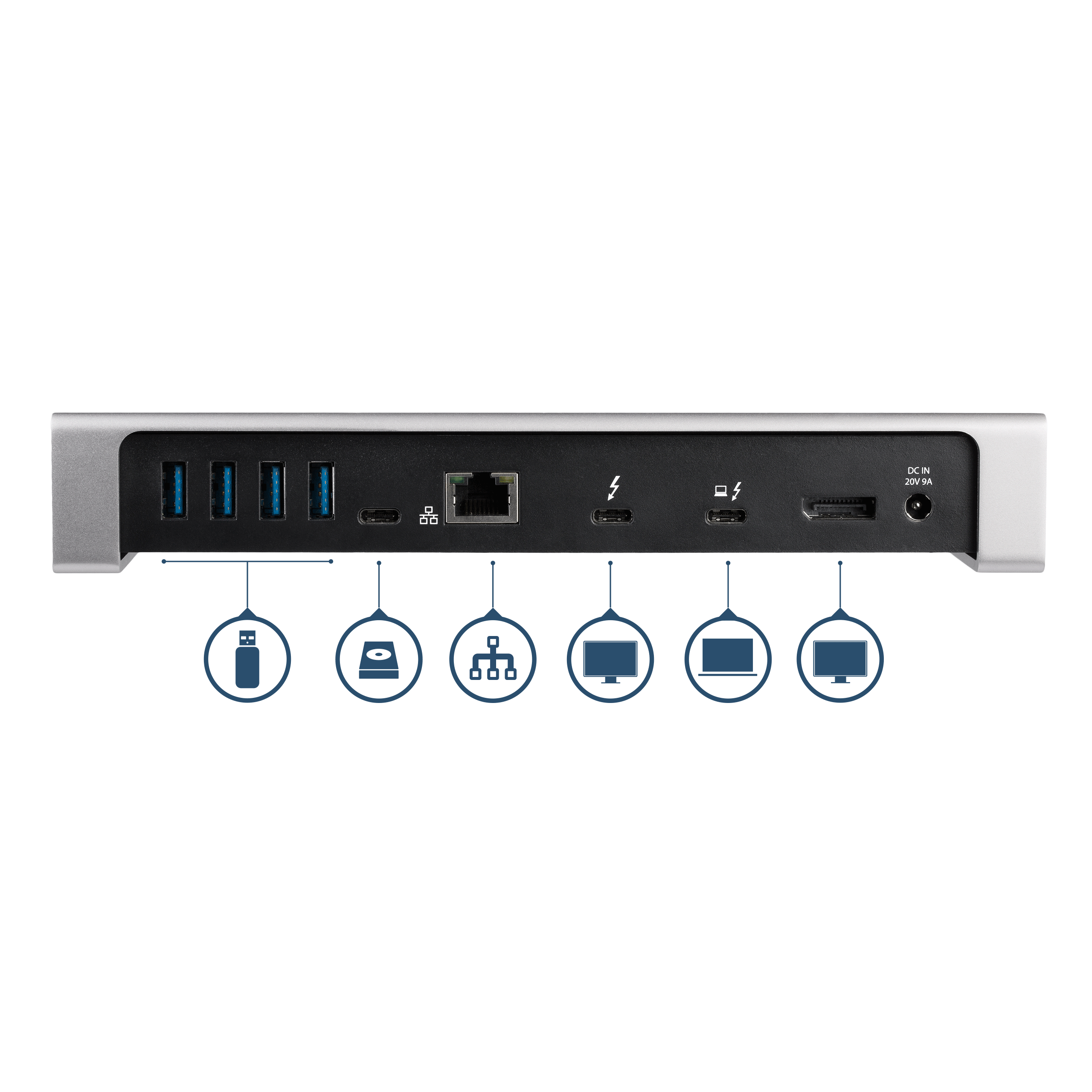

Package Depth (mm) 148 Package Height (mm) 95 Package Width (mm) 298 Package Quantity 1 Package Weight (g) 1820 Packaging Description Thunderbolt 3 Dual-4K Laptop Dock - PD - USB-C Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 40Gbps) Connector 1 (Quantity) 2 Connector 2 DisplayPort Connector 2 (Quantity) 1 Connector 3 USB-C (5Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 USB-A (7.5W Power Only) Connector 4 (Quantity) 1 Connector 5 USB-A (5Gbps, 4.5W) Connector 5 (Quantity) 4 Connector 6 RJ-45 Connector 6 (Quantity) 1 Connector 7 3.5mm (3 Conductors, TRS) Connector 7 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2017-10-06 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU TB3DK2DPW Digital Content Due Date 2017-12-29 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,CO,HK,JP,MX,NZ,PE,US Primary Technology Thunderbolt 3 Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2017-12-15 Target Production Release 2017-12-15 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
