TB4CDOCKUE
Thunderbolt 4 Docking Station UK EU

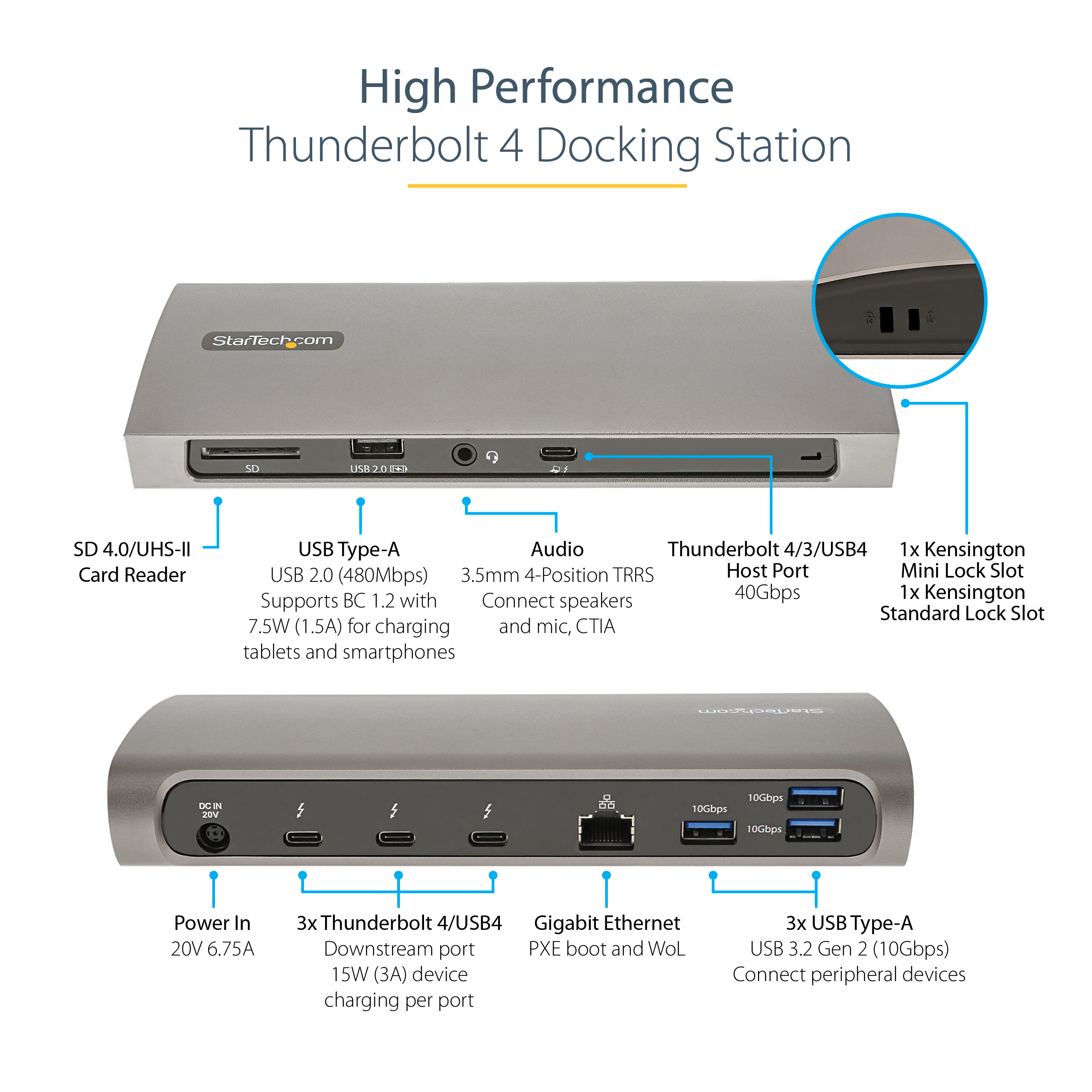

Dual DP 4K 60Hz | macOS & Windows® | 3x Thunderbolt™ 4 | 3x USB-A 10Gbps | 1x USB-A 480Mbps BC 1.2 Fast Charge | 96W PD | 0.8 m Cable
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Product Name Thunderbolt 4 Docking Station UK EU Product Number TB4CDOCKUE UPC 065030895064 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 4 Docks Family no family Country of Origin Europe & Japan Thailand Country of Origin North America Thailand Country of Origin History (1) Thailand Country of Origin Revision (1) XXXXXX167X Product Title (Ultra-Short) Thunderbolt 4 Dock Product Title (Short) Thunderbolt 4 Dock, 96W, 2x4K 60Hz/1x8K Product Title (Medium) Thunderbolt 4 Dock, 96W PD, 1x 8K or 2x Dual Monitor 4K 60Hz, 3xTB4/USB4/4xUSB-A Product Title (Standard) Thunderbolt 4 Dock, 96W Power Delivery, Single 8K / Dual Monitor 4K 60Hz, 3x TB4/USB4 ports, 4x USB-A, SD, GbE, 0.8m cable Product Title (Long) USB-C Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal Dual 4K 60Hz / Single 8K Thunderbolt Dock, 96W Laptop Charging Product Title (AMZ) USB-C Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal Dual 4K 60Hz / Single 8K Thunderbolt Dock, 96W Laptop Charging Title Ingram (Part 1) Thunderbolt 4 Dock, 96W, Dual Title Ingram (Part 2) 4K 60Hz or 1x 8K, 3xTB4, 4xUSB-A Website Product Headline Dual DP 4K 60Hz | macOS & Windows® | 3x Thunderbolt™ 4 | 3x USB-A 10Gbps | 1x USB-A 480Mbps BC 1.2 Fast Charge | 96W PD | 0.8 m Cable Bullet 1 HIGH-PERFORMANCE THUNDERBOLT 4 CERTIFIED DOCK: Easy Driverless setup; 3x downstream Thunderbolt 4 (40Gbps) ports; 4x USB-A ports (3x 10Gbps/1x BC 1.2 fast charge); SD card reader; GbE; 2.6ft TB4 cable; Front host port; Kensington-style security slots Bullet 2 CERTIFIED 96W POWER DELIVERY: Includes fully spec'd power adapter to simultaneously charge laptop (96W PD) & power to all ports; Downstream TB4 / TB3 / USB4 ports support 15W (3A) charging; 1x BC 1.2 USB-A port with 7.5W (1.5A) for charging mobile devices Bullet 3 COMPATIBILITY: This dock works with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual display on MacBook Air / Pro with M3, M4 or M5 (clamshell mode required with M3); Single display on base M-series MacBooks and iPad Pro M1 or later Bullet 4 3x THUNDERBOLT 4 PORTS: The dock features three downstream Thunderbolt 4 ports for connecting TB4, TB3, USB4 or USB peripherals; The TB4 ports can be used for connecting up to two external displays supporting dual 4K 60Hz or a single 5K/6K/8K monitor Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout Bullets (Compact) Certified Thunderbolt 4 docking station 96W PD - Works w/TB4 laptops and TB3 MacBooks (11.0+) - Single 8K or dual 4K60Hz on TB4/USB4 laptops | Single 4K60Hz/5K/6K on M1 MacBooks | Dual 4K60Hz/5K on TB3 Intel/TB4 MacBooks - 3x TB4/USB4/4x USB-A/SD/GbE Bullets (Consolidated) Certified Thunderbolt 4 docking station; Driverless setup; Dual monitor 4K 60Hz - Works with all TB 3/4 laptops; Extended Dual Display on Apple M1/M2/M3/M4 Max/Pro MacBooks; Single Display on base M-series MacBooks and iPad Pro M1 & later - 3x TB4 ports (TB3/USB 3.1 compatible) for connecting/daisy chaining devices and up to 2 displays - 85W PD; 4x USB-A; GbE w/PXE boot/WoL; Incl. 2.6ft Thunderbolt 4 host cable - Connectivity Tools w/Network MAC Address Pass-Through/Windows Layout and more Marketing Copy Marketing Copy (No HTML) Applications - Use in hot-desk workstations for user laptop hoteling
- Charge your tablets and smartphones from the B.C 1.2 USB-A port
- Externally access SD, SDHC and SDXC memory cards
Website Product Alert This a test for the PRODUCT ALERT in EN Website Search Keyword - dual 4k display docking station
- dual 4k monitor docking station
- dual 4k thunderbolt 3 dock
- dual display thunderbolt 3 dock
- dual monitor thunderbolt 3 dock
- tb4 dock
- tb4 docking station
- thunderbolt 3 dock
- thunderbolt 3 dock 2 monitors
- thunderbolt 3 dock dual 4k 60hz
- thunderbolt 3 dock dual monitor
- thunderbolt 3 dock multiple monitors
- thunderbolt 3 dock with power delivery
- thunderbolt 3 docking station
- thunderbolt 3 docking station dual monitor
- thunderbolt 3 docking station with power delivery
- thunderbolt 3 usb c docking station
- thunderbolt 4 dock
- thunderbolt 4 docking station
- thunderbolt dock dual monitor
- thunderbolt dock multiple monitors
- thunderbolt docking station dual monitor
- thunderbolt usb 4 dock
- usb 4 dock
- usb c dock
- usb c dock dual 4k
- usb c dock dual monitor 4k 60Hz
- usb c dock with power delivery
- usb c docking station
- usb c docking station with power delivery
- usb4 dock
- usb4 docking station
- anker thunderbolt 4 dock
- belkin thunderbolt 4 dock
- caldigit thunderbolt 4 dock
- dell dual 4k docking station
- dell thunderbolt 4 dock
- hp thunderbolt 4 dock
- kensington sd5700t thunderbolt 4 dock
- kensington thunderbolt 4 dock
- lenovo thinkpad thunderbolt 4 dock
- lenovo thinkpad universal thunderbolt 4 smart dock
- lenovo thunderbolt 4 dock
- owc thunderbolt 4 dock
- startech thunderbolt 3 dock macbook pro
- thinkpad thunderbolt 4 dock
- thunderbolt 4 dock dell
- thunderbolt 4 dock mac
- thunderbolt 4 hub
- uab4 hub mac
- usbc dock
- usbc docking station
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords

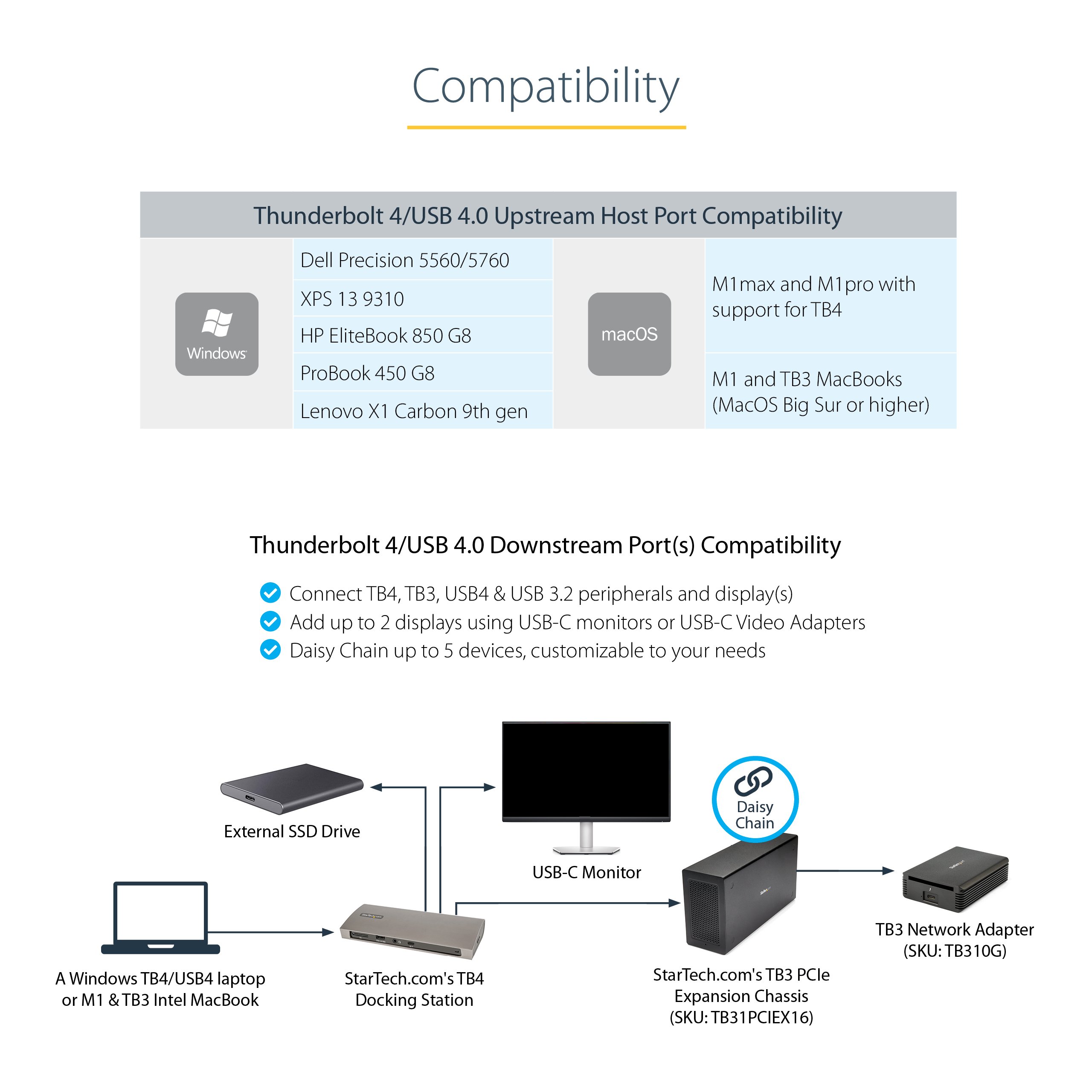

Special Notes The docking station is compatible with Thunderbolt 4/USB4 Windows laptops, Thunderbolt 4 M1/M2/M3 Max/Pro MacBooks, and Thunderbolt 3 M1/Intel MacBooks (macOS 11 Big Sur or higher) Accessory Products - CDP2DP
- CDP2DP141MB
- CDP2DP146B
- CDP2DP14B
- USBC-DISPLAYPORT
- CDP2HD1MBNL
- CDP2HD1MWNL
- CDP2HD2MBNL
- CDP2HD2MWNL
- CDP2HD3MBNL
- CDP2HD3MWNL
- CDP2HD4K60
- CDP2HD4K60H
- CDP2HD4K60SA
- CDP2VGA
- CDP2VGA3MBNL
- CDP2VGAEC
- CDP2VGAMM1MB
- CDP2VGAMM2MB
- CDP2DVIDP
- CDP2DVI
- CDP2DVIEC
- CDP2DVIW
- CDP2DVI3MBNL
- CDP2DVIMM1MB
- CDP2DVIMM2MB
Related Products - TB2DOCK4K2DP
- TB3DK2DPM2
- TB3DK2DPPD
- TB3DK2DPW
- TB3DKDPMAW
- TB3DOCK2DPPD
Input Current 2.5 A Input Voltage 110V-240V AC Output Current 6.75 A Output Voltage (V) 20V DC Power Consumption (In Watts) 135 Power Delivery 96W Power Source AC Adapter Included Plug Type - 7.4mm OD
- 5.5mm ID
- 0.5mm CPD

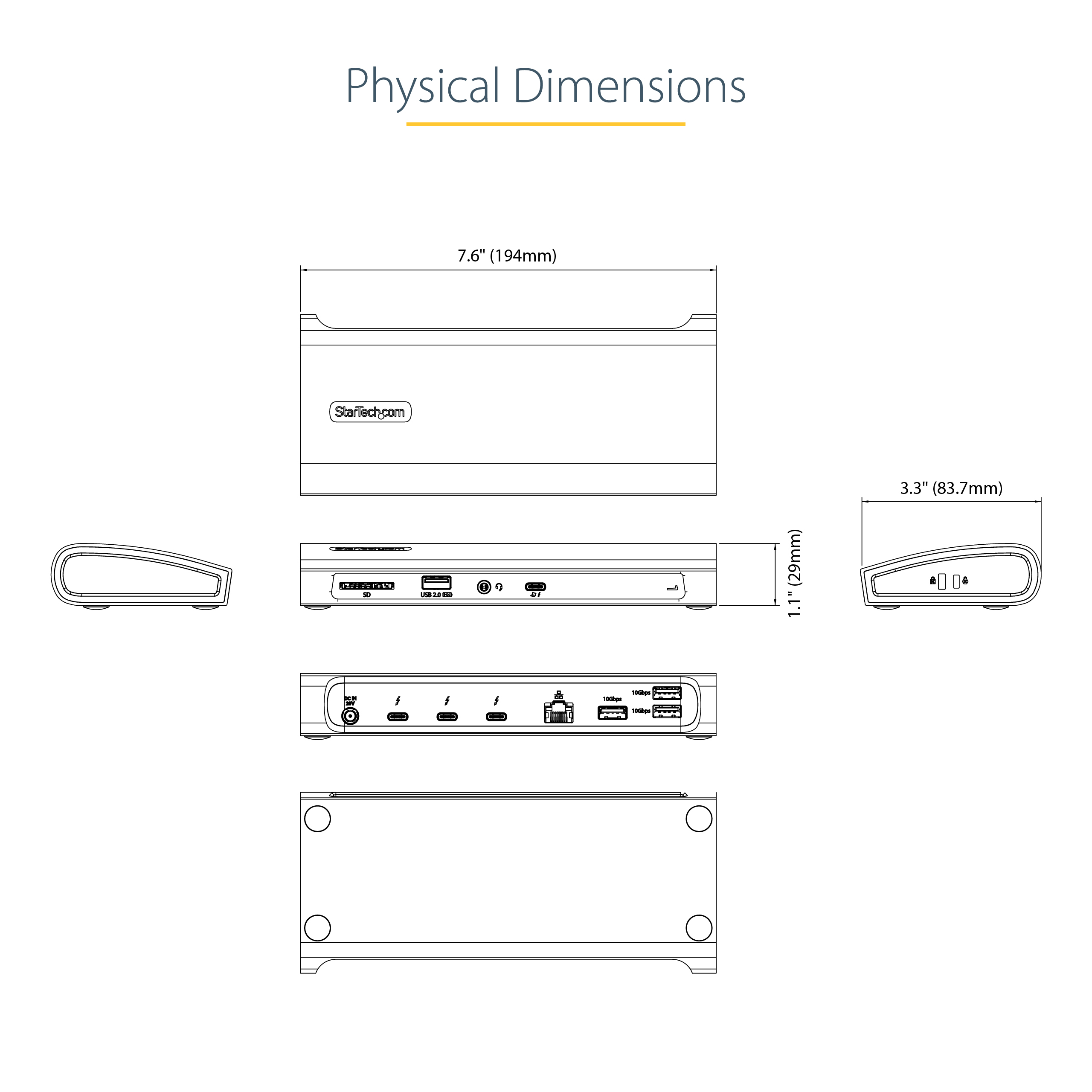

Center Tip Polarity Positive Cable Length (mm) 800 Color Black & Gray Humidity 0% to 95% (non-condensing) at 25°C Material Aluminum and Plastic Operating Temperature 0 to 50°C Product Length (mm) 84.000 Product Width (mm) 95.000 Product Height (mm) 32.000 Product Weight (g) 423.000 Storage Temperature -20 to 70°C TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Device Power Consumption (In Watts) 800 Downstream Maximum Data Transfer Rate Thunderbolt 3 (40Gbps) Full Duplex Support Yes Maximum Digital Resolutions Maximum Supported Resolution 8K 30Hz (7680x4320) Memory Media Type - SD/MMC (Secure Digital/Multimedia Card)
- SDHC (Secure Digital High Capacity)
- SDXC (Secure Digital eXtended Capacity)
- microSD (Micro Secure Digital) (adapter required)
- microSDHC (Micro Secure Digital High Capacity) (adapter required)
- microSDXC (Micro Secure Digital eXtended Capacity) (adapter required)
OS Compatibility - Windows 10
- Windows 11
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
PXE Yes StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
Video Output Port Thunderbolt Video Transport Technology Thunderbolt Wake-On-LAN (WOL) Yes Audio Yes Bus Type Thunderbolt 4 Chipset ID - Intel - JHL8440
- Cypress - CYUSB4357
- Parade - FL5801
- Cypress - CYPD5235
- Realtek - RTL8153B
- Realtek - ALC4042
- Genesys Logic - GL3226
Compatible Lock Slot - Kensington Mini Slot / Standard Slot
- Kensington Standard Slot (K-Slot)
Host Connection Port Thunderbolt Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - White On: Power
- 1 - Green On: Connected to Host
Network Adapter LAN Ports 1 Number of Battery Charge 1.2 Ports 1 Number of Displays 2 Other Ports - USB-A BC 1.2 Fast Charge
- Gigabit Ethernet
- SD Card Reader
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack

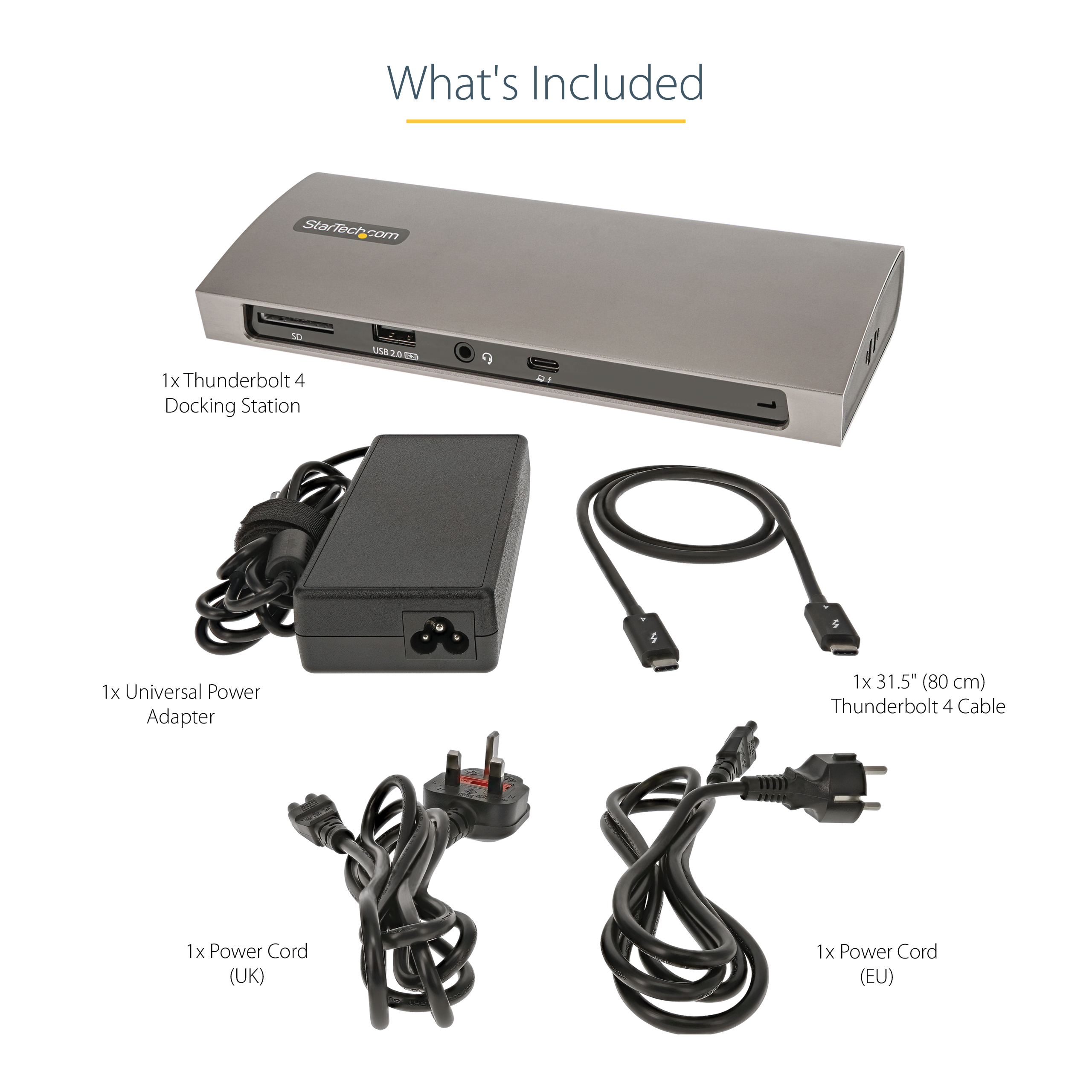

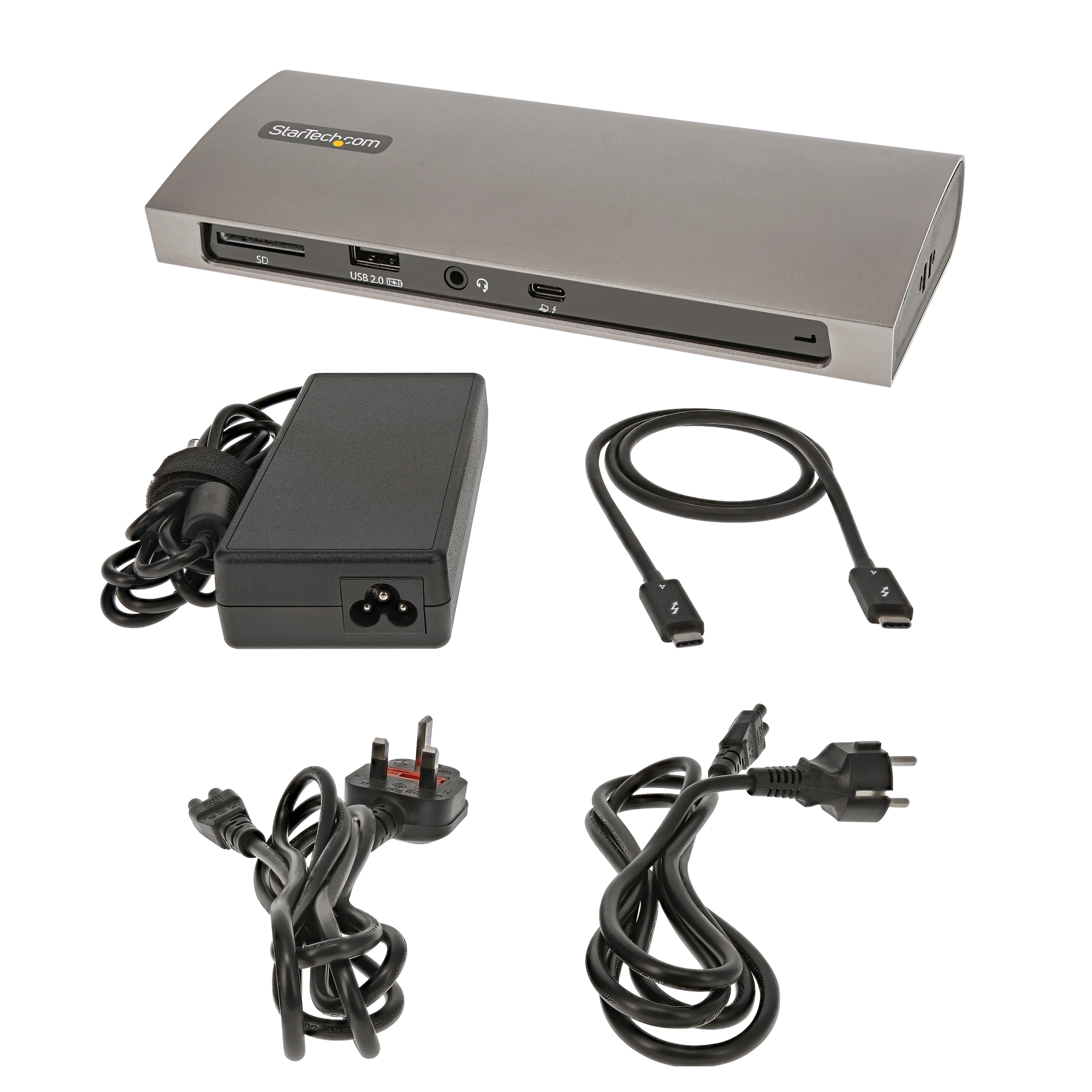

Carton Depth (mm) 380 Carton Height (mm) 265 Carton Quantity 8 Carton Weight Gross (g) 11685 Included in Package - 1 - Thunderbolt 4 Docking Station
- 1 - Thunderbolt 4 Cable
- 1 - Universal Power Adapter (EU/UK)
- 1 - Quick-Start Guide
Package Depth (mm) 230 Package Height (mm) 90 Package Width (mm) 145 Package Quantity 1 Package Weight (g) 1366 Packaging Description Thunderbolt 4 / USB4™ Dock - Dual 4K 60Hz Display Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SD Card Slot Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 7.5W) Connector 2 (Quantity) 1 Connector 3 3.5mm (4 Conductors, TRRS) Connector 3 (Quantity) 1 Connector 4 USB-C (Thunderbolt 40Gbps) Connector 4 (Quantity) 3 Connector 5 RJ-45 Connector 5 (Quantity) 1 Connector 6 USB-A (10Gbps, 4.5W) Connector 6 (Quantity) 3 Host Connector 1 USB-C (Thunderbolt 40Gbps) Host Connector 1 (Quantity) 1 Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2021-08-12 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-07-05 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,BE,CH,CL,DE,DK,ES,FI,FR,IE,IT,NL,SE,SG,UK Primary Technology - DisplayPort 1.4
- HDMI 2.0 / 4K 60 Hz and HDR
- USB 3.2 Gen 2 / 10Gbps
- USB4 (40Gbps)
- Thunderbolt 3
- Power Delivery
Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2021-10-15 Target Production Release 2021-08-26 Tech Lead Sam Raskas Technical Writer Brian Chan Technology Lifecycle Mainstream Video Uploaded
