Main Image
TBDOCKHDPBC

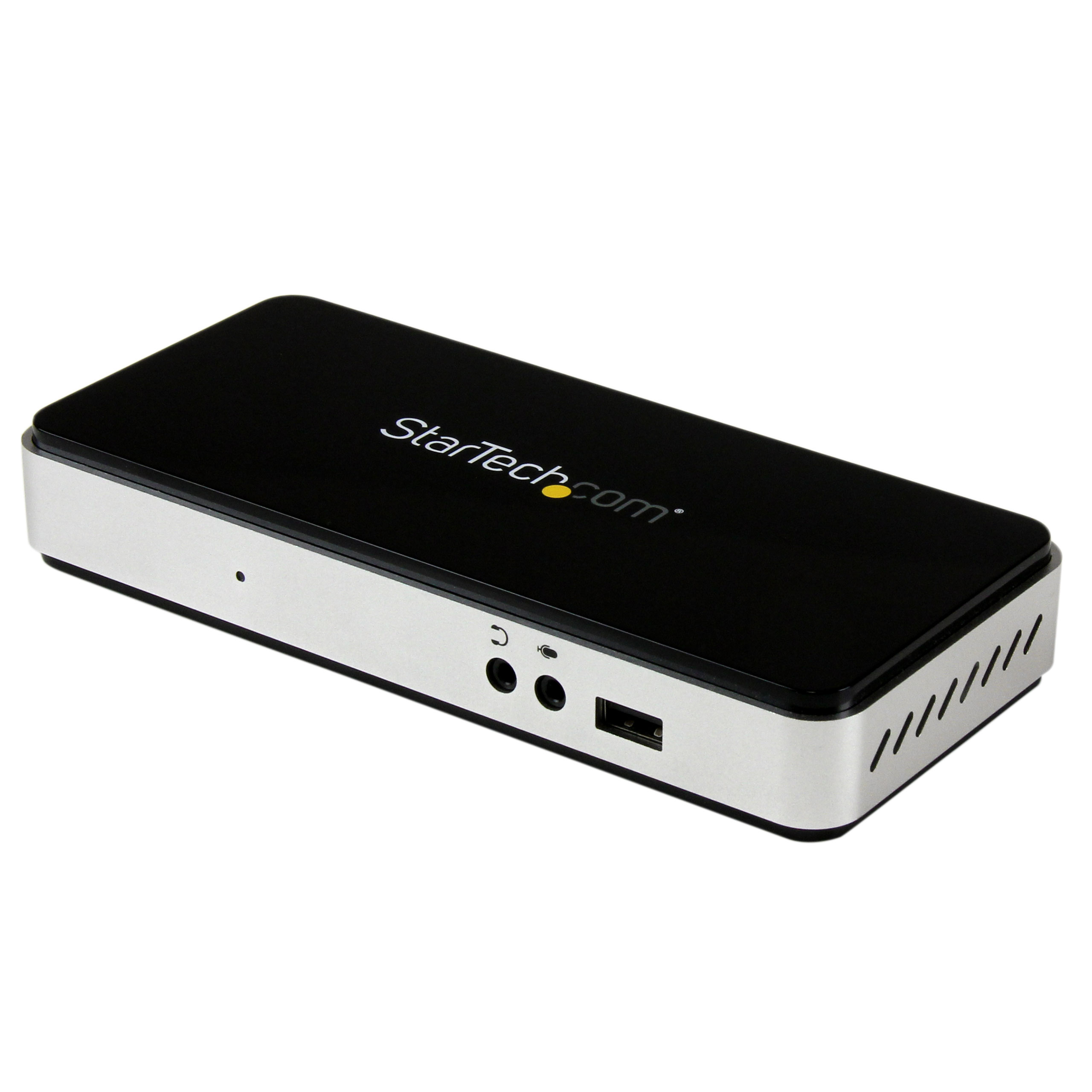

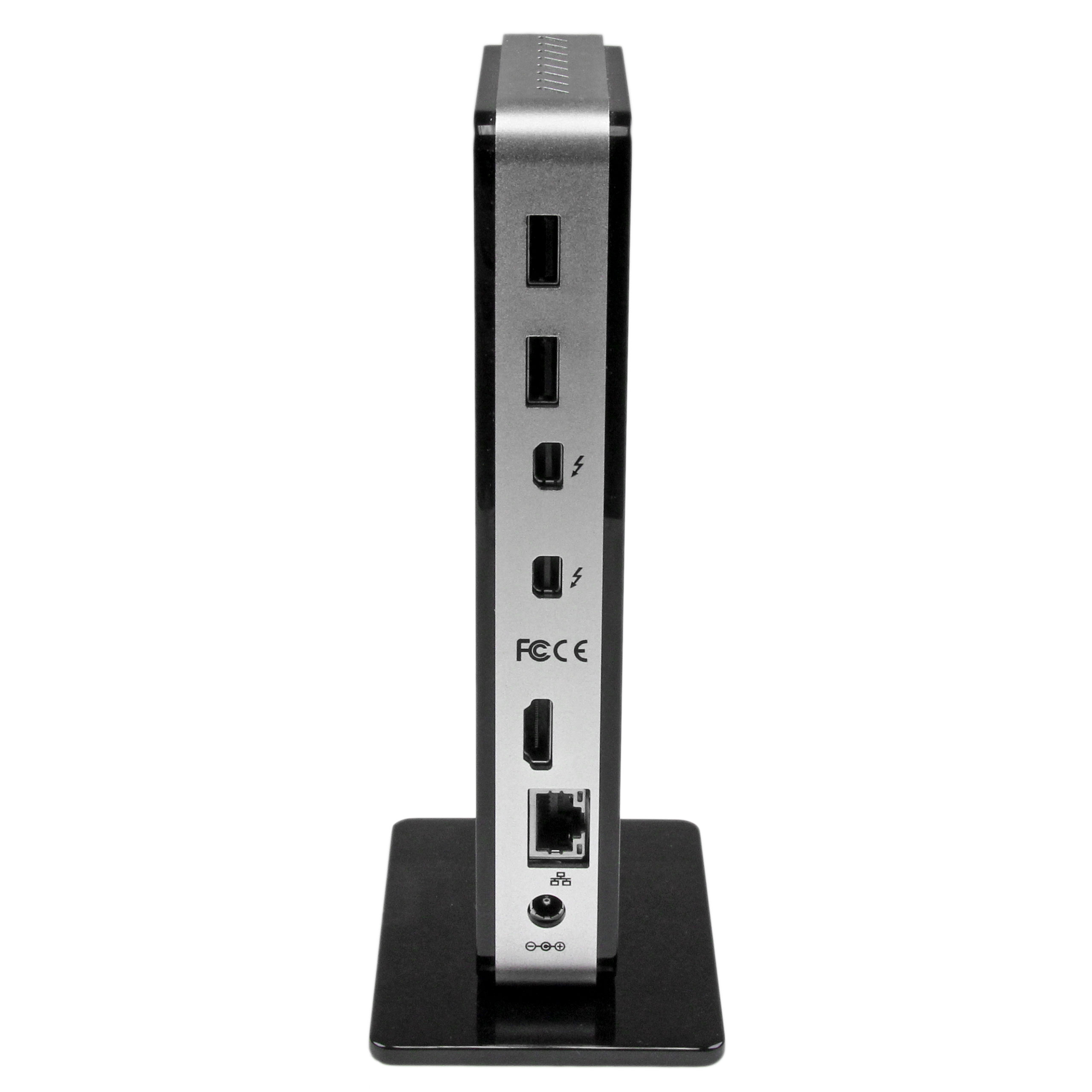

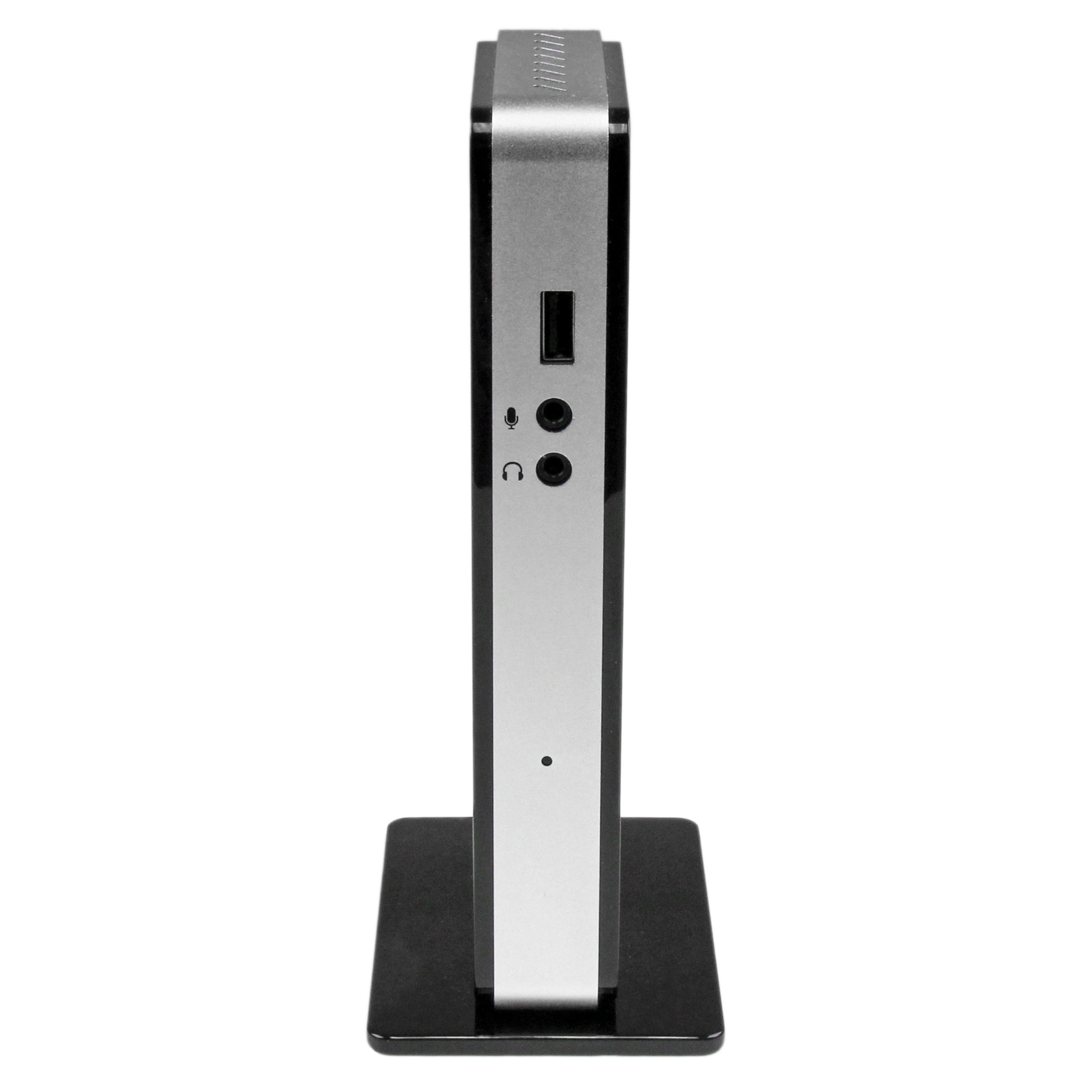

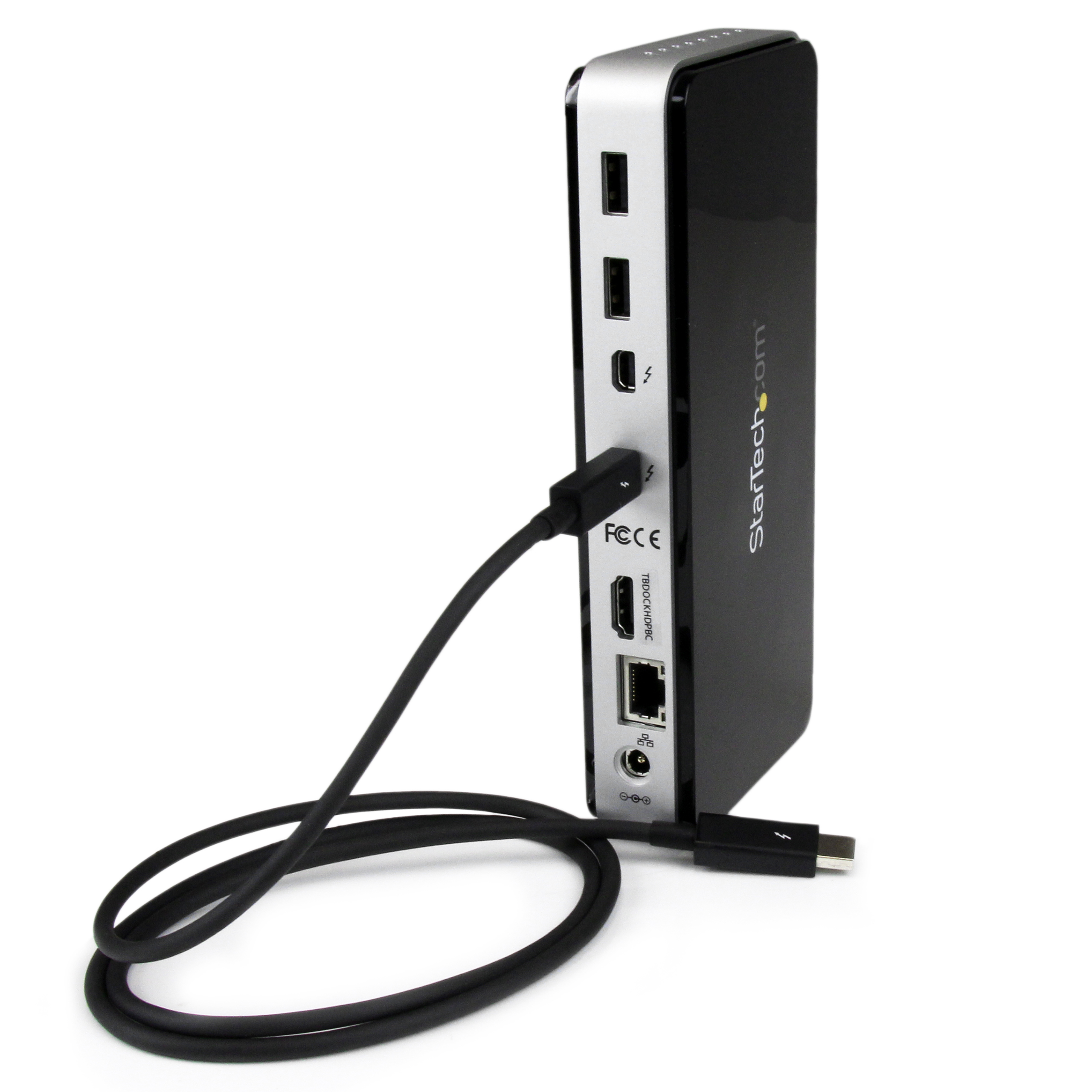

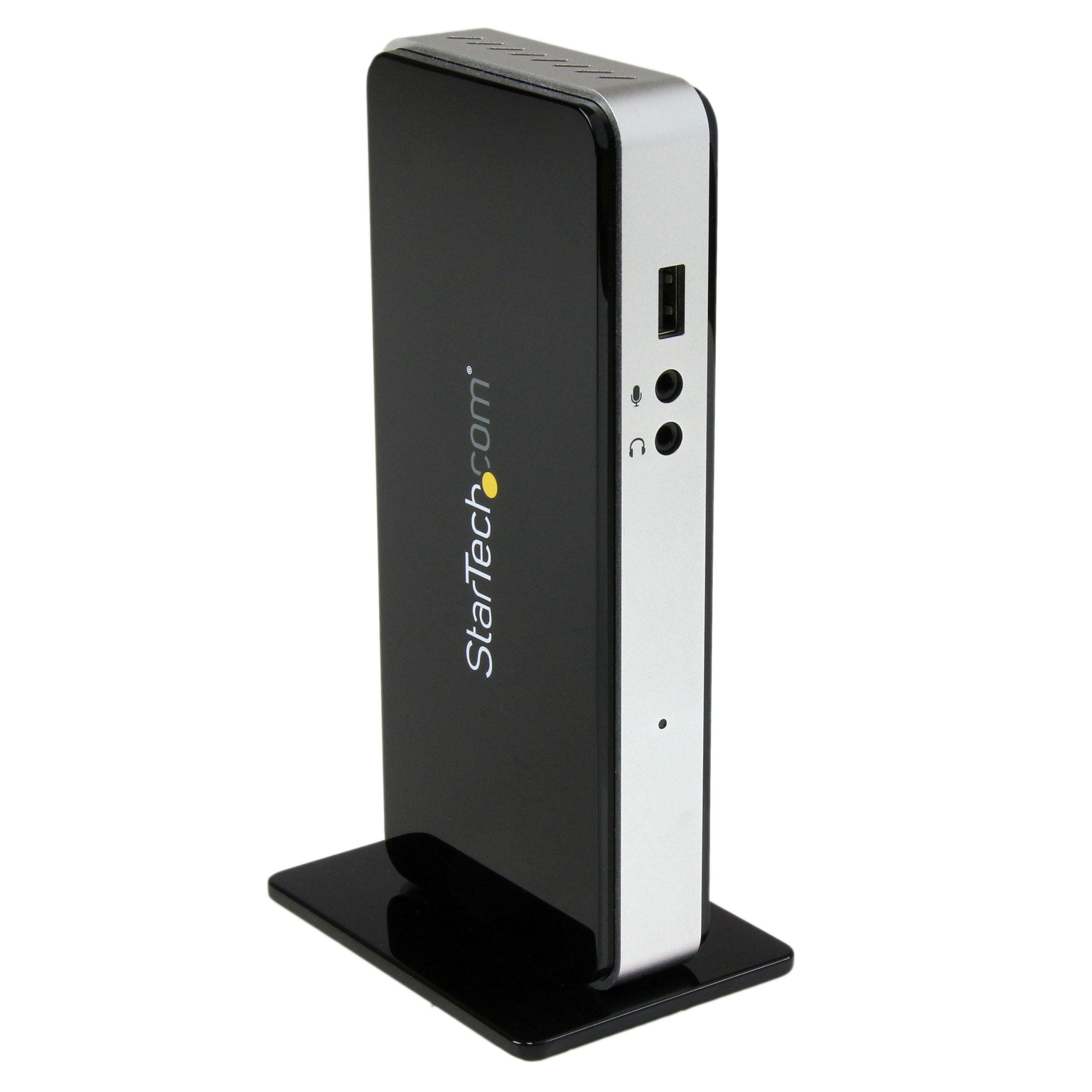

Thunderbolt Laptop Dockinchg Station
Transform your MacBook into a powerful home / office workstation through a single Thunderbolt cable
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Thunderbolt Laptop Dockinchg Station Product Number TBDOCKHDPBC UPC 065030853590 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 3 Docks Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) Thunderbolt Dock Product Title (Short) Thunderbolt Docking Station for Laptops Product Title (Medium) Thunderbolt Docking Station for Laptops - Includes TB Cable - Thunderbolt Dock Product Title (Standard) Thunderbolt Docking Station for Laptops - Includes TB Cable - Laptop Dock - MacBook Thunderbolt Dock Product Title (Long) Thunderbolt Docking Station for Laptops - Includes TB Cable Product Title (AMZ) Thunderbolt Docking Station for Laptops - Includes TB Cable - Laptop Dock - MacBook Thunderbolt Dock (TBDOCKHDPBC) Title Ingram (Part 1) Thunderbolt Dock for Laptops - Title Ingram (Part 2) Docking Station with TB Cable Website Product Headline Transform your MacBook into a powerful home / office workstation through a single Thunderbolt cable Bullet 1 Supports Thunderbolt data rates of up to 10Gbps Bullet 2 Mini DisplayPort or HDMI video output Bullet 3 Includes optional stand for horizontal or vertical (tower) orientation Bullet 4 Gigabit Ethernet, Audio, 3x USB 3.0 ports with UASP, includes 1m Thunderbolt cable Bullet 5 Supports daisy-chain up to 6 Thunderbolt devices Bullets (Consolidated) Transform your MacBook into a powerful home or office workstation through a single cable - Compatible with all Thunderbolt-enabled laptops including MacBook Pro and Macbook Air/HP Zbook 17 and Zbook 15 - Thunderbolt Laptop Docking Station/Dual monitor when using HDMI + TB display - Connects in seconds and includes TB cable - Thunderbolt Dock offers more ports for BYOD workspaces/Creative designers - Vertical or horizontal orientation - 3 USB 3.0 ports - Supports data rates up to 10Gbps Marketing Copy Applications - Connect a wide variety of peripherals at home / office to a laptop all from a single Thunderbolt connection

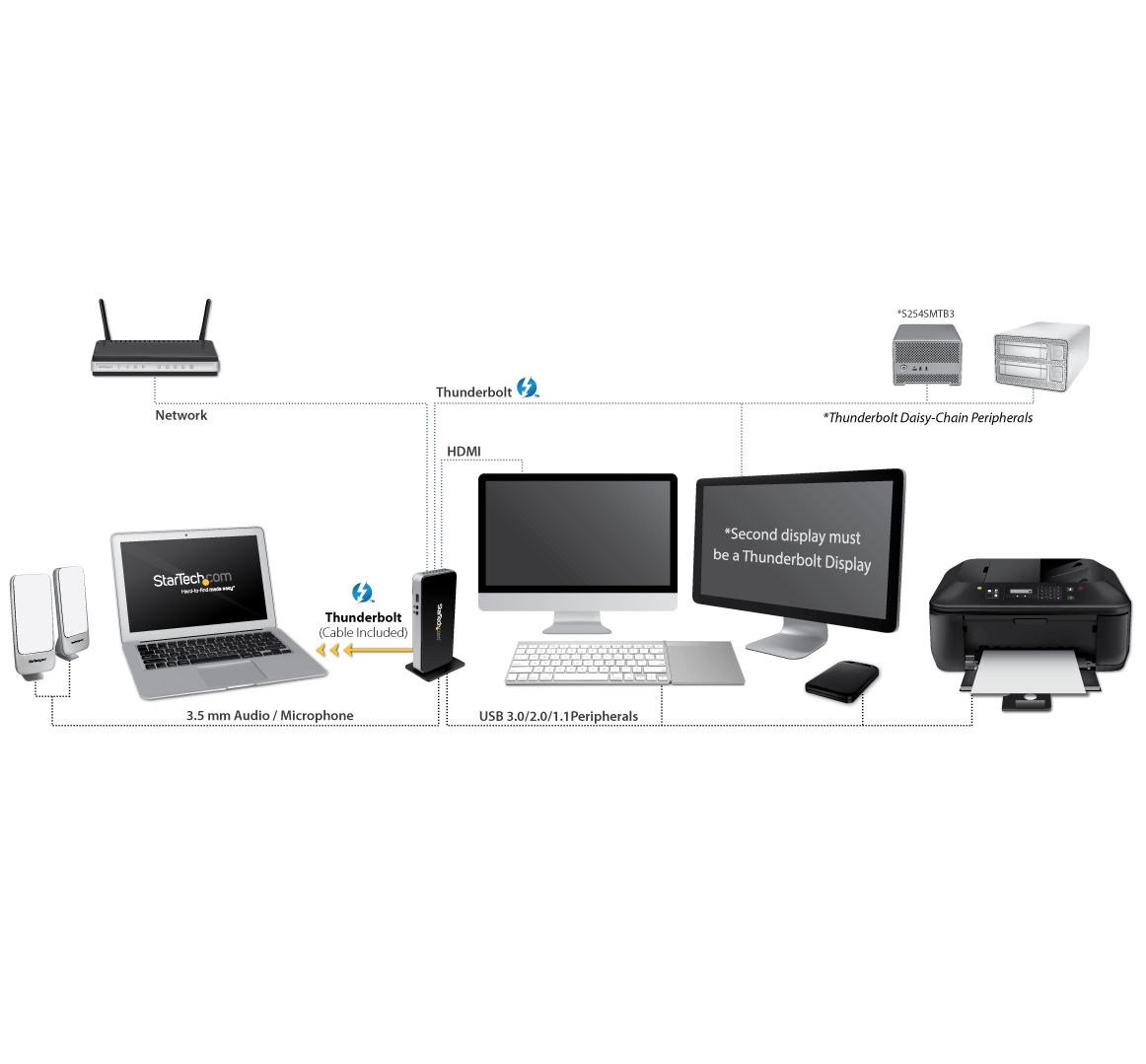

- Turn a Thunderbolt™-equipped MacBook Pro®, MacBook Air®, laptop or Ultrabook™ into a powerful workstation
Website Search Keyword - laptop docking station
- ultrabook dock
- ultrabook docking station
- laptop dock
- MACPRODOCK
- MACAIRDOCK
- macbook pro dock
- macbook pro docking station
- macbook dock
- macbook docking station
- macbook air dock
- macbook air docking station
- thunderbolt dock
- tb dock
- thunderbolt express docking station
- Thunderbolt laptop docking station
- notebook docking station
- Docking Stations
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements Available Thunderbolt interface Accessory Products - M45PATCH6BL
- TBOLTMM2M
- USB3SAB6BK
- HDMIMM6
- 45PATCH6BK
- USB3SAA6BK
- TBOLTMM1M
- HDMM3
- S252SMTB3
Related Products - USB3SDOCKHDV
- USB3SDOCKHD
- USB3SDOCKD
- USB3SDOCKDD
- TB2DOCK4KDHC
- USB3DOCKHDPC
Replacement Product TB2DOCK4KDHC Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 5 A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Cable Length (mm) 1000 Color Black & Silver Humidity 5~95% RH Material Aluminum and Plastic Operating Temperature 5°C to 40°C (41°F to 104°F) Product Length (mm) 124 Product Width (mm) 70 Product Height (mm) 189 Product Weight (g) 411 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions OS Compatibility - Mac OS X Mavericks (10.9)
- Windows 8
- Windows 7
- Mac OS X El Capitan (10.11)
- Mac OS X Yosemite (10.10)
- Windows 10
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

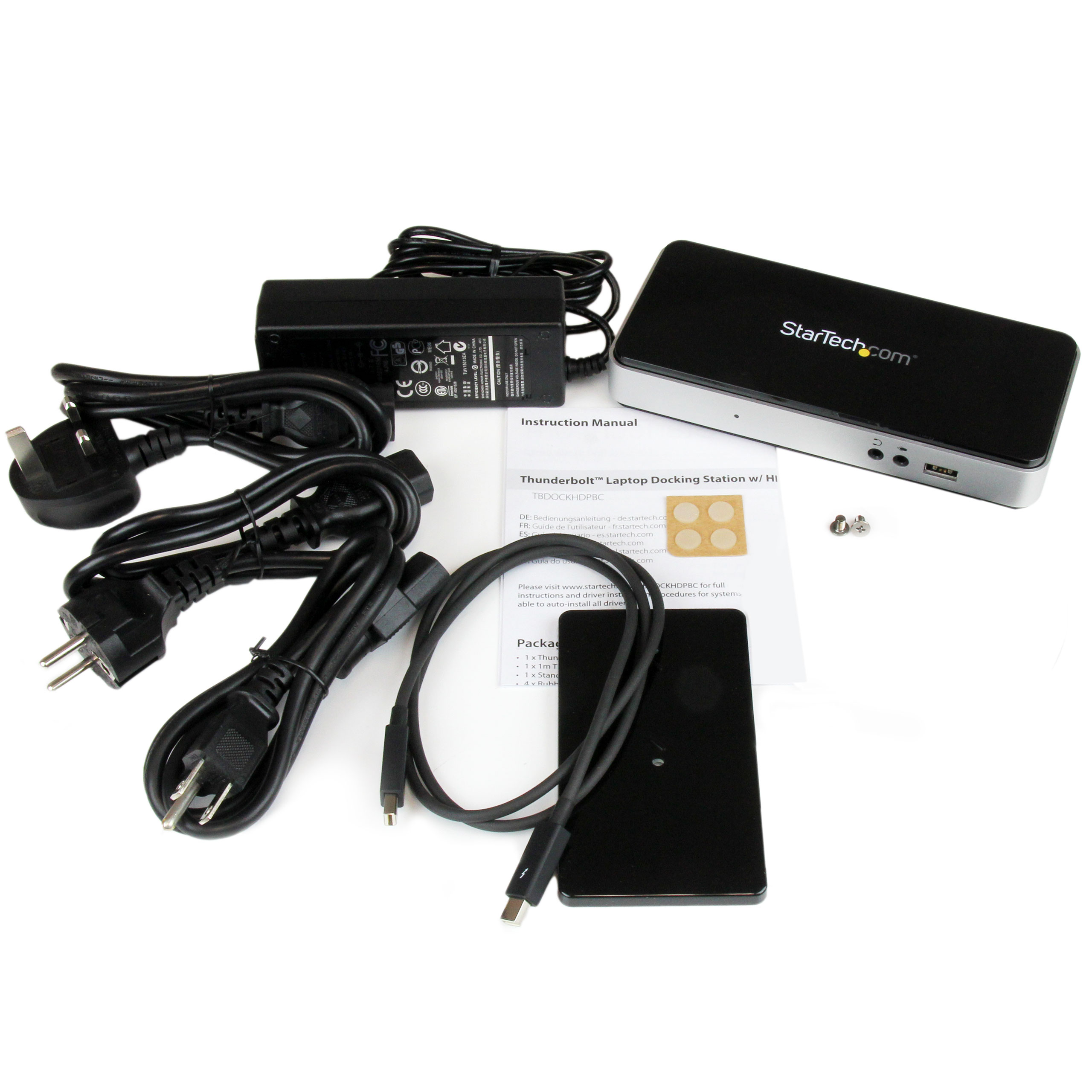

USB Type and Rate Thunderbolt - 10 Gbit/s Bus Type Thunderbolt Chipset ID Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Laptop Dock 4K Support No Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge No LED Indicators 1 - Power Carton Depth (mm) 355 Carton Height (mm) 225 Carton Quantity 6 Carton Weight Gross (g) 8902 Included in Package - 1 - Instruction Manual
- 4 - Rubber Feet
- 1 - Thunderbolt Docking Station
- 1 - 1m Thunderbolt Cable
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Stand (w/ screws)
Package Depth (mm) 121 Package Height (mm) 205 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 1317 Packaging Description Thunderbolt™ Docking Station w/ HDMI® or MDP - Cable Included Packaging Description India Thunderbolt™ Docking Station w/ HDMI® or MDP - Cable Included Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini DisplayPort (Thunderbolt 10Gbps) Connector 1 (Quantity) 2 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 3 Connector 5 HDMI Connector 5 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-09-04 Buying Center - End User Compute Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Sam Raskas Technical Writer Dan Dagenais
