TBLT5MM80CM240WRA

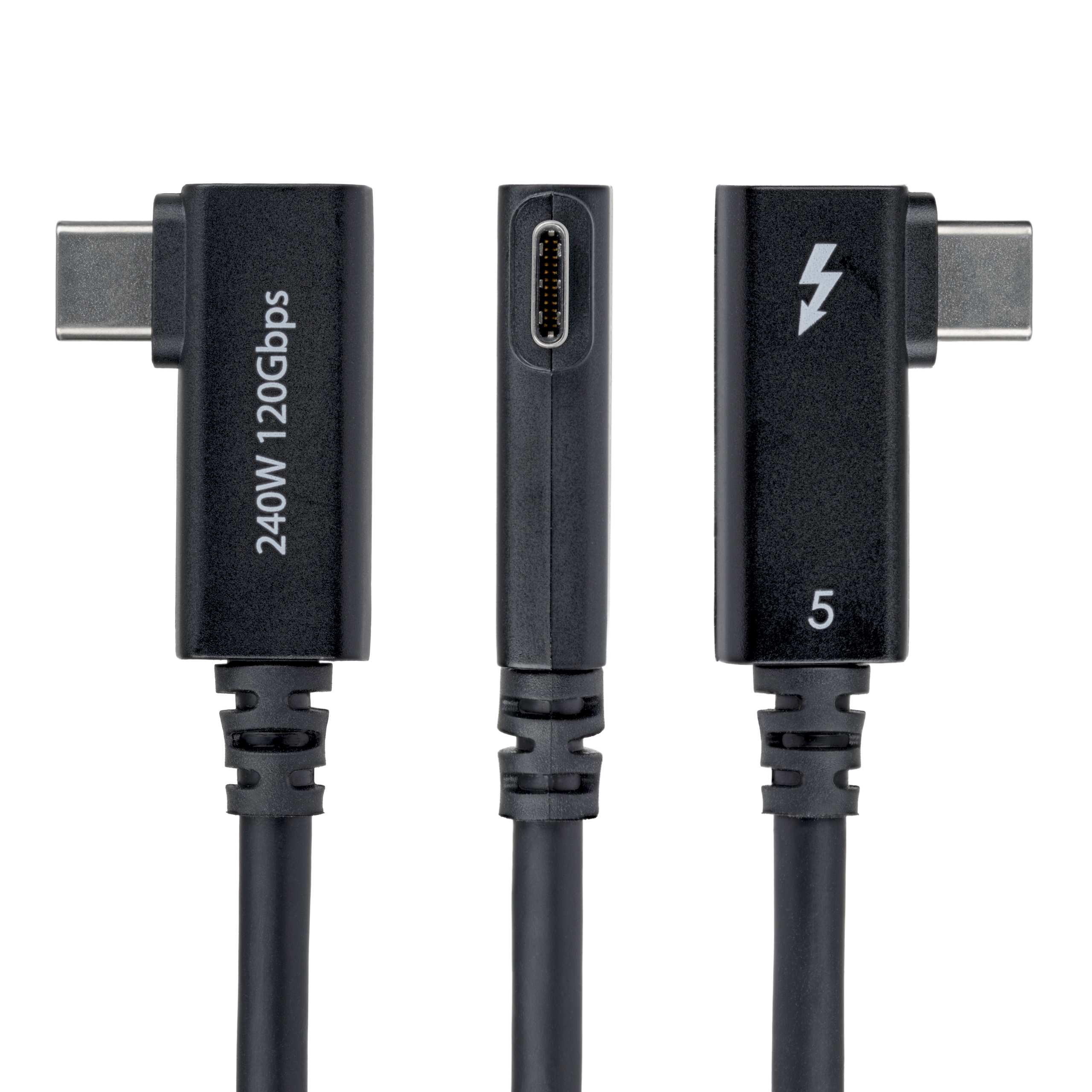

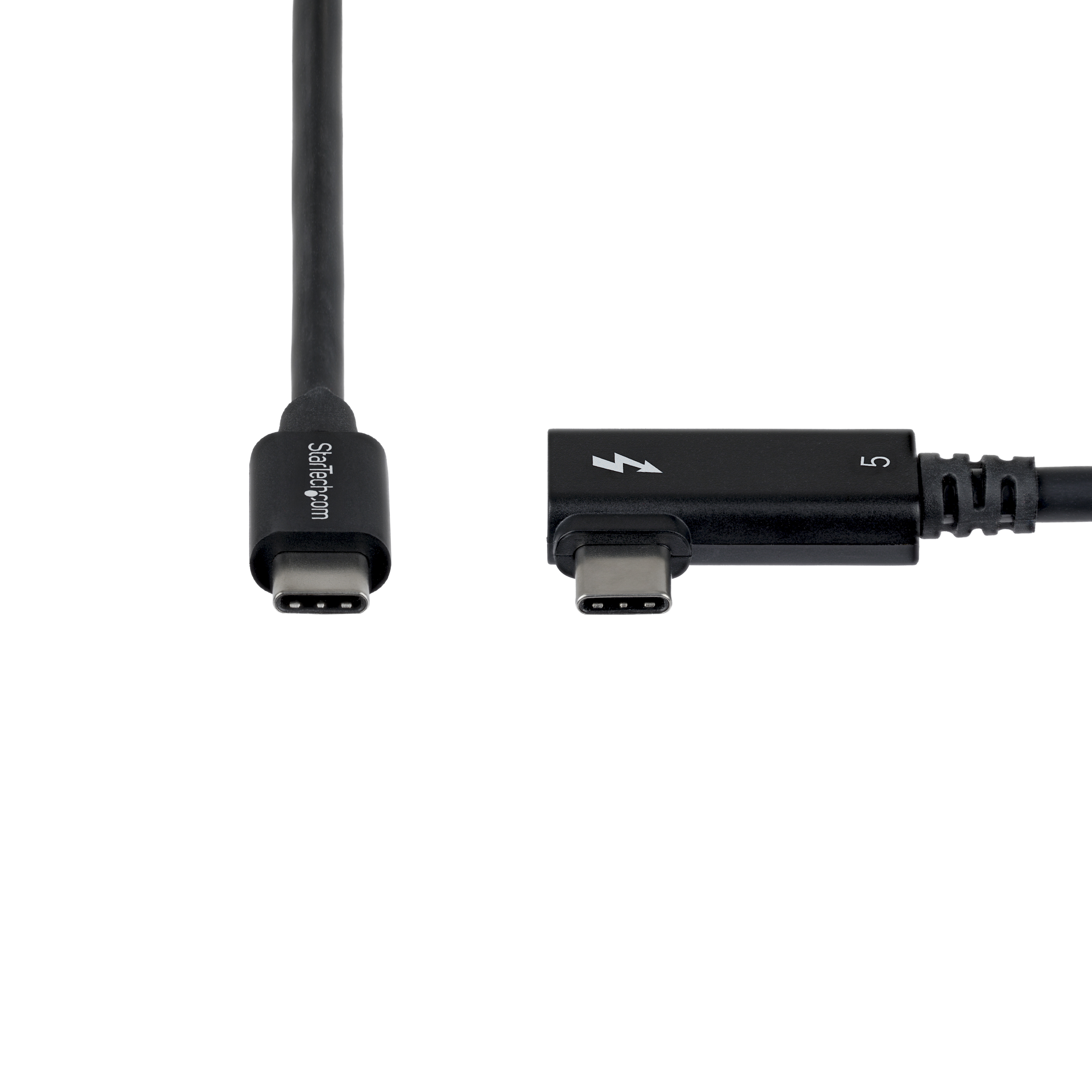

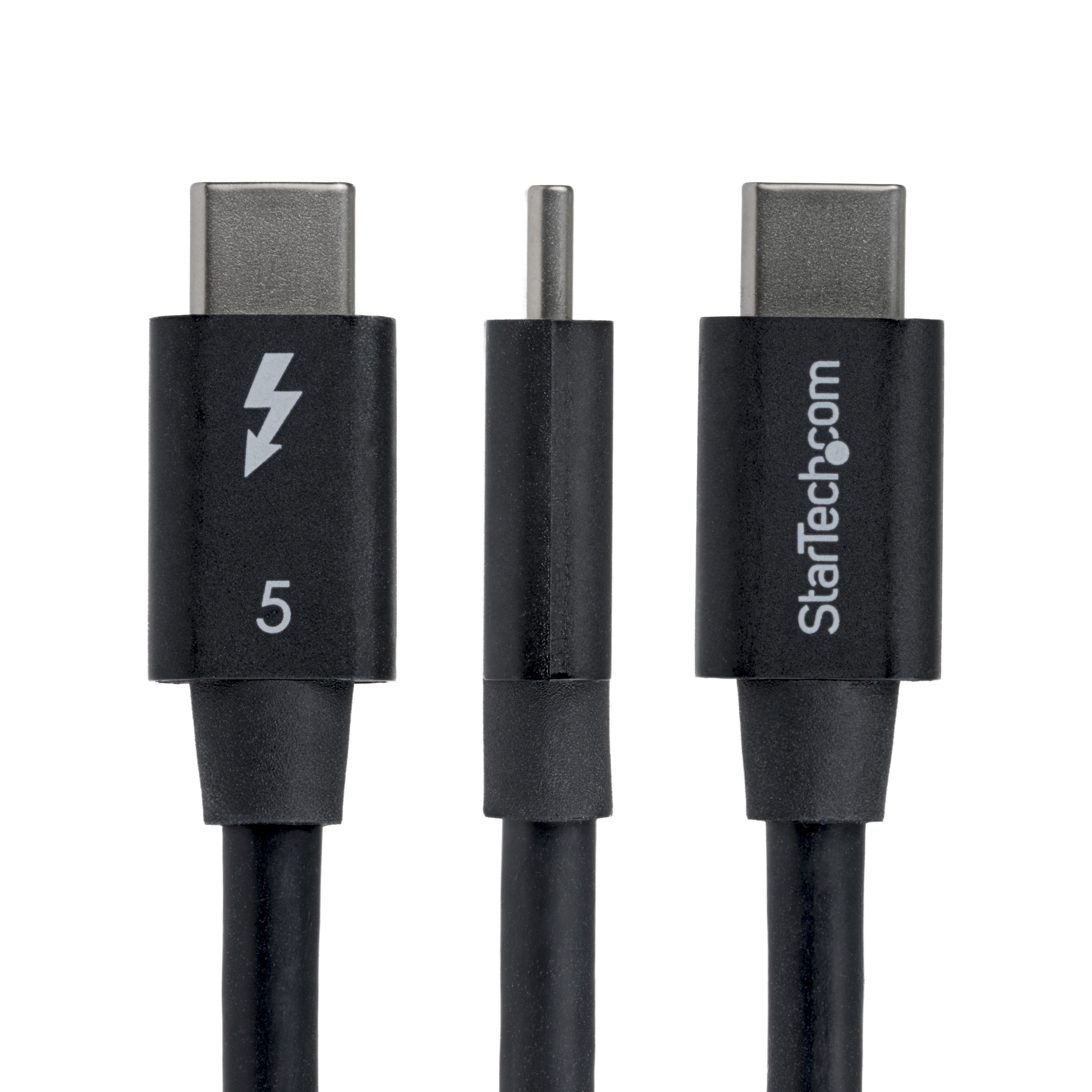

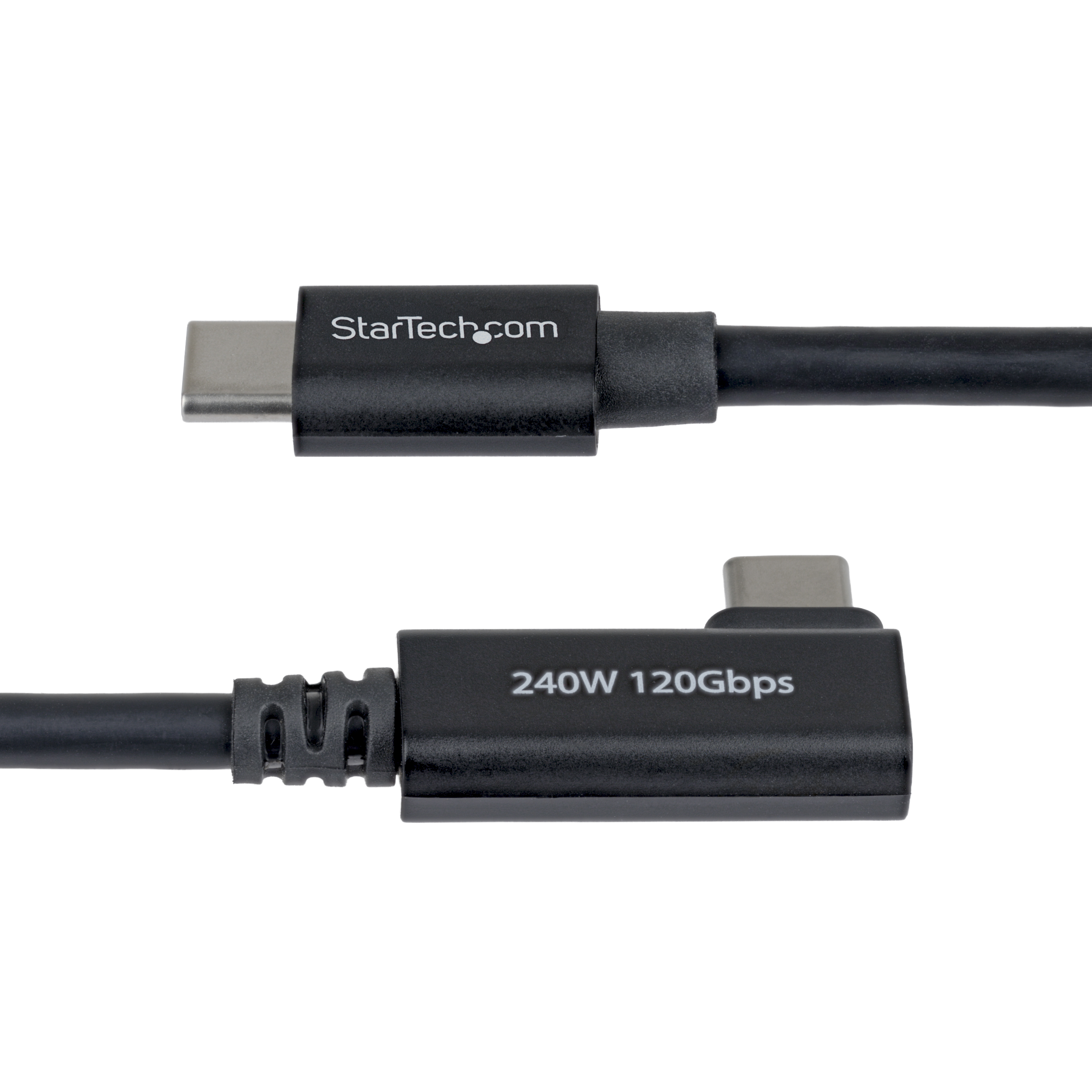

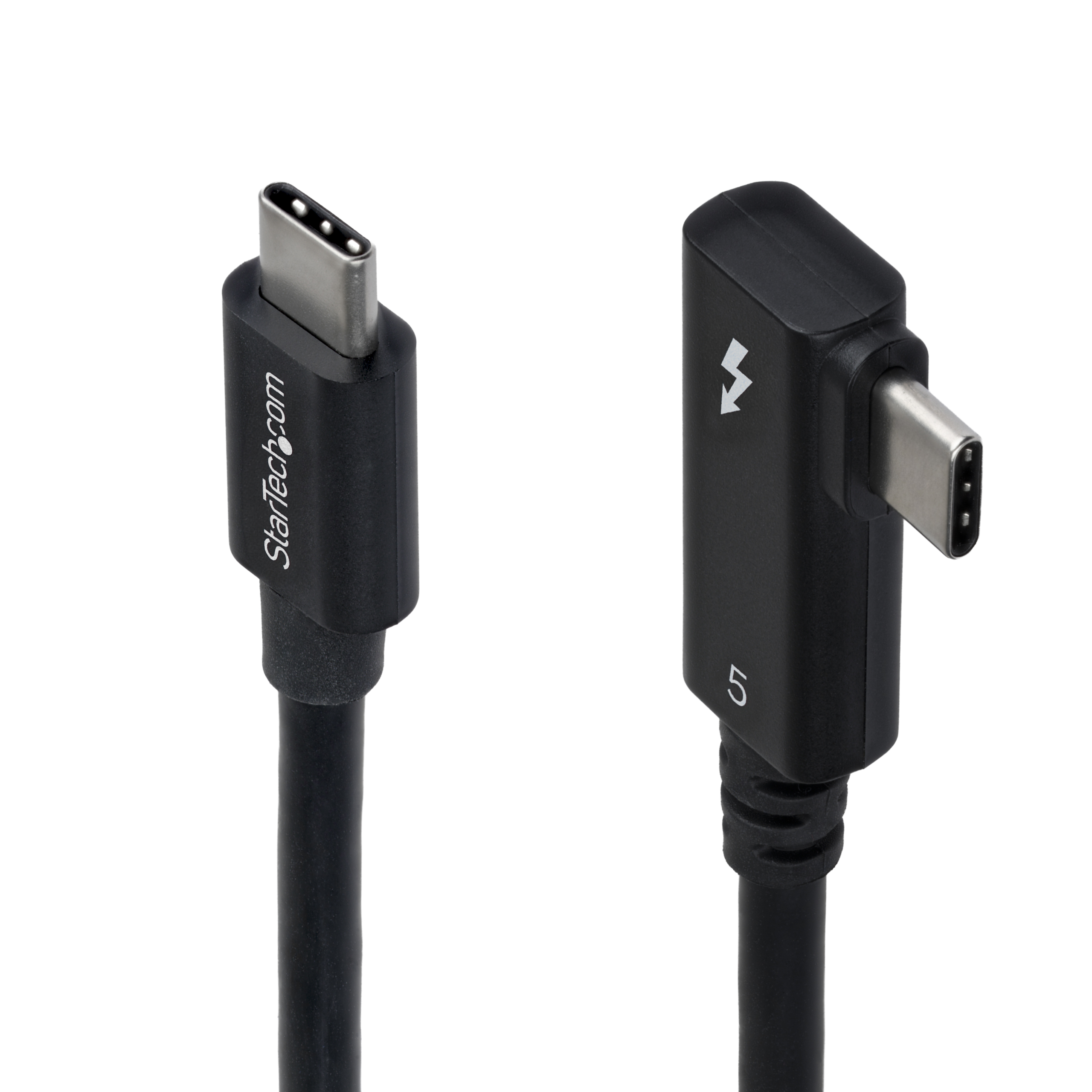

80cm Thunderbolt 5 Right Angle cable
Facilitate ultra high-performance connectivity between Thunderbolt 5-enabled devices
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 80cm Thunderbolt 5 Right Angle cable Product Number TBLT5MM80CM240WRA UPC 065030917490 Lifecycle status Pending Warranty Lifetime Weighted Opportunity 0 Taxonomy Product > Cables > USB & Thunderbolt Cables Category Level 1 USB and Thunderbolt Cables Category Level 2 Thunderbolt Cables Category Level 3 Thunderbolt 5 Cables Family Thunderbolt 5 Cables Country of Origin Europe & Japan Thailand Country of Origin North America Thailand Product Title (Ultra-Short) Thunderbolt 5 Cable Product Title (Short) 2.6ft Right Angle Thunderbolt 5 Cable Product Title (Medium) 2.6ft (80cm) Right Angle Thunderbolt 5 Cable, 80Gbps/120Gbps, 240W PD, 8K60Hz, Certified Product Title (Standard) 2.6ft (80cm) Right Angle Thunderbolt 5 Cable, 80Gbps/120Gbps, 240W PD, 8K 60Hz, Certified Thunderbolt Cable Product Title (Long) 2.6ft (80cm) Right Angle Thunderbolt 5 Cable, 80Gbps/Up to 120Gbps, 240W PD, 8K 60Hz, Certified Thunderbolt Cable, Compatible w/Thunderbolt 4/USB4/USB-C Product Title (AMZ) 2.6ft (80cm) Right Angle Thunderbolt 5 Cable, 80Gbps/120Gbps, 240W PD, 8K 60Hz, Thunderbolt Certified, TB5/TB4/USB4/USB-C Title Ingram (Part 1) Right Angle Thunderbolt 5 Cable Title Ingram (Part 2) Certified/120Gbps/8K 60Hz/240W Website Product Headline Facilitate ultra high-performance connectivity between Thunderbolt 5-enabled devices Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Certified Thunderbolt 5 Cable supports bidi 80Gbps/8K 60Hz/240W PD; Ideal for high performance laptops/16in MacBook Pro M4; Backward Compatible w/TB4/3/USB-C; PCIe 4.0 (64 Gbps) for GPUs/NICs/storage in PCIe chassis; Shielded 30/34AWG coax wire Bullets (Consolidated) Achieve full Thunderbolt 5 capabilities with up to 120Gbps for intensive workloads; Right Angle connector is ideal for connecting in tight spaces - Deliver 8K 60Hz video and 240W charging through a single connection - Intel Thunderbolt-certified; Ideal for TB5-enabled docks/laptops such as Apple MacBook Pro M4; Backward Compatible w/TB4/3 - Suitable 8K/4K video editing; PCIe 4.0 (64 Gbps) for GPUs/NICs/storage in PCIe chassis - Shielded 30/34AWG coaxial wire for enhanced EMI protection Marketing Copy Marketing Copy (No HTML) Applications - Support full Thunderbolt 5 capabilities between Thunderbolt 5-enabled devices
- Deliver up to 8K 60Hz video, 240W charging, and 80Gbps bidirectional throughput over a single connection
- 120Gbps boost mode supports multiple UHD displays while maintaining consistent data transfer rates
- Intel Certified Thunderbolt 5 Cable for guaranteed Thunderbolt 5 performance and backward compatibility with Thunderbolt 4/3, USB4, and USB-C
- Right Angle connector is ideal for space-constrained setups, allowing the cable to run flush with the device
Website Search Keyword - Thunderbolt 5 Cord
- USB-C Thunderbolt Cable
- Mac Thunderbolt Cable
- short Thunderbolt 5 Cable
- 1m Thunderbolt
- usb c Thunderbolt cable
- Thunderbolt Cord
- Thunderbolt cable .5
- usb c thunderbolt 5 cable
- White Thunderbolt cable
Required Marketing Compliance Marks Thunderbolt - Specification - Global - Thunderbolt 5 Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Related Products - TBLT4MM1M
- TBLT4MM50CM
- TBLT5MM50CM240WWH
- TBLT5MM80CM240W
Power Delivery 240W Cable Length (mm) 800 Cable OD 4.7 Color Black Connector Style Straight to Right Angle Humidity 85% RH Operating Temperature 10°C to 40°C (50°F to 104°F) Product Length (mm) 813.3 Product Width (mm) 14.6 Product Height (mm) 6.5 Product Weight (g) 36 Storage Temperature -10°C to 50°C (14°F to 122°F) TAA Compliant No Wire Gauge 30/34 AWG Data Speed 80 Gbps Maximum Data Transfer Rate 80Gbps Maximum Digital Resolutions 8K 60Hz Thunderbolt Version Thunderbolt 5 Active or Passive Adapter Passive Cable Jacket Material TPE - Thermoplastic Elastomers Cable Shield Material Tinned Copper Braid Connector Plating Nickel Carton Depth (mm) 380 Carton Height (mm) 295 Carton Quantity 120 Carton Weight Gross (g) 5400 Included in Package 1 - Thunderbolt 5 Cable Package Depth (mm) 125 Package Height (mm) 15 Package Width (mm) 110 Package Weight (g) 36 Packaging Description 80cm (2.6ft) Right Angle Thunderbolt™ 5 Cable, 240W PD EPR Packaging Description India 80cm (2.6ft) Right Angle Thunderbolt™ 5 Cable, 240W PD EPR Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 80Gbps) Connector 1 (Quantity) 1 Connector 2 USB-C (Thunderbolt 80Gbps) Connector 2 (Quantity) 1 A+ Not Required Amazon Merchandising Manager Veronica Ye Amazon Only SKU No Amazon Visual Content Level Gold Application Photos Required Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment NA Comparable SKU 2 Comment NA Digital Content Due Date 2026-04-30 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Brooke Taylor Graphic Design SKU Logic Naming Convention TBLT5MMxy240Wx ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology Thunderbolt 5 Priority New Product High Product Development Specialist Chi Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2025-08-01 Target Production Release 2025-08-08 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None Video Not Required
