TBT3TBTADAP

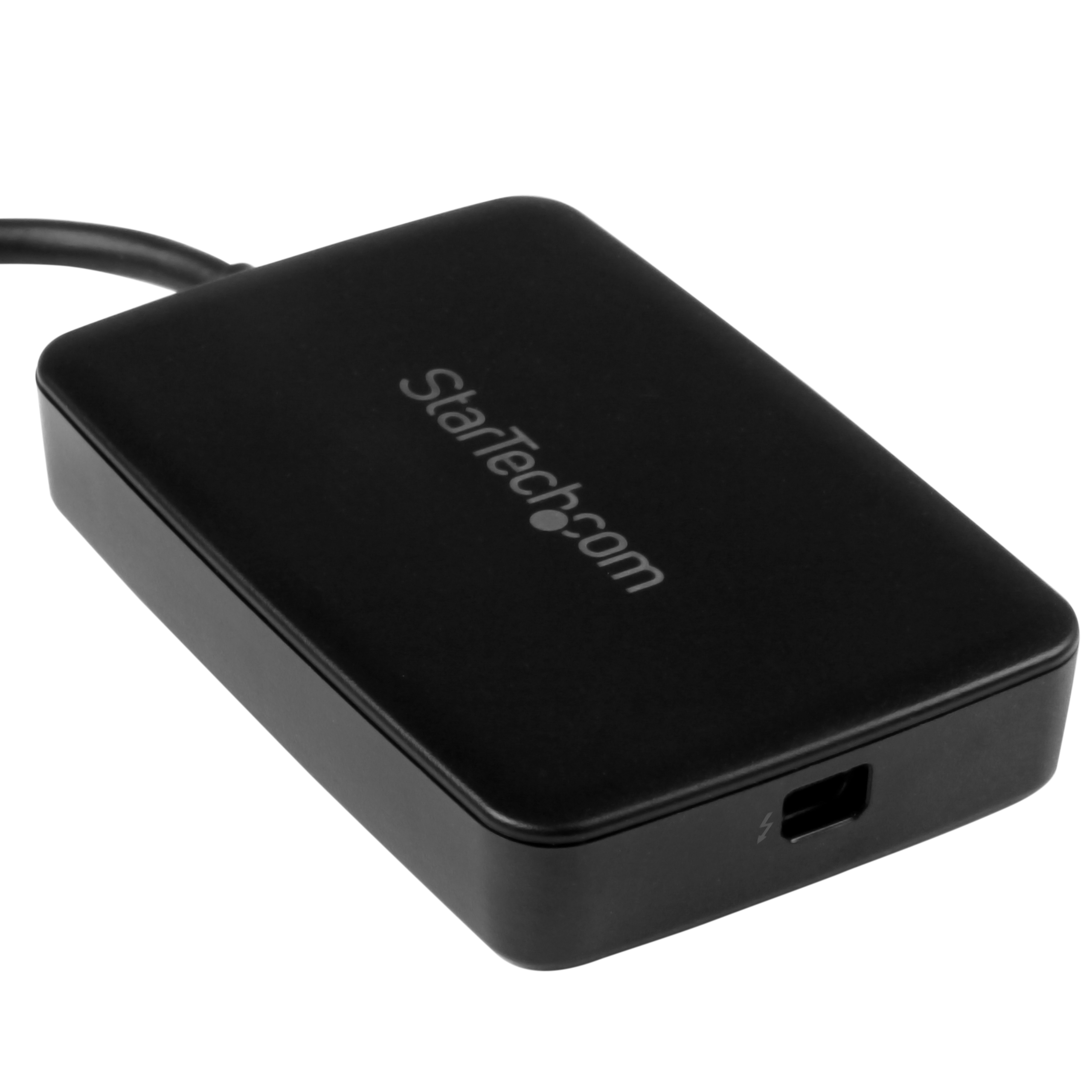

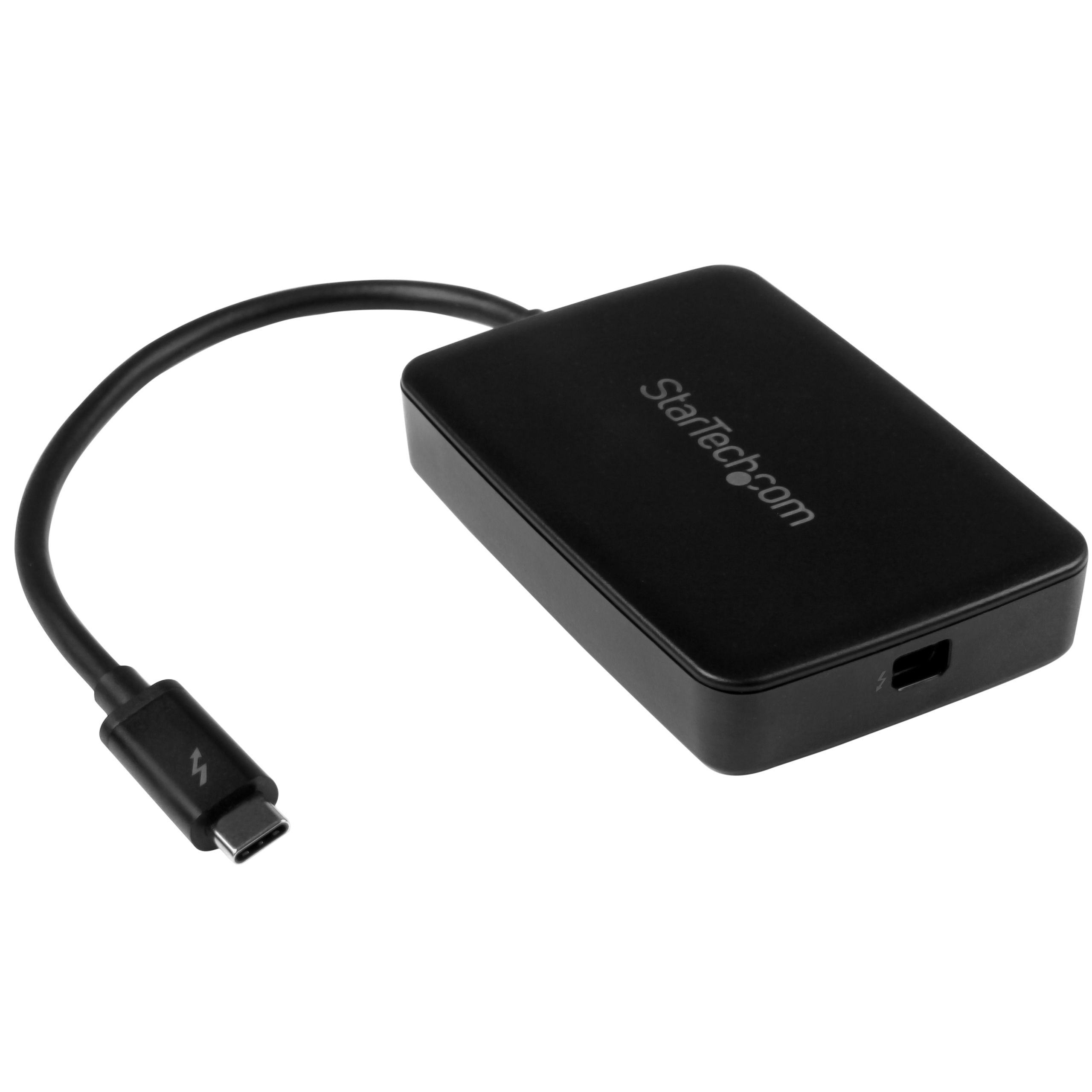

Thunderbolt 3 to Thunderbolt Adapter
Use first-generation Thunderbolt and Thunderbolt 2 devices with your new Thunderbolt 3 computer
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Product Name Thunderbolt 3 to Thunderbolt Adapter Product Number TBT3TBTADAP UPC 065030864138 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Other > Unclassifiables Category Level 1 Hubs Category Level 2 Thunderbolt Hubs & Adapters Category Level 3 Thunderbolt 3 Adapters Family Thunderbolt 3 Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX047X Product Title (Ultra-Short) Thunderbolt 3 Adapt. Product Title (Short) Thunderbolt 3 to Thunderbolt 2 Adapter Product Title (Medium) Thunderbolt 3 to Thunderbolt Adapter - Windows and Mac Product Title (Standard) Thunderbolt 3 to Thunderbolt 2 Adapter - TB3 Laptop to TB2/TB1 Displays & Devices - Thunderbolt Converter - Windows & Mac Product Title (Long) Thunderbolt 3 to Thunderbolt 2 Adapter - TB3 Laptop to TB2 Displays & Devices - Thunderbolt 2 20Gbps or Thunderbolt 1 10Gbps Converter - Thunderbolt 3 Certified- Windows/Mac Product Title (AMZ) Thunderbolt 3 to Thunderbolt 2 Adapter (Non-Reversible) - TB3 Laptop to TB2 (20Gbps) or TB1 (10Gbps) Devices / Displays - Black - Windows/Mac (TBT3TBTADAP) Title Ingram (Part 1) Thunderbolt 3 USB-C to Title Ingram (Part 2) Thunderbolt Adapter Website Product Headline Use first-generation Thunderbolt and Thunderbolt 2 devices with your new Thunderbolt 3 computer Bullet 1 THUNDERBOLT 3 TO THUNDERBOLT ADAPTER: Enables Thunderbolt 3 laptops to connect with older Thunderbolt 2 (20Gbps) and Thunderbolt 1 (10Gbps) peripherals; Connect TB1/TB2 devices like external storage drive bays, or Thunderbolt Displays to your TB3 laptop Bullet 2 THUNDERBOLT 3 CERTIFIED: Compatible w/ TB3 certified laptops like MacBook Air & MacBook Pro, Dell XPS 13 & 15, Latitude, Precision, Lenovo ThinkPad X1, P series, HP EliteBook; Requires TB3 host (laptop or desktop must be equipped with Thunderbolt 3 port) Bullet 3 COMPATIBLE WITH THUNDERBOLT DISPLAYS: This TB3 to TB2/TB1 adapter enables use of older Thunderbolt monitors (27" Apple Thunderbolt Displays/LG Ultrawide TB2 display) w/ certified Thunderbolt 3 laptops; Windows and macOS compatible Bullet 4 TECH SPECS: Bus-powered; Provides up to 12W of power for peripherals; Features a physical Mini DisplayPort connector but it is not capable of adapting to mini DisplayPort / DisplayPort signal; Only compatible w/ Thunderbolt peripherals; 8in built-in cable Bullet 5 COMPATIBILITY NOTE: This Thunderbolt 3 to Thunderbolt 2 adapter is NOT BIDIRECTIONAL and will not connect TB3 peripherals to computers with TB1/TB2 ports; This adapter is not compatible w/ Mini DisplayPort / DisplayPort monitors or Thunderbolt 4 computers Bullets (Compact) Thunderbolt 3 to Thunderbolt 2 adapter lets you use TB2/TB1 peripherals/displays w/ a TB3 laptop - Bus-powered TB3 to TB2/TB1 converter - Provides up to 12W of power for peripherals - 7.9" cable - Win/macOS - Only works w/ TB3 laptops - TB3 Certified Bullets (Consolidated) Thunderbolt 3 to Thunderbolt 2/Thunderbolt adapter lets you connect older TB2 (20Gbps) and TB1 (10Gbps) peripherals to a TB3 host - Thunderbolt 3 certification assures compatibility w/ TB3 certified laptops; TB3 host required - Ability to use older Thunderbolt displays w/ Certified Thunderbolt 3 laptops - TB3 to TB2/TB1 converter is bus-powered/provides up to 12W of power for peripherals/Windows macOS/7.9" attached cable - Will not connect TB3 peripherals to computers w/ TB1/TB2 ports Marketing Copy Marketing Copy (No HTML) Applications Connect Windows and Mac based Thunderbolt 3 computers to older Thunderbolt devices, such as external hard drives, Thunderbolt displays, and older Thunderbolt capable Mac computers Website Search Keyword - thunderbolt to thunderbolt 3 type c
- thunderbolt to thunderbolt 3 type c adapter
- thunderbolt to thunderbolt 3 type-c
- thunderbolt to thunderbolt 3 type-c adapter
- thunderbolt to thunderbolt usb c
- thunderbolt to thunderbolt usb c adapter
- thunderbolt to thunderbolt usb-c
- thunderbolt to thunderbolt usb-c adapter
- thunderbolt 3 to thunderbolt
- Thunderbolt 3 to Thunderbolt Adapter
- Thunderbolt™ 3 to Thunderbolt Adapter
- thunderbolt 3 to thunderbolt 2 adapter
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - This adapter is compatible with Thunderbolt™ displays only. It will not work with Mini DisplayPort (mDP) or DisplayPort (DP) monitors.
- This is an 'Active' adapter cable. Any host system that doesn’t provide the full 15W of bus power won’t work with this device. Consult the manufacturer of your host system to determine how much bus power your host system provides.
- TBT3TBTADAP can pass 12W of power through the Thunderbolt 2 port
- Not compatible with the Apple Thunderbolt Display when used with a Mac with an M1 processor
- Not compatible with Thunderbolt 4 computers
Related Products - TBOLTMM1M
- TBOLTMM2M
- TBOLTMM3M
- TBOLTMM50CM
Input Voltage 5V DC Output Voltage (V) 5 DC Cable Length (mm) 200 Color Black Primary Material Plastic Product Length (mm) 280.000 Product Width (mm) 59.000 Product Height (mm) 16.000 Product Weight (g) 58.000 TAA Compliant No Maximum Data Transfer Rate OS Compatibility - macOS Sierra (10.12)
- Windows 10
- Windows 8
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Connector Plating Nickel Carton Depth (mm) 308 Carton Height (mm) 310 Carton Quantity 72 Carton Weight Gross (g) 7188 Included in Package 1 - Thunderbolt™ 3 to Thunderbolt Adapter Package Depth (mm) 81 Package Height (mm) 25 Package Width (mm) 178 Package Quantity 1 Package Weight (g) 90 Packaging Description Thunderbolt™ 3 to Thunderbolt adapter Packaging Description India Thunderbolt™ 3 to Thunderbolt Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 40Gbps) Connector 1 (Quantity) 1 Connector 2 USB-C (Thunderbolt 20Gbps) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2016-02-03 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology Thunderbolt 3 Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Production Release 2016-01-22 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle None
