TR-M2-REMOVABLE-PCIE

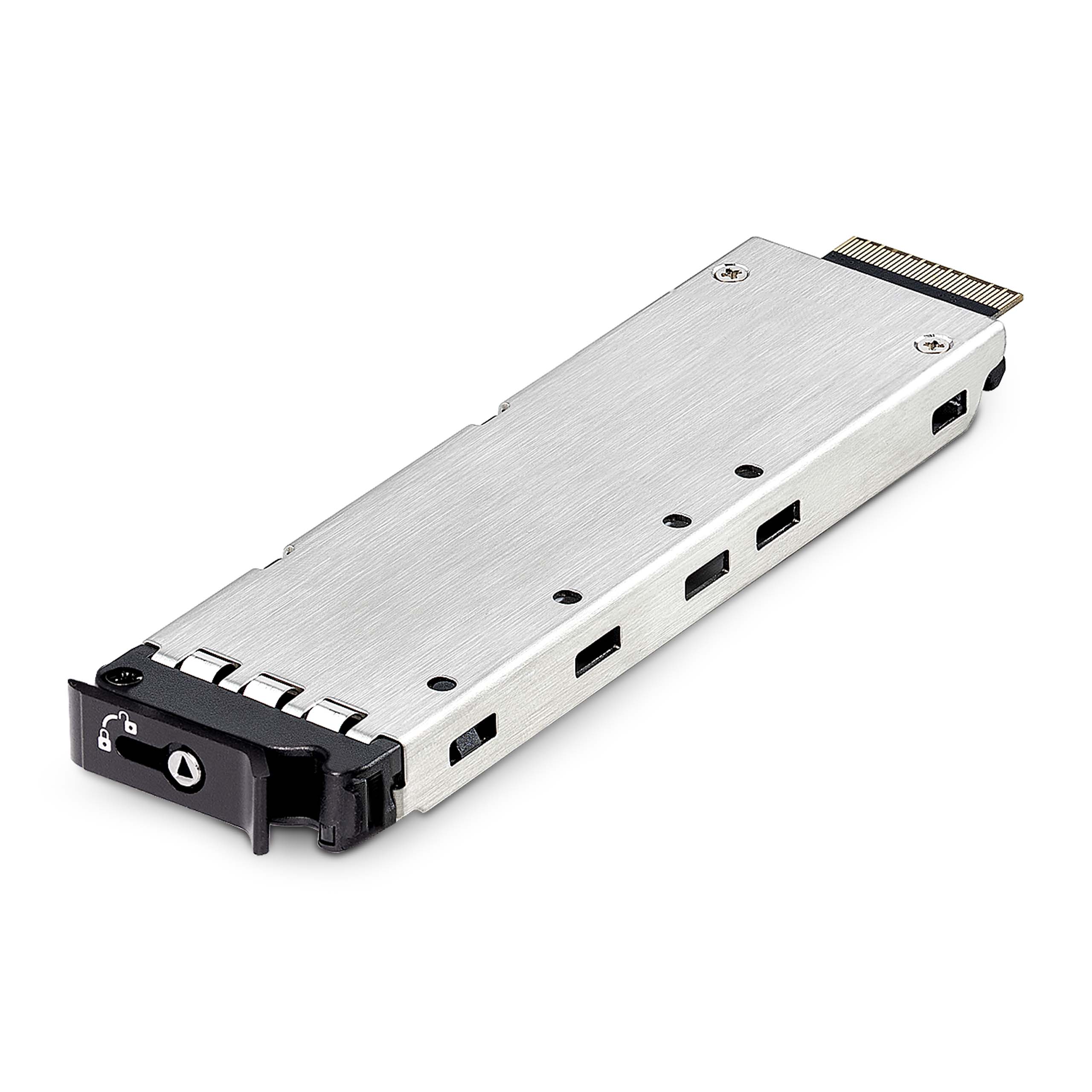

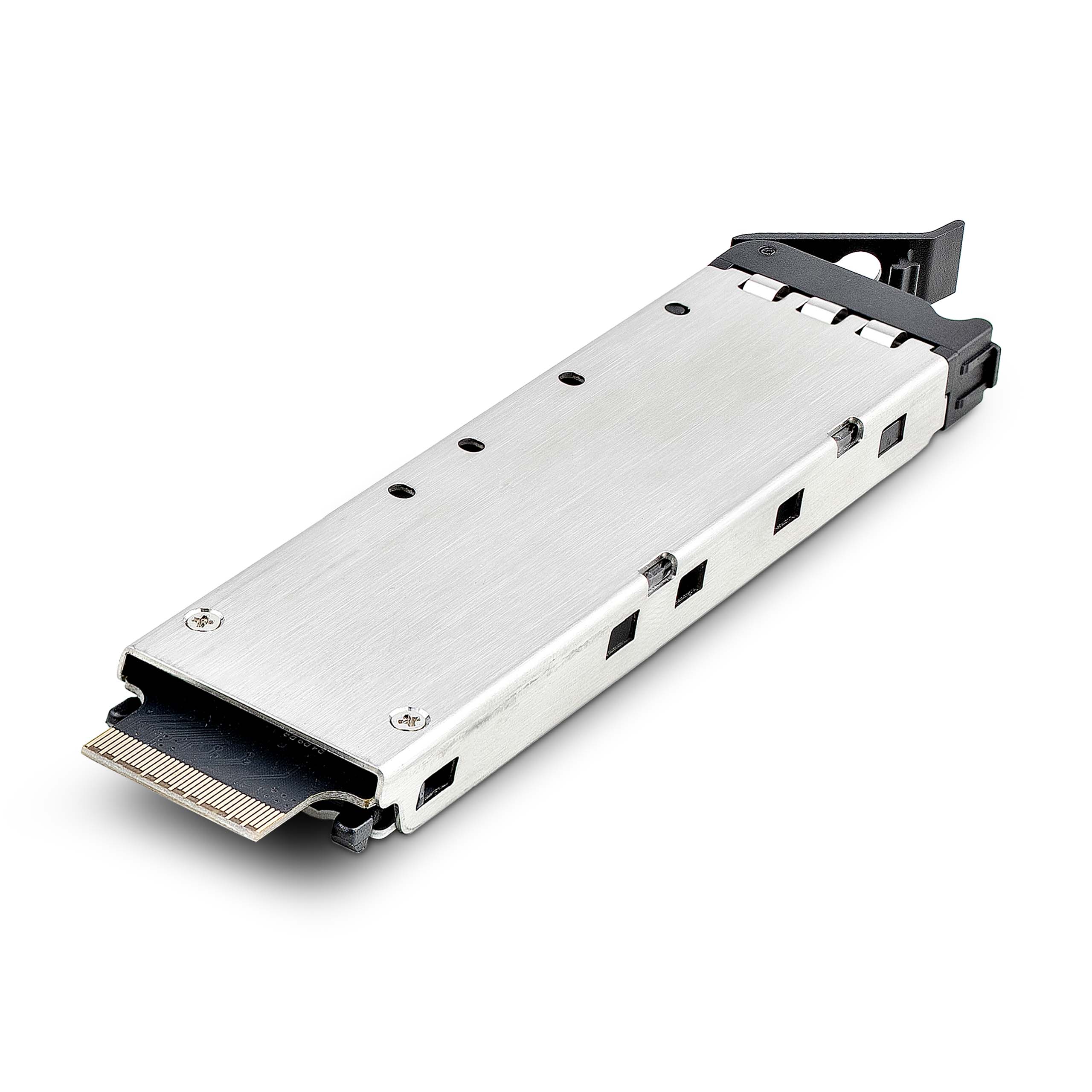

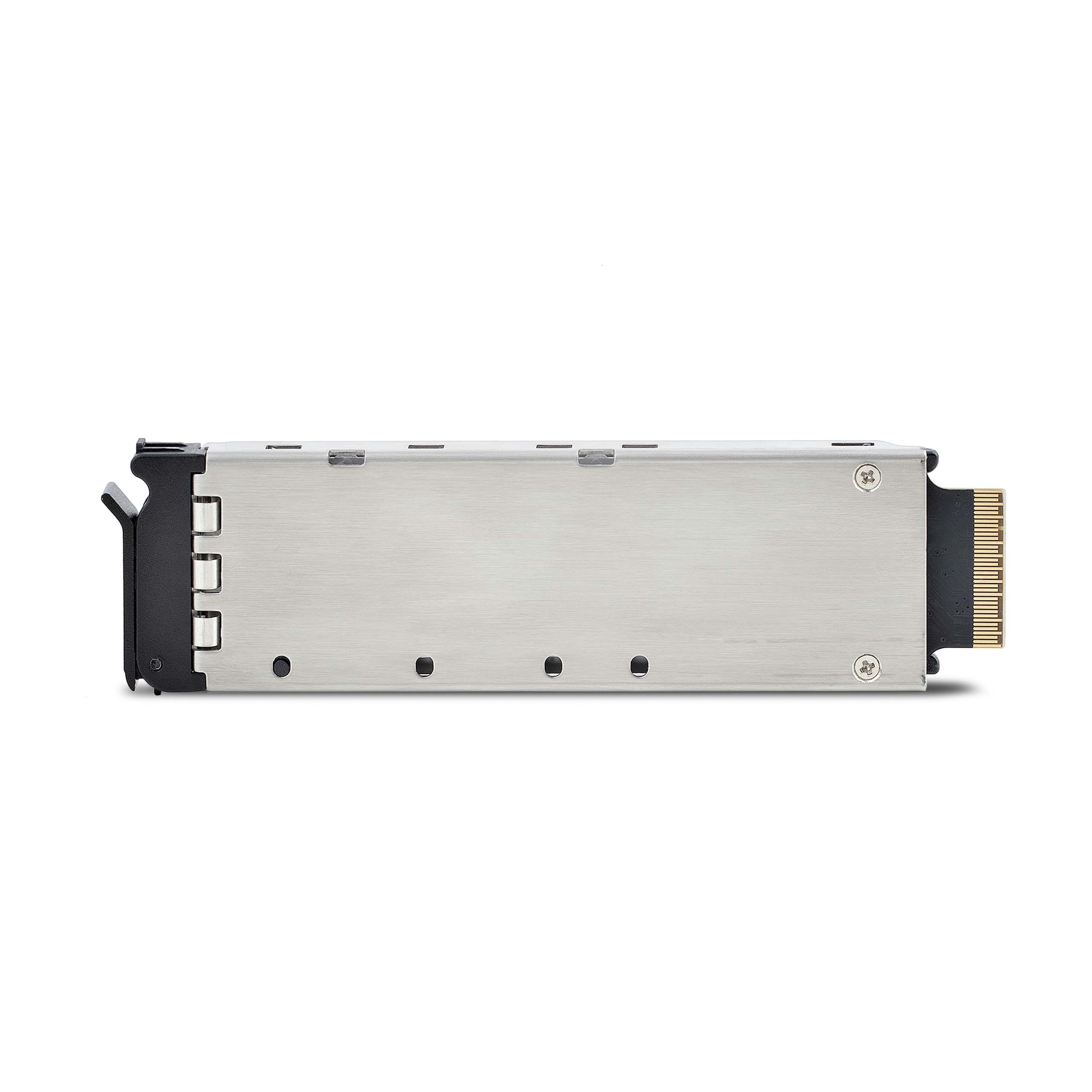

Spare Removable M.2 Drive Tray
A spare drive tray to add and/or swap a 2230, 2242, 2260, or 2280 M-Key NVMe M.2 SSD
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name Spare Removable M.2 Drive Tray Product Number TR-M2-REMOVABLE-PCIE UPC 065030900393 Lifecycle status Active Warranty 2 Years Weighted Opportunity 12086 Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 M.2 Drive Mounting Family Removable M.2 NVMe Bay for PCIe Slot Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX122X Product Title (Ultra-Short) M.2 NVMe Drive Tray Product Title (Short) M.2 Drive Tray for PCIe Expansion Series Product Title (Medium) M.2 NVMe SSD Drive Tray for use in PCIe Expansion Product Series Product Title (Standard) M.2 NVMe SSD Drive Tray for use in PCIe Expansion Product Series, Drive Tray for an Additional Hot Swappable Drive Product Title (Long) M.2 NVMe SSD Drive Tray for use in PCIe Expansion Product Series - Drive Tray for an Additional Hot Swappable Drive Product Title (AMZ) M.2 NVMe SSD Drive Tray for PCIe Expansion Product Series - Drive Tray for an Additional Hot Swappable Drive Title Ingram (Part 1) M.2 NVMe SSD Drive Tray - Title Ingram (Part 2) For PCIe Expansion Product Series Website Product Headline A spare drive tray to add and/or swap a 2230, 2242, 2260, or 2280 M-Key NVMe M.2 SSD Bullet 1 ADDITIONAL DRIVE TRAY: Use with M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE for additional hot-swapable drives; Supports 2230, 2242, 2260, and 2280 M-Key M.2 NVMe SSDs; Capable of reaching high-performance read/write speeds up to 64Gbps Bullet 2 TOOLLESS INSTALLATION: Install an M.2 drive into the drive tray without the need for tools; Power/Activity LED indicator; Drive tray features a latching mechanism and is lockable for secure installation (2 keys incl.) Bullet 3 PREMIUM BUILD: Tray features thermal pads and aluminum cover to aid heat dissipation; Anti-vibration springs on the drive tray reduce vibration; Optional drive mounting screw for stability Bullet 4 COMPATIBILITY: No drivers or software required and works on any operating system including Windows, Windows Server, Linux; Requires base product of M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE to be used; Not compatible with M.2 SATA drives Bullet 5 HOT SWAP: This additional drive tray offers flexibility and convenience when working with multiple drives; PCIe hot swap support is dependent on the motherboard, check with the board manufacturer to confirm support Bullets (Compact) Use with M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE for additional hot-swap drives; Supports up to 2280 M-Key M.2 NVMe SSDs; Tool-less installation; Lockable (2 keys incl.); Tray with thermal pads/anti-vibration springs; No drivers/software required Bullets (Consolidated) - Compatible with M2-REMOVABLE-PCIE-N1 and 2M2-REMOVABLE-PCIE to add hot-swapable drives - Supports 2230/2242/2260/2280 M-Key M.2 NVMe SSDs; Toolless installation; Lockable Drive Tray (2 keys incl.) - Tray features thermal pads and anti-vibration springs - No drivers/software required; Not compatible with M.2 SATA drives - Requires base product of M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE Marketing Copy Marketing Copy (No HTML) Applications - Streamline backup and archiving operations by replacing a drive without shutting down the host computer
- Ideal for data recovery, maintenance, and storage scalability
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- WEEE - Waste - European Union - DO NOT USE - EU Waste Electrical and Electronic Equipment Directive (WEEE) - Declaration
- WEEE - Waste - United Kingdom - DO NOT USE - UK Waste Electrical and Electronic Equipment (WEEE) Regulations 2013.
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark

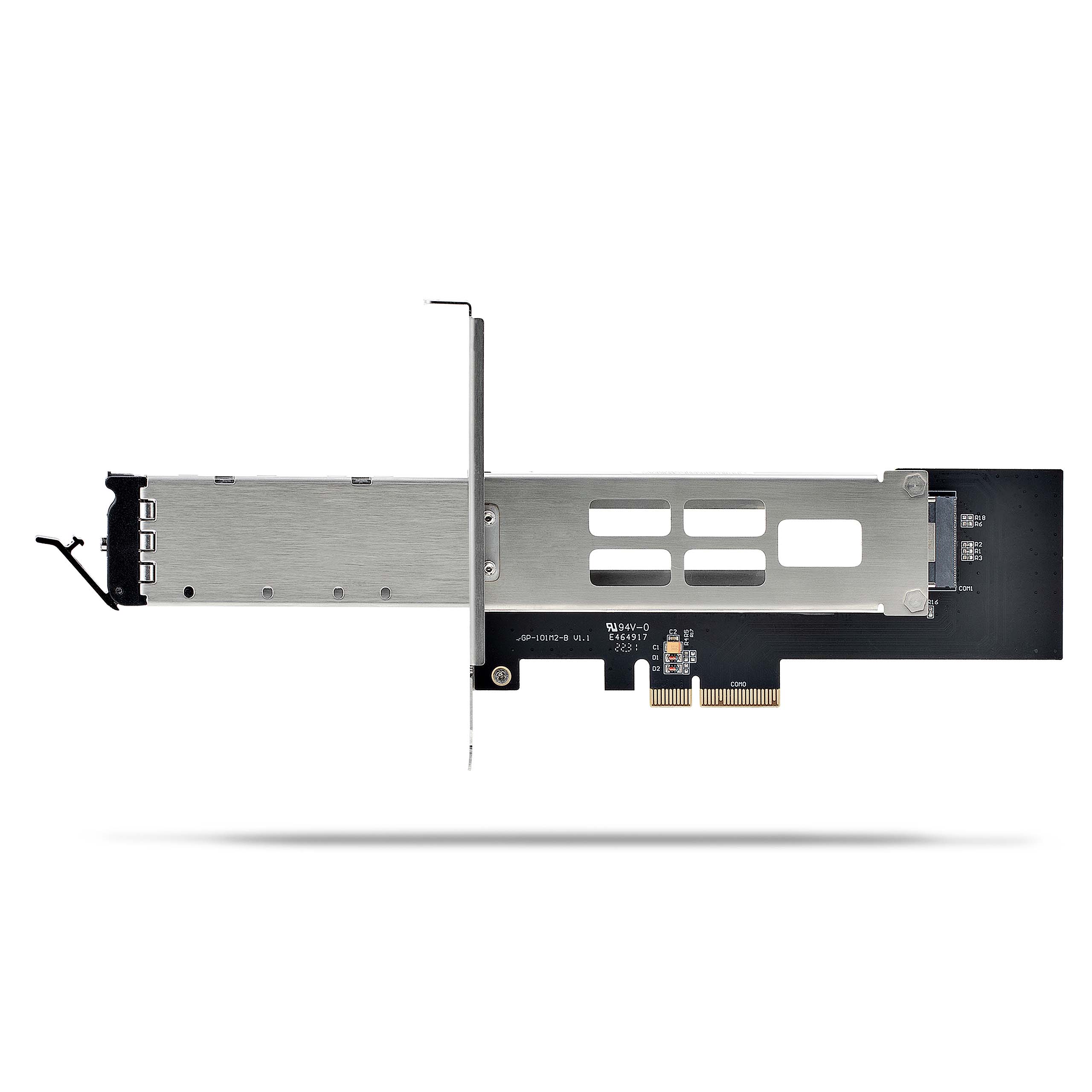

System and Cable Requirements Requires the base product M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE Related Products - M2-REMOVABLE-PCIE-N1
- 2M2-REMOVABLE-PCIE
Color Black & Silver Humidity 0% ~ 90% RH Operating Temperature 0⁰C to 65⁰C (32°F to 149°F) Product Length (mm) 124.000 Product Width (mm) 34.000 Product Height (mm) 12.000 Product Weight (g) 36.000 Storage Temperature -35⁰C to 70⁰C (-31°F to 158°F) TAA Compliant No 4Kn Support Yes Hot Swap Capability Yes Maximum Data Transfer Rate 64Gbps OS Compatibility OS Independent RAID No SATA Type and Rate PCI Express 4.0 (16 Gbps per lane) S.M.A.R.T. Support Yes TRIM Support Yes Bus Type PCI Express Compatible Drive Types M.2 (PCIe, NVMe, M-Key, NGFF) Front Door Key Lock Yes Industry Standards PCI Express 4.0 LED Indicators Number of Drives 1 Supported Drive Height(s) - 2230
- 2242
- 2260
- 2280

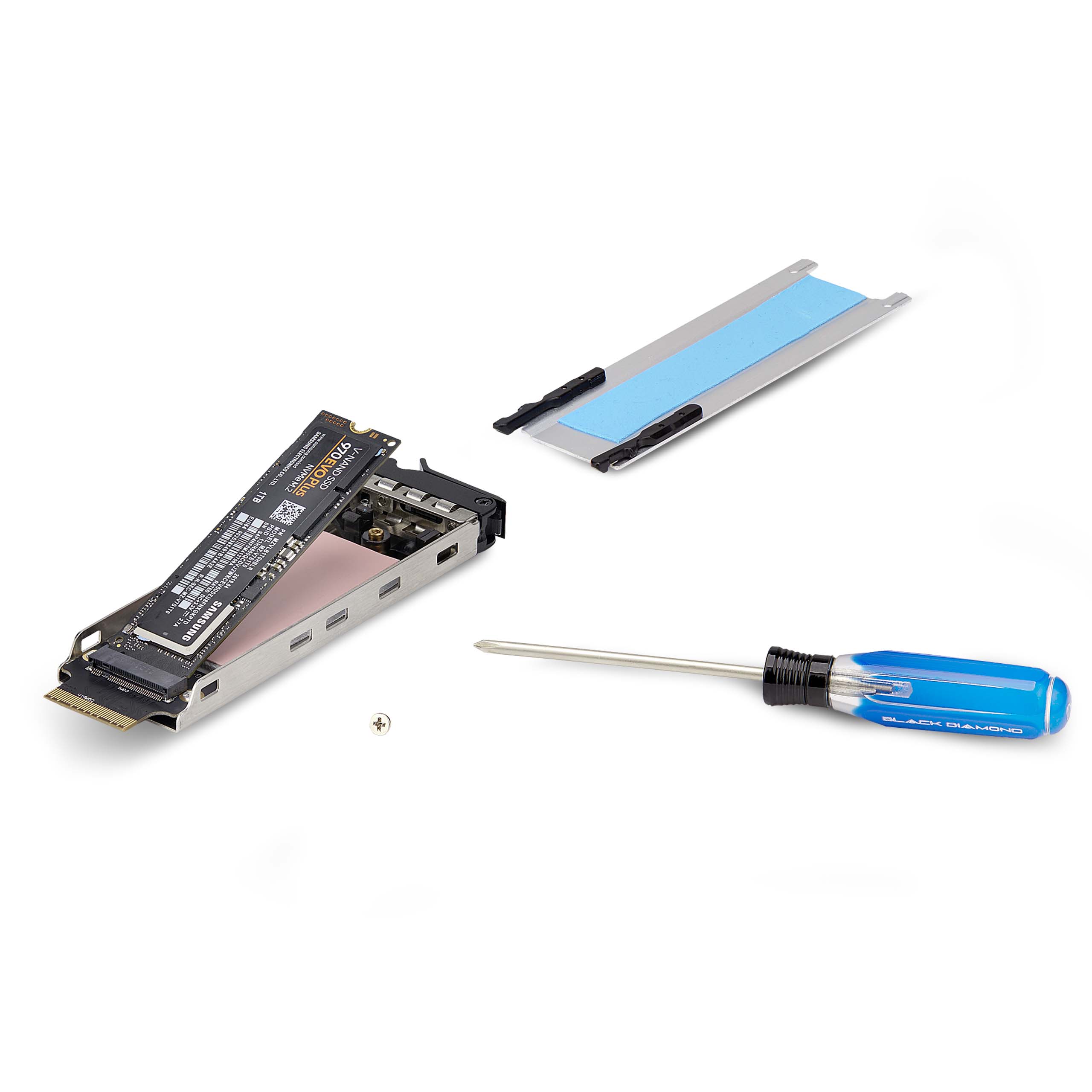

Carton Depth (mm) 450 Carton Height (mm) 265 Carton Quantity 100 Carton Weight Gross (g) 9150 Included in Package - 1 - M.2 Drive Tray
- 1 - Adhesive Heatsink Pad
- 1 - Quick-Start Guide
Included In Package for Label - 1 - M.2 Drive Tray
- 1 - Adhesive Heatsink Pad
- 1 - Quick-Start Guide
Package Depth (mm) 74 Package Height (mm) 23 Package Width (mm) 147 Package Quantity 1 Package Weight (g) 88 Packaging Description Spare Removable M.2 Drive Tray Packaging Description India Spare Removable M.2 Drive Tray Sub-Carton Depth (mm) 410 Sub-Carton Height (mm) 257 Sub-Carton Width (mm) 324 Sub-Carton Weight (g) 0 Connector 1 M.2 M-Key (PCIe, AHCI / NVMe) Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2023-11-30 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment First M.2 removable tray for M2-REMOVABLE-PCIE-N1 parent SKU Comparable SKU 2 Comment First M.2 removable tray for M2-REMOVABLE-PCIE-N1 parent SKU Digital Content Due Date 2024-02-06 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,JP,NL,PE,SE,UK,US Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2023-09-20 Target Production Release 2023-10-31 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle Mainstream Video Not Required
