TV-WALL-MOUNT-65FS
Full Motion TV Wall Mount Single dual swivel arm 65 4
Mount a flat or curved 400x400 VESA display to a wall in both residential and commercial environments
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Full Motion TV Wall Mount Single dual swivel arm 65 4 Product Number TV-WALL-MOUNT-65FS UPC 065030897983 Lifecycle status Active Warranty 5 Years Weighted Opportunity 121379 Taxonomy Product > Mechanical Products > Display Mounts Category Level 1 Display Mounts Category Level 2 TV Mounts Category Level 3 Display Wall Mounts Family Premium TV Wall Mounts Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX036X Product Title (Ultra-Short) 65inch TV Wall Mount Product Title (Short) Corner Articulating TV Wall Mount, VESA Product Title (Medium) Corner Articulating TV Wall Mount, VESA Wall Mount TV Bracket, 65inch/Curved TVs Product Title (Standard) Articulating TV Wall Mount, VESA Wall Mount TV Bracket for 65 inch/99lb/Curved TVs, Corner Adjustable and Low Profile, TAA Product Title (Long) Articulating TV Wall Mount, VESA Wall Mount, Supports 26 to 65 inch/99lb/Flat/Curved TVs, Retractable Low Profile Wall Mount TV Bracket, Adjustable Corner TV Wall Mount - TAA Product Title (AMZ) Articulating TV Wall Mount, VESA Wall Mount, Supports 65 inch/99lb/Flat/Curved TVs, Retractable Low Profile Wall Mount TV Bracket, Adjustable Corner TV Wall Mount , TAA Title Ingram (Part 1) Articulating TV Wall Mount - Title Ingram (Part 2) Corner Wall Mount TV Bracket 65" TV Website Product Headline Mount a flat or curved 400x400 VESA display to a wall in both residential and commercial environments Bullet 1 PREMIUM 65" TV WALL MOUNT: Articulating wall mount TV bracket supports TVs up to 65 inches; VESA patterns from 200x100 up to 400x400; Max weight capacity 99lb (45kg); Durable and sturdy frame with silver finish; For flat or curved screen TVs Bullet 2 VERSATILE: Adjustable corner TV wall mount features tilt & swivel torque adjustment for smooth positioning; VESA wall mount features +/-90° swivel, +/-15° tilt, and double swivel arms; Low-profile TV mount allows for 4.13in from the wall and up to 22.1in Bullet 3 EASY INSTALLATION: This extendable TV wall mount ships assembled for quick deployment; Articulating TV wall mount features integrated bubble level, mounting template, and wall plate with keyhole mounting for a swift installation Bullet 4 COMPATIBILITY: Single stud TV mount for compatible TVs from Samsung, Sony, Hisense, TCL, and LG, among others; Compatible with most VESA patterns; Includes wood stud & concrete wall mounting hardware, spacers, adjustment tools, and various-sized screws Bullet 5 AESTHETIC DESIGN: Robust steel and aluminum construction with decorative covers to maintain a professional look; Built-in cable management solution ideal for customer-facing applications; Retractable TV mount requires a single wood stud for installation Bullets (Compact) Articulating TV wall mount for 65inch TVs; VESA compatible - Max cap. 99lb; For flat/curved screen TVs; Ships assembled - Steel/Aluminum adjustable corner TV wall mount; Supports swivel/tilt - Wall mount TV bracket includes mounting hardware Bullets (Consolidated) Premium articulating wall mount TV bracket for displays up to 65 inch; VESA patterns from 200x200-400x400; Max weight of 99lb; For flat/curved screen TVs - Adjustable corner TV wall mount features steel/aluminum frame; Supports +/-90 DEG swivel +/-15 DEG tilt - Steel and aluminum construction; Articulating TV wall mount features, bubble level/wall plate with keyhole mounting/cable management - Single stud TV mount includes mounting hardware/accessories; Extendable TV wall mount ships assembled Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 65 inch tv wall mount
- Adjustable TV Wall Mount
- Articulating TV wall mount
- corner tv wall mount
- curved tv wall mount
- full motion tv wall mount
- low profile tv mount
- professional tv mounting
- retractable tv mount
- vesa wall mount
- wall mount tv bracket
Required Regulatory Compliance Marks - REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Temp - N/A - Global - Used to replace duplicates or identify for removal
Accessory Products - HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M

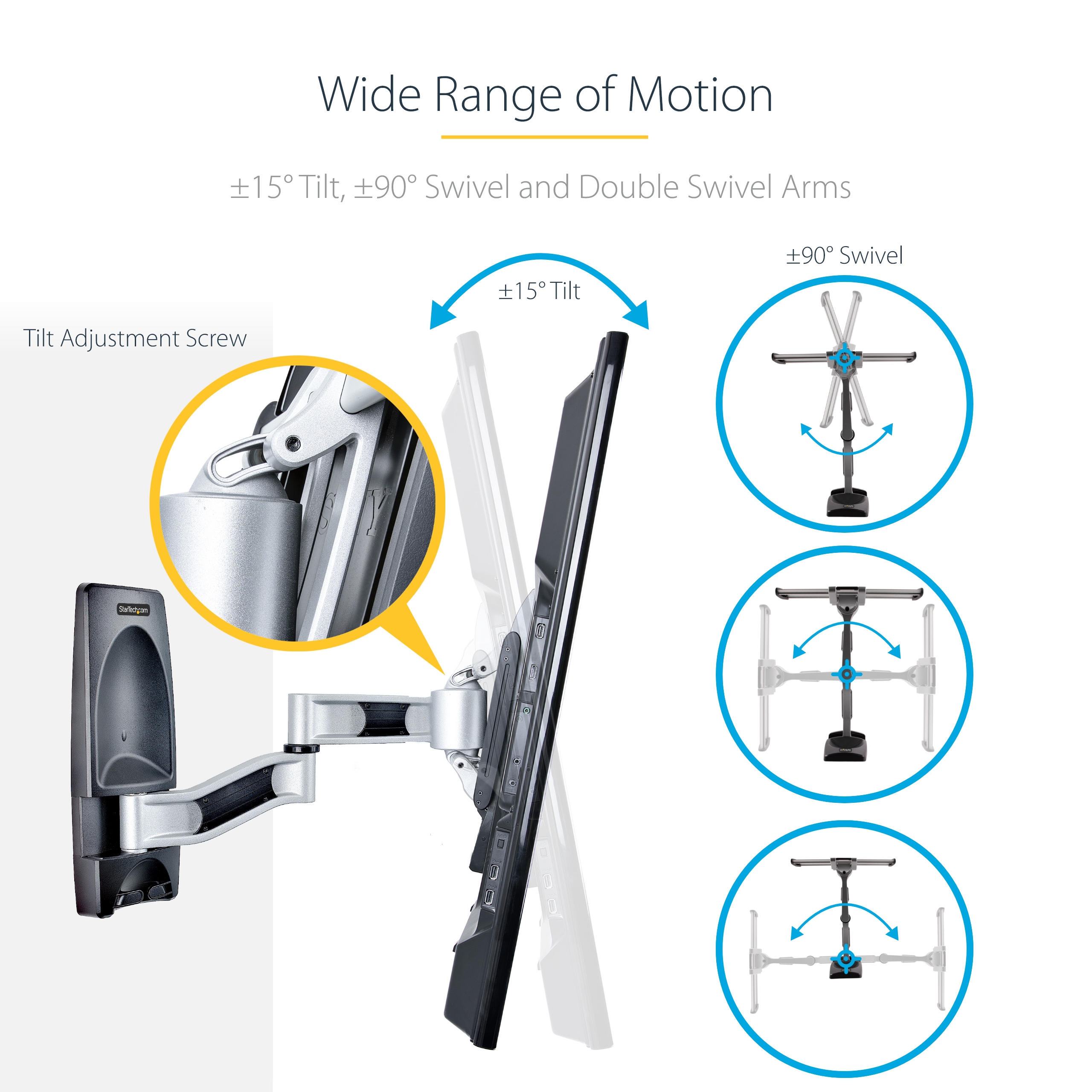

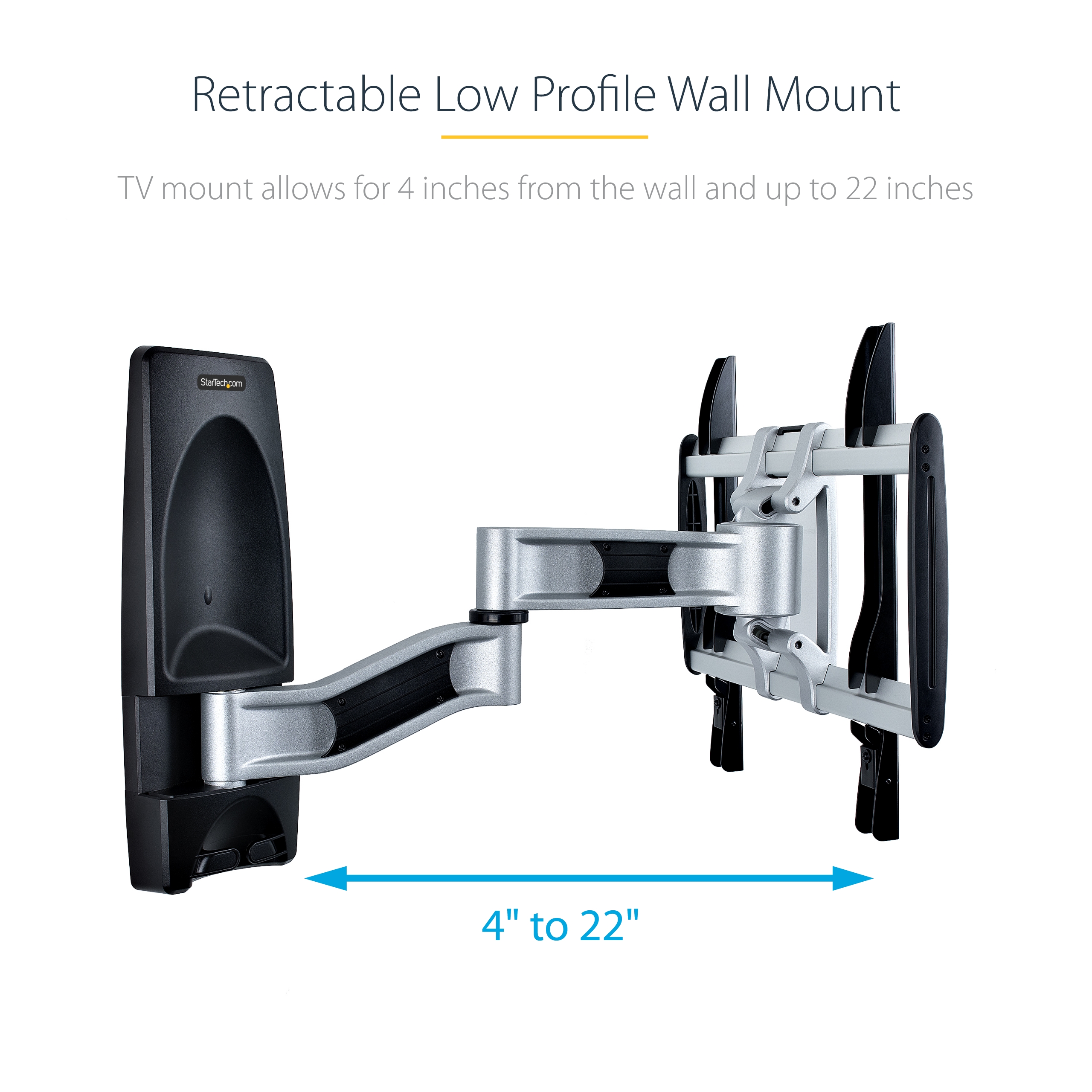

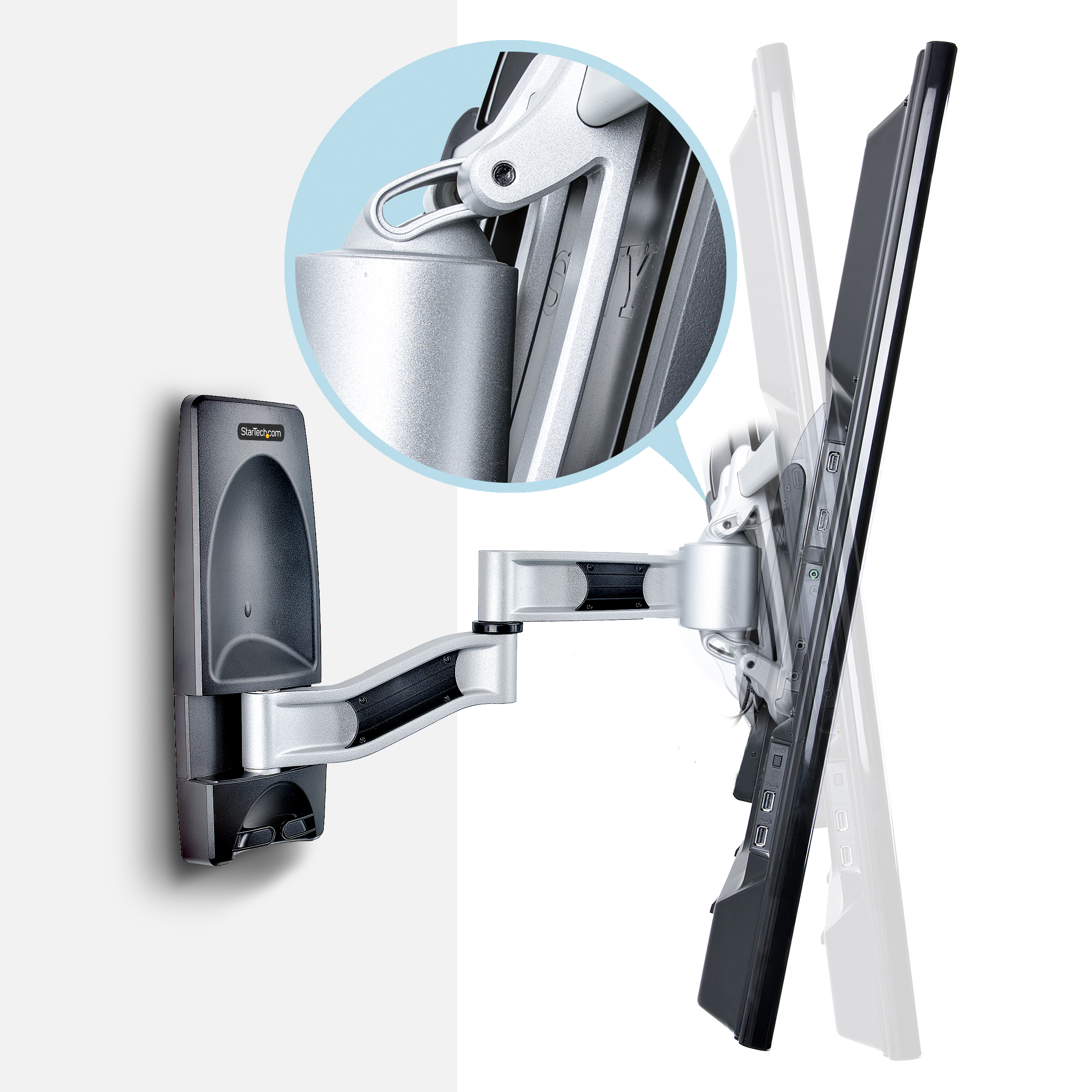

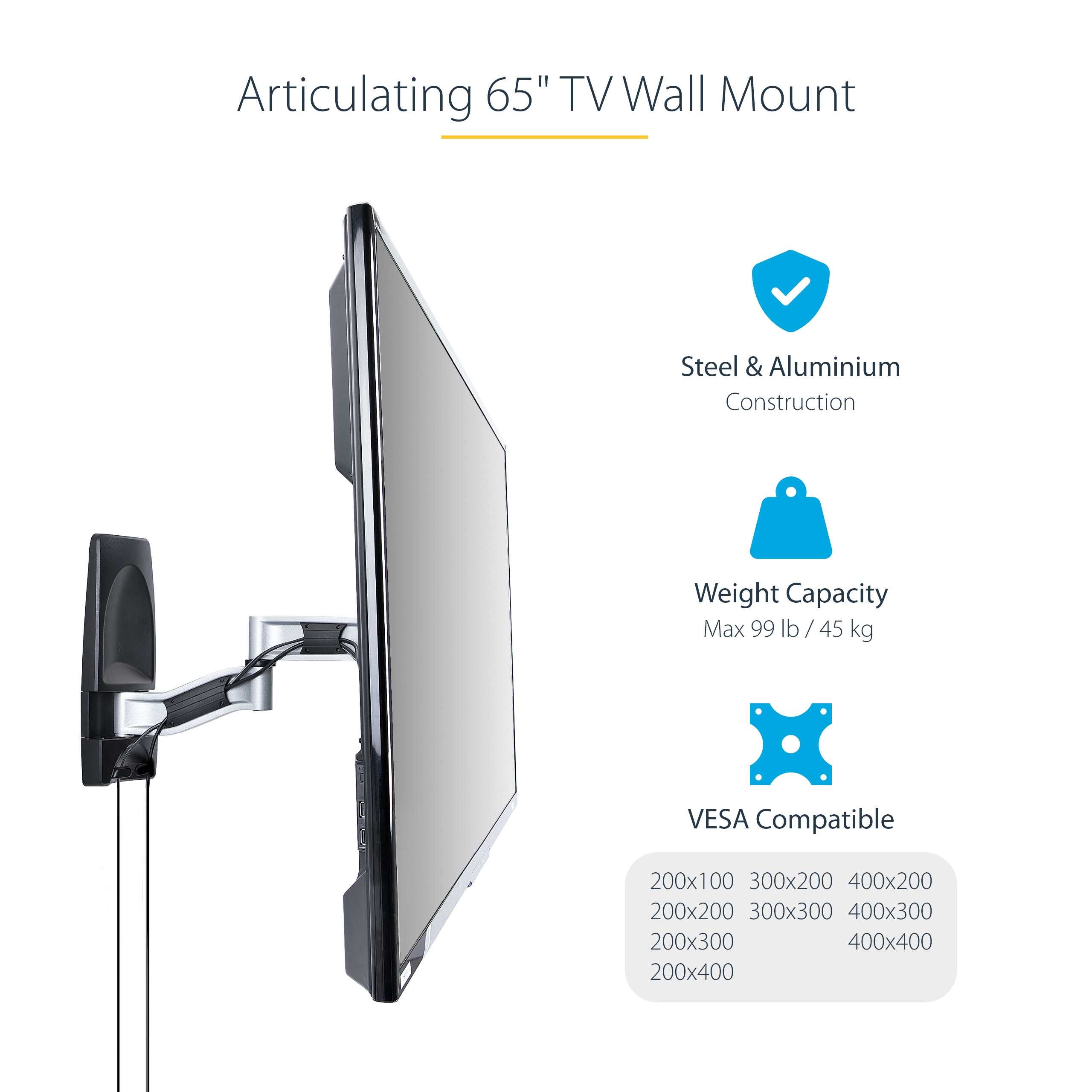

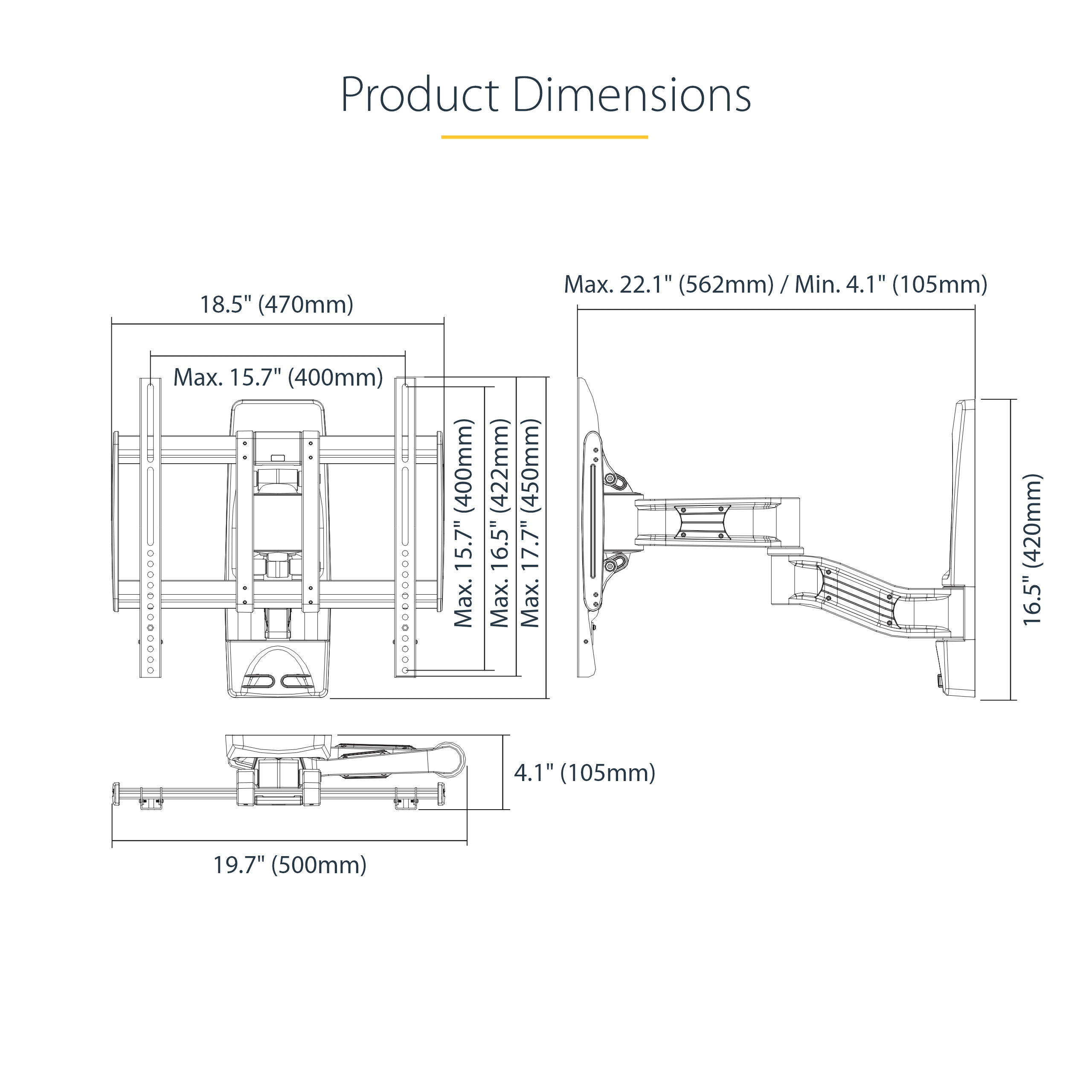

Color Black & Silver Construction Material Aluminum and Steel Primary Material Aluminum Product Length (mm) 450.000 Product Width (mm) 500.000 Product Height (mm) 105.000 Product Weight (g) 7750.000 TAA Compliant Yes Display Rotation +90° / - 90° Display Swivel 180° Display Tilt + 15° / - 15° Fits Curved Display Yes Fits UltraWide Displays Yes General Specifications - Minimum Distance to Wall: 4.1 in (10.5 cm)
- Maximum Distance to Wall: 23.1 in (56.2 cm)

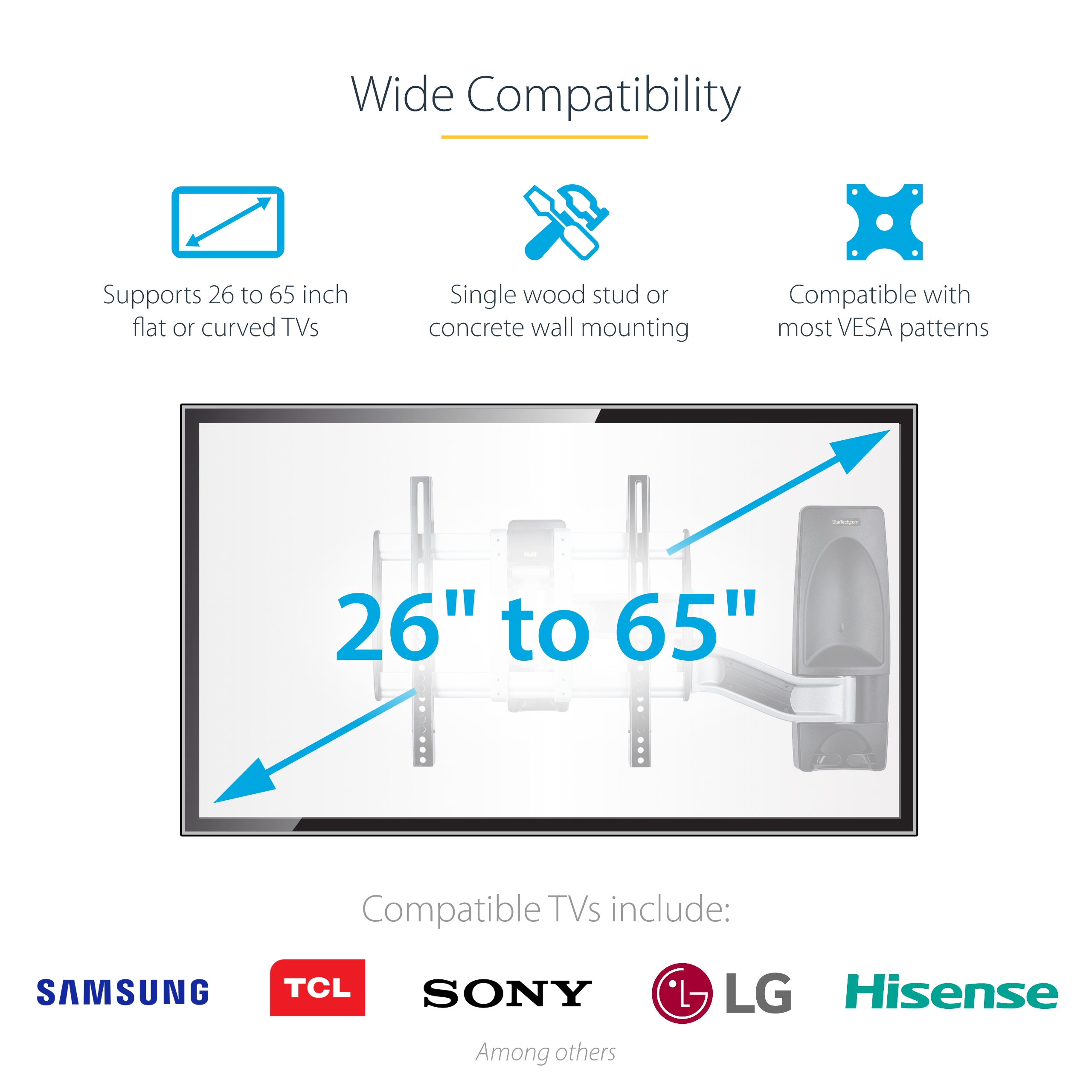

Height Adjustment No Maximum Arm Extension 562 Maximum Display Size 65" Minimum Arm Extension 105 Minimum Display Size 26in Premium Monitor Mount Yes Projector Mount No TV Weight Capacity Range up to 45 kg (99.5 lb.) Video Wall No Weight Capacity for Display Mounts (g) 45000 Your Screen Size - Up to 49"
- 50"-59"
- 60"-89"

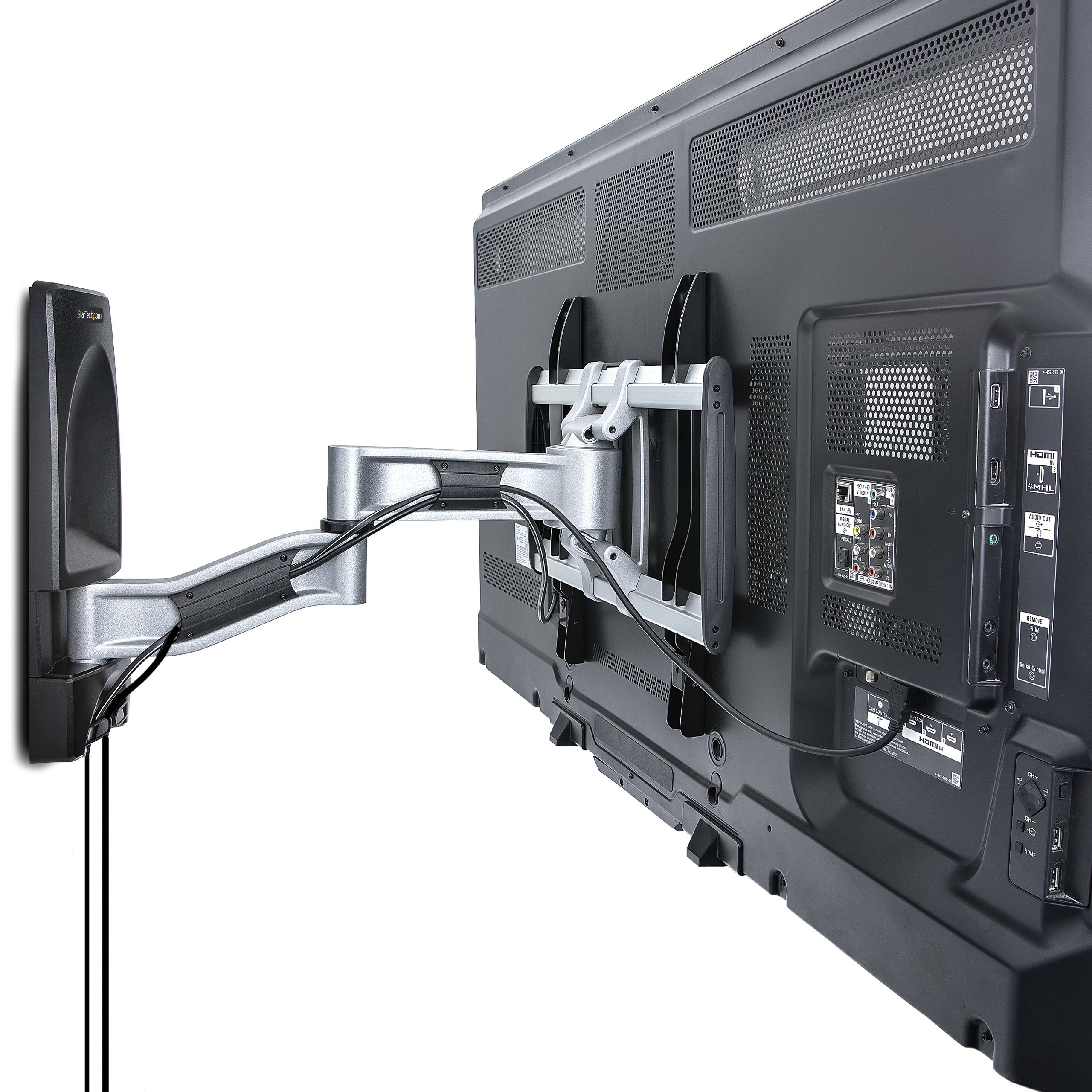

Articulating Yes Cable Management Yes Minimum Profile from Wall (mm) 105 Mounting Options Wall-Mount Number of Displays 1 Orientation Horizontal Tools Included Yes VESA Hole Pattern(s) - 200x200 mm
- 200x300 mm
- 200x400 mm
- 300x200 mm
- 300x300 mm
- 400x200 mm
- 400x300 mm
- 400x400 mm
- 200x100 mm

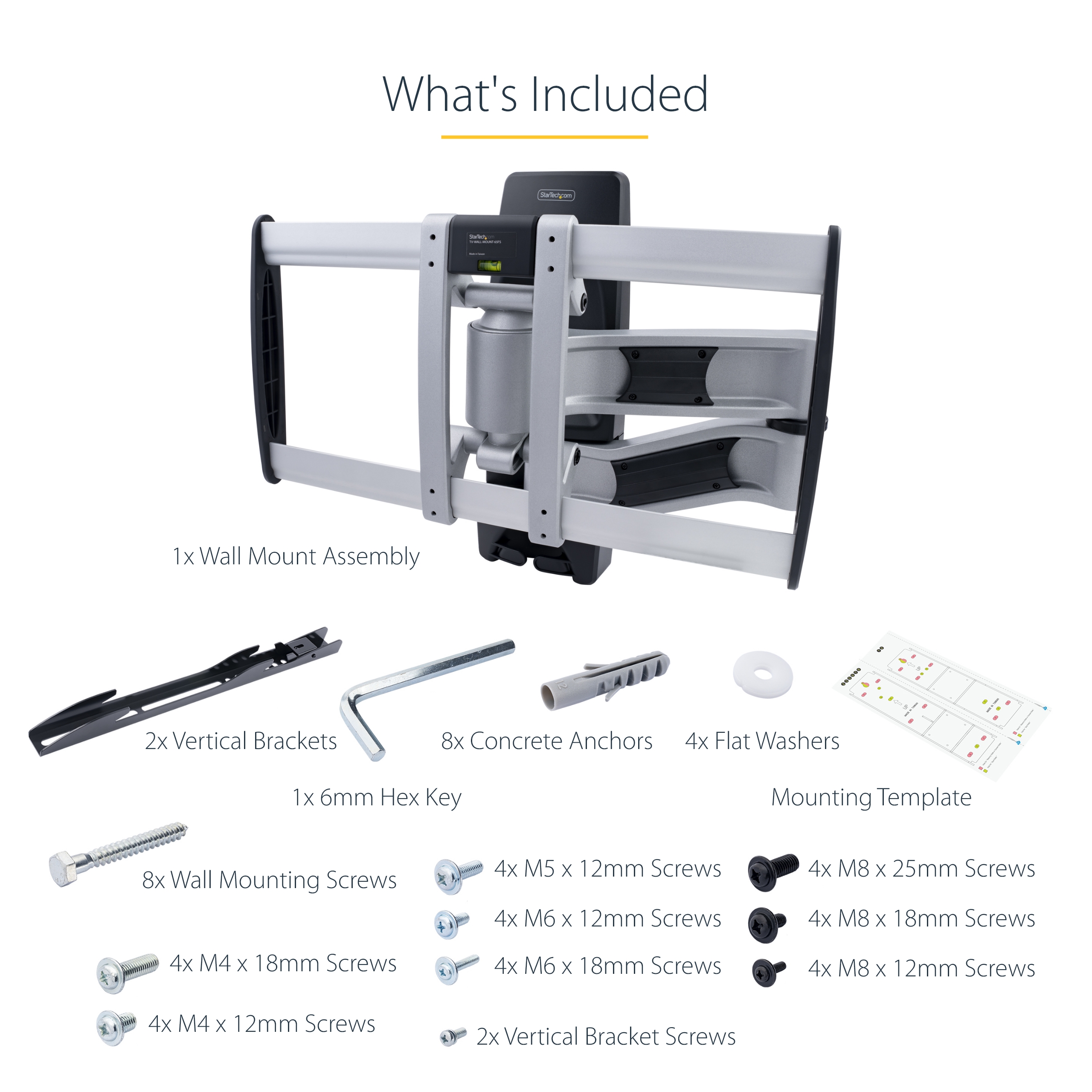

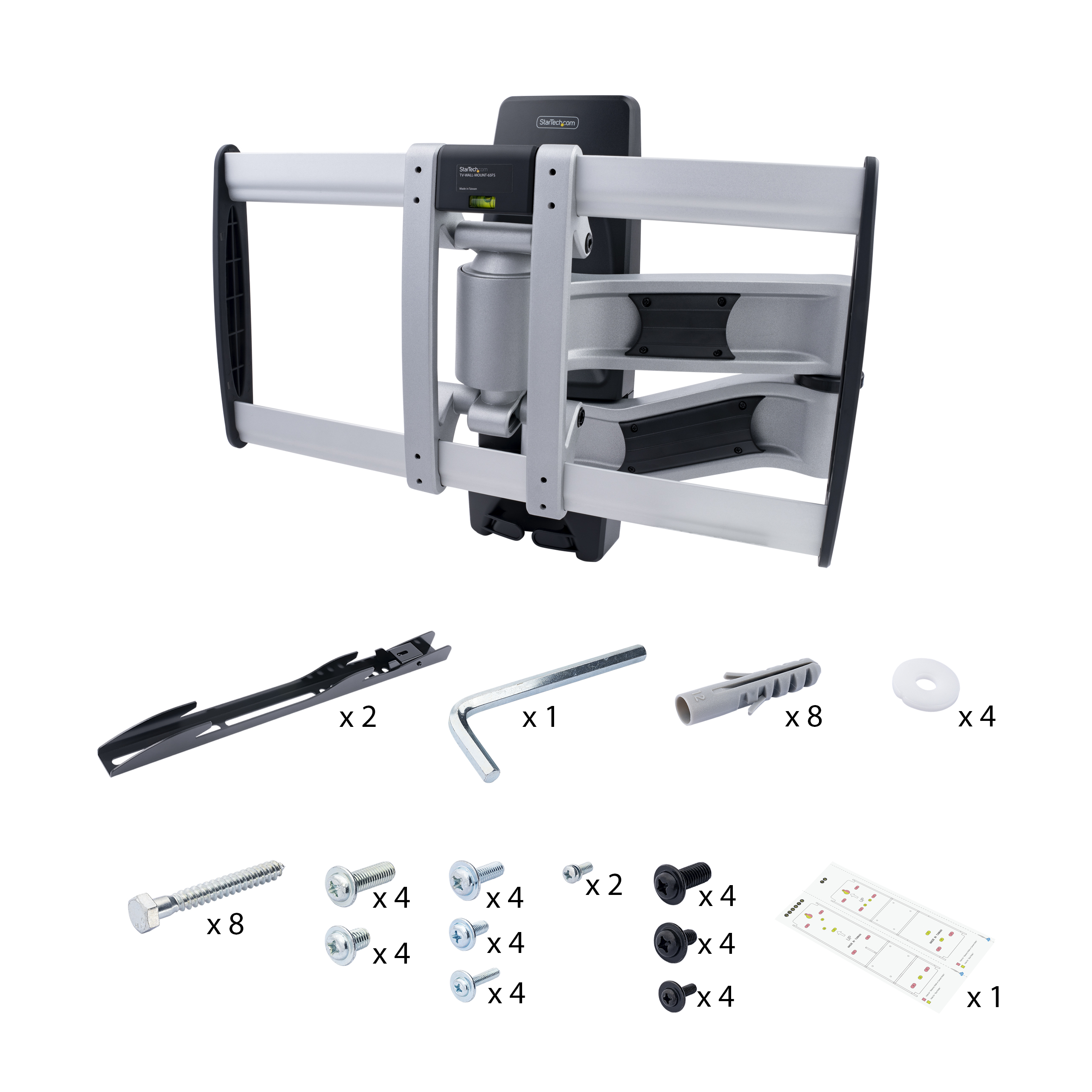

Wallmountable Yes Carton Depth (mm) 470 Carton Height (mm) 133 Carton Quantity 1 Carton Weight Gross (g) 9550 Included in Package - 1 - TV Wall-Mount Assembly
- 2 - Vertical Brackets
- 1 - 6 mm Hex Key
- 2 - Vertical Bracket Screws
- 8 - Concrete Anchors
- 8 - Wall Mounting Screws
- 4 - M4 x 12 mm Screws
- 4 - M4 x 18 mm Screws
- 4 - M5 x 12 mm Screws
- 4 - M6 x 12 mm Screws
- 4 - M6 x 18 mm Screws
- 4 - M8 x 12 mm Screws
- 4 - Flat Washers
- 4 - M8 x 18 mm Screws
- 1 - User Manual

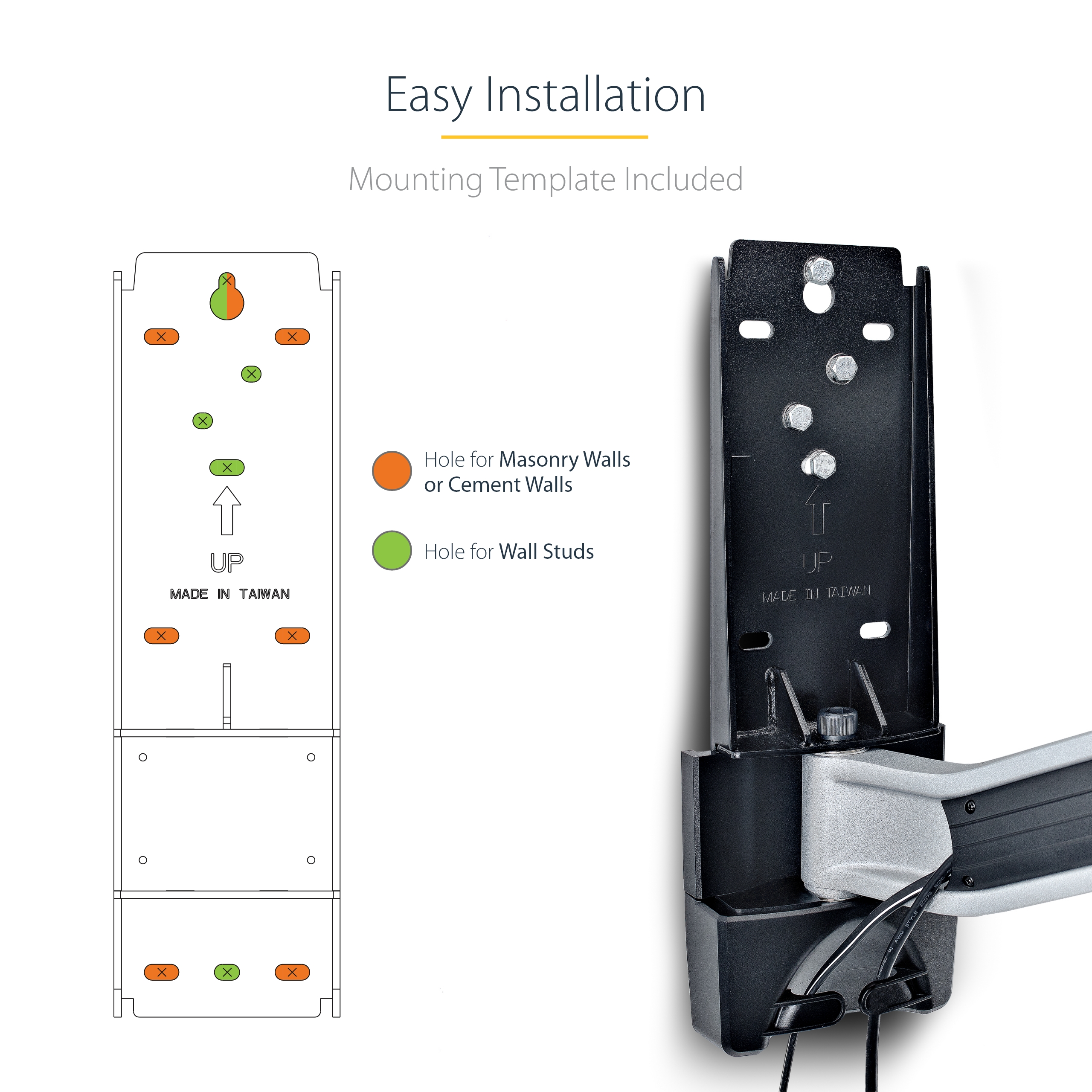

- 1 - Mounting Template
- 4 - M8 x 25mm Screws
Included In Package for Label - 1 - Tv Wall-Mount Assembly
- 1 - Hardware Kit
- 1 - Product Documentation
Package Depth (mm) 609 Package Height (mm) 150 Package Width (mm) 468 Package Quantity 1 Package Weight (g) 9666 Packaging Description Articulated TV Wall Mount up to 65 in and 99 lb - VESA Compatible Packaging Description India Articulated TV Wall Mount up to 65 in and 99 lb - VESA Compatible Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 A+ Not Required Actual Inbox Documents Created Manual in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2022-07-30 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment Higher weight capacity (165lbs) and screen size capacity (75") version of -65FS Comparable SKU 2 Comment Similar weight and size capacity - 45kg and 70" TVs resp. Digital Content Due Date 2023-03-23 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,CL,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,SG,UK,US Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2022-06-24 Target Production Release 2023-01-15 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine Video Not Required
