U01043-USB-EXTENDER
Usb 3 2 Gen 1 5Gbps 10m Repeater Cable with 4 port hub
USB Extender Hub | USB 3.0 Extension Cable with 4-Port USB Hub | Bus Powered | 32.8ft Long Cable
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name Usb 3 2 Gen 1 5Gbps 10m Repeater Cable with 4 port hub Product Number U01043-USB-EXTENDER UPC 065030897365 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB Extenders - 5Gbps Family USB Extenders - 5Gbps - Repeater Cable Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX111X Product Title (Ultra-Short) USB Extender Hub 10m Product Title (Short) USB Extender Hub 10m, 4-Port USB 3.0 Hub Product Title (Medium) USB Extender Hub, 10m USB 3.0 Extension Cable w/ 4-Port USB-A Hub, USB Repeater Product Title (Standard) USB Extender Hub, 10m USB 3.0 Extension Cable w/ 4-Port USB-A Hub, Active/Bus Powered USB Repeater Cable, ESD Protection, TAA Product Title (Long) USB Extender Hub, 10m USB 3.0 Extension Cable with 4-Port USB-A Hub, Active/Bus Powered USB Repeater Cable, Optional 20W Power Supply Included, ESD Protection - TAA Product Title (AMZ) USB Extender Hub, 10m USB 3.0 Extension Cable w/ 4-Port USB-A Hub, Active/Bus Powered USB Repeater Cable, Optional 20W Power Supply Included, Level 2 ESD Protection , TAA Title Ingram (Part 1) USB Extender Hub (10m), 5Gbps - Title Ingram (Part 2) USB 3.0 Extension Cable w/ USB Hub Website Product Headline USB Extender Hub | USB 3.0 Extension Cable with 4-Port USB Hub | Bus Powered | 32.8ft Long Cable Bullet 1 LONG-RANGE ACTIVE USB EXTENDER: 4x USB 3.0/3.2 Gen 1 (5 Gbps) Hub with built-in 32.8ft (10m) active extension cable; Power the USB extension cable via bus power or power adapter (included) Bullet 2 STABLE SIGNAL: Active repeater booster chip in the 4-Port USB Extension Hub maintains signal integrity and ensures optimal performance; Power adapter (5V/4A DC, 20W) is not required in most scenarios; Power adapter enables up to 1A per port Bullet 3 FLEXIBLE INSTALLATION: Active electronics allow the compact 4-port USB Hub extension cable to work via bus-power when no power outlets are available; Achieve a maximum range of 65.6ft (20m) by daisy-chaining two units Bullet 4 COMPATIBILITY: The USB extender supports wake-on-USB to wake host systems using USB mouse or keyboard; Backward compatible with USB 2.0/1.1; Driverless and OS independent; The USB extender Hub adds an extra layer of safety with Level 2 ESD protection Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB Hub repeater is backed for two years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) USB 3.0 extension cable 32.8ft - Bus-powered USB-A Hub 4-port USB 3.0/3.2 Gen 1 - Active USB extender Hub supports wake-on-USB; Driverless; Works on any OS; 5Gbps; Power adapter 5V/4A - Daisy chain two USB repeaters for a max range of 65.6ft Bullets (Consolidated) USB 3.0 extension cable 32.8ft with built-in USB-A Hub; USB 3.0/3.2 Gen 1 ports (x4), 5Gbps - Active repeater booster chip in the 4-Port USB Hub ensures signal integrity and performance; Included power adapter 5V/4A DC (20W) for devices requiring additional power (5V/1A per port) - Maximum range of 65.6ft by daisy-chaining two USB extender Hubs - 4-port USB repeater supports wake-on-USB to remotely wake host; Driverless and works on any OS; Level 2 ESD protection (4kV air/4kV contact) Marketing Copy Marketing Copy (No HTML) Website Search Keyword - usb a hub
- usb active extension cable
- usb active repeater cable
- 4-port usb extension cable
- 4-port usb hub
- usb 3.0 extension cable
- usb extender hub
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes The maximum recommend cable length for USB 3.0 peripherals is 9.8ft (3m) Related Products - USB2EXT4P15M
- USB2AAEXT25M
- USB2AAEXT20M
- USB2AAEXT15M
- USB2AAEXT35M
- USB3AAEXT5M
- USB3AAEXT10M
- F35023-USB-EXTENDER
Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 4.0 A Output Voltage (V) 5 DC Power Consumption (In Watts) 20 W Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Cable Length (mm) 10000 Color Silver & Black Connector Style Straight Humidity 30% - 70% Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 10081.000 Product Width (mm) 40.000 Product Height (mm) 18.100 Product Weight (g) 100.000 Storage Temperature -40°C to 55°C (-40°F to 131°F) TAA Compliant Yes Maximum Cable Length (mm) 10000 Maximum Data Transfer Rate 5 Gbps OS Compatibility OS Independent USB Speed USB 3.2 Gen 1 (5Gbps) Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Chipset ID VIA Labs - VL817 Connector Plating Nickel LED Indicators 1 - Solid Green: External Power </br> Off: No External Power Carton Depth (mm) 430 Carton Height (mm) 355 Carton Quantity 10 Carton Weight Gross (g) 8800 Included in Package - 1 - USB Active Cable with USB Hub

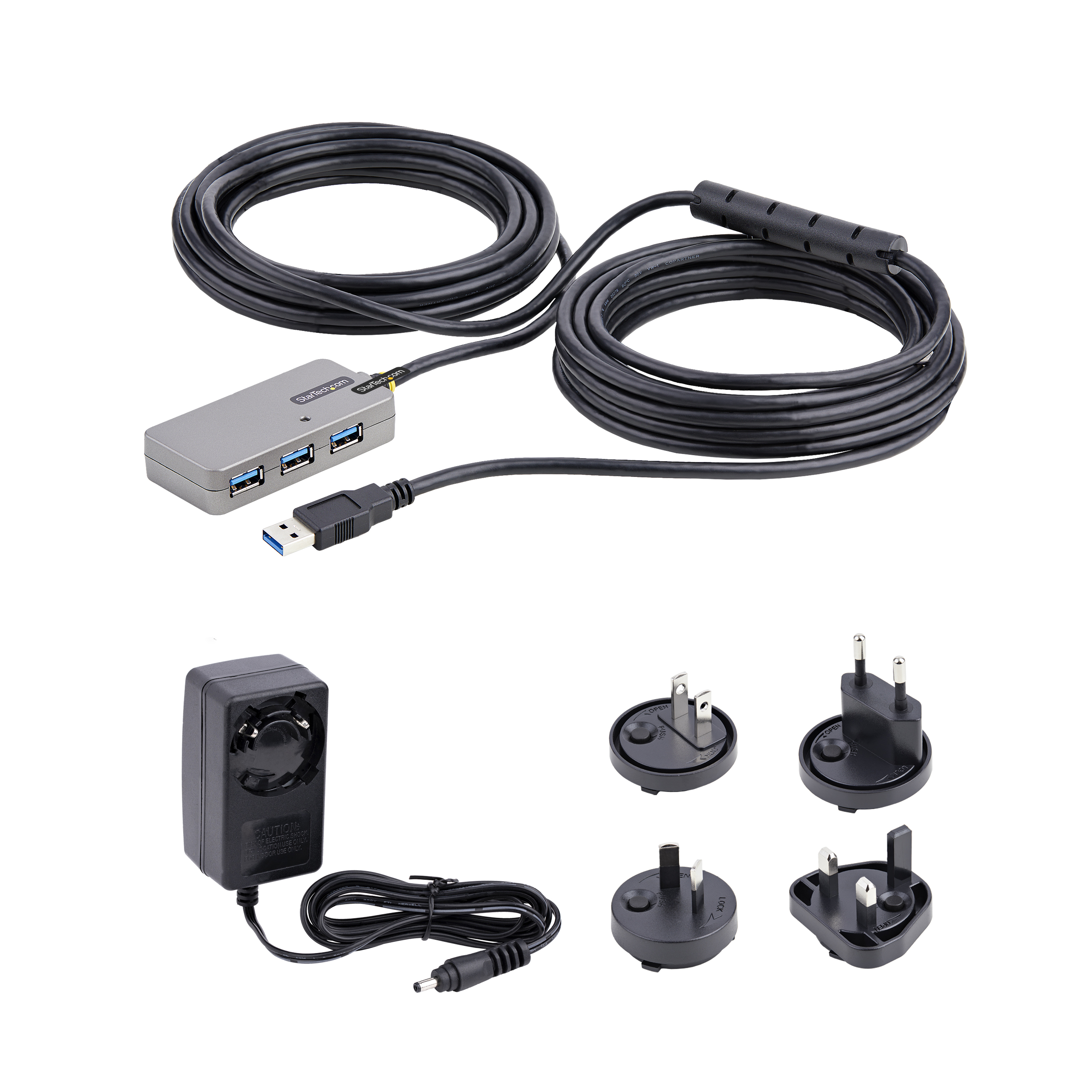

- 1 - Power Adapter
- 1 - Quick-Start Guide
Number of Sub-Cartons 10 Package Depth (mm) 200 Package Height (mm) 65 Package Width (mm) 239 Package Quantity 1 Package Weight (g) 804 Packaging Description 33ft (10m) USB 3.2 Gen 1 5Gbps Active Cable with 4-Port USB Hub Packaging Description India 33ft (10m) USB 3.2 Gen 1 5Gbps Active Cable with 4-Port USB Hub Sub-Carton Depth (mm) 200 Sub-Carton Height (mm) 65 Sub-Carton Width (mm) 235 Sub-Carton Quantity 1 Sub-Carton Weight (g) 1100 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 4 Connector 3 Barrel Power (H-Type, OD 3.4mm / ID 1.3mm) Connector 3 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Required Artwork Due Date 2022-07-22 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment Stand alone USB extender Comparable SKU 2 Comment Existing cable USB repeater (15m) Digital Content Due Date 2023-08-11 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,BE,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology USB 3.2 Gen 1 / 5Gbps Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2023-03-31 Target Production Release 2023-05-15 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None Video Not Required
