Main Image
U02442-USB-EXTENDER
USB 2 0 24m repeater cable with 4 port Hub
USB Extender Hub | USB 2.0 Extension Cable with 4-Port USB Hub | Bus-Powered | 78.7ft Long Cable
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name USB 2 0 24m repeater cable with 4 port Hub Product Number U02442-USB-EXTENDER UPC 065030897280 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > USB Extenders Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB Extenders - USB 2.0 Family USB Extenders - USB 2.0 - Repeater Cable Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX111X Product Title (Ultra-Short) USB Extender Hub 24m Product Title (Short) USB Extender Hub 24m, 4-Port USB 2.0 Hub Product Title (Medium) USB Extender Hub, 24m USB 2.0 Extension Cable w/ 4-Port USB-A Hub, USB Repeater Product Title (Standard) USB Extender Hub, 24m USB 2.0 Extension Cable w/ 4-Port USB-A Hub, Active/Bus Powered USB Repeater Cable, ESD Protection, TAA Product Title (Long) USB Extender Hub, 24m USB 2.0 Extension Cable with 4-Port USB-A Hub, Active/Bus Powered USB Repeater Cable, Optional 10W Power Supply Included, ESD Protection - TAA Product Title (AMZ) USB Extender Hub, 24m USB 2.0 Extension Cable with 4-Port USB-A Hub, Active/Bus Powered USB Repeater Cable, Optional 10W Power Supply Incl., Level 4 ESD Protection , TAA Title Ingram (Part 1) USB Extender Hub (24m) - Title Ingram (Part 2) USB 2.0 Extension Cable w/ USB Hub Website Product Headline USB Extender Hub | USB 2.0 Extension Cable with 4-Port USB Hub | Bus-Powered | 78.7ft Long Cable Bullet 1 LONG-RANGE ACTIVE USB EXTENDER: USB-A Hub with 4x USB 2.0 ports and active extension cable 78.7ft (24m); Power the USB extension cable via bus-power or the included power adapter; Add a 2nd USB extender Hub for a maximum distance of 157.4ft (48m) Bullet 2 STABLE SIGNAL: The booster chip located in the middle of the cable maintains signal quality and ensures optimal performance; The included power adapter (5V/2A DC) is not required in most scenarios; Power adapter allows up to 5V 0.5A per port Bullet 3 FLEXIBLE INSTALLATION: Active electronics allow the compact 4-port USB extension cable to work via bus-power when no power outlets are available; Achieve a maximum range of 157.4ft (48m) by daisy-chaining two units Bullet 4 COMPATIBILITY: The USB extender supports wake-on-USB to wake host systems remotely; Backward compatible with USB 1.1/1.0; Driverless and OS independent; Adds an extra layer of safety to your devices with Level 4 ESD protection (15kV air and 8kV contact) Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB hub for laptops is backed for two years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) 4-Port USB 2.0 Type-A Hub with 78.7ft active extension cable; Bus-powered 4-port USB extension cable for laptop/desktop - USB extender Hub supports wake-on-USB - Driverless; Works on any OS; ESD Level 4 protection; Included power adapter Bullets (Consolidated) USB-A Hub with built-in active extension cable 78.7ft and USB 2.0 ports (x4) - Booster chip allows the 4-port USB Hub for laptop/desktop to maintain signal quality; Included power adapter 5V/2A DC for devices requiring additional power (5V/0.5A per port) - Maximum range of 157.4ft by daisy-chaining two USB extender Hubs - 4-port USB extender cable supports wake-on-USB to remotely wake host; Backward compatible; Driverless and works on any OS; Level 4 ESD protection (15kV air/8kV contact) Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - When daisy chaining, a power adapter is recommended to be installed in the middle of the USB-A Extender Hubs for a stable connection </br>
- The maximum recommend cable length for USB 2.0 peripherals is 16.4ft (5m)
Accessory Products SVA5H2NEUA Related Products - USB2EXT4P15M
- USB2AAEXT25M
- USB2AAEXT20M
- USB2AAEXT15M
- USB2AAEXT35M

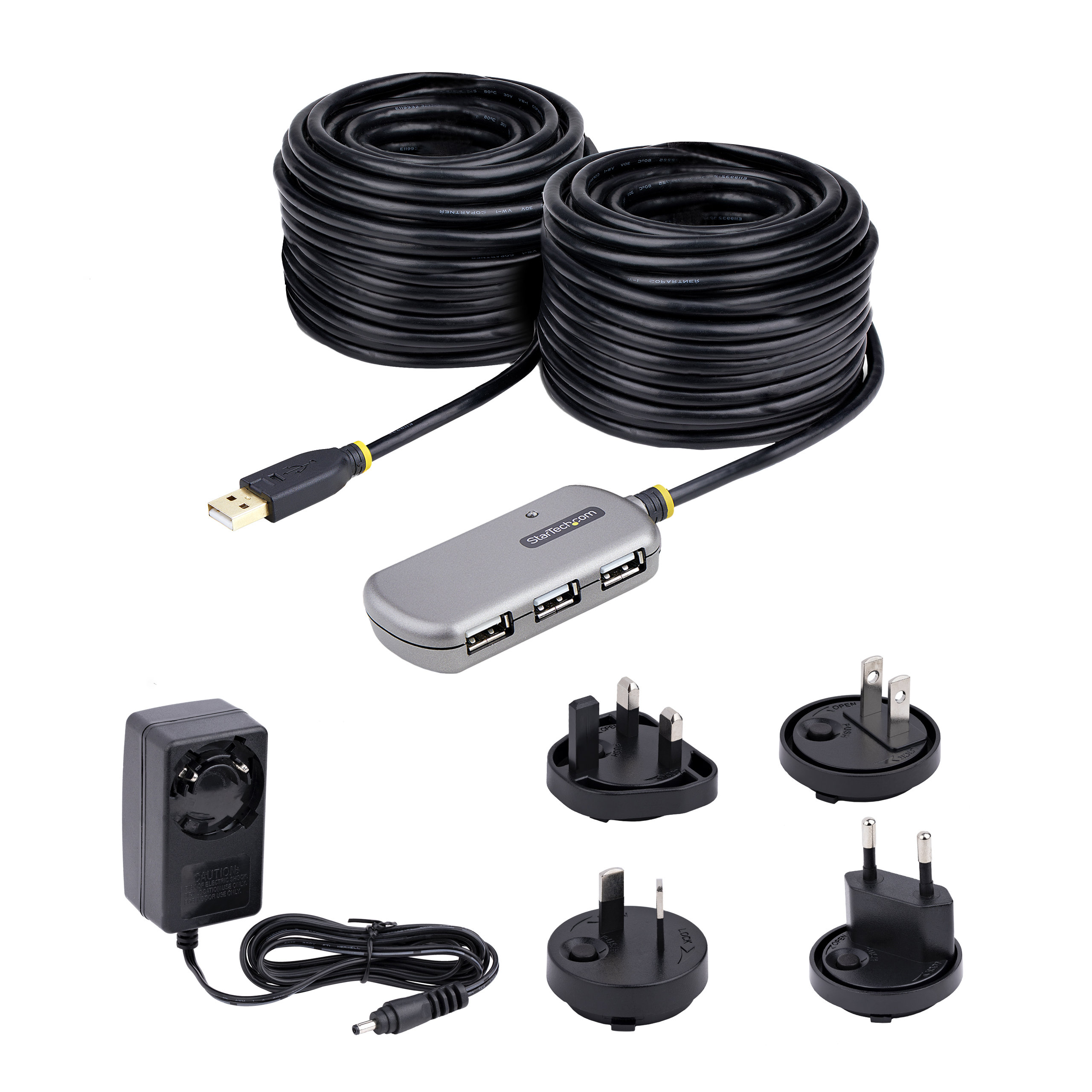

Input Current 0.4 A Input Voltage 100 - 240 AC Output Current 2.0 A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 W Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Cable Length (mm) 24000 Color Silver & Black Humidity 30% - 70% Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 24081.700 Product Width (mm) 41.800 Product Height (mm) 16.700 Product Weight (g) 1030.000 Storage Temperature -20°C to 75°C (-4°F to 167°F) TAA Compliant Yes Maximum Cable Length (mm) 24000 Maximum Data Transfer Rate 480 Mbps OS Compatibility OS Independent USB Speed USB 2.0 (480Mbps) Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Chipset ID Terminus - FE1.1 Connector Plating Nickel Connectors Combo USB-A to USB-A Host or Charger Connector USB-A LED Indicators 1 - Solid Green = USB-A peripheral connected </br> Off = No USB-A peripheral connected </br> Peripheral Connector USB-A Carton Depth (mm) 250 Carton Height (mm) 360 Carton Quantity 10 Carton Weight Gross (g) 14100 Included in Package - 1 - USB Active Cable with USB Hub
- 1 - Power Adapter
- 1 - Quick-Start Guide
Number of Sub-Cartons 10 Package Depth (mm) 203 Package Height (mm) 66 Package Width (mm) 239 Package Quantity 1 Package Weight (g) 1348 Packaging Description 79ft (24m) USB 2.0 480 Mbps Active Cable with 4-Port USB Hub Packaging Description India 79ft (24m) USB 2.0 480 Mbps Active Cable with 4-Port USB Hub Sub-Carton Depth (mm) 200 Sub-Carton Height (mm) 65 Sub-Carton Width (mm) 235 Sub-Carton Quantity 1 Sub-Carton Weight (g) 1400 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Required Artwork Due Date 2022-07-14 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment Stand alone USB extender Comparable SKU 2 Comment Existing cable USB repeater (15m) Digital Content Due Date 2023-09-15 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,BE,CH,DE,DK,ES,FI,FR,HK,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2023-03-10 Target Production Release 2022-10-31 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None Video Not Required
