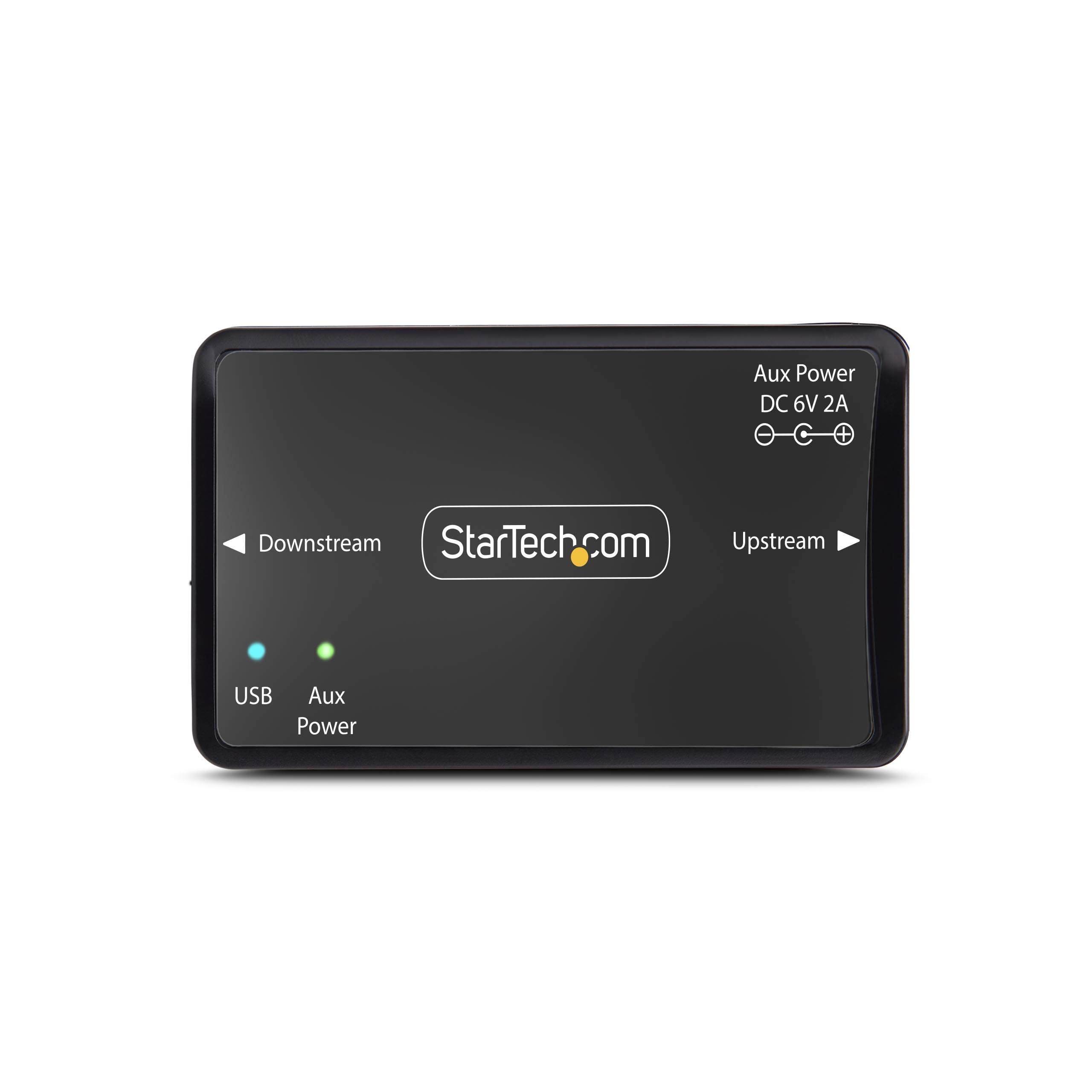

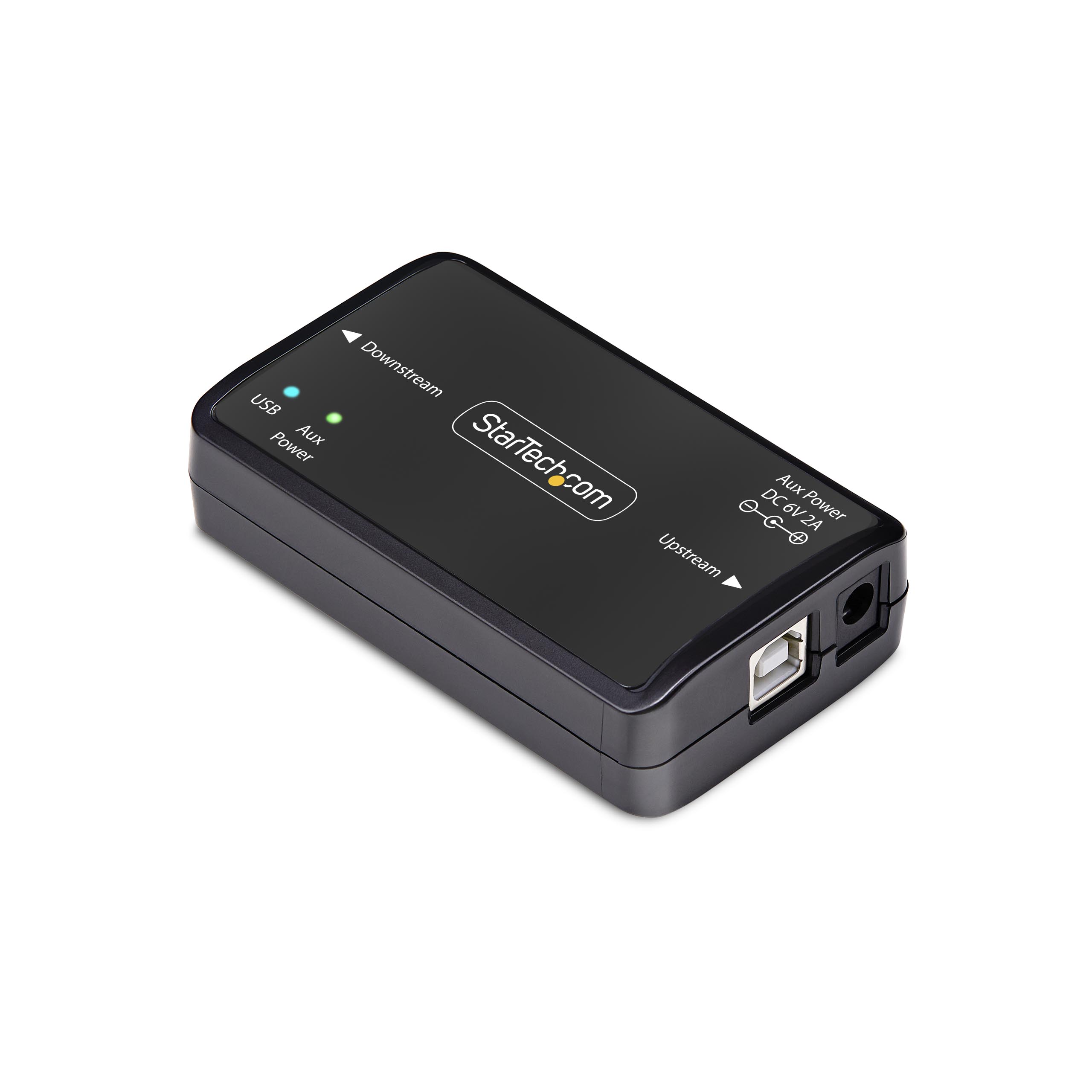

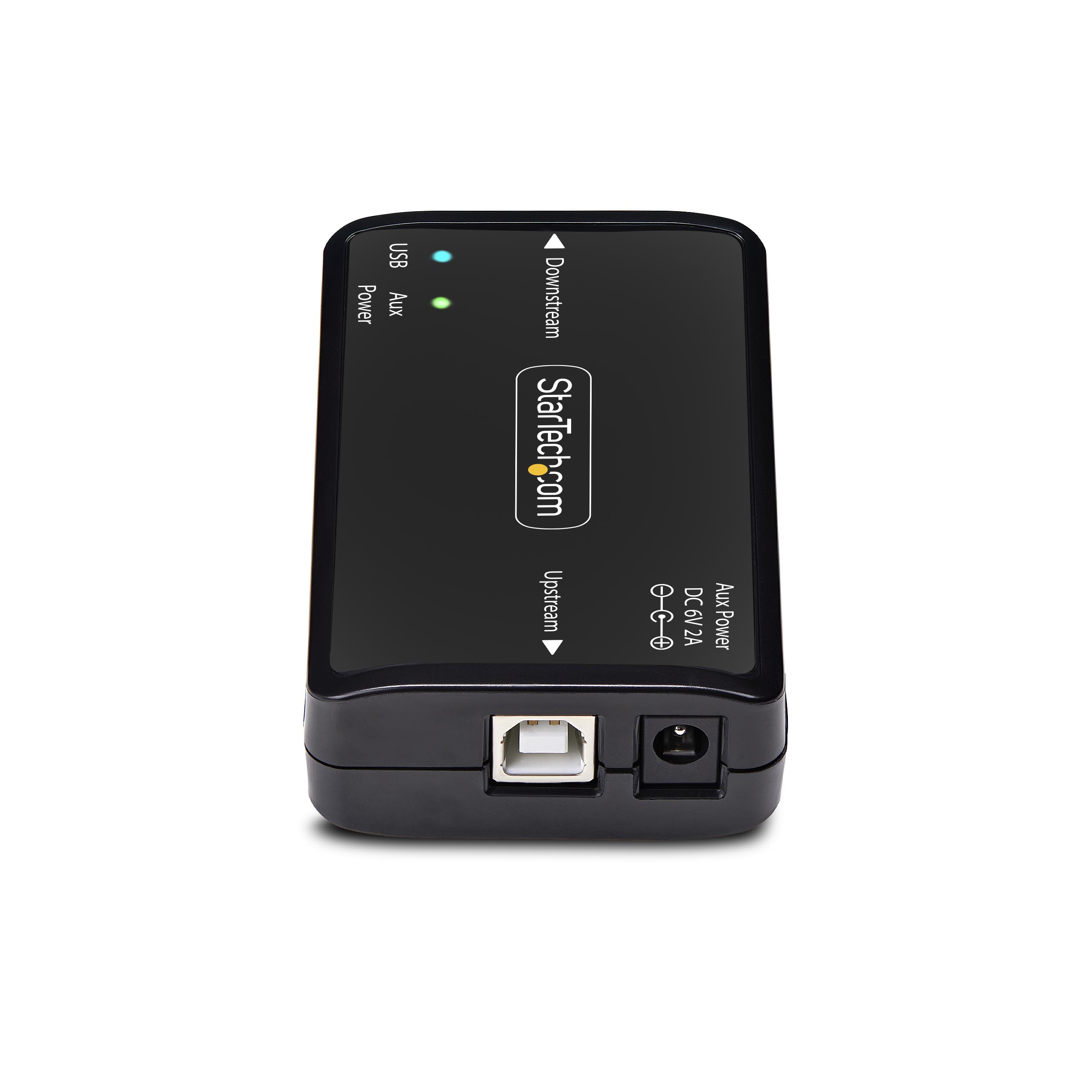

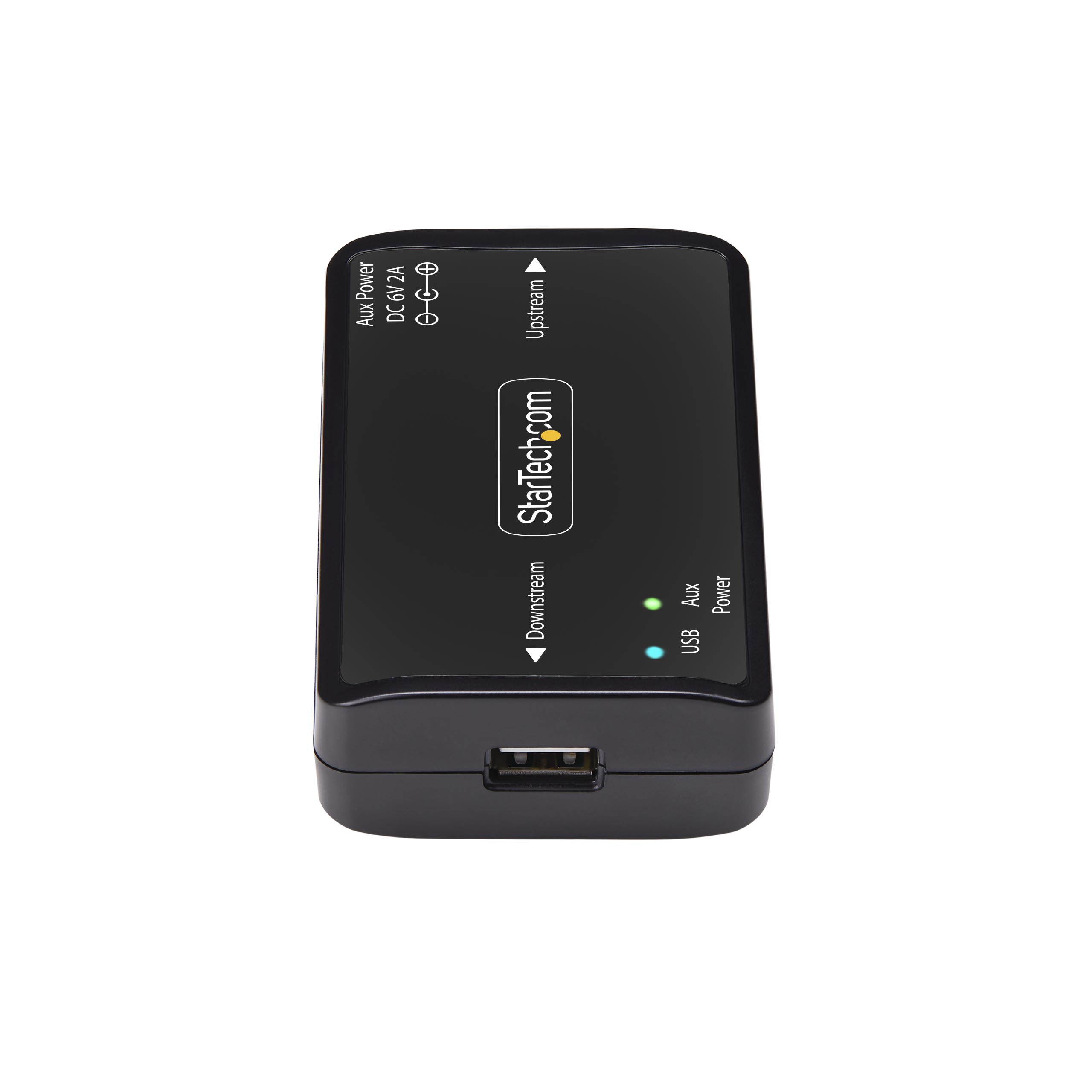

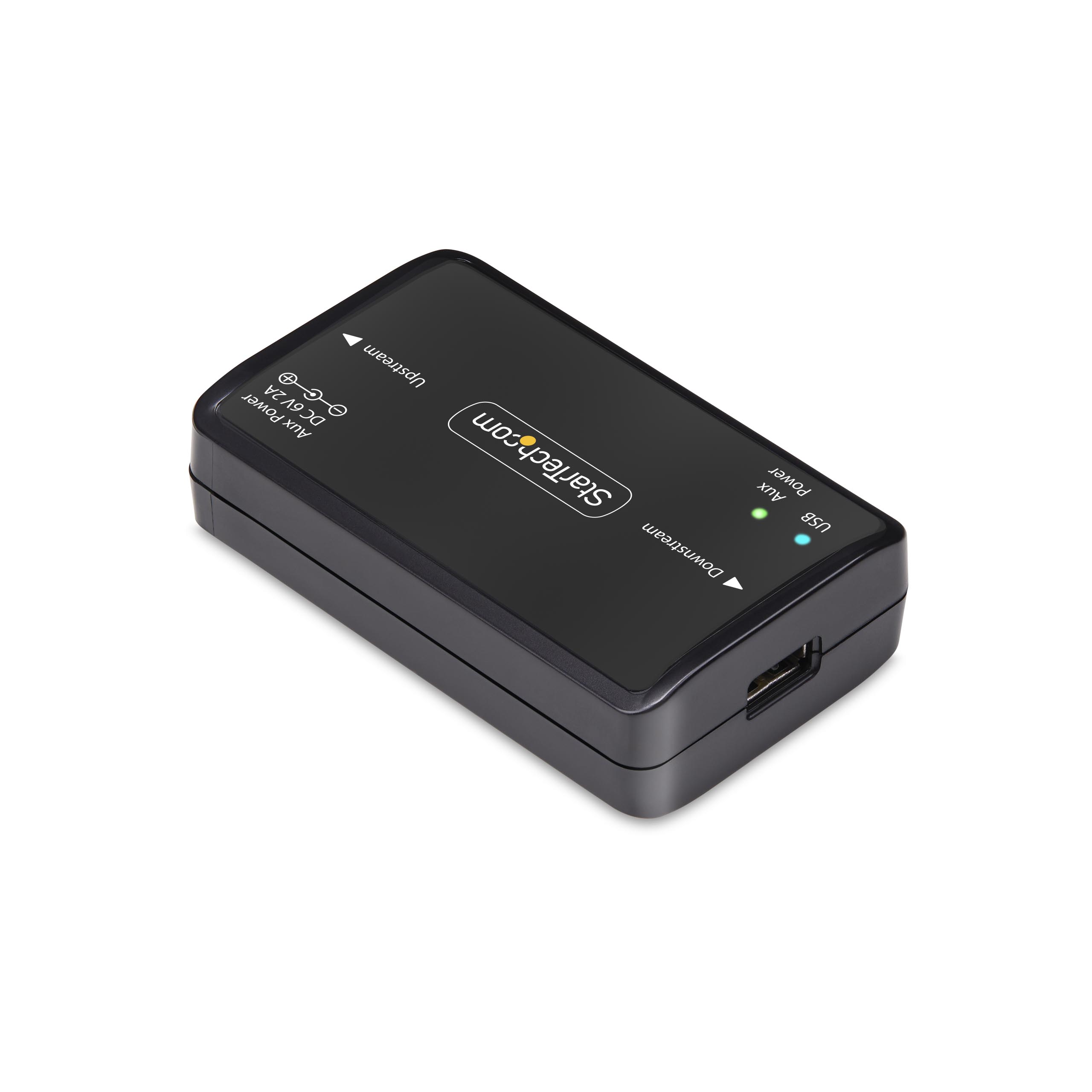

U1-USB-ISOLATOR
USB 2 0 Isolator
Protect computers and devices from power surges with this high-voltage USB isolator
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name USB 2 0 Isolator Product Number U1-USB-ISOLATOR UPC 065030909464 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Other > Unclassifiables Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB Extenders - USB 2.0 Family USB Isolators Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX142X Product Title (Ultra-Short) USB Isolator 6KV Product Title (Short) USB Galvanic Isolator 6KV, Isolated USB Product Title (Medium) StarTech.com USB Galvanic Isolator 6KV, Electrical Noise Isolator, USB 2.0, TAA Product Title (Standard) USB Galvanic Isolator Up To 6KV, Electrical Noise Isolator, IP40, DIN Rail Mount, Isolated Power Filter, USB 2.0 (12Mbps)/TAA Product Title (Long) USB Galvanic Isolator, Up To 6KV, Electrical Noise Isolator, IP40, DIN Rail Mount, Isolated Power Filter, USB 2.0/1.1, 5V/250mA, Plug-and-Play, TAA Product Title (AMZ) USB Galvanic Isolator 6KV, Electrical Noise Isolator, IP40, DIN Rail, Isolated Power Filter, USB 2.0/1.1, TAA Title Ingram (Part 1) USB Galvanic Isolator 6KV - Title Ingram (Part 2) Filter Electric Noise, TAA, USB 2.0 Website Product Headline Protect computers and devices from power surges with this high-voltage USB isolator Bullet 1 USB ISOLATOR: Protect USB devices and peripherals from ground loops and voltage spikes up to 6,000V with this galvanic isolator; Compact plug-and-play in-line isolator supports up to USB 2.0 (12Mbps) devices and 5V/250mA; DIN rail mountable; TAA-compliant Bullet 2 PROTECT CRITICAL EQUIPMENT: Protect the host computer & connected device in automation, testing labs, & manufacturing; Suitable for mission-critical devices that need isolated protection from voltage fluctuations, electrical noise, & interference Bullet 3 DURABLE CONSTRUCTION: Enhanced durability, wear protection, & flame retardancy with UL rated PC-ABS housing; Rated IP40 for dust/water resistance; Extended temp range -22 to 167°F (-30 to 75°C) Bullet 4 SPECIFICATIONS: 6000V DC isolation up to 1 min; 5V 250mA or 5V 500mA (optional power supply); 3ft (0.9m) USB-B to USB-A cable; USB 1.1 (1.5Mbps) & 2.0 (12Mbps); Type M barrel plug; CE/LVD (2014/35/EU) & IEC/EN 62368-1 compliant; ABS & PC 94V-0 housing Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB galvanic isolator is backed for two years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Protect host computer and USB devices from voltage spikes up to 6KV with this in-line galvanic isolator - Plug-and-play isolator - USB 2.0 (12Mbps) and 5V/250mA - Filter electric noise and deliver isolated power in automation/lab/manufacturing - TAA Bullets (Consolidated) Protect host computer and USB devices from voltage spikes and ground loops up to 6000V with this in-line galvanic isolator - Plug-and-play isolator supports USB 2.0 (12Mbps) devices and 5V/250mA - Deliver isolated power in automation/testing/manufacturing facilities; Filter voltage fluctuations/electrical noise - Compact dimensions 3.5x2.2x0.9in; Optional DIN rail mounting - USB 1.1/2.0; IP40 rated - TAA/CE/LVD and IEC/EN 62368-1 compliant; Operating temperature -22 to 167 DEGF (-30 to 75 DEGC) Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Non-Corrugated Fiberboard
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
Output Voltage (V) 6 DC Power Source Bus Powered Plug Type M Color Black Extended Temperature Range Yes Humidity 0 to 95% (non-condensing) Operating Temperature -22 to 167°F (-30 to 75°C) Primary Material Plastic Product Length (mm) 55.000 Product Width (mm) 89.000 Product Height (mm) 24.000 Product Weight (g) 72.290 Storage Temperature -40 to +185°F (-40 to +85°C) TAA Compliant Yes Maximum Data Transfer Rate 12Mbps OS Compatibility OS Independent Total Available Power Output (In Watts) 2.5W Total USB Power Output 5V USB Type and Rate - USB 1.1 (1.5Mbits)
- USB 2.0 (12Mbits)

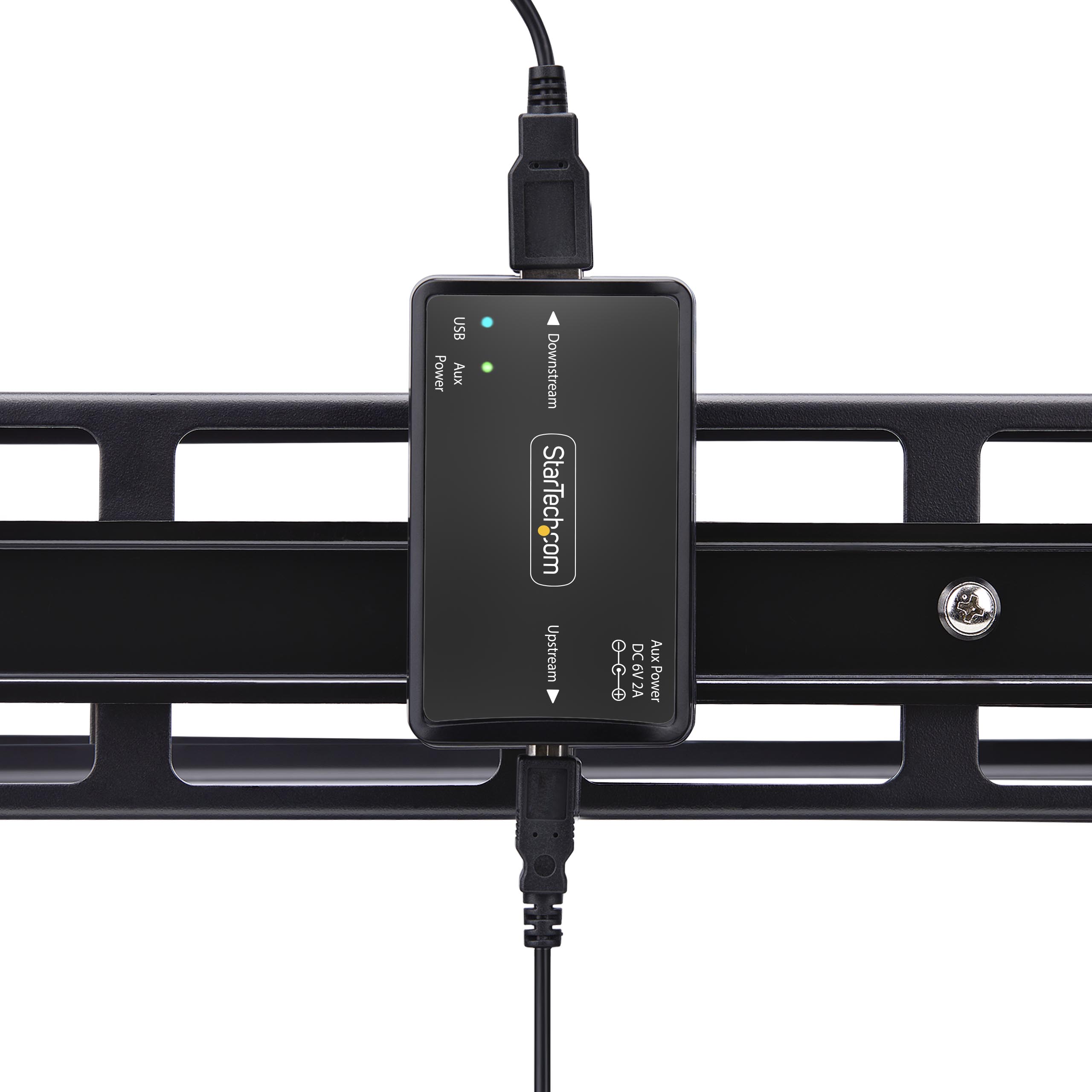

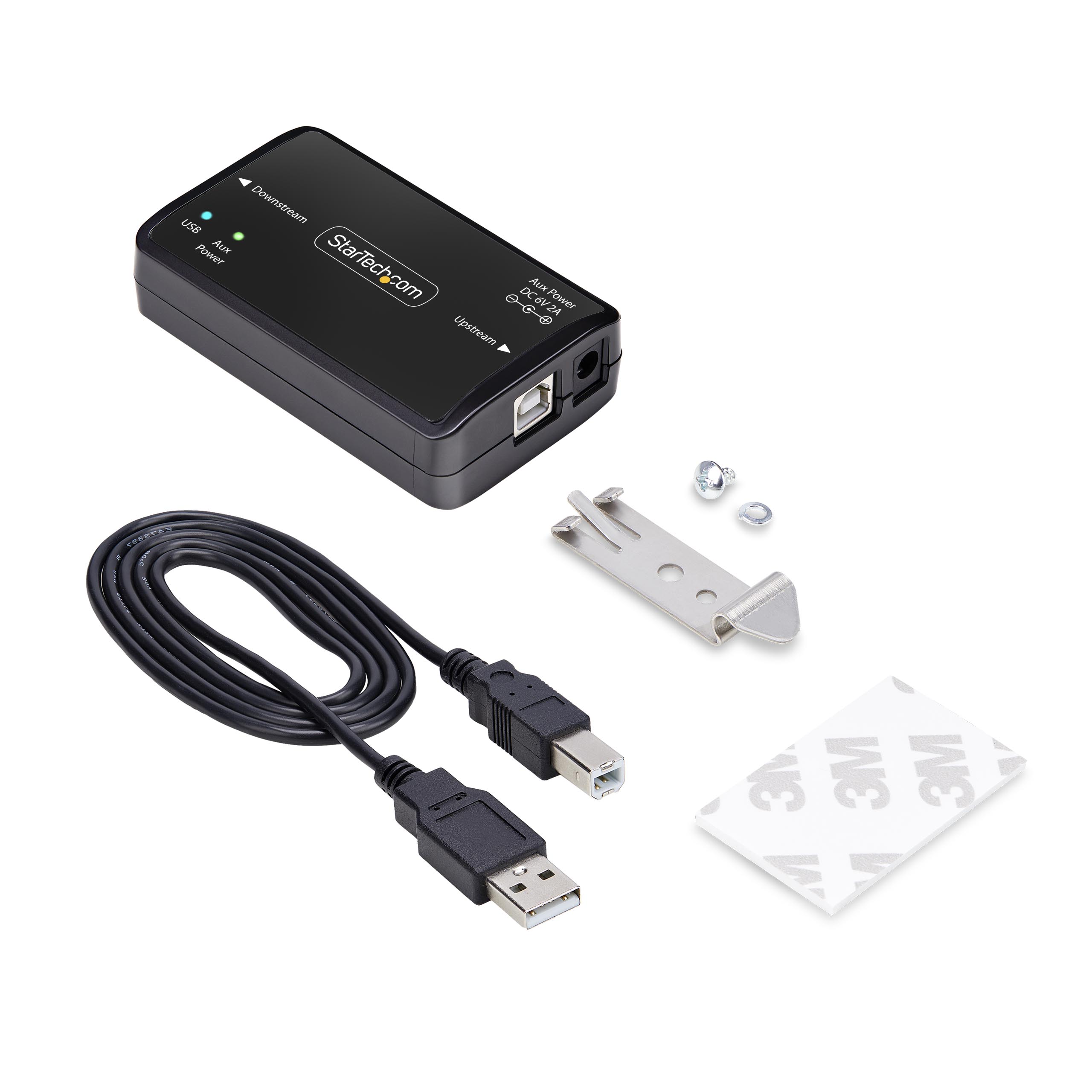

Chipset ID Analog - ADUM4160 LED Indicators 1 - Linked LED: </br> Solid Blue: Indicates there's a USB Device connected to the Isolated USB Device Port </br> Off: No USB Device connected on the Isolated USB </br> </br> Aux Power LED: </br> Solid Green: External power is being supplied </br> Off: No external power is being supplied Mounting Options DIN Rail Carton Depth (mm) 454 Carton Height (mm) 180 Carton Quantity 100 Carton Weight Gross (g) 14500 Included in Package - 1 - USB Isolator
- 1 - 3ft (0.9m) USB-B to USB-A Cable

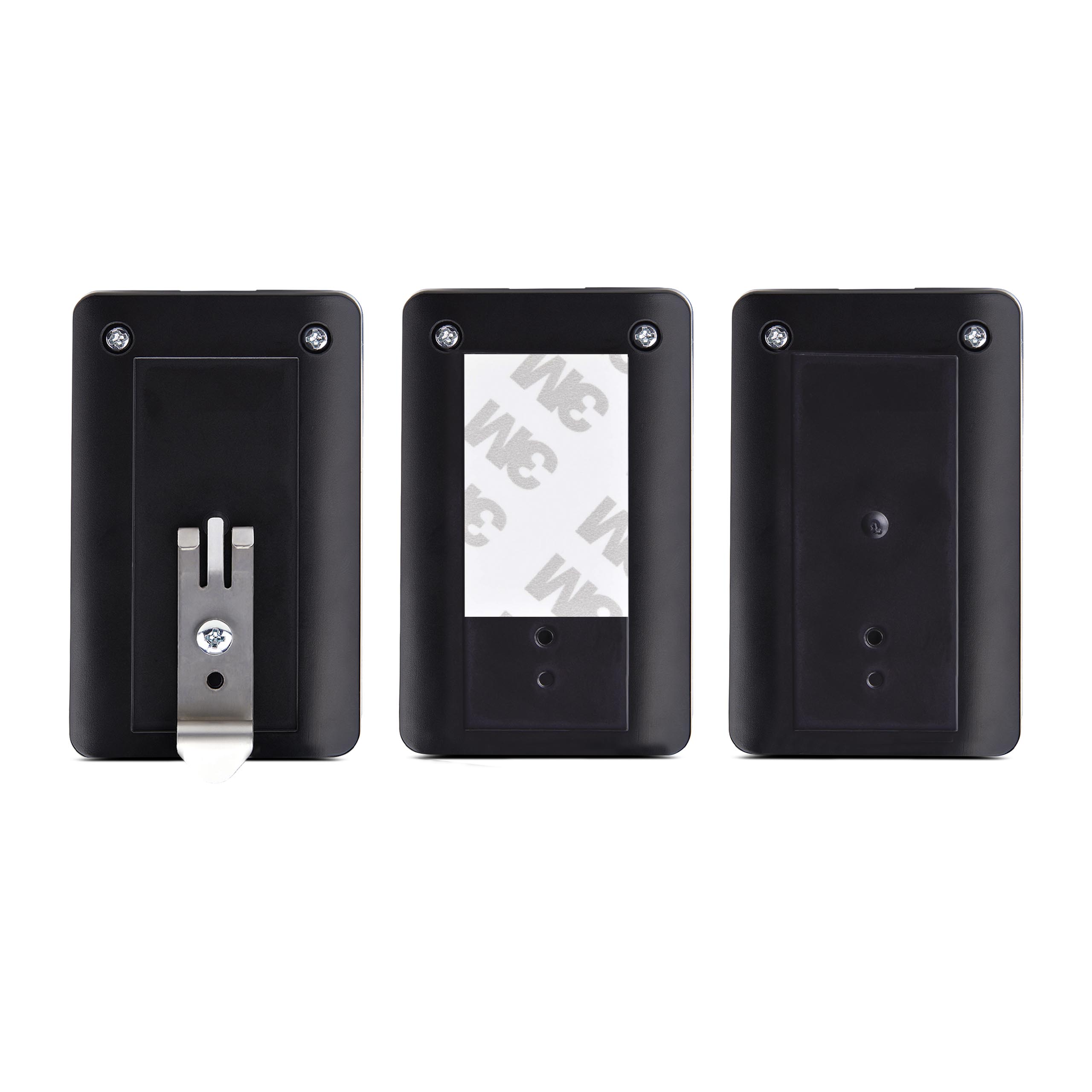

- 1 - Adhesive Strip
- 1 - DIN Rail Mounting Kit
Package Depth (mm) 110 Package Height (mm) 63 Package Width (mm) 52 Package Weight (g) 130 Packaging Description 1-Port Industrial USB 2.0 Galvanic Isolator - Up to 6000V Packaging Description India 1-Port Industrial USB 2.0 Galvanic Isolator - Up to 6000V Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 USB-B (480Mbps, 2.5W) Connector 3 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2024-05-31 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment N/A Comparable SKU 2 Comment N/A Digital Content Due Date 2024-10-09 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - custom size - requires size population below Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,UK,US Priority New Product Low Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-02-23 Target Production Release 2024-05-31 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Video Not Required
