U2GA-USB-C-ETHERNET

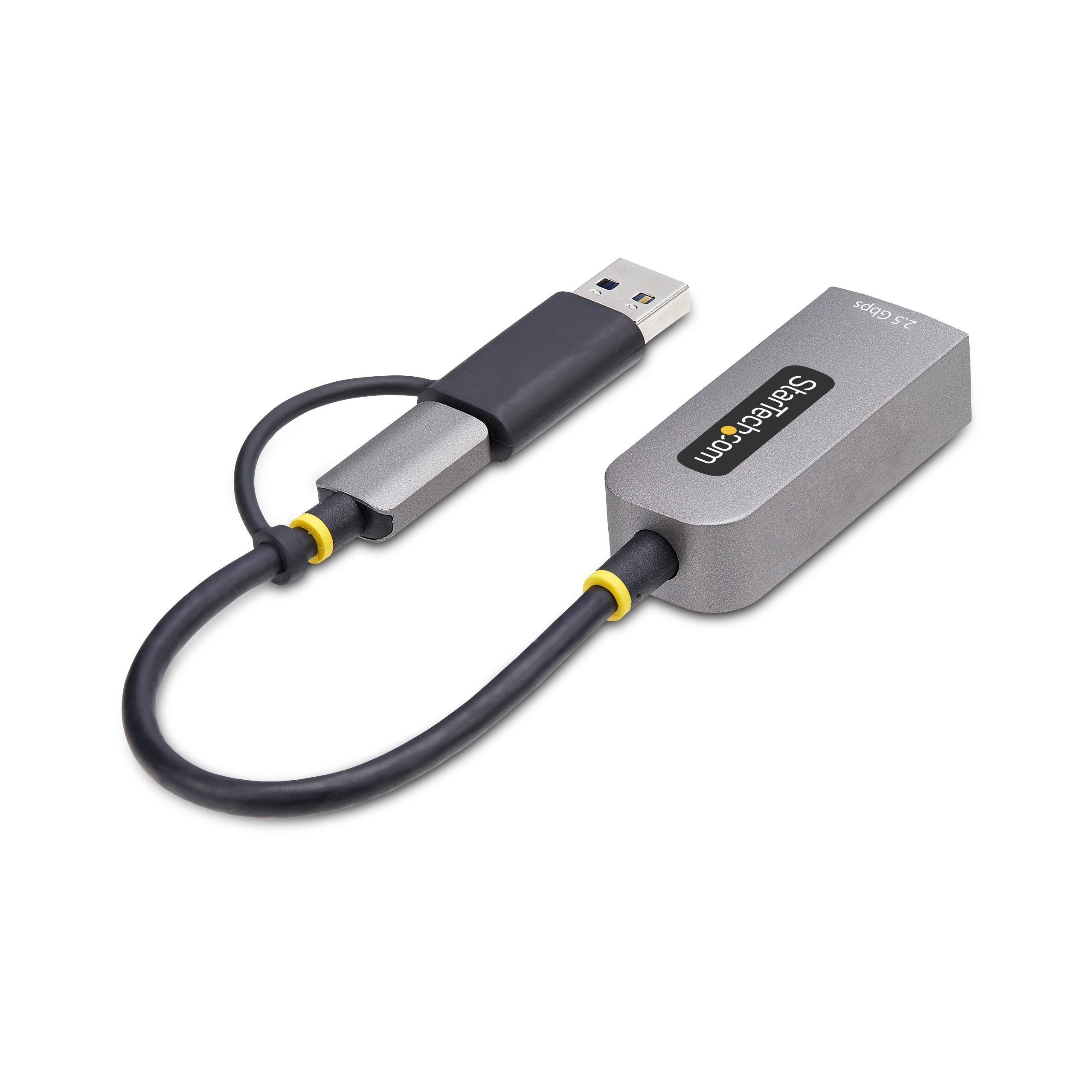

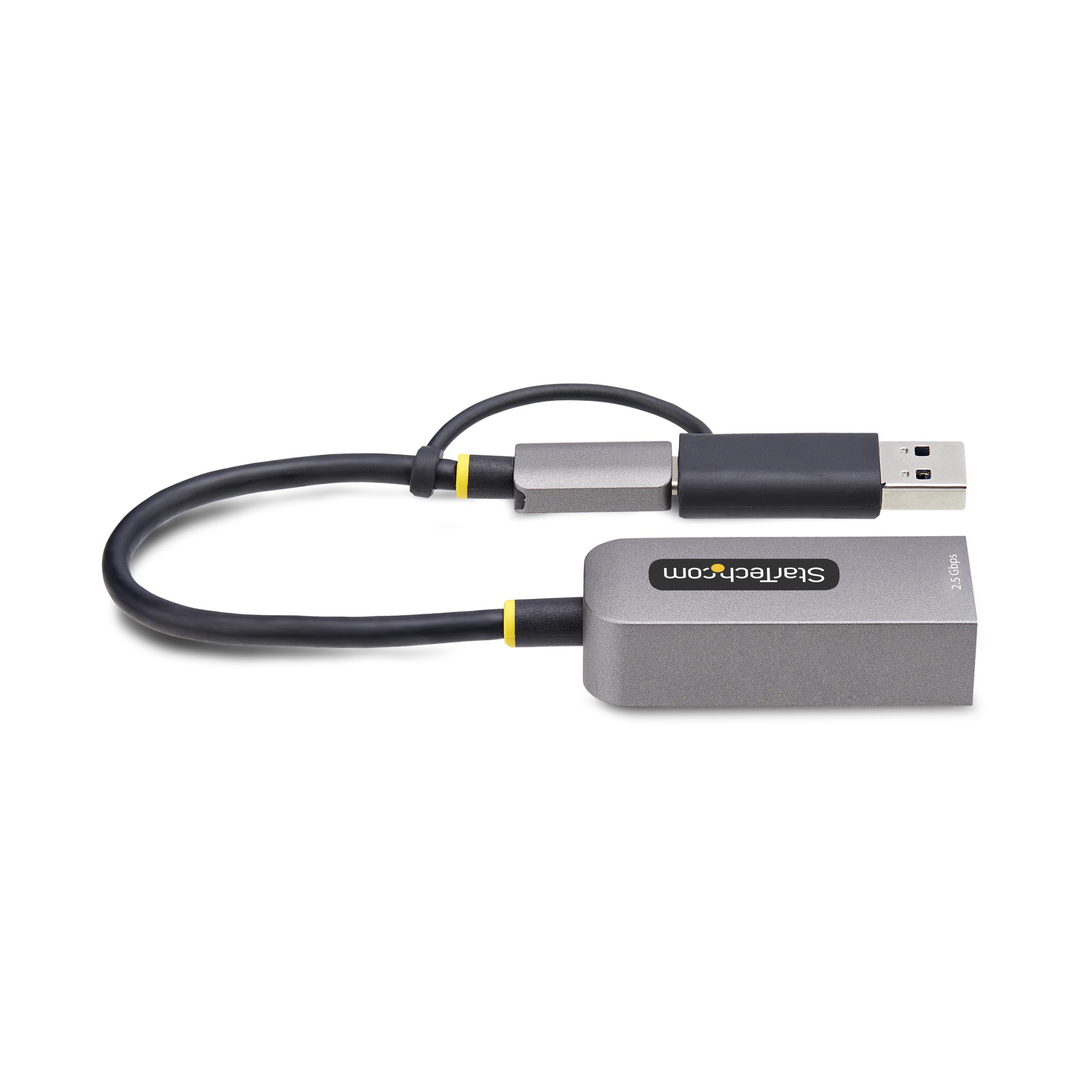

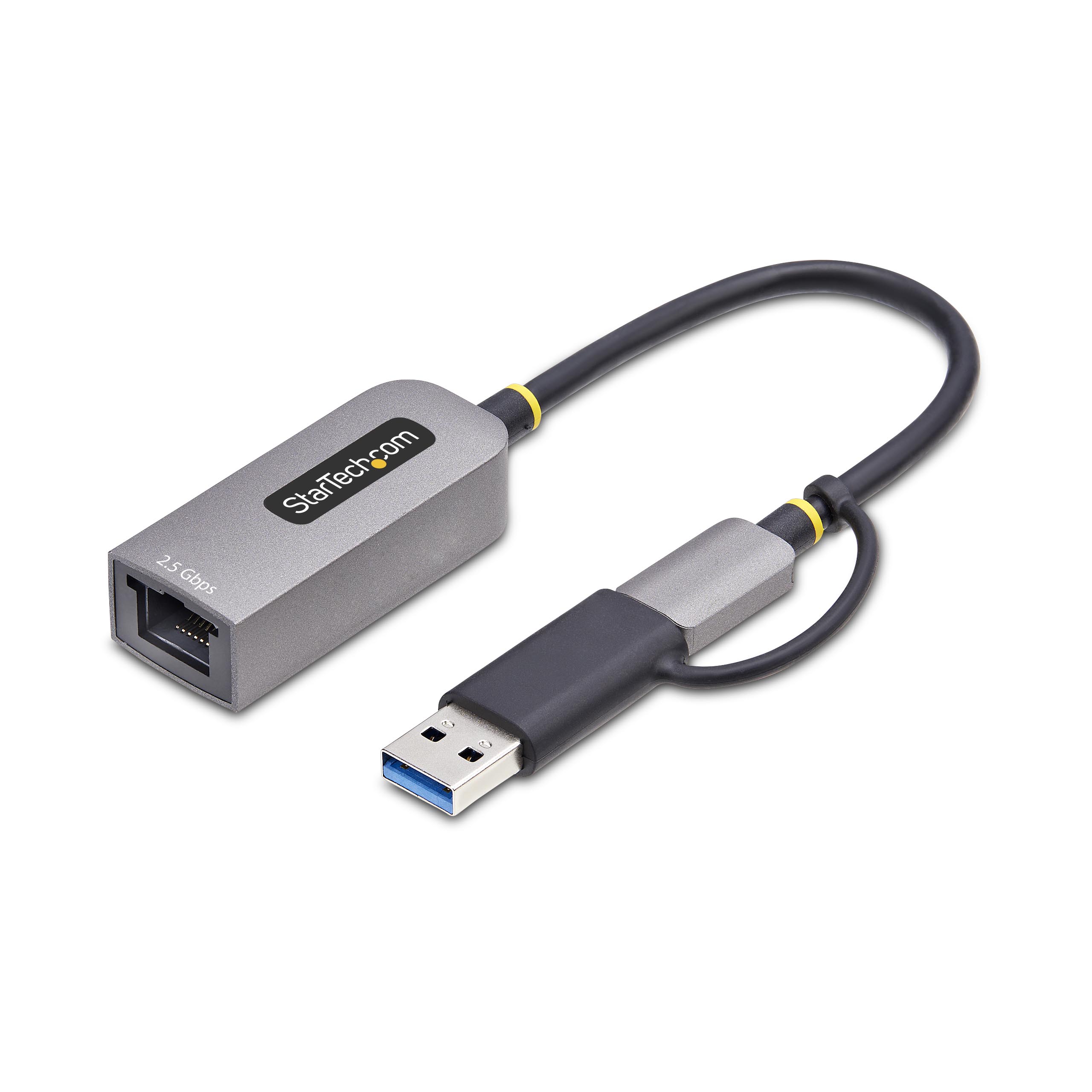

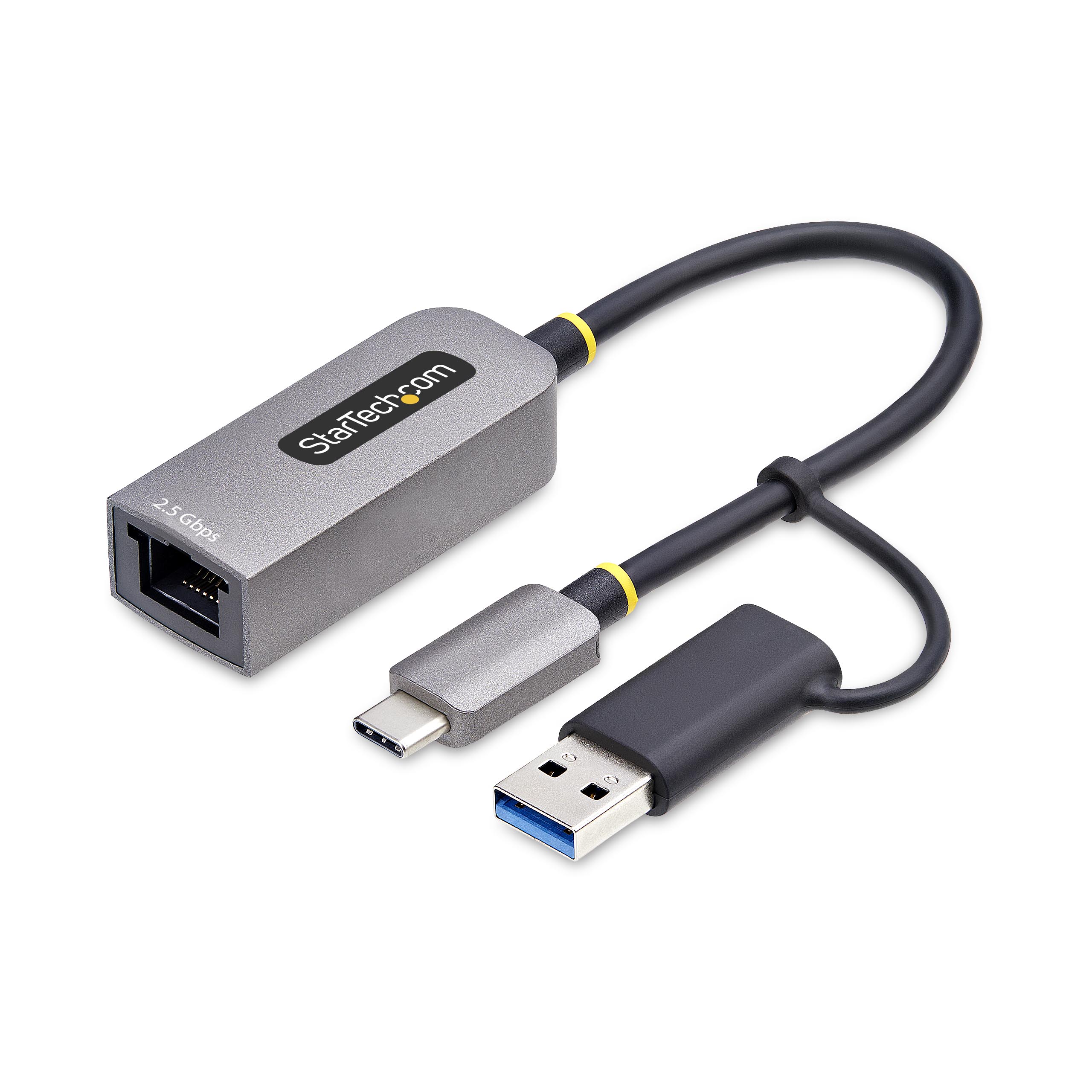

2 5G USB Type C Ethernet Adapter w USB A Adapter

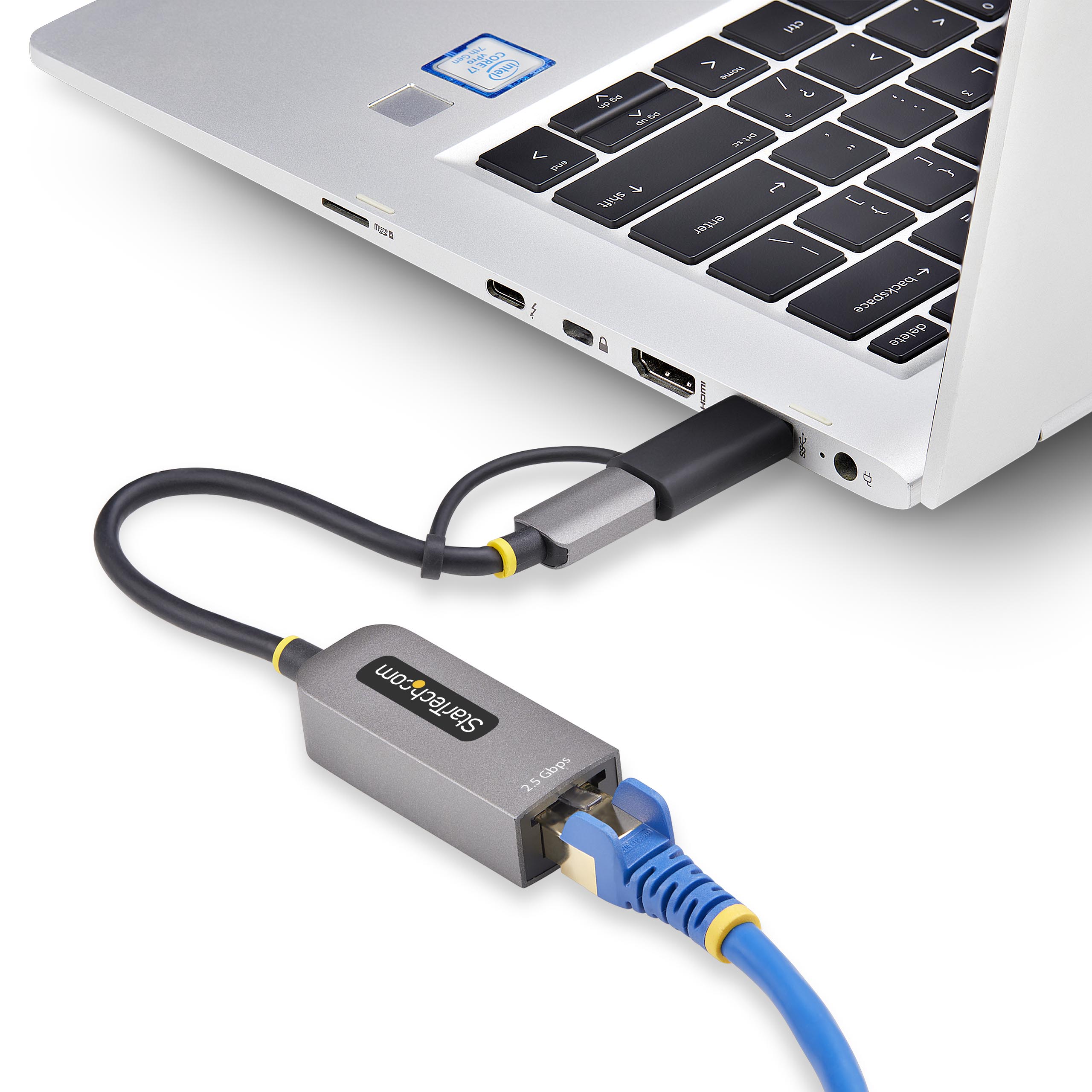

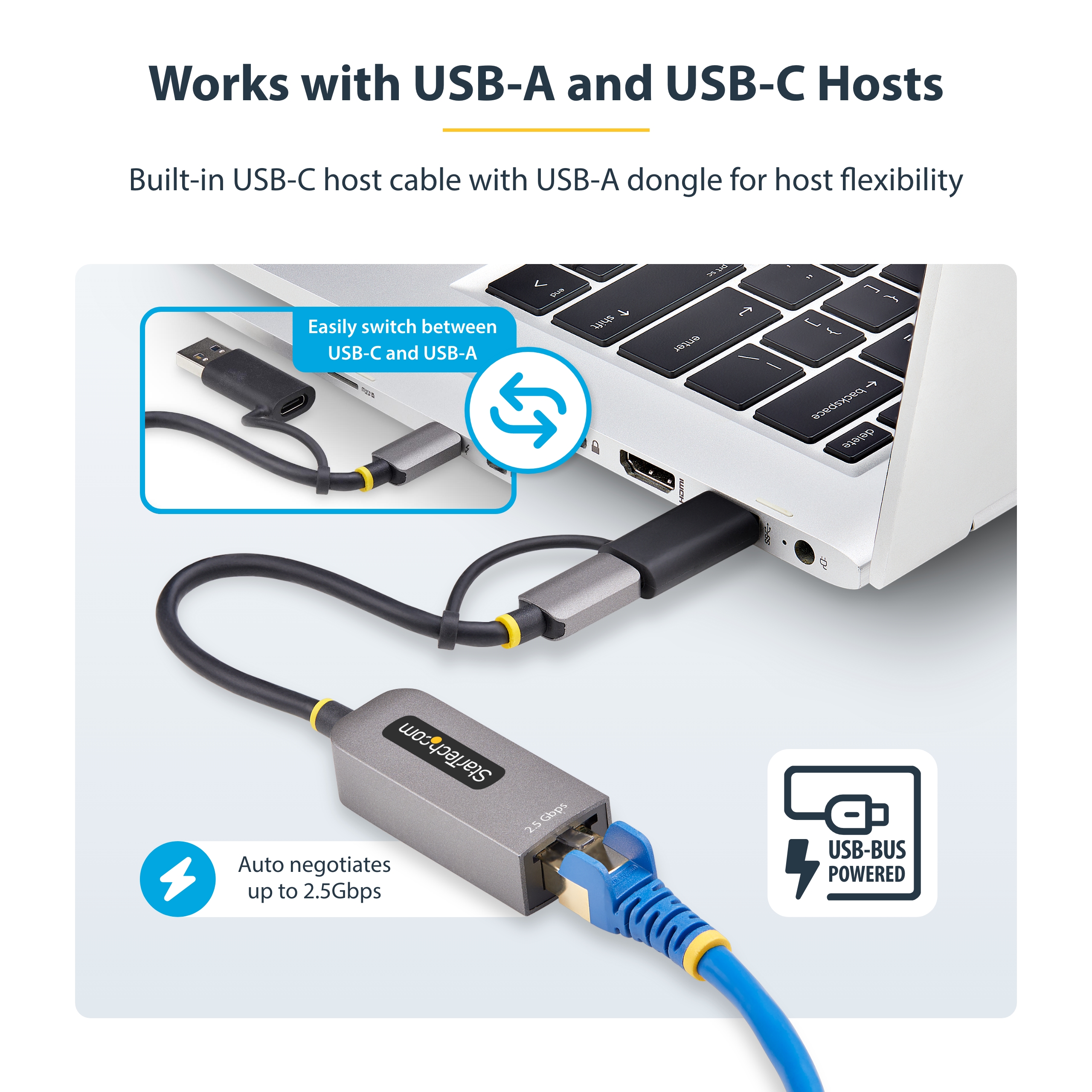

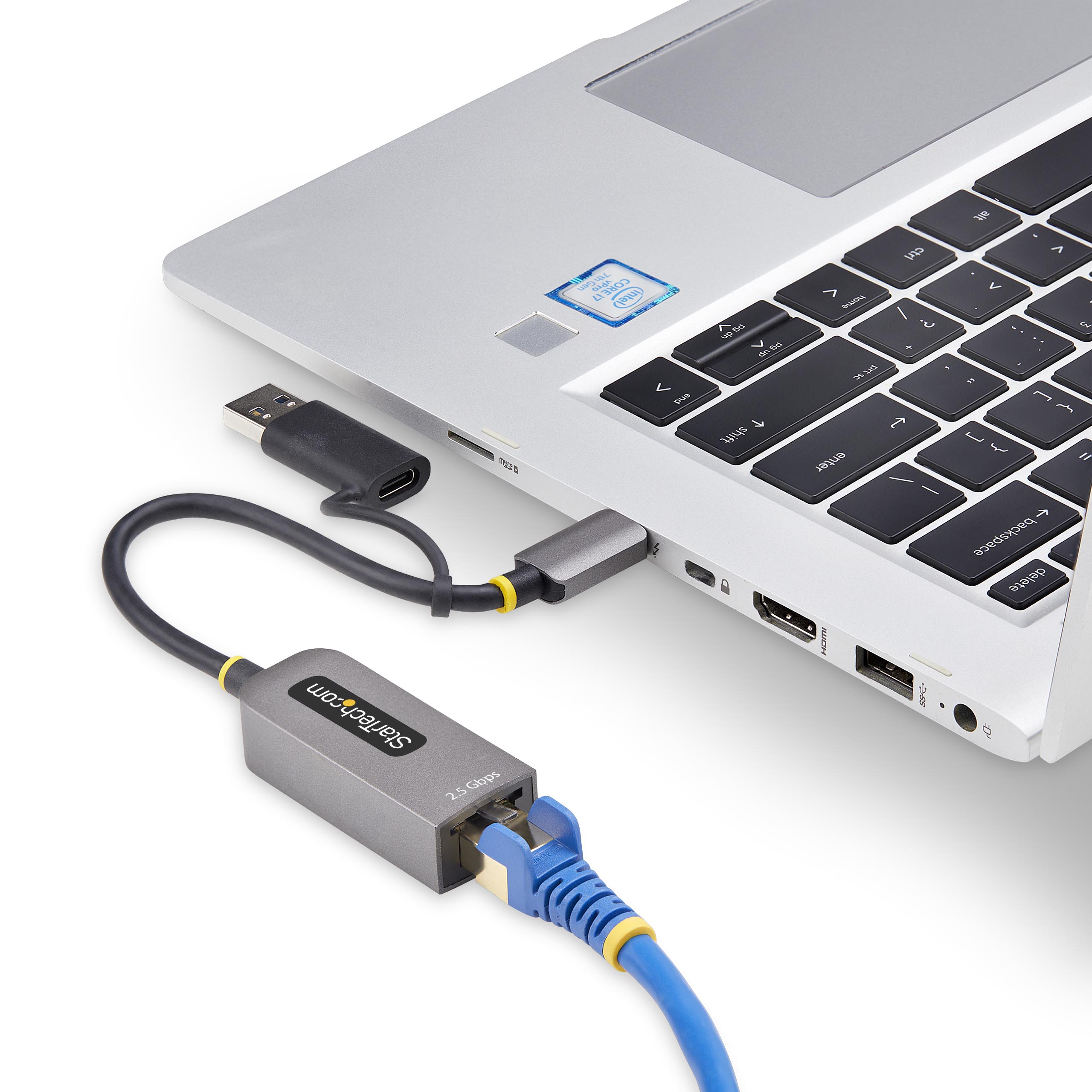

Add a 2.5Gb Ethernet port to your MacBook, Chromebook™ or laptop with USB-C or Thunderbolt™ 3
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2 5G USB Type C Ethernet Adapter w USB A Adapter Product Number U2GA-USB-C-ETHERNET UPC 065030905176 Lifecycle status Active Warranty 2 Years Weighted Opportunity 33852 Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 USB-C Ethernet Adapters Family basic connect Ethernet Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) Ethernet Adapter Product Title (Short) USB-C to Ethernet Adapter Product Title (Medium) USB 3.0 Type-C to 2.5 Gigabit Ethernet Adapter with USB-A Converter, 2.5GBASE-T Product Title (Standard) 2.5GbE USB-C to Ethernet Adapter with USB-A Converter, NBASE-T NIC, USB 3.0 Type-C 2.5/1G Multi Speed Network, USB 3.1 RJ45 Product Title (Long) 2.5GbE USB-C to Ethernet Adapter with USB-A Converter, NBASE-T NIC, USB 3.0 Type-C 2.5/1G Multi Speed Network, Thunderbolt Compatible, Windows & Mac Product Title (AMZ) 2.5GbE USB-C to Ethernet Adapter with USB-A Converter, NBASE-T NIC, USB 3.0 Type-C 2.5/1G Multi Speed Network Title Ingram (Part 1) USB 3.0 Type-C to 2.5 Gigabit Title Ingram (Part 2) Ethernet Adapter w/USB-A Converter Website Product Headline Add a 2.5Gb Ethernet port to your MacBook, Chromebook™ or laptop with USB-C or Thunderbolt™ 3 Bullet 1 USB-C NETWORK ADAPTER: 2.5GbE USB-C to Ethernet Adapter with USB-A Converter allows you to add 2.5GbE network access to a laptop, tablet, or iPhone using an available USB Type-C or Type-A port; Doubles network performance on existing Cat5 cables Bullet 2 BROAD COMPATIBILITY: Auto-installs most operating systems including Windows 7 and up, Linux LTS Kernel 4.19+ and up, MacOS/iOS/ChromeOS; Works with MacBooks, Chromebooks and all hardware platforms, including Intel, AMD, ARM (Snapdragon), and Apple Silicon Bullet 3 2.5G OVER CAT5E: Leverage NBASE-T for 2.5Gbps speeds over existing Cat 5e cables without the expense of upgrading to Cat6A/Fiber; 4-speed auto-negotiation for optimal performance with network devices; Extend system longevity by retrofitting older systems Bullet 4 APPLICATIONS: Slim form factor adapter for office/hot desks; Quickly download large files from a network, experience higher quality video conferencing & sync files to the cloud in the background with a faster/more secure connection compared to wireless Bullet 5 TECH SPECS: USB-C (5Gbps); USB-A Adapter; 1x RJ45; 6in (15cm) Attached Cable; 2.5Gbps Multi-Gigabit; 10/100Mbps & 1/2.5Gbps; Realtek Chipset; NBASE-T & 2.5GBASE-T; 16K Jumbo Frames (not supported in macOS); WoL; VLAN; Bus-Powered; Thunderbolt Compatible Bullets (Compact) 2.5GbE NBASE-T USB-C to Ethernet Adapter w/USB-A Converter; Securely connects to networks over CAT5e/RJ45/LAN; 10/100Mbps/1G/2.5G; Auto-Negotiation for max bandwidth; Works with USB 3.0/3.1 Type-C/TB3 MacBook Pro/Mac Pro/Surface Book/iPhone 15/up Bullets (Consolidated) - 2.5GbE USB-C to Ethernet Adapter w/USB-A Converter allows users to securely connect to high-speed network/LAN faster than Gigabit - USB 3.0/3.1 Type-C or Thunderbolt; NBASE-T NIC; 1x RJ45; 2.5Gbps Multi-Gigabit; 10/100Mbps/1G/2.5G; 2.5GBASE-T; Realtek supports 16k Jumbo Frames/WoL/VLANs; USB Bus Powered - USB 3.0 NIC for MacBook Pro/iPhone 15 (Plus/Pro/Max), Chromebooks, M-Series Macs/Surface Books - For Windows 7/up; Windows Server 2008 R2/up; Linux LTS Kernel 4.19+/up; MacOS 10.11/up; iOS Marketing Copy Marketing Copy (No HTML) Applications Add multigigabit Ethernet network connectivity to a Laptop or Desktop through a USB Type-C or A port Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - DO NOT USE - Packaging - General
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - Jumbo Frames are no longer supported in macOS Accessory Products - N6PATCH10BL
- N6PATCH8BK
- N6PATCH2RD
- N6PATCH4GR
- N6PATCH12PL
- N6PATCH5OR
Related Products - US2GC30
- US2GA30

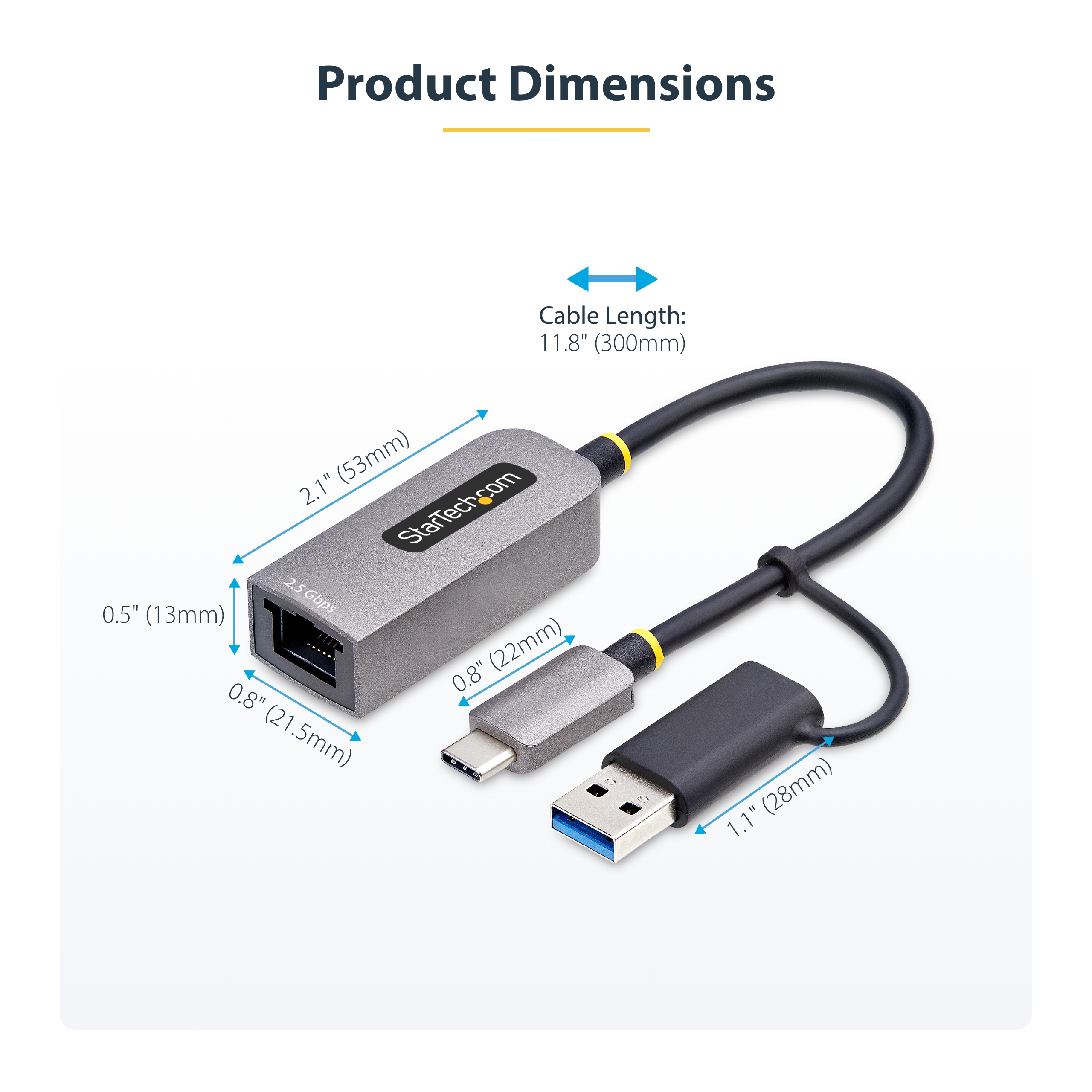

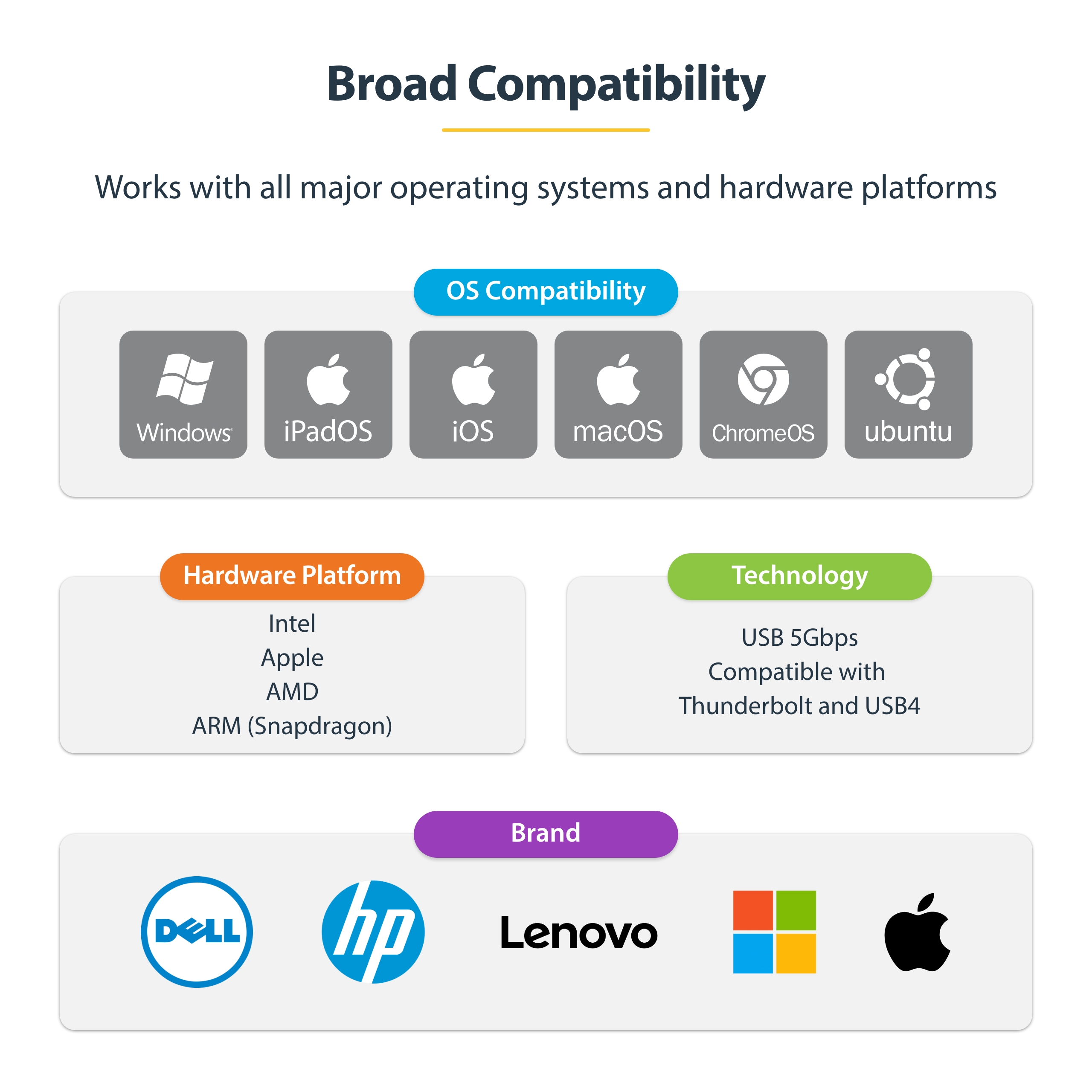

Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Cable Length (mm) 152 Color Space Gray Humidity 10% to 85% RH (no condensation) Material Plastic Network Adapter Form Factor Attached Cable Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 255 Product Width (mm) 21.500 Product Height (mm) 15.000 Product Weight (g) 26.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 2.5G/1G/100Mbps/10Mbps Fiber Type Copper Full Duplex Support Yes Jumbo Frame Support 16K max. MTBF (hours) 1,612,526 hours OS Compatibility - Windows 11
- Windows 11 ARM
- Windows 10
- Windows 8.1
- Windows 8
- Windows 7
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016
- Windows Server 2012 R2
- Windows Server 2008 R2
- macOS Sonoma (14.0)
- macOS Ventura (13.0)
- macOS Monterey (12.0)
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- macOS Sierra (10.12)
- Mac OS X El Capitan (10.11)
- Linux
Promiscuous Mode Yes PXE Yes USB Type and Rate USB 5Gbps Wake-On-LAN (WOL) Yes Bus Type USB 3.2 Gen 1 Chipset ID Realtek - RTL8156BG Industry Standards - IEEE 802.3i 10BASE-T
- IEEE 802.3ab 1000BASE-T
- IEEE 802.1q VLAN Tagging
- IEEE 802.3x
- IEEE 802.3u 100Base-TX
- IEEE 802.3bz 2.5GBase-T

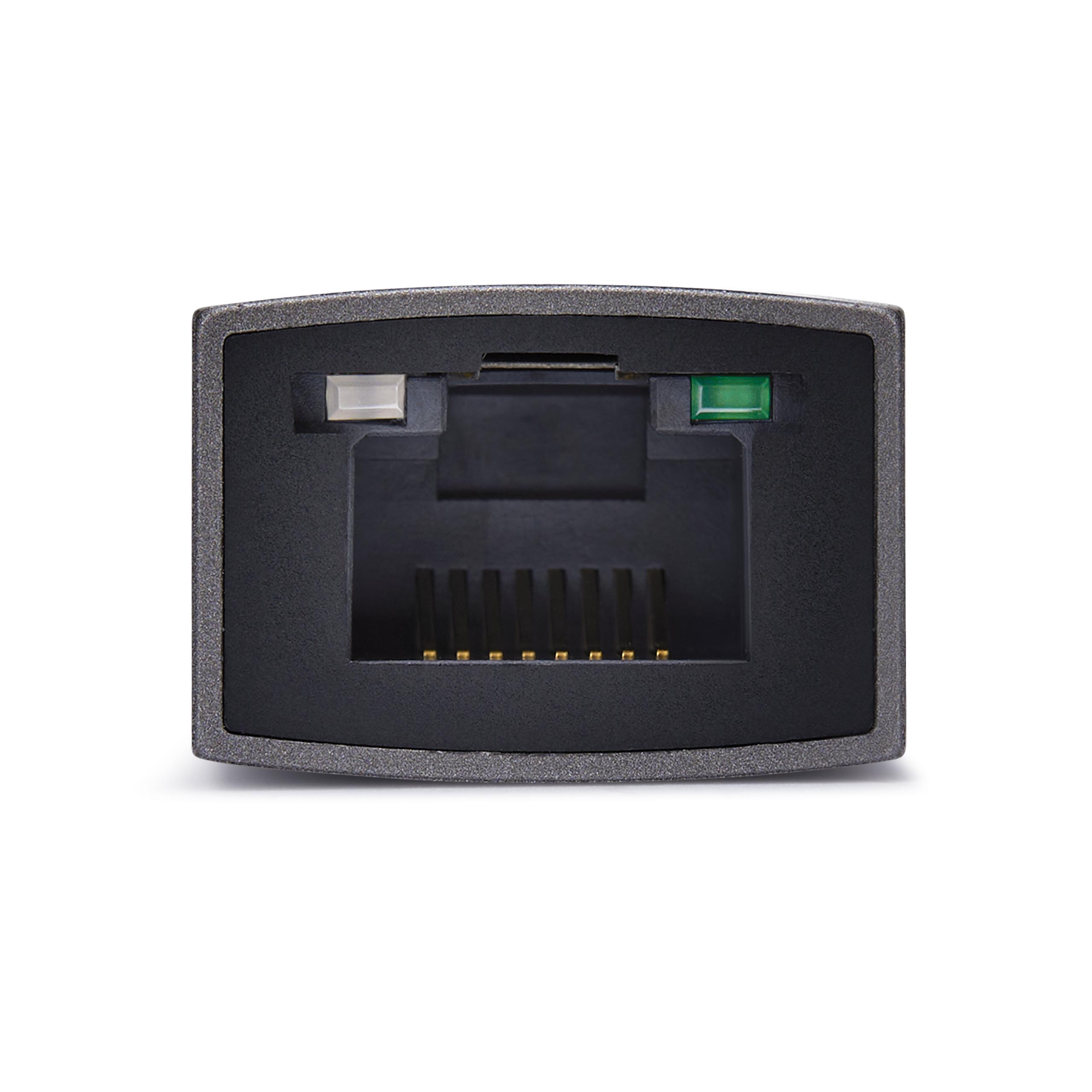

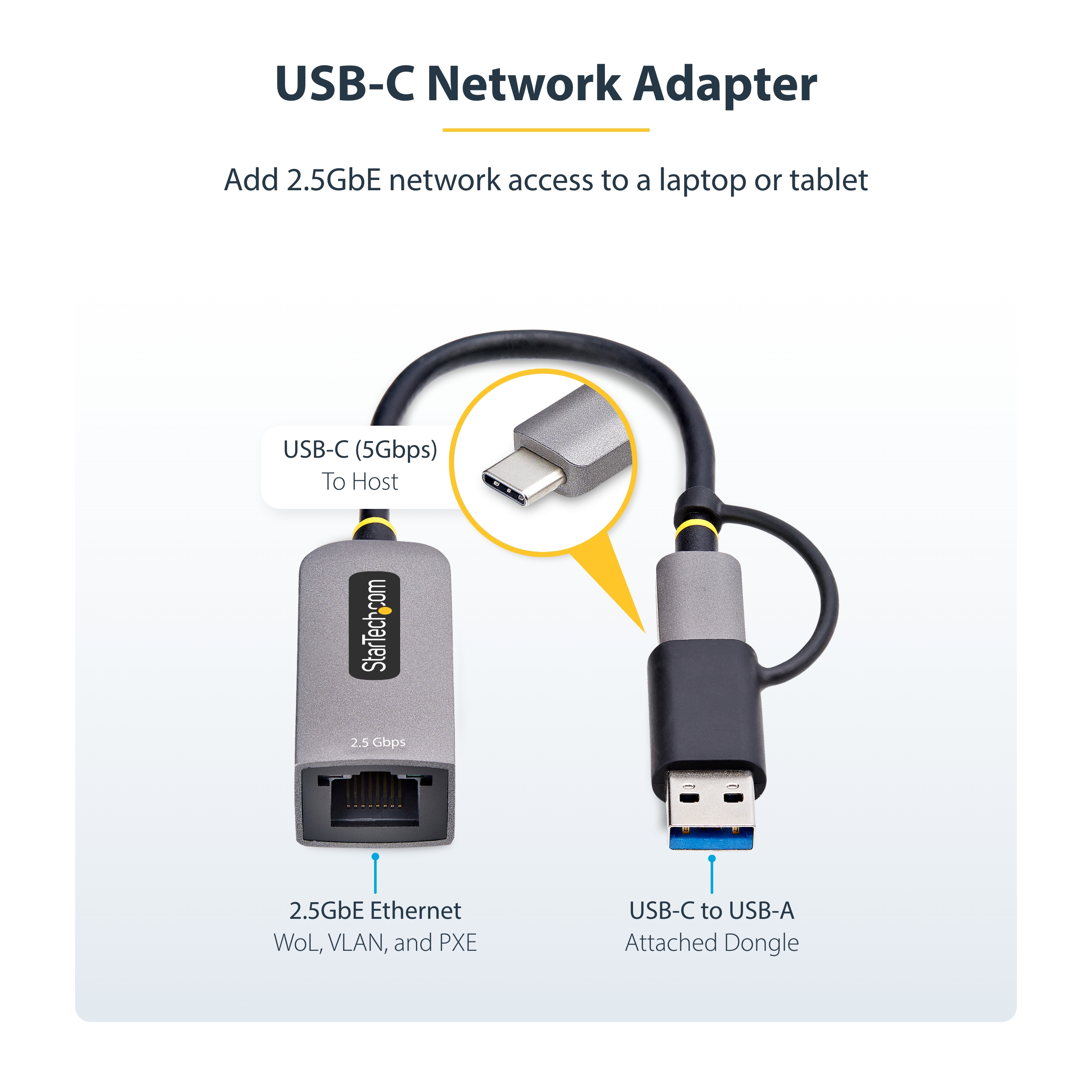

Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators Network Adapter Host USB 3.0 - USB-C Network Adapter LAN Ports 1 USB Pass-Through No Carton Depth (mm) 500 Carton Height (mm) 210 Carton Quantity 250 Carton Weight Gross (g) 7800 Included in Package 1 - USB Network Adapter Package Depth (mm) 126 Package Height (mm) 19 Package Width (mm) 127 Package Quantity 1 Package Weight (g) 30 Packaging Description USB Type-C to 2.5G Ethernet Adapter with USB-A Converter Packaging Description India USB Type-C to 2.5G Ethernet Converter with USB-A Converter Sub-Carton Depth (mm) 187 Sub-Carton Height (mm) 67 Sub-Carton Width (mm) 162 Sub-Carton Weight (g) 308 Connector 1 USB-C (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2024-09-15 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment USB-C only version Comparable SKU 2 Comment USB-A only version Digital Content Due Date 2024-10-02 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Priority New Product Medium Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-06-14 Target Production Release 2024-10-02 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Latest Video Not Required
