U2M2E125
M.2 to U.2 (SFF-8639) Host Converter for M.2 NVMe SSDs
Add the fast performance of an M.2 NVMe SSD to your desktop computer or server by converting the drive through a U.2 (SFF-8639) compatible interface on your motherboard
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name M.2 to U.2 (SFF-8639) Host Converter for M.2 NVMe SSDs Product Number U2M2E125 UPC 065030872461 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 M.2 NVMe/SATA Card Adapters/Controllers Family M.2 NVME to 2.5" U.2/U.3 Adapter Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) M.2 to U.2 Adapter Product Title (Short) Adapter, M.2 to U.2 - M.2 PCIe NVMe SSDs Product Title (Medium) M.2 to U.2 Adapter - M.2 Drive to U.2 (SFF-8639) Adapter for M.2 PCIe NVMe SSDs Product Title (Standard) M.2 to U.2 Adapter, M.2 Drive to U.2 (SFF-8639) Host Adapter for M.2 PCIe NVMe SSDs, M.2 PCIe SSD Adapter, TAA Product Title (Long) M.2 to U.2 Adapter - For M.2 PCIe NVMe SSDs - PCIe M.2 Drive to 2.5" U.2 (SFF-8639) Host Adapter - M2 SSD Converter, Red - TAA Product Title (AMZ) M.2. PCI-e NVMe to U.2 (SFF-8639) Adapter - Not Compatible with SATA Drives or SAS Controllers - For M.2 PCIe NVMe SSDs - PCIe M.2 Drive to U.2 Host Adapter - M2 SSD Converter , TAA Title Ingram (Part 1) M.2 to U.2 (SFF-8639) Adapter Title Ingram (Part 2) for M.2 PCIe NVMe SSDs Website Product Headline Add the fast performance of an M.2 NVMe SSD to your desktop computer or server by converting the drive through a U.2 (SFF-8639) compatible interface on your motherboard Bullet 1 BOOST SYSTEM PERFORMANCE: Add the fast performance of a PCIe M.2 NVMe or AHCI SSD to your desktop computer or server, this adapter converts the drive to fit into a 2.5" drive bay and connect to a U.2 (SFF-8639) compatible host interface Bullet 2 PCIe M.2 SSD TO 2.5" U.2 ADAPTER: Increase your system speed and performance cost-effectively, by adding an M.2 PCIe NVMe/AHCI SSD to your PC or server with data transfer speeds up to 7.8GBps when used with a PCIe Gen 4 slot/system Bullet 3 HASSLE-FREE SETUP: This M2 to U.2 adapter offers a fast and easy setup with native OS support Bullet 4 COMPATIBILITY: M.2 NVMe SSD converter adapter is backward compatible with earlier versions of PCIe NVMe drives and fits in standard 2.5" drive bays; Not compatible with SATA or SAS host controllers / Not compatible with M.2 SATA based SSD Bullet 5 STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This M.2 to U.2 adapter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support Bullets (Compact) Add the fast performance of an M.2 NVMe SSD to your computer or server through a U.2 (SFF-8639) compatible interface on your motherboard - M.2 to U.2 adapter supports one M.2 PCIe NVMe SSD (M-Key) - M.2 to U.2 (SFF-8639) adapter / M.2 drive adapter Bullets (Consolidated) Add the fast performance of an M.2 NVMe SSD to your desktop computer or server through a U.2 (SFF-8639)compatible interface on your motherboard and am open 2.5" drive bay - The M.2 to U.2 adapter supports one M.2 PCIe NVMe SSD (M-Key)and provides a cost-effective way to add M.2 NVMe performance - M.2 Drive to U.2 (SFF-8639)host adapter for M.2 NVMe SSDs - Fast and easy setup with native OS support - M.2 NVMe SSD adapter - U.2 (SFF-8639)host interface - NVME M.2 SSD Adapter - SFF-8639 Adapter Marketing Copy Marketing Copy (No HTML) Applications - Connect an M.2 NVMe SSD to your computer or server through an available U.2 (SFF-8639) slot to boost system speed and increase internal data storage
- Ideal for IT professionals, system integrators and installers, and enthusiasts who are building or upgrading a computer or server solution
- Get ultra-fast data access, ideal for high-performance workstations
Website Search Keyword - M.2 to U.2 Adapter
- M.2 Drive Adapter
- M.2 PCIe SSD Adapter
- NVME M.2 SSD Adapter
- SFF-8639 Adapter
- P970-U2M2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Accessory Products - PEX4SFF8639
- BRACKET125PT
- BRACKET225PT
Related Products - PEX4SFF8639
- PEX4SFF8643
- M2E4SFF8643
- PEX4M2E1
- SAT32M225
- SAT32MSAT257
- SAT2MSAT25
- SAT2M2NGFF25
- 25SAT22MSAT
- S32M2NGFFPEX
- 25S22M2NGFFR
- MSAT2SAT3
- CFAST2SAT25
- SAT32MSATPEX
- SAT32MSATM
Input Voltage 5V DC / 12V DC Output Voltage (V) 3.3V DC Color Red Humidity 15% - 90% RH Material Steel Max Drive Height (mm) 2280 Operating Temperature +5⁰C to +50⁰C (41°F to 122°F) Primary Material Steel Product Length (mm) 100 Product Width (mm) 70 Product Height (mm) 7 Product Weight (g) 36 Storage Temperature -25⁰C to +70⁰C (-13°F to 158°F) TAA Compliant Yes OS Compatibility OS Independent RAID No Bus Type PCI Express Compatible Drive Types M.2 (PCIe, AHCI, M-Key, NGFF) Fans Included? Yes/No No Interface/Bridge U.2 (SFF-8639; PCIe x4) Number of Drives 1 Supported Drive Height(s) - 2280
- 2260
- 2242

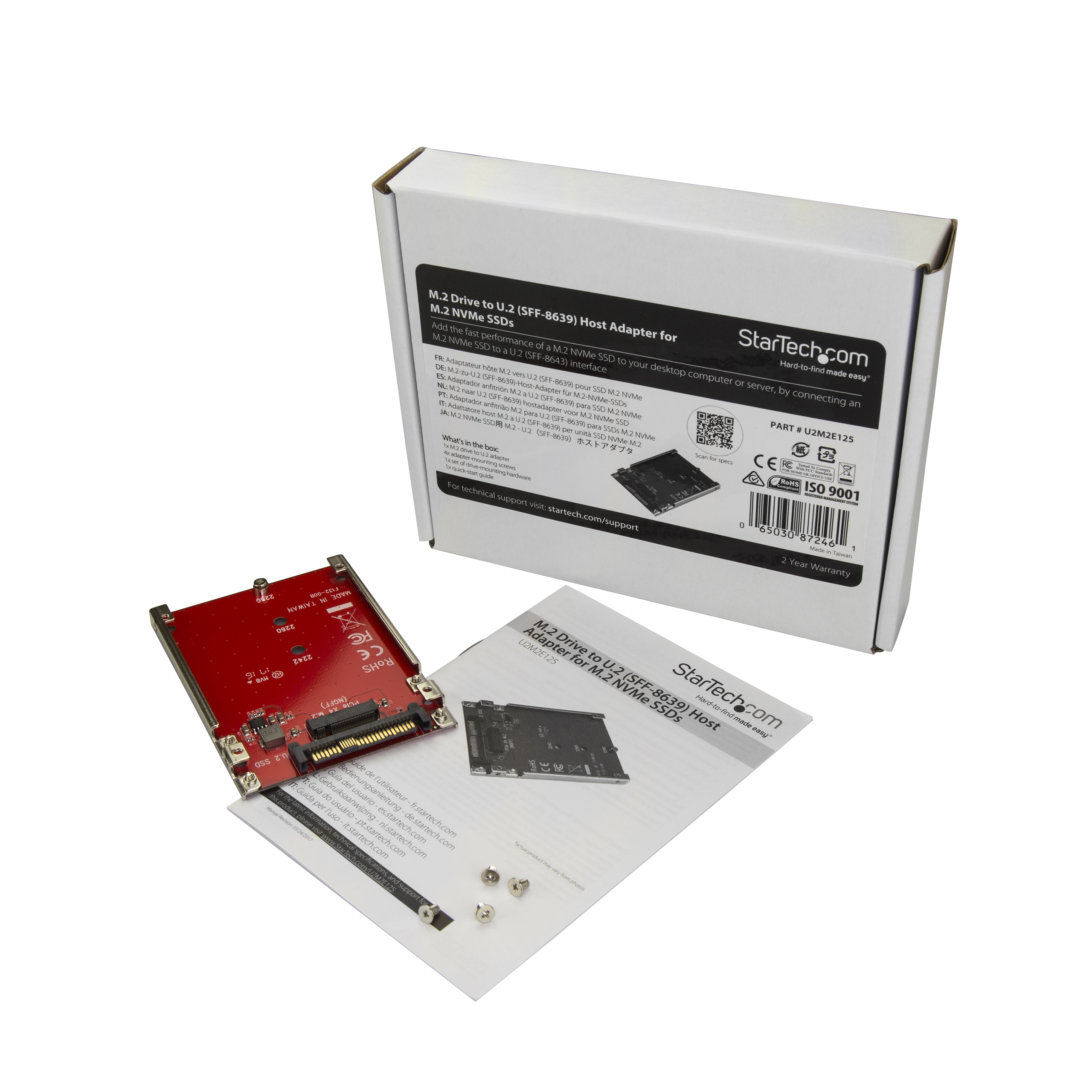

Carton Depth (mm) 501 Carton Height (mm) 324 Carton Quantity 60 Carton Weight Gross (g) 7074 Included in Package - 1 - M.2 drive to U.2 adapter
- 4 - adapter-mounting screws
- 1 - set of drive-mounting hardware
- 1 - quick-start guide
Included In Package for Label - 1 - M.2 drive to U.2 converter
- 4 - converter-mounting screws
- 1 - set of drive-mounting hardware
- 1 - quick-start guide
Package Depth (mm) 143 Package Height (mm) 33 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 116 Packaging Description M.2 to U.2 (SFF-8639) Host Adapter for M.2 NVMe SSDs Packaging Description India M.2 to U.2 (SFF-8639) Host Converter for M.2 NVMe SSDs Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 M.2 M-Key (PCIe, AHCI / NVMe) Connector 1 (Quantity) 1 Host Connector 1 U.2 (PCIe, AHCI / NVMe) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-03-24 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-06-21 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-02-17 Target Production Release 2017-03-24 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
