UCC-3M-10G-USB-CABLE

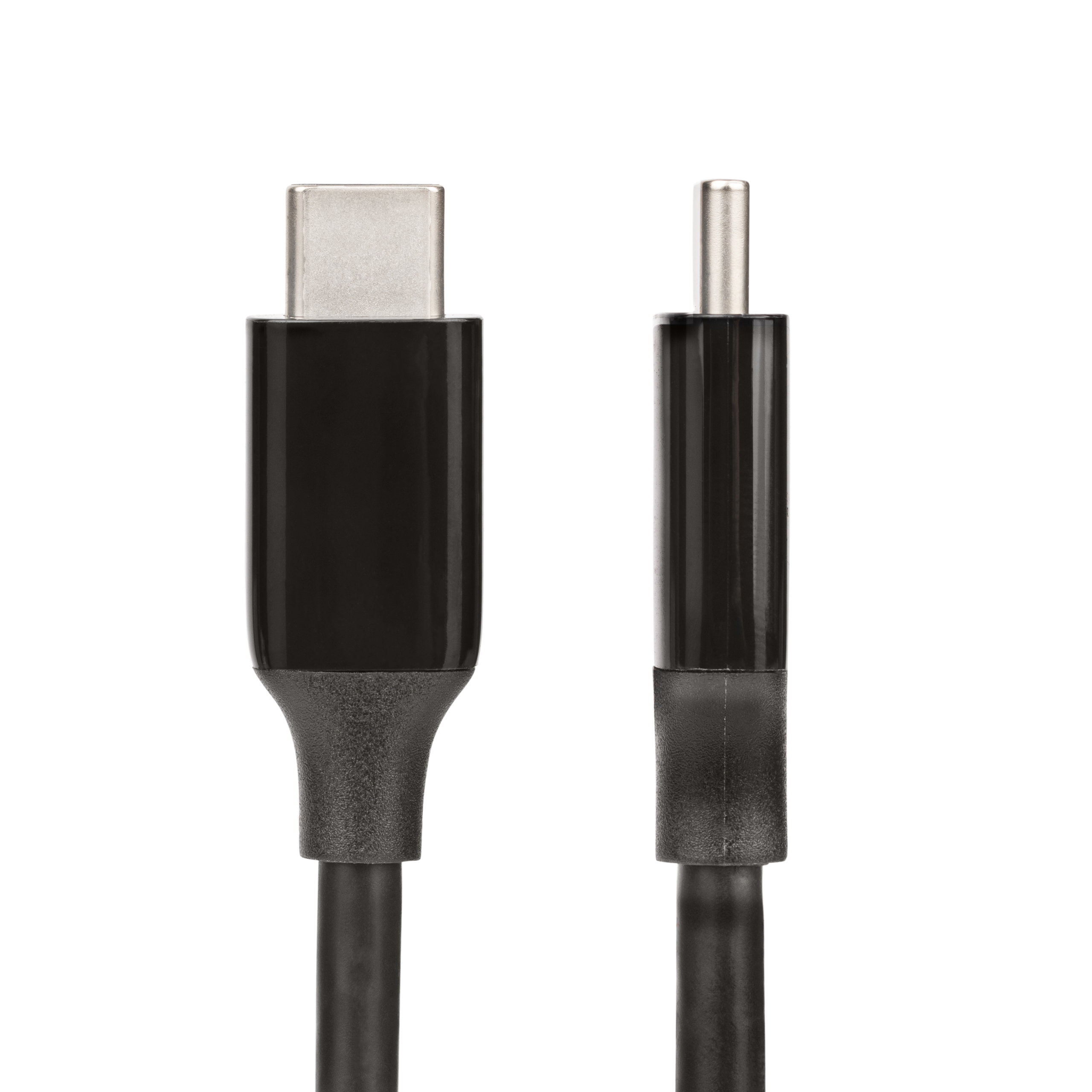

USB 3 2 Gen 2 C to C Bi Directional Active Cable 10 Gbps
Experience full-featured USB-C and 8K video at distances up to 3m using this active USB-C cable
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3 2 Gen 2 C to C Bi Directional Active Cable 10 Gbps Product Number UCC-3M-10G-USB-CABLE UPC 065030895842 Lifecycle status Active Warranty 2 Years Weighted Opportunity 56823 Taxonomy Product > Cables > USB & Thunderbolt Cables Category Level 1 USB and Thunderbolt Cables Category Level 2 USB-C Cables Category Level 3 USB-C Cables - 10Gbps Family USB 10Gbps Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) Active USB-C Cable Product Title (Short) 3m Active USB-C Cable, USB 3.2 10 Gbps Product Title (Medium) 3m (10ft) Active USB-C Cable, USB 3.2 10 Gbps, Long USB Type-C Cable, 60W, 8K60 Product Title (Standard) 10ft (3m) Active USB-C Cable, USB 10Gbps, 60W (3A) PD, 8K 60Hz/4K 144Hz DP Alt Mode, Long USB C Cord, Thunderbolt Compat. Product Title (Long) 10ft (3m) Active USB-C Cable, USB 10Gbps, 60W (3A) Power Delivery, 8K 60Hz / 4K 144Hz DP Alt Mode, Long USB C Cord - Thunderbolt Compatible Product Title (AMZ) 10ft (3m) Active USB-C Cable, USB 10Gbps, 60W (3A) PD, 8K 60Hz / 4K 144Hz DP Alt Mode, Thunderbolt Compatible Title Ingram (Part 1) 3m Active USB-C Cable, USB 3.2 Title Ingram (Part 2) 10 Gbps, 8K 60Hz, 60W PD Website Product Headline Experience full-featured USB-C and 8K video at distances up to 3m using this active USB-C cable Bullet 1 USB-C OVER LONGER DISTANCE: Integrated active re-timer chipset maintains signal integrity at distances of up to 9.8ft for seamless video performance and optimal transfer rates; Certified E-marker chip for Power Delivery output to USB-C devices Bullet 2 ACTIVE USB-C CABLE: 3m (9.8ft) Active USB-C cable supports bi-directional 10Gbps data, 8K video, and 60W Power Delivery beyond the length of passive cables; Ideal for USB-C monitors and devices, boardroom cameras, and connectivity in large workspaces Bullet 3 FULL-FEATURED USB-C: Supports up to 10 Gbps, 8K 60Hz, 4K 60/120/144Hz, 1440p 240Hz DP 1.4 Alt Mode, and Power Delivery 3.0; Universal compatibility w/USB-C; Backward compatible w/DP 1.2; Dock and charge a USB-C laptop over a single connection Bullet 4 DURABILITY AND BUILD QUALITY: Flexible PVC outer jacket improves durability and protects from wear; Aluminum-mylar shield with metal connector housing for enhanced EMI protection; Nickel-plated connectors rated beyond 10,000 insertion cycles Bullet 5 PERFORMANCE: USB 3.2 Gen 2 (10 Gbps); 8K 60Hz, 4K 60/120/144Hz, 1440p 240Hz w/DSC; DP 1.4 Alt Mode w/HBR3/HDR10/MST/DSC 1.2/HDCP 2.2; 60W PD 3.0; 9.8ft (3m); Black; 29AWG; 6.2mm O.D.; Compatible with USB-C laptops, mobile devices, and iPhone 15 / 15 Pro Bullets (Compact) Active USB-C cable w/re-timer chip supports USB 3.2 Gen 2 10Gbps, 8K 60Hz, and 60W Power Delivery 3.0 up to 9.8ft; Universal USB-C compatibility; DP 1.4 Alt Mode w/DSC 1.2/HBR3/HDR10/MST/HDCP 2.2; Backward compatible w/DP 1.3/1.2; Certified E-marker Bullets (Consolidated) - Active USB-C cable supports bi-directional USB 3.2 Gen 2 10Gbps 8K video and 60W Power Delivery 3.0 up to 9.8ft w/integrated re-timer chip - DP 1.4 Alt Mode supports 8K 60Hz / 4K 60Hz / [etc.] w/DSC 1.2/HBR3/HDR10/MST/HDCP 2.2; Backward compatible w/DP 1.3/1.2 - Universal compatibility w/USB-C; Certified E-marker chip for reliable PD output; Dock and charge a laptop over a single connection - Long USB-C cable is ideal for large UHD displays boardroom cameras and connectivity in larger workspaces Marketing Copy Marketing Copy (No HTML) Applications - Enable full-featured USB-C and 8K DP Alt Mode video to peripheral devices up to 3m away

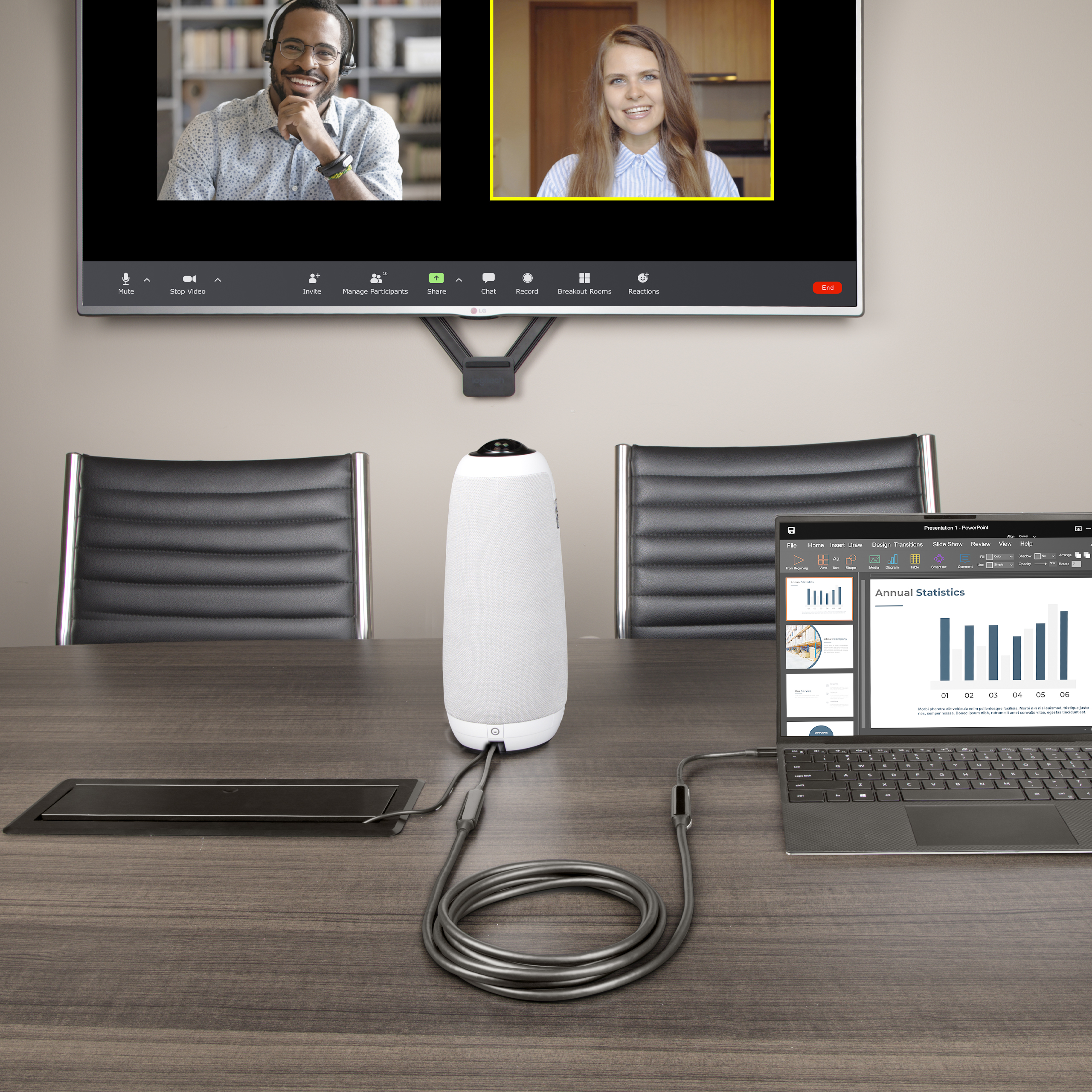

- Ideal for larger workstations, UHD displays, and boardrooms/conference rooms
Website Search Keyword - usb c to usb c cable
- usb c cable
- usb-c cable
- type c to c cable
- Active USB-C cable
- Active USB C cable
- long usbc to usbc cable
- usb c cable double ended
- c to c type fast charging cable
- usb c 10 ft cable
- 10ft usb c cable
- c to c cable
- type c to type c cable
- usbc to usbc charge cable
- usb c to usb c pd
- c to c cable 10ft
- usb c to c cable
- usb-c to usb-c cable
- ucc-3m-10g-usb-cable
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes USB 10Gbps is also known as SuperSpeed USB 10Gbps, USB 3.2 Gen 2, USB 3.1 Gen 2, and USB 3.1. Accessory Products - UDCMTRAY
- WKSTNCMFLX
- B506I-HOOK-LOOP-TIES
Related Products - USB31CCV1M
- USB315CCV2M
- USB31CCV50CM
- USB31C5C1M
Power Delivery 60W Cable Length (mm) 3000 Cable OD 6.2 Color Black Humidity 10% to 85% RH (non-condensing) Material ABS Operating Temperature 0°C to 45°C (32°F to 114°F) Product Length (mm) 3000.000 Product Width (mm) 15.000 Product Height (mm) 9.800 Product Weight (g) 194.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Wire Gauge 29 AWG Maximum Data Transfer Rate 10 Gbps Maximum Digital Resolutions 8K 60Hz OS Compatibility OS Independent Supported Protocols USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Video Support Yes Active or Passive Adapter Active Cable Jacket Material PVC Cable Shield Material Aluminum-Mylar Foil with Braid Chipset ID Connector Plating Nickel Connectors Combo USB-C to USB-C Host or Charger Connector USB-C Peripheral Connector USB-C Carton Depth (mm) 518 Carton Height (mm) 216 Carton Quantity 40 Carton Weight Gross (g) 9154 Included in Package 1 - USB-C Cable Included In Package for Label 1 - USB-C Cable Number of Sub-Cartons 4 Package Depth (mm) 198 Package Height (mm) 41 Package Width (mm) 148 Package Quantity 1 Package Weight (g) 198 Packaging Description 3m Active USB 3.2 Gen 2 C to C Cable Packaging Description India 3m Active USB 3.2 Gen 2 C to C Cable Sub-Carton Depth (mm) 341 Sub-Carton Height (mm) 139 Sub-Carton Width (mm) 203 Sub-Carton Quantity 10 Sub-Carton Weight (g) 2020 Connector 1 USB-C Dual-Role (10Gbps, 4.5W / 100W PD Input) Connector 1 (Quantity) 1 Connector 2 USB-C Dual-Role (10Gbps, 4.5W / 100W PD Input) Connector 2 (Quantity) 1 A+ Not Required Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2023-03-10 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment NA Comparable SKU 2 Comment NA Digital Content Due Date 2023-11-24 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology - DisplayPort 1.4
- USB-C
Priority New Product NA Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2023-03-03 Target Production Release 2023-06-15 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Latest Video Not Required
