UE1205CB
Main Image
Product Images
Product Images
Product Name Dongle-less 10/100 CardBus Ethernet Card Product Number UE1205CB UPC 065030794428 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX022X Product Title (Short) 1 Port PCMCIA Network Adapter Card Product Title (Standard) StarTech.com 1 Port CardBus PCMCIA 10/100 Mbps Fast Ethernet Network Adapter Card - Network adapter - CardBus - EN, Fast EN - 10Base-T, 100Base-TX Product Title (Long) 1 Port CardBus PCMCIA 10/100 Mbps Fast Ethernet Network Adapter Card Title Ingram (Part 1) 1 Port CardBus PCMCIA Fast Ether Title Ingram (Part 2) net Network Adapter Card Bullet 1 Complies with the 32-bit PCMCIA CardBus PC Card standard Bullet 2 Automatically negotiates 10 or 100 Mbps connection rate depending on the speed of the network Bullet 3 LEDs indicate link speed and activity Bullet 4 Ultra-low power consumption for longer notebook battery life Bullet 5 Supports 10 or 100 Mbps network speeds in full or half duplex Marketing Copy Applications - Connects your laptop to an Ethernet network at 10 or 100 Mbits/sec
- Lets connected systems share network resources, including Internet access, printers, scanners and more
Website Search Keyword PCMCIA Related Products UE1205 Operating Temperature 0 ~ 50 TAA Compliant No General Specifications - Standards: IEEE 802.3 & 802.3u, 32-bit PC Card
- Ports: One integrated shielded RJ-45 port
- LEDs: 10/100 Mbps link, Activity
- Operating Temperature: 0-50 degrees C
- Humidity: 10-90% non-condensing
- Max. operating distance: 100 m (328 ft.) hub to node
- Chipset: Realtek RTL8139/810X
Maximum Data Transfer Rate 100 Mbits/sec OS Compatibility - Windows 95
- Windows 98
- Windows NT
- Windows XP
Bus Type CardBus (PCMCIA) Industry Standards - IEEE 802.3
- IEEE 802.3u
LED Indicators - 1 - Link Speed
- 1 - Activity

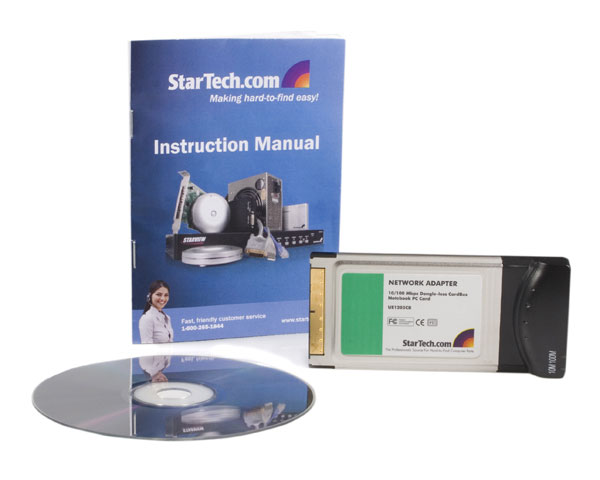

Carton Depth (mm) 460 Carton Height (mm) 340 Carton Quantity 40 Carton Weight Gross (g) 8800 Included in Package - 1 - Dongle-less 10/100 CardBus Ethernet Card
- 1 - Manual
- 1 - Driver CD
Package Depth (mm) 48 Package Height (mm) 146 Package Width (mm) 216 Package Weight (g) 190 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
