Main Image
UNI2510U2V
2.5in Tool-less USB IDE SATA HDD Enclosure
Turn a 2.5in IDE or SATA drive into an external USB2.0 hard drive
Main Image
Product Images
Product Images
BOM Image
Product Name 2.5in Tool-less USB IDE SATA HDD Enclosure Product Number UNI2510U2V UPC 065030837941 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Short) 2.5 Tool-less USB IDE SATA HDD Enclosure Product Title (Standard) 2.5 Tool-less USB to IDE SATA Hard Drive Enclosure Product Title (Long) 2.5in Tool-less USB 2.0 to IDE SATA External Hard Drive Enclosure Product Title (AMZ) 2.5in Tool-less USB 2.0 to IDE SATA External Hard Drive Enclosure - IDE Hard Drive Enclosure - 2.5 HDD Enclosure (UNI2510U2V) Title Ingram (Part 1) 2.5in Tool-less USB 2.0 to IDE S Title Ingram (Part 2) ATA Hard Drive Enclosure Website Product Headline Turn a 2.5in IDE or SATA drive into an external USB2.0 hard drive Bullet 1 Screwless/tool-less design for assembly Bullet 2 Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) and IDE 66/100 Mbps drives Bullet 3 Supports either SATA or IDE (PATA) drives Bullet 4 Power/Activity LED indicator Bullet 5 Powered directly from the USB port(s) Marketing Copy Applications - Technicians who work with and need to access a variety of different drives
- Add-on storage to almost any USB enabled system
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Backup data to an external storage device for archiving or freeing up space
- Turn an unused IDE (PATA) or SATA hard drive into additional external storage
Website Search Keyword - SATA
- IDE
- Universal
- 2.5in
- Laptop
- Notebook
- Portable
- Tool-less
- USB 2.0 HDD Enclosure
- External Case
Accessory Products - USB2HABM1
- USB2HABM10
- USB2HABM3
- USB2HABM6
- UUSBMUSBFM
- USB2HABMY1
- USB2HABMY3
- USB2HABMY6
Related Products - UNI3510U2
- UNI3510U2E
- UNI3510U2EB
- UNIDOCK2U
- UNIDUPDOCK
- SAT2510BU2
- SAT2510BU2B
- SAT2510BU2E
- SAT2510SCB
- SAT2510U2
- SAT2510U2E
- SAT2510U2F
- SAT2510U2REM
- SAT2510U2S
- SAT2520U2ER
- IDE2510U2

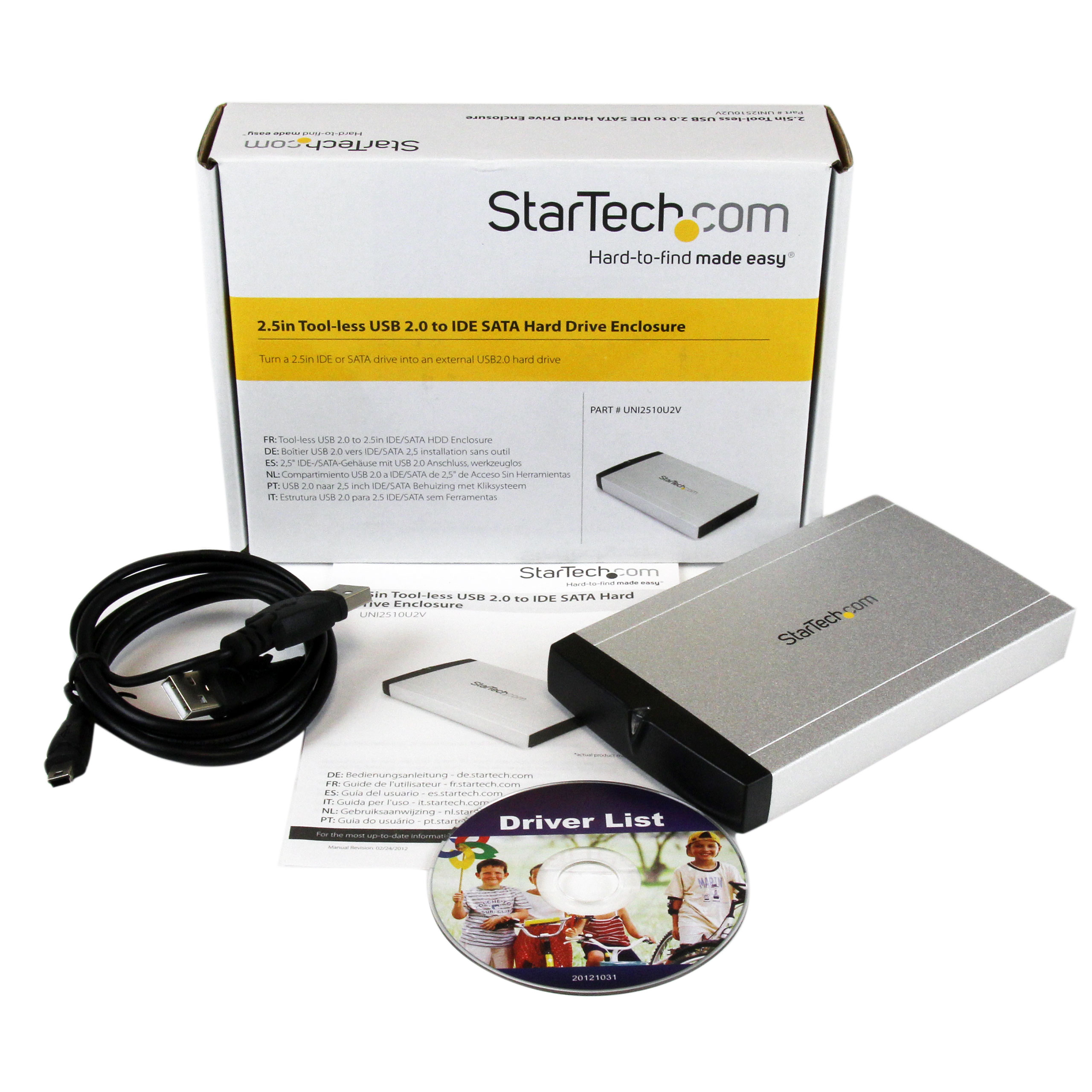

Replacement Product UNI251BMU33 Color Black & Silver Humidity 0~90% RH Material Aluminum and Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 133 Product Width (mm) 78 Product Height (mm) 19 Product Weight (g) 130 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives OS Compatibility OS Independent RAID No UASP Support No USB Type and Rate USB 2.0 (480Mbps) Chipset ID JMicron - JM20337 Compatible Drive Types SATA & IDE Fans Included? Yes/No No Interface/Bridge USB 2.0 LED Indicators 1 - Blue (Solid - Power, Blinking - Activity) Number of Drives 1 Carton Depth (mm) 531 Carton Height (mm) 332 Carton Quantity 75 Carton Weight Gross (g) 19950 Included in Package - 1 - 2.5in HDD Enclosure
- 1 - USB mini-B Y cable
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 42 Package Height (mm) 133 Package Width (mm) 173 Package Weight (g) 250 Packaging Description Tool-less USB to 2.5 IDE/SATA Enclosure Packaging Description India Tool-less USB to 2.5 IDE/SATA Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Connector 2 IDE / PATA 2.5in (ATA/133, Power) Connector 2 (Quantity) 1 Host Connector 1 USB Mini-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
